Teensy 3.2 + header
PRODUCT ID: 2756
Description

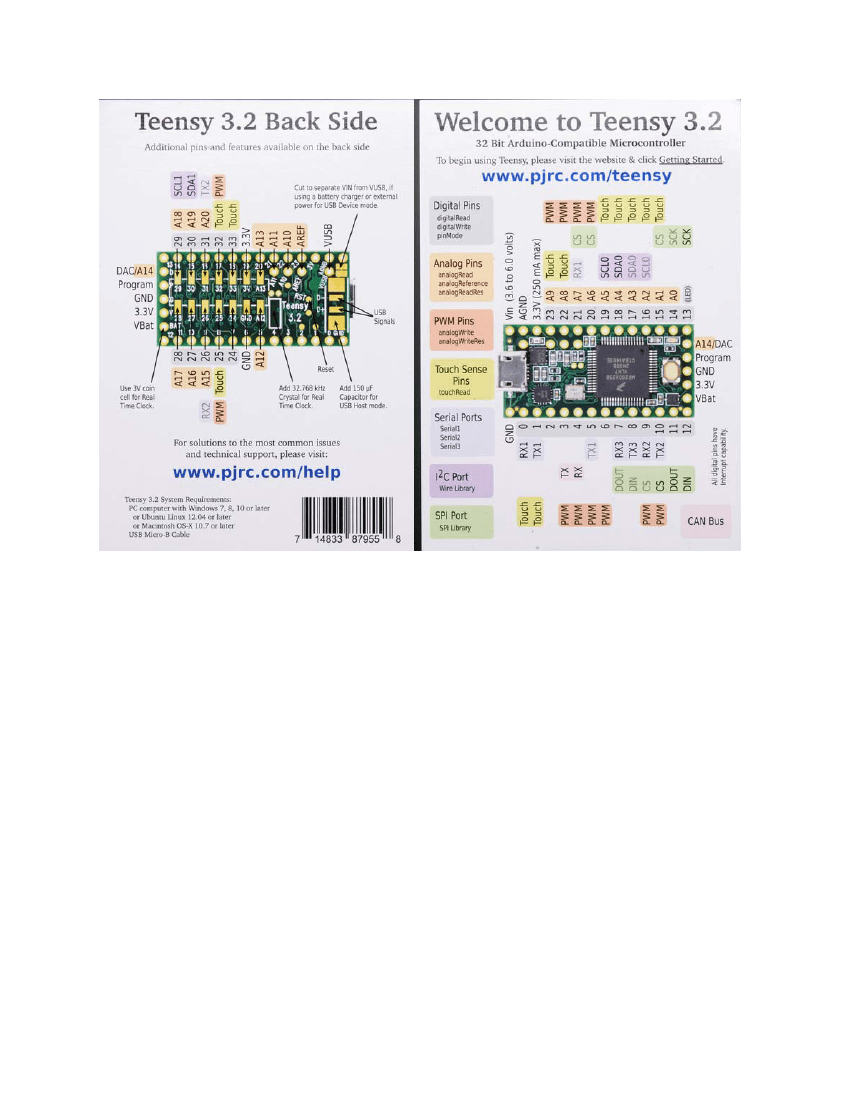

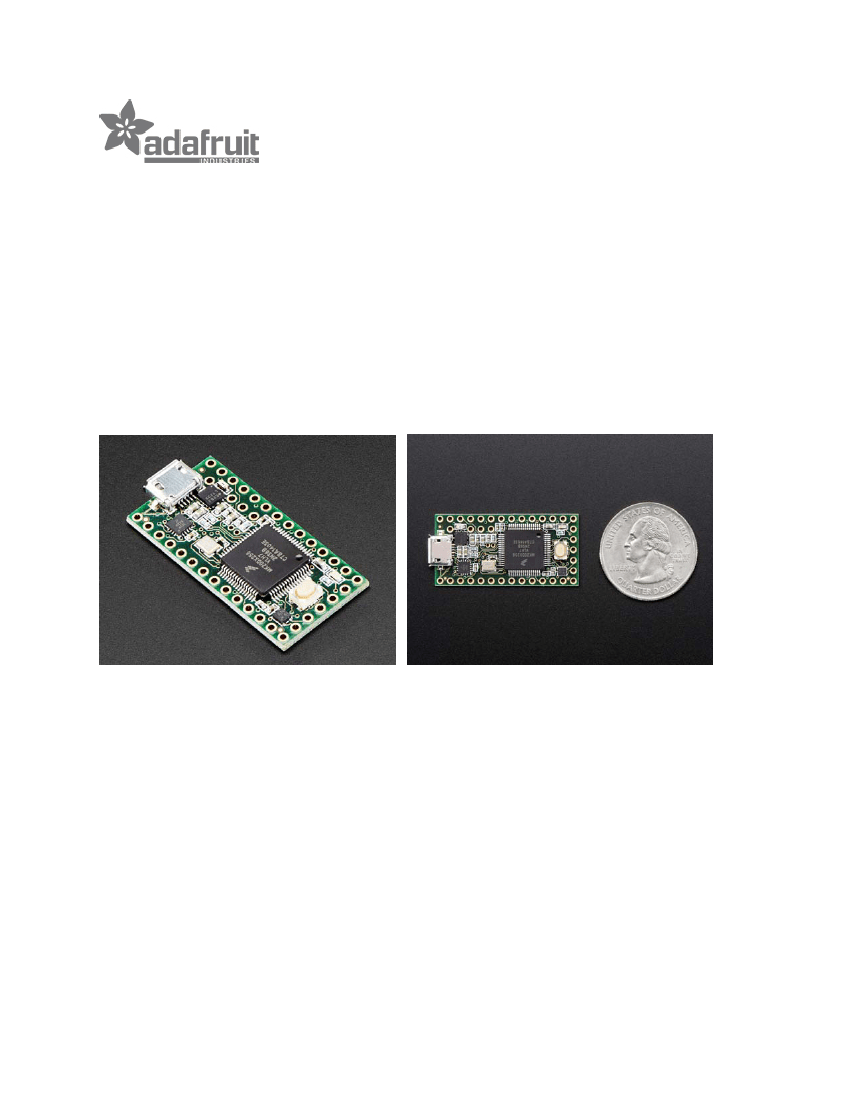

Teensy 3.2 is a small, breadboard‐friendly development board designed by Paul Stoffregen and PJRC.
Teensy 3.2 brings a low‐cost 32 bit ARM Cortex‐M4 platform to hobbyists, students and engineers,
using an adapted version of the Arduino IDE (Teensyduino) or programming directly in C language.
Teensy 3.2 is an upgrade over 3.1! Teensy 3.2 is a drop‐in replacement upgrade for 3.1 and can run any
sketches designed for 3.1.
This latest version of this complete USB‐based microcontoller development system now adds a more
powerful 3.3V regulator, as well as accepts a wider voltage input range. This board has the same size,
shape and pinout as well as full compatibility with all shields and add‐on boards made for the Teensy
3.1, plus double the Flash memory as the Teensy 3.0.
Let's get started!
Please note: Teensy 3 and 2 are not official Arduino‐brand products. Although the Teensyduino IDE has
been adapted so that many simple Arduino projects will work with the Teensy, there will still be a lot of
libraries and shields that will not work with this device! If you're new to microcontrollers, we suggest
going with a classic Arduino UNO since all Arduino projects, examples and libraries will work with it.
Once headers are installed they can be fitted into 0.6" wide sockets
Technical Specifications:
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
32 bit ARM Cortex‐M4 72MHz CPU (M4 = DSP extensions) Here is Freescale's reference
manual for the chip (warning 1227 pages) as well as the Datasheet and User Guide!
http://cache.freescale.com/files/32bit/doc/ref_manual/K20P64M50SF0RM.pdf
http://cache.freescale.com/files/32bit/doc/data_sheet/K20P64M50SF0.pdf
http://cache.freescale.com/files/32bit/doc/quick_ref_guide/KQRUG.pdf
256K Flash Memory, 64K RAM, 2K EEPROM
21* High Resolution Analog Inputs (13 bits usable, 16 bit hardware)
34* Digital I/O Pins (21 shared with analog)
12 PWM outputs
1 12‐bit DAC output
8 Timers for intervals/delays, separate from PWM
USB with dedicated DMA memory transfers
CAN bus
3 UARTs (serial ports)
SPI, I2C, I2S, IR modulator
I2S (for high quality audio interface)
Real Time Clock (with user‐added 32.768 crystal and battery)
16 general purpose DMA channels (separate from USB)
Touch Sensor Inputs
Technical Details
o
o
Dimensions: 18mm x 37mm x 4mm / 1.4" x 0.7"
Teensy 3 schematic https://cdn‐shop.adafruit.com/product‐files/2756/2756+schem.gif
