HMC591LP5 / 591LP5E
v02.0107
GaAs PHEMT MMIC 2 WATT
POWER AMPLIFIER, 6.0 - 9.5 GHz
Typical Applications
The HMC591LP5 / HMC591LP5E is ideal for use as a
power amplifier for:
• Point-to-Point Radios
• Point-to-Multi-Point Radios
Features
Saturated Output Power: +33 dBm @ 20% PAE
Output IP3: +41 dBm
Gain: 18 dB
DC Supply: +7.V @ 1340 mA
50 Ohm Matched Input/Output
QFN Leadless SMT Packages, 25 mm
2
11
LINEAR & POWER AMPLIFIERS - SMT
• Test Equipment & Sensors
• Military End-Use
• Space

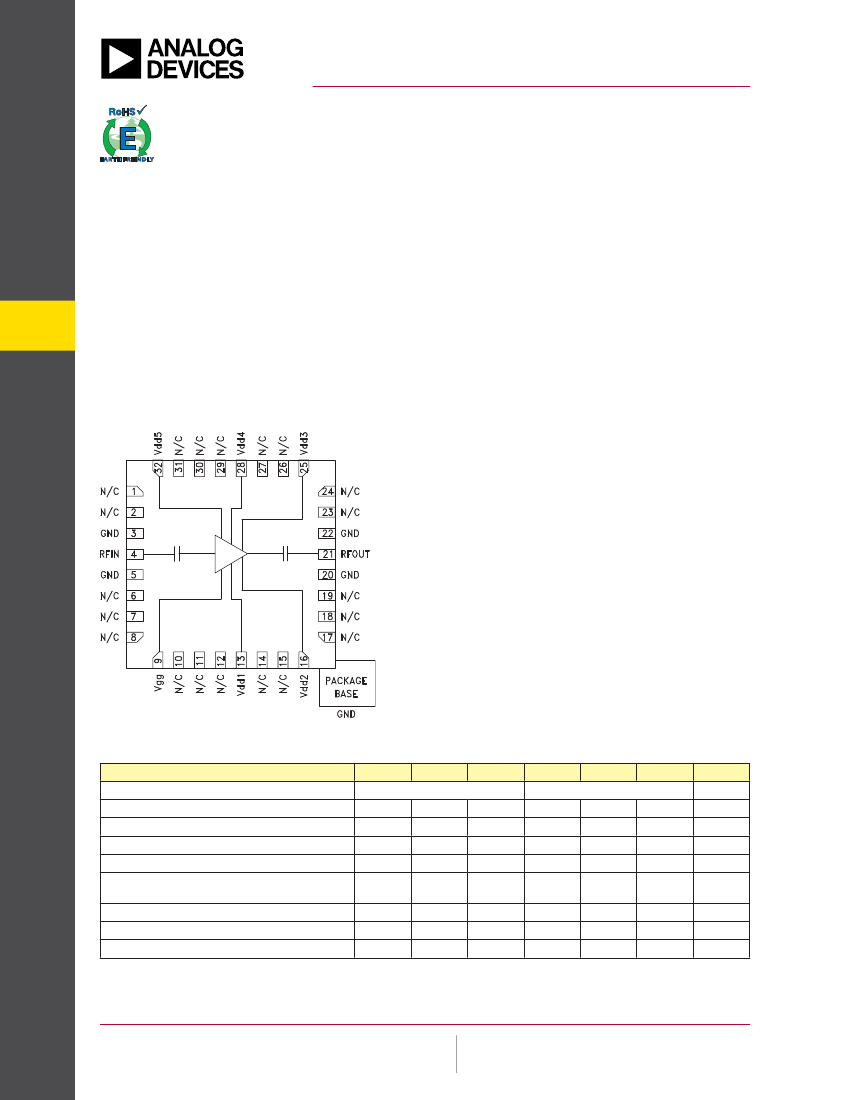

Functional Diagram
General Description
The HMC591LP5 & HMC591LP5E are high dynamic
range GaAs PHEMT MMIC 2 Watt Power Amplifiers
which operate from 6 to 9.5 GHz. The amplifier
provides 18 dB of gain, +33 dBm of saturated power,
and 19% PAE from a +7V supply. This 50 Ohm mat-
ched amplifier does not require any external
components and the RF I/Os are DC blocked for
robust operation. For applications which require
optimum OIP3, Idd should be set for 940 mA, to
yield +41 dBm OIP3. For applications which require
optimum output P1dB, Idd should be set for 1340 mA,
to yield +33 dBm Output P1dB.
Electrical Specifi cations,
T
A
= +25° C, Vdd = +7V, Idd = 1340 mA
[1]
Parameter
Frequency Range
Gain
Gain Variation Over Temperature
Input Return Loss
Output Return Loss
Output Power for 1 dB
Compression (P1dB)
Saturated Output Power (Psat)
Output Third Order Intercept (IP3)
Supply Current (Idd)
[1] Adjust Vgg between -2 to 0V to achieve Idd= 1340 mA typical.
[2] Measurement taken at 7V @ 940mA, Pin/Tone = -15 dBm
[2]
Min.
Typ.
6-8
Max.
Min.
Typ.
6 - 9.5
Max.
Units
GHz
dB
dB/ °C
dB
dB
dBm
dBm
dBm
mA
16
19
0.05
14
12
15
18
0.05
12
10
30
32
32.5
41
1340
30
33
33
41
1340
11 - 302
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
HMC591LP5 / 591LP5E
v02.0107
GaAs PHEMT MMIC 2 WATT
POWER AMPLIFIER, 6.0 - 9.5 GHz

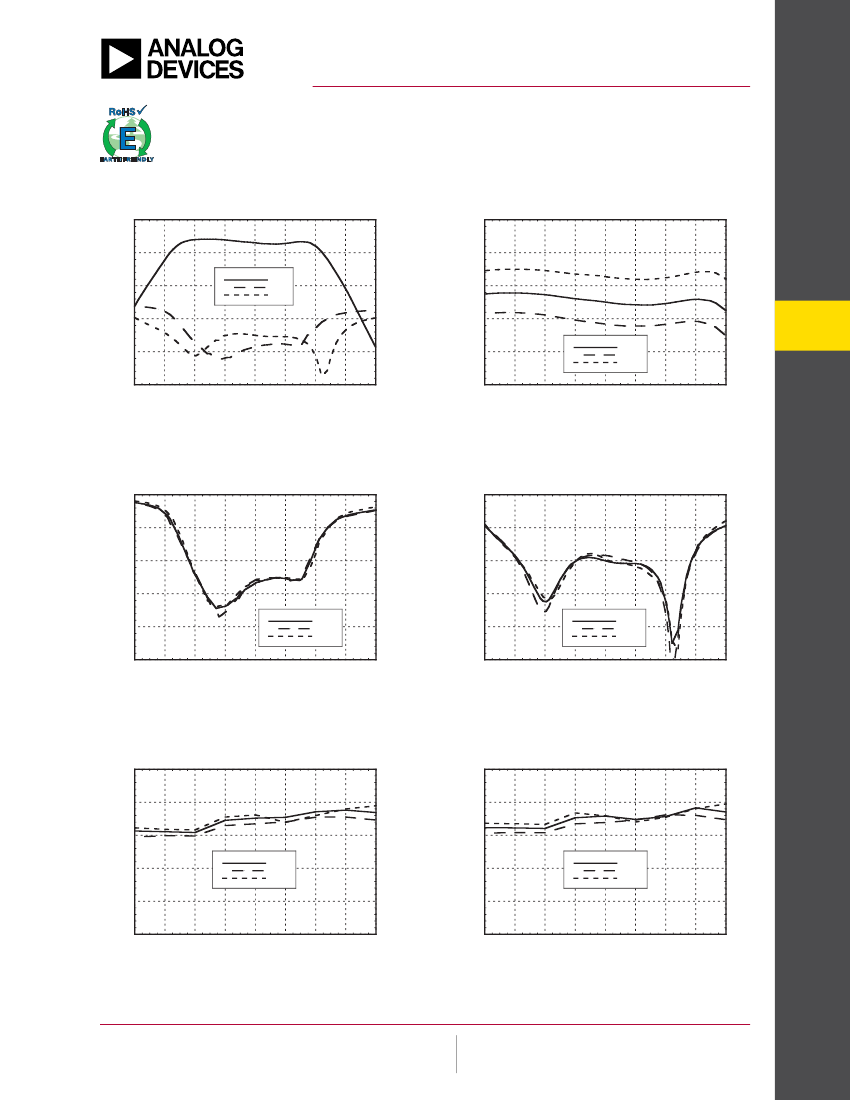

Broadband Gain & Return Loss
25
Gain vs. Temperature
28
15
RESPONSE (dB)
S21
S11
S22
24
5
GAIN (dB)
20
-5
16
+25C
+85C
-40C
11
9
9.5
10
-15
12
-25
4
5
6
7
8
9
10
11
12
FREQUENCY (GHz)
8
6
6.5
7
7.5
8
8.5
FREQUENCY (GHz)
Input Return Loss vs. Temperature
0
Output Return Loss vs. Temperature
0
-5
RETURN LOSS (dB)
RETURN LOSS (dB)
-5
-10
-10
-15
+25C
+85C
-40C
-15
+25C
+85C
-40C
-20
-20
-25
4
5
6
7
8
9
10
11
12
FREQUENCY (GHz)
-25
4
5
6
7
8
9
10
11
12
FREQUENCY (GHz)
P1dB vs. Temperature
36
Psat vs. Temperature
36
34
P1dB (dBm)
34
32
+25C
+85C
-40C
Psat (dBm)
32
+25C
+85C
-40C
30
30
28
28
26
6
6.5
7
7.5
8
8.5
9
9.5
10
FREQUENCY (GHz)
26
6
6.5
7
7.5
8
8.5
9
9.5
10
FREQUENCY (GHz)
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
11 - 303
LINEAR & POWER AMPLIFIERS - SMT
HMC591LP5 / 591LP5E
v02.0107
GaAs PHEMT MMIC 2 WATT
POWER AMPLIFIER, 6.0 - 9.5 GHz

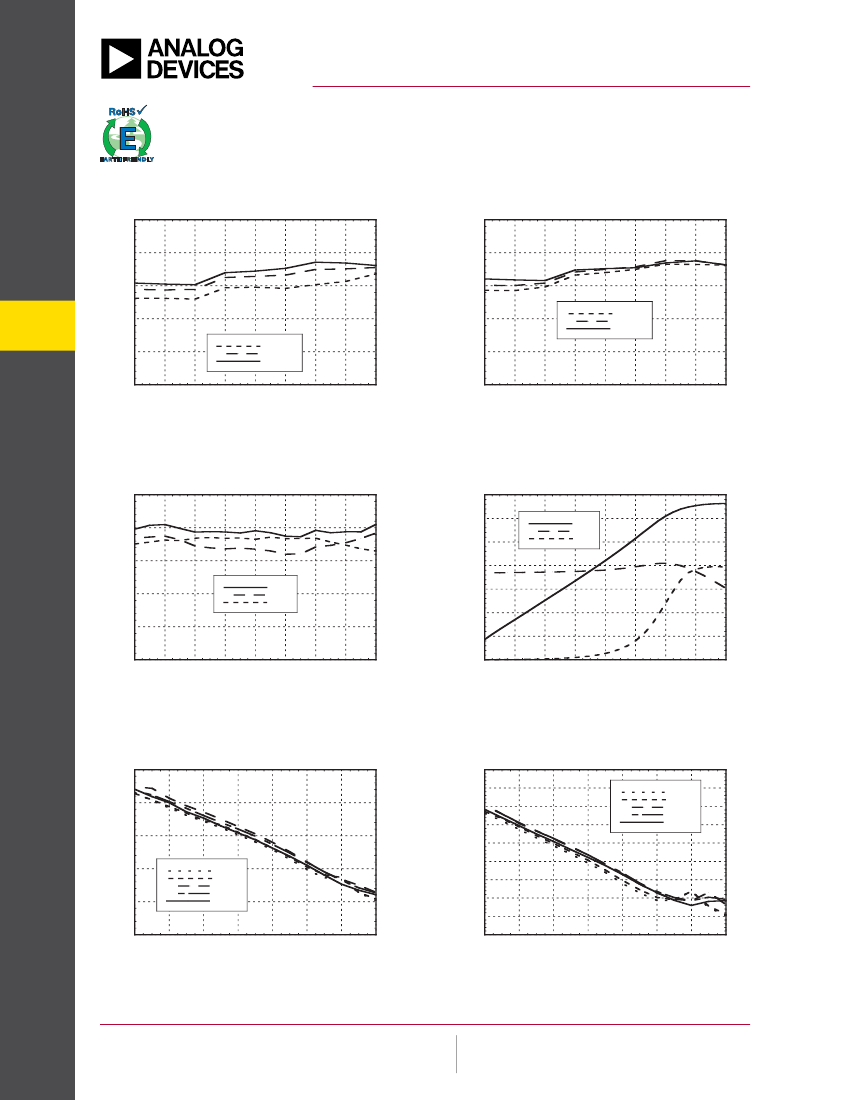

P1dB vs. Current
36
Psat vs. Current
36
34
P1dB (dBm)
34
32
Psat (dBm)
32
940 mA
1140 mA
1340 mA
11
LINEAR & POWER AMPLIFIERS - SMT
30
940 mA
1140 mA
1340 mA
30
28
28
26
6
6.5
7
7.5
8
8.5
9
9.5
10
FREQUENCY (GHz)
26
6
6.5
7
7.5
8
8.5
9
9.5
10
FREQUENCY (GHz)
Output IP3 vs. Temperature
7V @ 940 mA, Pin/Tone = -15 dBm
46
Power Compression @ 8 GHz,
7V @ 1340 mA
35
Pout(dBm), GAIN (dB), PAE(%)
30
25
20
15
10
5
0
-14
Pout
Gain
PAE
42
IP3 (dBm)
38
+25C
+85C
-40C
34
30
26
6
6.5
7
7.5
8
8.5
9
9.5
10
FREQUENCY (GHz)
-10
-6
-2
2
6
10
14
18
INPUT POWER (dBm)
Output IM3, 7V @ 940 mA
100
Output IM3, 7V @ 1340 mA
100
90
6 GHz
7 GHz
8 GHz
9 GHz
10 GHz
80
80
70
IM3 (dBc)
IM3 (dBc)
60
60
50
40
30
20
40
20
6 GHz
7 GHz
8 GHz
9 GHz
10 GHz
0
-20
-16
-12
-8
-4
0
4
8
10
-20
-16
-12
-8
-4
0
4
8
Pin/Tone (dBm)
Pin/Tone (dBm)
11 - 304
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
HMC591LP5 / 591LP5E
v02.0107
GaAs PHEMT MMIC 2 WATT
POWER AMPLIFIER, 6.0 - 9.5 GHz

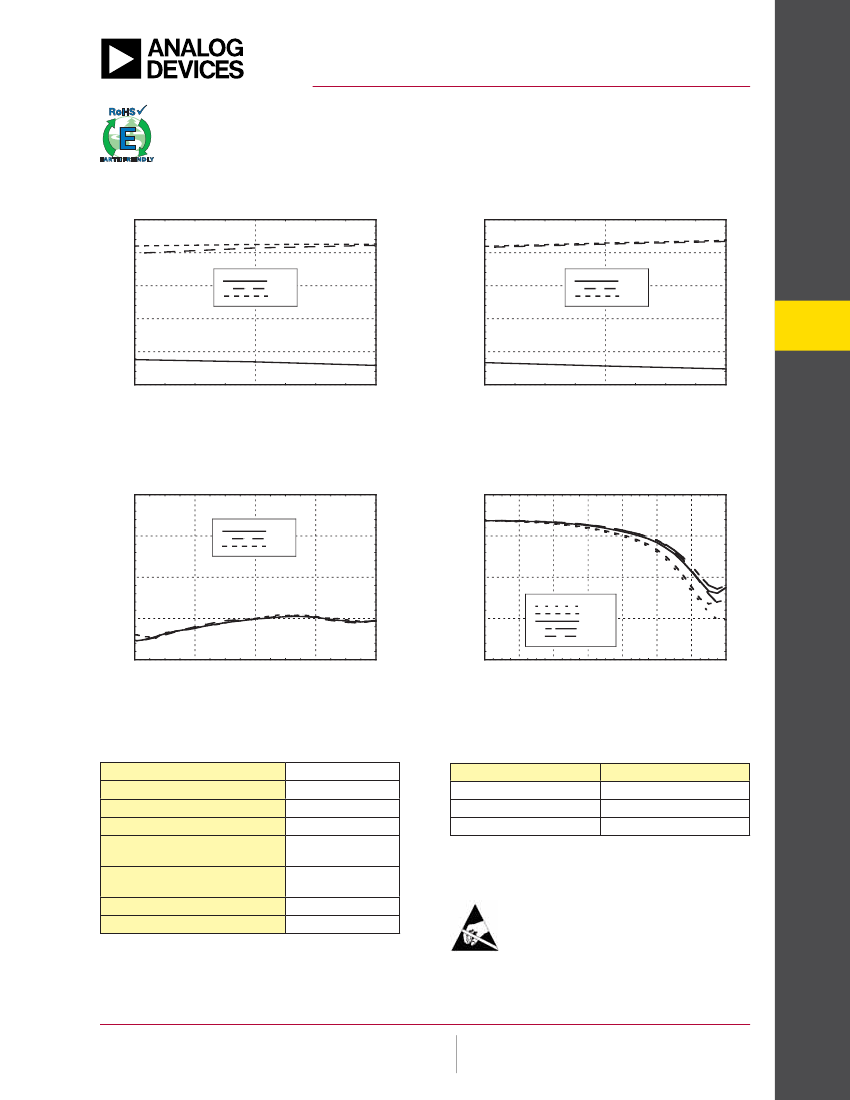

Gain & Power vs. Supply Current @ 8 GHz
36
GAIN (dB), P1dB (dBm), Psat(dBm)
Gain & Power vs. Supply Voltage @ 8 GHz
36
GAIN (dB), P1dB (dBm), Psat(dBm)
32
Gain
P1dB
Psat
32
Gain
P1dB
Psat
28
28
24
24
20
20
11
7
Vdd SUPPLY VOLTAGE (Vdc)
7.5
16
940
1140
Idd SUPPLY CURRENT (mA)
1340
16
6.5
Reverse Isolation
vs. Temperature, 7V @ 1340 mA
0
Power Dissipation
10
-20
ISOLATION (dB)
+25C
+85C
-40C
9
-40
8
-60
7
6 GHz
7 GHz
8 GHz
9 GHz
10 GHz
-80
6
7
8
FREQUENCY (GHz)
9
10
6
-14
-10
-6
-2
2
6
10
14
INPUT POWER (dBm)
Absolute Maximum Ratings
Drain Bias Voltage (Vdd)
Gate Bias Voltage (Vgg)
RF Input Power (RFIN)(Vdd = +7.0 Vdc)
Channel Temperature
Continuous Pdiss (T= 75 °C)
(derate 104.3 mW/°C above 75 °C)
Thermal Resistance
(channel to package bottom)
Storage Temperature
Operating Temperature
+8 Vdc
-2.0 to 0 Vdc
+15 dBm
175 °C
10.43 W
9.59 °C/W
-65 to +150 °C
-40 to +85 °C
Typical Supply Current vs. Vdd
Vdd (V)
+6.5
+7.0
+7.5
Idd (mA)
1350
1340
1330
Note: Amplifi er will operate over full voltage ranges shown
above Vgg adjusted to achieve Idd = 1340 mA at +7.0V
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
11 - 305
LINEAR & POWER AMPLIFIERS - SMT
POWER DISSIPATION (W)
HMC591LP5 / 591LP5E
v02.0107
GaAs PHEMT MMIC 2 WATT
POWER AMPLIFIER, 6.0 - 9.5 GHz

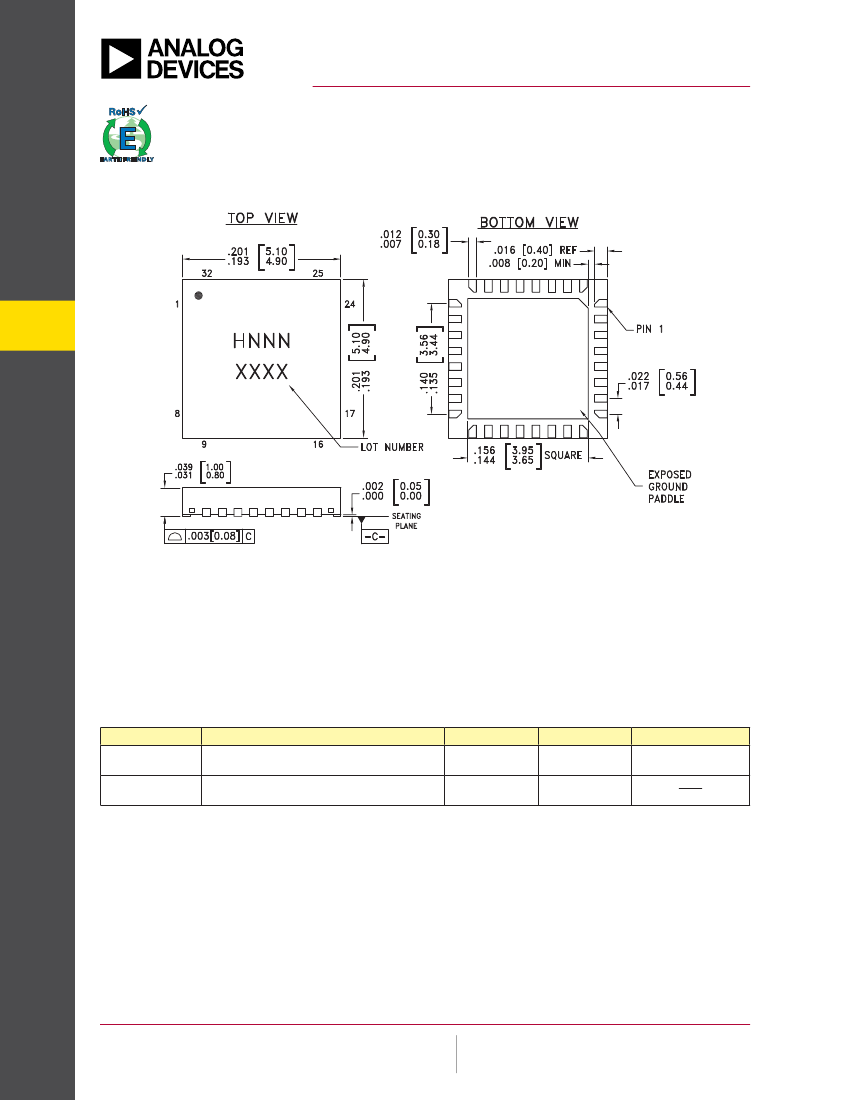

Outline Drawing
11
LINEAR & POWER AMPLIFIERS - SMT
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS]
3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE
4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM.
PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM.
5. PACKAGE WARP SHALL NOT EXCEED 0.05mm.
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE
SOLDERED TO PCB RF GROUND.
7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED
LAND PATTERN.
Package Information
Part Number
HMC591LP5
HMC591LP5E
Package Body Material
Low Stress Injection Molded Plastic
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
Sn/Pb Solder
100% matte Sn
MSL Rating
MSL1
MSL1
[1]
Package Marking
[3]
H591
XXXX
H591
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
11 - 306
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
