Overview
For those who want to take it to
the next level
we now have a 3G Cellular Modem breakout! The FONA 3G has better
coverage, GSM backwards-compatibility and even sports a built-in GPS module for geolocation & asset tracking. This
all-in-one cellular phone module with that lets you add location-tracking, voice, text, SMS and data to your project in a
single breakout.
© Adafruit Industries
https://learn.adafruit.com/adafruit-fona-3g-cellular-gps-breakout
Page 4 of 46

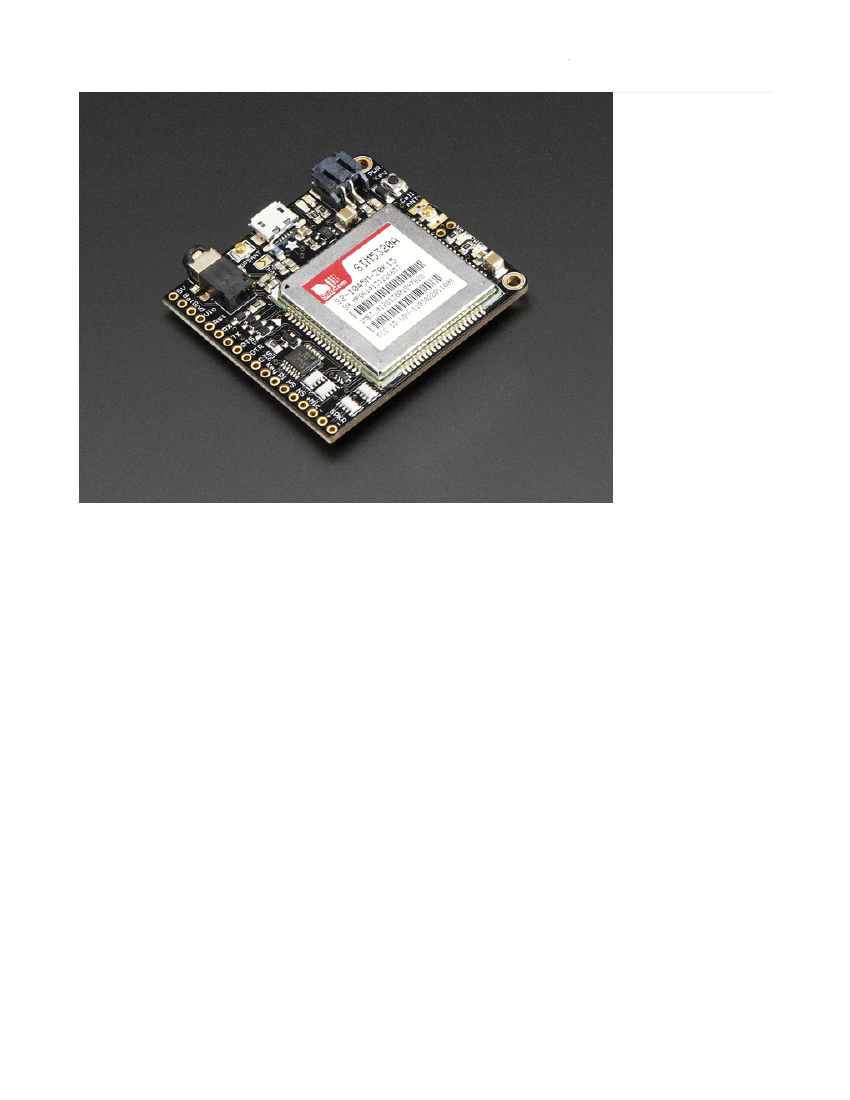

This module measure only 1.75"x1.6" but packs a surprising amount of technology into it's little frame. At the heart is a
powerfull GSM cellular module (we use the latest SIM5320) with integrated GPS. This module can do just about
everything
Quad-band 850MHz GSM, 900MHz EGSM, 1800MHz DCS, 1900MHz PCs - connect onto any global GSM
network with any 2G SIM.
American Version dual-band UMTS/HSDPA 850/1900MHz WCDMA + HSDPA
European Version dual-band UMTS/HSDPA 900/2100MHz WCDMA + HSDPA
Fully-integrated GPS (Qualcomm PM8015 GPS) that can be controlled and query over the same serial port
Make and receive voice calls using a headset or an external 8Ω speaker + electret microphone
Send and receive SMS messages
Send and receive GPRS data (TCP/IP, HTTP, etc.)
AT command interface can be used with 300, 600, 1200, 4800, 9600, 19200, 39400, 57600, 115200, 230K,
461K, 961K, 3.2M, 3.7M and 4.0Mbps
Native USB support - plug it into a computer and you'll get serial ports for AT commands, GPS NMEA as well as a
modem (note we've only tried out the AT&NMEA ports on Windows)
