SCALE Driver
2SD315AI UL Data Sheet

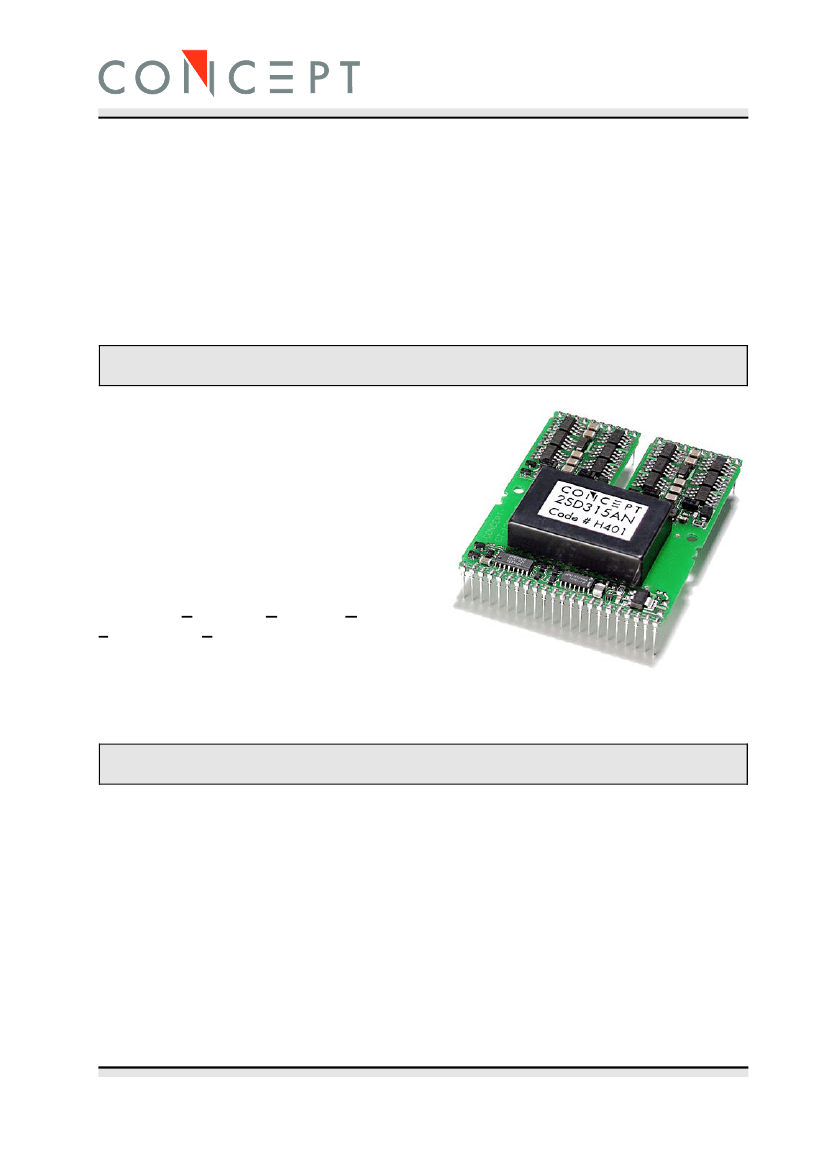

2SD315AI UL Dual SCALE Driver Core
for IGBTs and Power MOSFETs
Description
The SCALE drivers from CONCEPT are
based on a chip set that was
developed specifically for the reliable
driving and safe operation of IGBTs
and power MOSFETs.
The name “SCALE” is an acronym for the
most outstanding properties of the SCALE
series of drivers:
SCALE
=
Scaleable, Compact, All
purpose,
Low
cost and
Easy
to use.
The SCALE driver is a winning project of the
competition organized by “Technology Center
Switzerland 1998”. And ABB Switzerland AG honored the development of the SCALE
driver by distinguishing it as the “best power electronics project in 1998”.
Product Highlights
Applications
[
Suitable for 1200V and 1700V IGBTs
[
Short circuit and overcurrent protection
[
Extremely reliable, long service life
[
High gate current of
±15A
[
Electrical isolation of 4000V
[
Electrically isolated status acknowledgement
[
Monitoring of power supply and self-monitoring
[
Switching frequency DC to >100kHz
[
Duty cycle: 0... 100%
[
High dv/dt immunity, guaranteed >100,000V/µs
[
Complete with DC/DC converter
[
UL compliant
AC
[
Inverters
[
Motor drive technology
[
Traction
[
Railroad power supplies
[
Converters
[
Power engineering
[
Switched-mode power supplies
[
Radiology and laser technology
[
DC/DC converter
[
Research
[
RF generators and converters
Page 1
IGBT-Driver.com

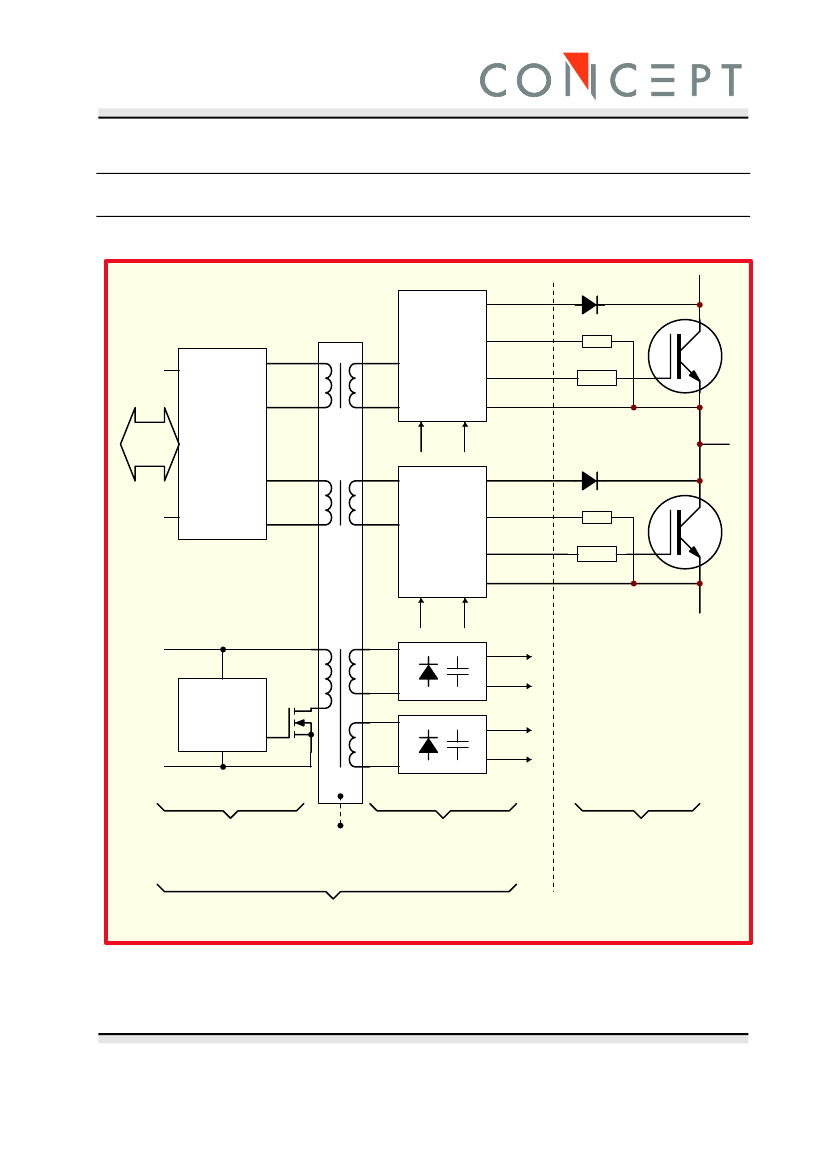

SCALE Driver
2SD315AI UL Data Sheet
Pin Designation
Pin Des.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
VDD
VDD
SO1
VL
RC1
InB
RC2
MOD
SO2
InA
GND
GND
VDC
VDC
VDC
VDC
VDC
GND(dc)
GND(dc)
GND(dc)
GND(dc)
GND(dc)
Function
+15V for electronic input side
+15V for electronic input side
Status output channel 1
Logic level/Reset
RC network dead-time channel 1
Input B
RC network dead-time channel 2
Mode input
Status output channel 2
Input A
GND for electronic input side
GND for electronic input side
+15V for DC/DC converter
+15V for DC/DC converter
+15V for DC/DC converter
+15V for DC/DC converter
+15V for DC/DC converter
Ground DC/DC converter
Ground DC/DC converter
Ground DC/DC converter
Ground DC/DC converter
Ground DC/DC converter
Pin Des.
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
G1
G1
COM1
COM1
Viso1
E1
E1
Rth1
C1
LS1
Function
Gate channel 1
Gate channel 1
Virtual common channel 1
Virtual common channel 1
Blocking capacitor channel 1
Emitter channel 1
Emitter channel 1
Reference resistor channel 1
Collector sense channel 1
Local status channel 1
Free
Free
Gate channel 2
Gate channel 2
Virtual common channel 2
Virtual common channel 2
Blocking capacitor channel 2
Emitter channel 2
Emitter channel 2
Reference resistor channel 2
Collector sense channel 2
Local status channel 2
G2
G2
COM2
COM2
Viso2
E2
E2
Rth2
C2
LS2
Legend:
Pins with the designation “Free” are not physically present.
PCB Layout / Mechanical Dimensions
Details of the circuit board layout
Grid of the aspect drawing on page 4 below: 1.27mm (50mil)
Recommended diameter of solder pad: Ø 1.6mm
Recommended diameter of drill holes: Ø 1.0mm
IGBT-Driver.com
Page 3
