i.MX applications
processors
Evaluation Kit Based on i.MX 6UltraLite
NXP delivers the next installment in a line of highly flexible, market-focused development
tools with an evaluation kit (EVK) based on the i.MX 6UltraLite applications processor.
The i.MX 6UltraLite processor is the first device in the
i.MX product line to have a single ARM
®
Cortex
®
-A7 core
operating at speeds of up to 696 MHz. This EVK enables an
LCD display and audio playback as well as many connectivity
options. It is designed to showcase the most commonly used
features of the processor in a small, low-cost package and
to facilitate software development with the ultimate goal
of faster time-to-market through the support of the Linux
®
operating system. A footprint is also available to enable an
HDMI display.
EFFICIENT PERFORMANCE WITH LOW POWER
AT A LOW BOM COST
Leveraging the energy efficiency of the Cortex-A7 core,
the i.MX 6UltraLite is the smallest and most energy-efficient
ARM-based processor, providing maximum performance in
low-power, space constrained embedded environments.
The board is powered by discrete power circuitry consisting
of three DC to DC converters and one low dropout
(LDO) regulator.
i.MX 6UltraLite EVK System Contents

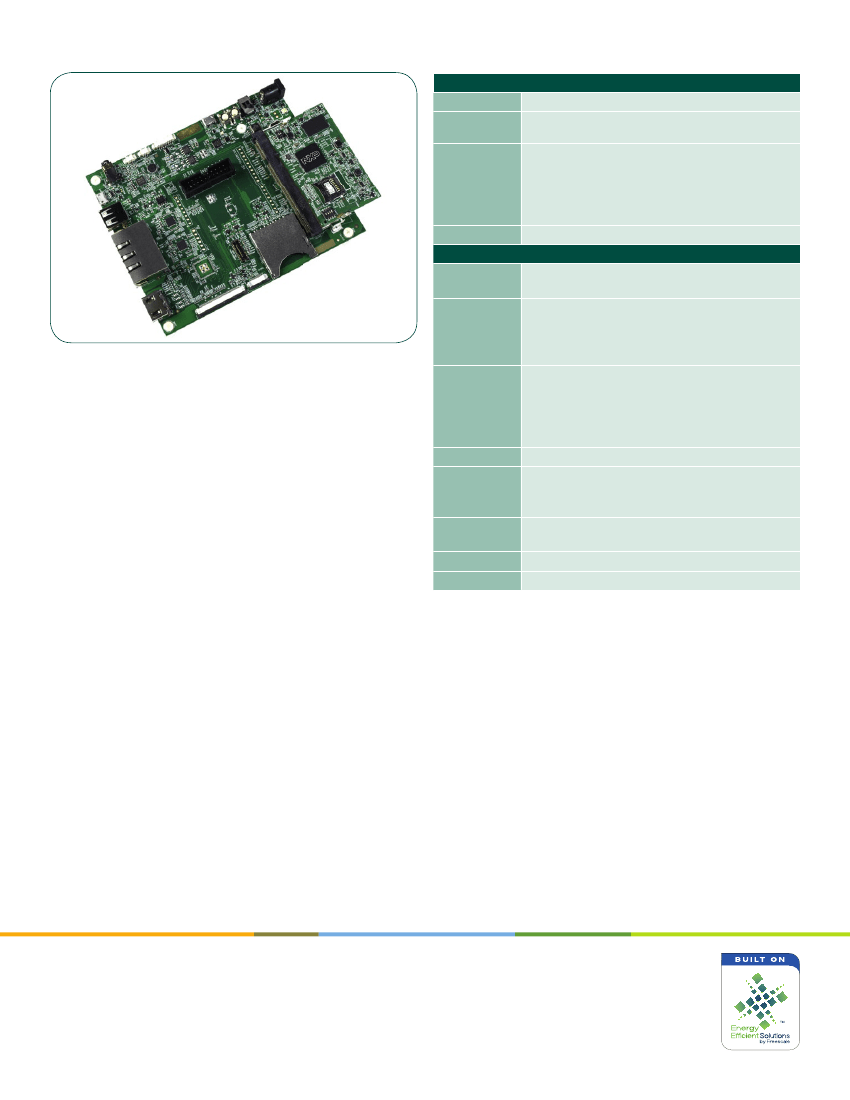

i.MX 6UltraLite CPU board and base board
SENSORS
The NXP FXLS8471Q accelerometer is highly versatile for
industrial and consumer high-performance low-g applications
that offer noise density, board mount offset, temperature
performance and sensitivity. Integrated motion detection
features include tilt, shake and tap detection with a new
vector magnitude output that simplifies implementation and
reduces power consumption. The NXP MAG3110 eCOMPASS
is a small, low-power digital 3D magnetic sensor with a
wide dynamic range to allow operation in PCBs with high
extraneous magnetic fields. A footprint is also available
to enable a gyroscope sensor.
i.MX 6UltraLite EVK
MCIMX6UL-EVK FEATURES
CPU Board
Processor
Power
management
NXP i.MX 6UltraLite 696 MHz Cortex-A7 core
Discretes
• 4 GB DDR3L SDRAM, 400 MHz
• 256 MB Quad SPI flash
Memory
• MicroSD connector
• Footprint for eMMC
• Footprint for NAND flash
Size
Base Board
Display board
interface
• LCD expansion port connector
• HDMI connector and footprint for HDMI transmitter
• Audio codec
Audio
• 3.5 mm stereo headphone output with MIC
• Mono-Microphone input on board
• Left and right speaker out connectors
• One USB 2.0 Micro-B OTG connector
• One USB 2.0 Standard-A host connector
Connectivity
• Two Ethernet (10/100T) connectors
• Dual CAN connector
• SD/SDIO connector
Camera
Sensors
Parallel camera connector
• NXP MAG3110 eCOMPASS
• NXP FXLS8471Q accelerometer
• Footprint for gyroscope
Debug
Expansion port
Size
• 20-pin standard JTAG connector
• UART to Micro USB connector
Arduino header
5.12 inch x 4.25 inch (13.0 cm x 10.8 cm), 4-layer board
2.66 inch x 1.27 inch (6.76 cm x 4.24 cm), 4-layer board
SOFTWARE AND TOOLS
Simplify product design with a low-cost, feature-rich
development platform that allows you to work with the majority
of the processor’s primary features with the corresponding
software support. For software, design files, development tools
and additional information, visit
nxp.com/iMX6tools.
www.nxp.com/iMX6ULEVK
and
imxcommunity.org
© 2015–2016 NXP B.V.
NXP, the NXP logo, Freescale, the Freescale logo and the Energy Efficient Solutions logo are trademarks of NXP
Semiconductors. All other product or service names are the property of their respective owners. ARM and Cortex are
registered trademarks of ARM Limited (or its subsidiaries) in the EU and/or elsewhere. All rights reserved.
Document Number:
EVKIMX6ULFS REV 1
