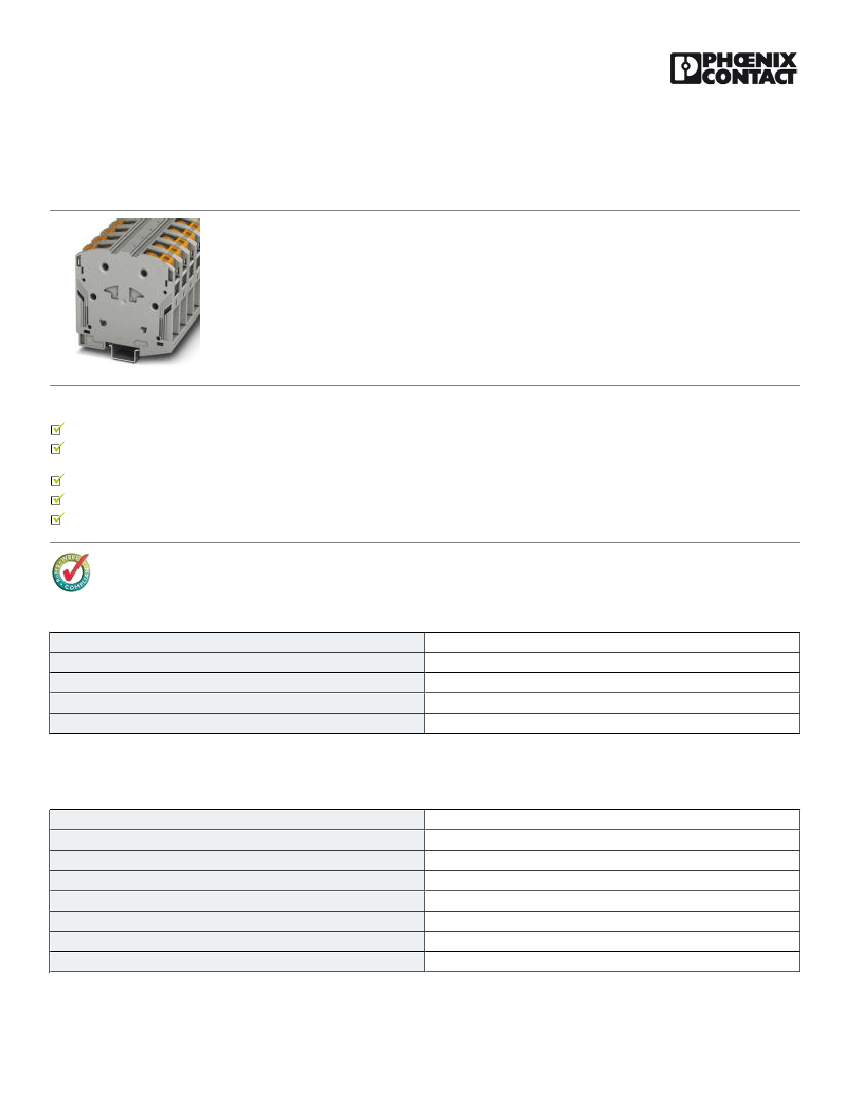

High-current terminal block - PTPOWER 95 - 3260100
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
High-current terminal block, Connection method: Push-in connection, Cross section: 25 mm² - 95 mm²,
AWG: 4 - 3/0, Width: 25 mm, Color: gray, Mounting type: NS 35/15
Product Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
In addition to using the existing test connection, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
Tested for railway applications
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
10 pc
198.0 GRM
85369010
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Area of application
1
2
gray
PA
V0
Railway industry
Mechanical engineering
Plant engineering
02/09/2015 Page 1 / 6
https://www.phoenixcontact.com/us/products/3260100
High-current terminal block - PTPOWER 95 - 3260100
Technical data
General
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Maximum load current
Nominal current I
N
Nominal voltage U
N
Maximum load current
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Surge voltage test setpoint
Result of surge voltage test
Result of power-frequency withstand voltage test
Checking the mechanical stability of terminal points (5 x conductor
connection)
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
Result of bending test
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Tensile test result
Tight fit on carrier
Setpoint
Result of tight fit test
Requirements, voltage drop
Result of voltage drop test
Temperature-rise test
Conductor cross section short circuit testing
Short-time current
232 A (with 95 mm conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
232 A (with 95 mm conductor cross section)
232 A
1500 V
232 A (with 95 mm conductor cross section)
nein
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
9.8 kV
Test passed
Test passed
Test passed
10 rpm
135
25 mm² / 4.5 kg
95 mm²/14 kg
Test passed
25 mm²
135 N
95 mm²
351 N
Test passed
NS 35/15
15 N
Test passed
≤ 3.2 mV
Test passed
Test passed
95 mm²
11.4 kA
02/09/2015 Page 2 / 6
2
2
2
https://www.phoenixcontact.com/us/products/3260100
High-current terminal block - PTPOWER 95 - 3260100
Technical data
General
Short circuit stability result
Ageing test for screwless modular terminal block temperature cycles
Result of aging test
Proof of thermal characteristics (needle flame) effective duration
Result of thermal test
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Oscillation, broadband noise test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Shock test result
Temperature index, insulating material (DIN EN 60216-1 (VDE 0304-21))
Static insulating material application in cold
Test passed
192
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 2, bogie mounted
f
1
= 5 Hz to f
2
= 250 Hz
6.12 (m/s ) /Hz
3.12 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
30g
18 ms
3
X-, Y- and Z-axis (pos. and neg.)
Test passed
125 °C
-60 °C
2 2
Dimensions
Width
Length
Height NS 35/15
25 mm
105.5 mm
108.7 mm
Connection data
Connection in acc. with standard
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
IEC 60947-7-1
Push-in connection
25 mm²
95 mm²
4
3/0
25 mm²
95 mm²
4
02/09/2015 Page 3 / 6
https://www.phoenixcontact.com/us/products/3260100
High-current terminal block - PTPOWER 95 - 3260100
Technical data
Connection data
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
Stripping length
4/0
25 mm²
95 mm²
25 mm²
95 mm²
95 mm²
70 mm²
95 mm²
70 mm²
40 mm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141120
27141120
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
02/09/2015 Page 4 / 6
https://www.phoenixcontact.com/us/products/3260100
High-current terminal block - PTPOWER 95 - 3260100
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
IECEx / ATEX / EAC Ex
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
4-4/0
230 A
1000 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
C
4-4/0
230 A
1000 V
EAC
cULus Recognized
Drawings
Circuit diagram
02/09/2015 Page 5 / 6
