Open Workbench Logic
Sniffer
SKU: 102990044
Description

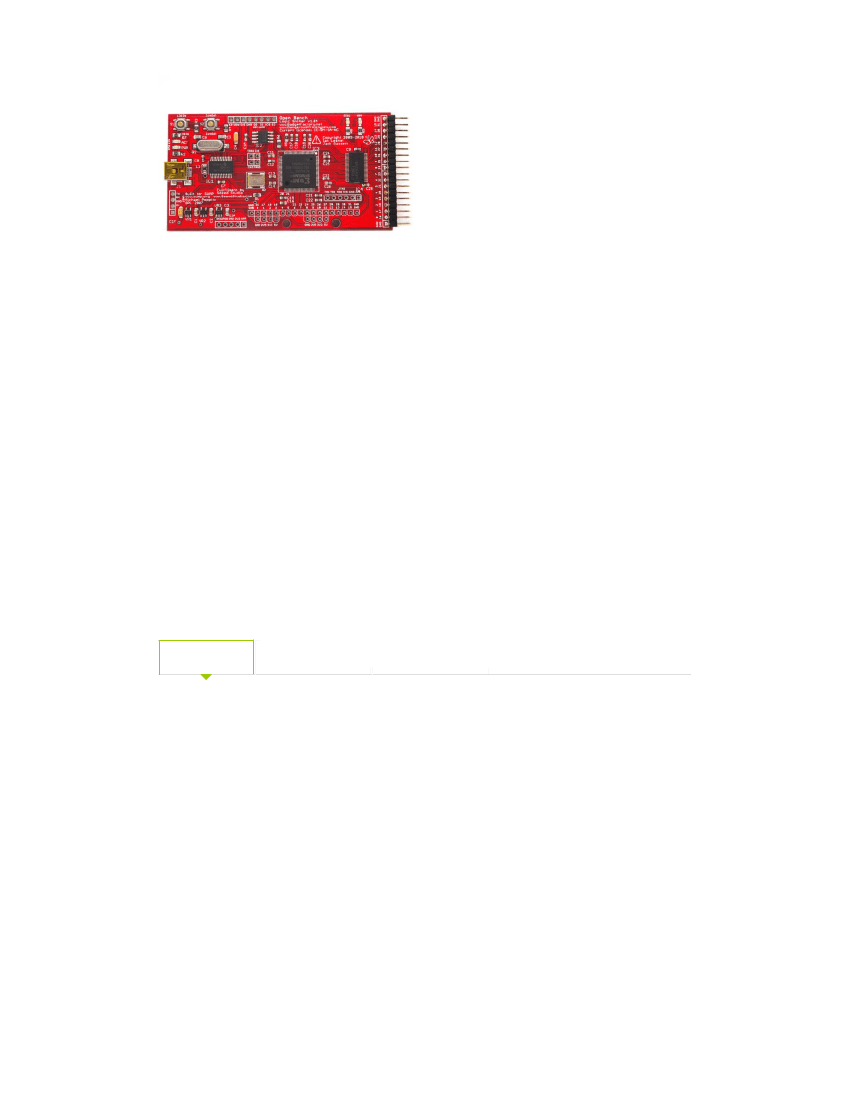

The Open Workbench Logic Sniffer is an open source logic analyzer with a USB interface. The hardware is
designed for the SUMP open source logic analyzer (http://www.sump.org/projects/analyzer/)client and
toolchain. This project is a collaboration between the Gadget Factory
(http://www.gadgetfactory.net/gf/project/butterflylogic/) and Dangerous Prototypes
(http://dangerousprototypes.com/open-logic-sniffer).
Features
• Capture 50MHz+ waveforms on 32 channels
• 200Msps captures up to 100MHz waveforms on 16 channels
• 100Msps captures up to 50MHz waveforms on 32 channels
• 16 buffered channels, 5volt tolerant
• M74LCX16245DTR2G (http://www.onsemi.com/PowerSolutions/product.do?
id=MC74LCX16245) transceiver tolerates voltages from -0.5V to +7V.
• 216K Block RAM supports following memory configurations*
• 8 channels with 24K sample depth
• 16 channels with 12K sample depth
• 32 channels with 6K sample depth
• External clock and trigger input
Page 2 of 2
• Allows interfacing with external test equipment and daisy chaining OLS's for additional channels.
•
•
•
•
•
•
•
Internal clock and trigger output
16bit wing expansion header
USB interface, USB powered
USB upgradable everything
Designed for the SUMP logic analyzer client (http://www.sump.org/projects/analyzer/)
Open source
Low price
Memory depth is the maximum supported by the hardware, the current firmware implements the
following memory depths:
• 8 channels with 16K sample depth
• 16 channels with 8K sample depth
• 32 channels with 4K sample depth
Future firmware upgrades will support the maximum memory configurations.
Support
•
•
•
•
Latest project downloads, project page (http://www.gadgetfactory.net/gf/project/butterflylogic/)
Design overview and links (http://dangerousprototypes.com/docs/Open_Bench_Logic_Sniffer)
Issue tracker (http://www.gadgetfactory.net/gf/project/butterflylogic/tracker/)
Forum (http://whereisian.com/forum/index.php?board=23.0)
(http://www.seeedstudio.com/depot/logic-sniffer-probe-cable-p-619.html?cPath=61_68)
Logic sniffer Probe Cable
Note: The cable is not included, please purchase if you need one.
