201805A • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • March 28, 2012
1
DATA SHEET • SKY67130-396LF HIGH LINEARITY AMPLIFIER DRIVER
Table 1. SKY67130-396LF Signal Descriptions
Pin #
1
2
3
4
Name
NC or GND
RFIN
NC or GND
GND
Description
No connection. May be connected to ground
with no change in performance.
RF input. DC blocking capacitor required.
No connection. May be connected to ground
with no change in performance.
Connect to ground through a low impedance
path.
Pin #
5
6
7
8
GND
NC or GND
RFOUT/VCC
VBIAS
Name
Description
Connect to ground through a low impedance
path.
No connection required. May be connected
to ground with no change in performance.
RF output. Apply VCC through RF choke
inductor. No DC blocking capacitor required.
Sets LNA quiescent current
Table 2. SKY67130-396LF Absolute Maximum Ratings (Note 1)
Parameter
Supply voltage
Quiescent current
Dissipated power (Note 2)
RF input power
Storage temperature
Operating temperature
Junction temperature
Note:
Symbol
V
CC
I
CQ
P
DISS
P
IN
T
STG
T
A
T
J
Minimum
Typical
Maximum
5.5
45
150
+20
Units
V
mA
mW
dBm
°C
°C
°C
–65
–40
+25
+25
+150
+85
+150
Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other
parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device.
Note 2:
Dissipated power is equal to supply voltage (V
CC
) multiplied by the quiescent current (I
CQ
).
CAUTION:
Although this device is designed to be as robust as possible, Electrostatic Discharge (ESD) can damage this device. This device
must be protected at all times from ESD. Static charges may easily produce potentials of several kilovolts on the human body
or equipment, which can discharge without detection. Industry-standard ESD precautions should be used at all times. The
SKY67130-396LF is a Human Body Model (HBM) Class 1A ESD device.
Electrical and Mechanical Specifications
The absolute maximum ratings of the SKY67130-396LF are
provided in Table 2. Electrical specifications are provided in
Tables 3 and 4.

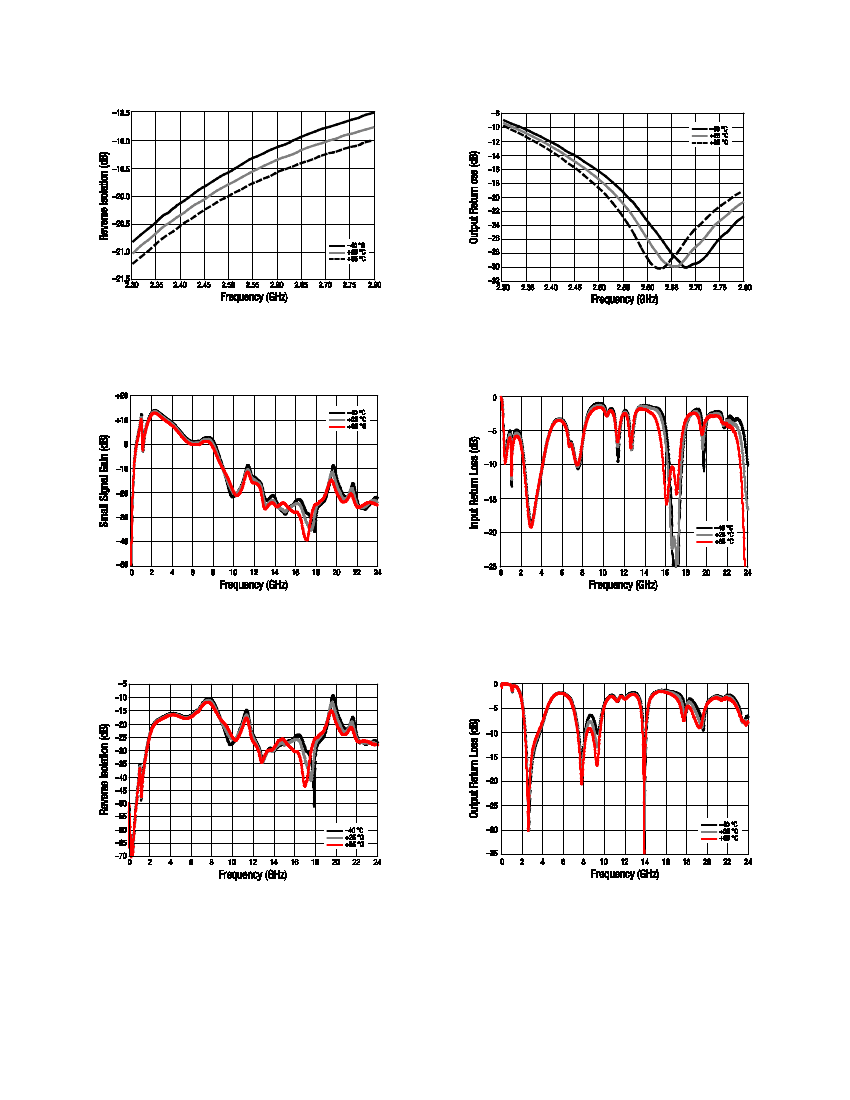

Typical performance characteristics of the SKY67130-396LF are
