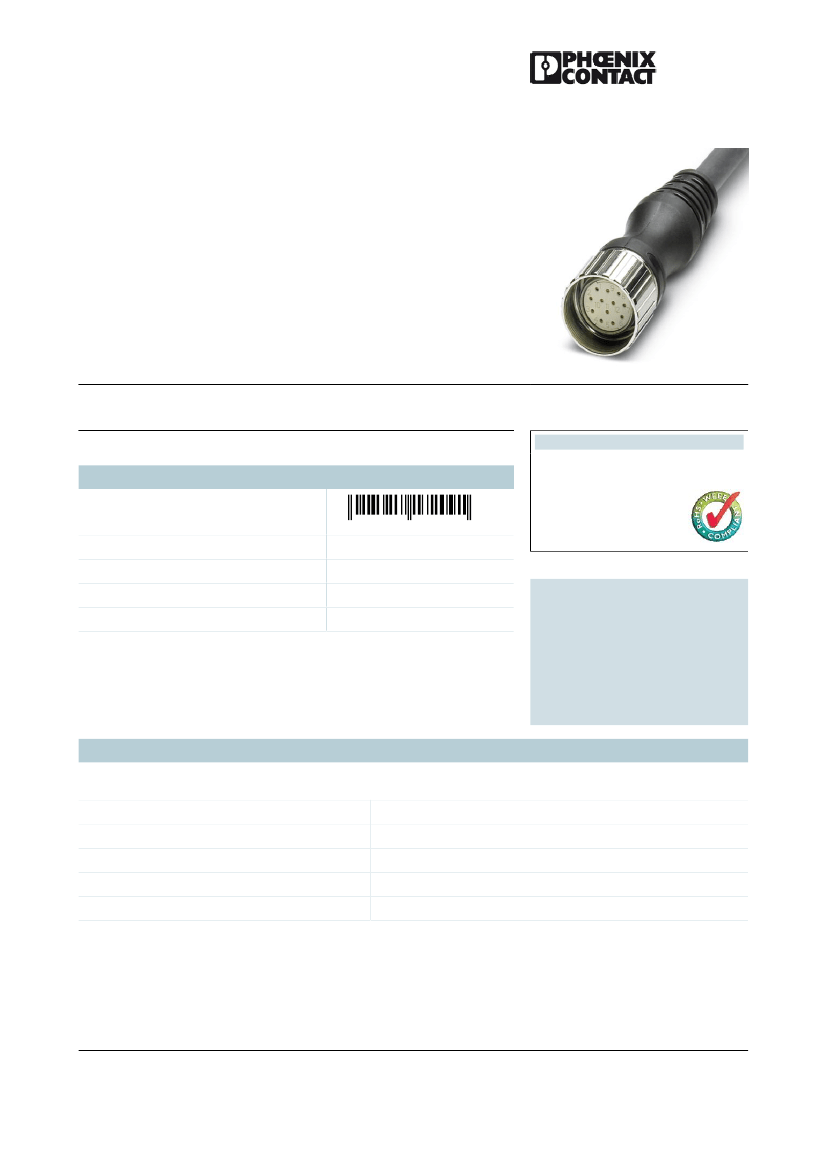

RCK-TGUM/BL12/10,0PUR-U
Order No.: 1684027
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1684027
Female connector M23, straight, 12-pos., with master cable 10 m
Product notes
Commercial data
GTIN (EAN)
4
017918
172091
WEEE/RoHS-compliant since:
05/12/2006
sales group
Pack
Customs tariff
Catalog page information
D192
1 pcs.
85444290
Page 128 (PC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Rated voltage
Number of positions
Degree of protection
Ambient temperature (operation)
48 V AC
60 V DC
12
IP65/IP67
-40 °C ... 125 °C (Male connector / female connector)
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 8, 2011
RCK-TGUM/BL12/10,0PUR-U
Order No.: 1684027
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1684027
Master cable data
Type of connection
Length of cable
Insulation material
Housing material
Material of contact, master cable side
Material of contact surface, master cable side
Material of the contact carrier on the master cable
side
Connection assignment
Slot/position = pin = conductor color
1 / 4 (A) = 1 = WH
2 / 4 (A) = 2 = GN
3 / 4 (A) = 3 = YE
4 / 4 (A) = 4 = GY
5 / 4 (A) = 5 = PK
6 / 4 (A) = 6 = RD
7 / 4 (A) = 7 = BK
8 / 4 (A) = 8 = VT
1-8 / 1 (+ 48 V) = 11 = BN
1-8 / 3 (0 V) = 9+10 = BU
1-8 / 5 (PE) = 12 = GN/YE
Conductor data
Cable type
Cable abbreviation
UL AWM Style
Conductor cross section
AWG signal line
Conductor structure signal line
AWG power supply
Conductor structure, voltage supply
Core diameter including insulation
External cable diameter
Master cable suitable for flexible cable conduit
LiYY11Y-HF
20549
0.34 mm² (signal line)
0.75 mm² (power line)
22
19x 0.15 mm
18
42x 0.15 mm
1.3 mm ±0.1 mm (signal line)
1.8 mm ±0.1 mm (power line)
8.50 mm
PUR
CU alloy
Gold-plated
PA
M23 socket
10 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 8, 2011
RCK-TGUM/BL12/10,0PUR-U
Order No.: 1684027
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1684027
External sheath, color
Nominal voltage, conductor
Test voltage, conductor
Overall twist
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Ambient temperature (operation)
Special properties
Flame resistance
Resistance to oil
Other resistance
Certificates / Approvals
Black RAL 9005
300 V
2000 V
Wires twisted in layers
PUR
PVC
PVC
Bare Cu litz wires
85 mm
85 mm
1500000
85 mm
2m
2 m/s
-40 °C ... 90 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
Silicone-free
DIN EN 50265
As per VDE 0472 Part 803
Highly resistant to acids, alkaline solutions and solvents
Certification
GOST
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 8, 2011
RCK-TGUM/BL12/10,0PUR-U
Order No.: 1684027
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1684027
Diagrams/Drawings
Schematic diagram

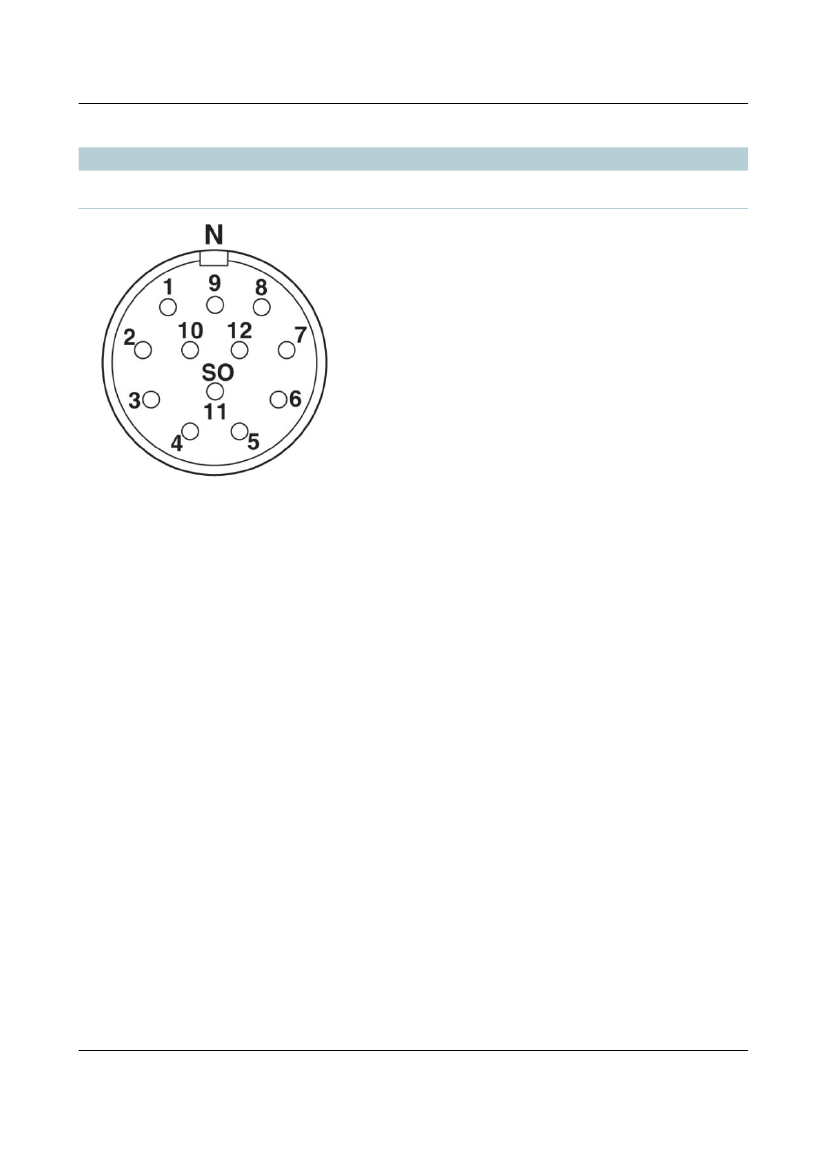

Pin assignment M23 socket, 12-pos., female side view
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 8, 2011
RCK-TGUM/BL12/10,0PUR-U
Order No.: 1684027
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1684027
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
Feb 8, 2011
