BDR Series
LED Digital Panel Meters
Specifications Installation and Operating Instructions

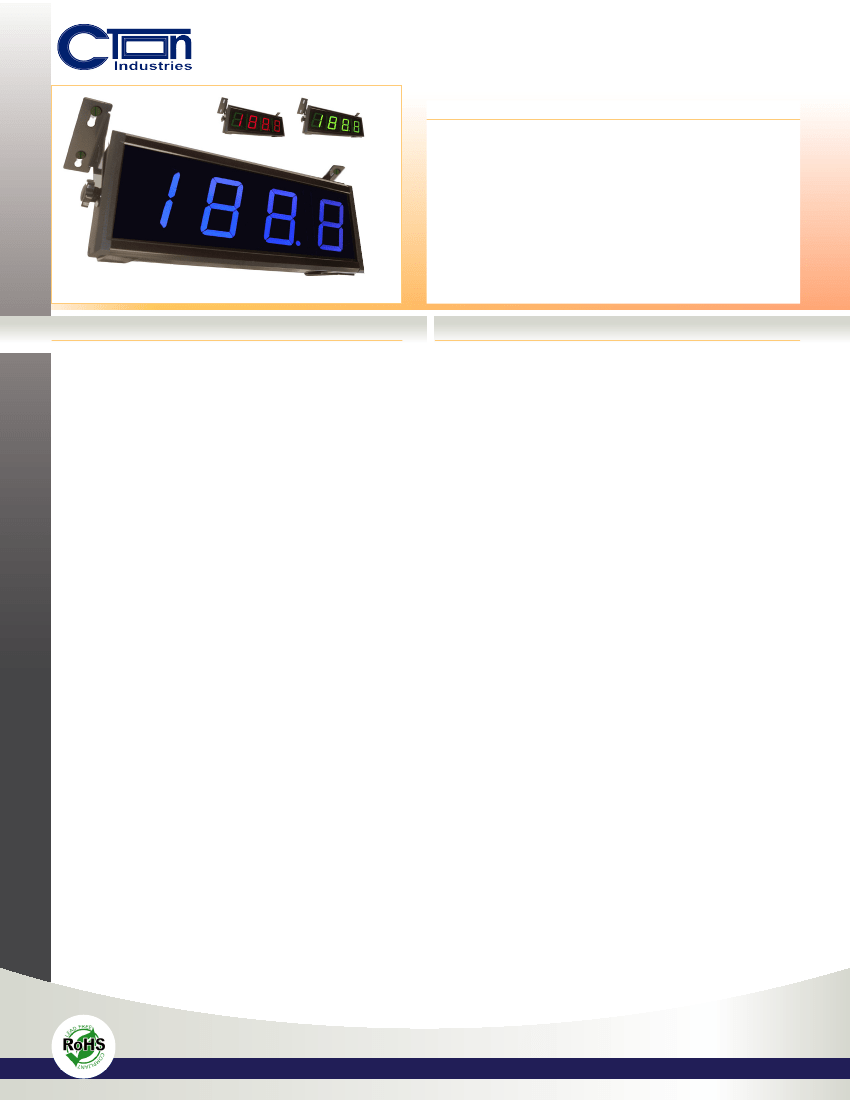

2.3” Numeral Multifunction Meter LARGE 3½ Digit LED Display
FEATURES
}
}
}
}
}
}
}
}
}
}
}
}
}
}
RED,}GREEN}OR}BLUE}LED
Bezel}mount}or}180º}bracket}mounting}in}multiple}planes
Resistant}to}RF}and}EMI
Durable}metal}case
Highly}visible}2.3"}LED}display
Multifunction}loop,}set}voltage,}adjustable}voltage}inputs,}} ll}included
a
Isolated}AC/DC}supply}works}in}many}control}applications}
SPECIFICATIONS
DISPLAY
Digits:
Type:
3 ½ digits (±1999 counts)
2.3" (58.4mm) - 7 segment LED red,
green or blue digits
±200 mV, ± 2 V, ±20 VDC
bipolar differential
±350 VDC, (±100 VDC on 200 mV range)
>1 MΩ, (>10 MΩ on 200 mV range)
200 mV, 5 V, 10 VDC
-1999 to +1999
1 to 1000
4 to 20mA DC
bipolar differential
±30mA
300Ω nominal
± (0.1% fs + 1 count)
3 per second
>30 dB @ 60 Hz
>86 dB
automatic on set voltage ranges
10 minutes typical
±100 ppm per °C typical
-10 to 50 °C
-40 to 75 °C
90 to 250 VAC @ 12 VA
10.5 to 30 VAC/DC @ 6 VA
180° gimbal mounting with 30° stops,
or bezel mount
screw terminals
ORDERING INFO
PART NUMBER
METER POWER
COLOR
BDR-999R ............................ 90 - 250 VAC ......................................... RED
.
BDR-999G............................. 90 - 250 VAC ...................................... GREEN
BDR-999B ............................ 90 - 250 VAC ........................................ BLUE
.
BDR-924R ......................... 10.5 - 30 VAC/DC ...................................... RED
.
BDR-924G.......................... 10.5 - 30 VAC/DC ................................... GREEN
BDR-924B ......................... 10.5 - 30 VAC/DC ..................................... BLUE
.
ACCESSORIES
INPUTS
Set Voltage Ranges:
Configuration:
Protection:
Impedance:
Adj. Voltage Ranges:
Offset Range:
Gain Range:
4-20mA Loop Ranges:
Configuration:
Protection:
Loop Impedance:
Accuracy:
Conversion Rate:
Normal Mode Rejection:
Common Mode Rej.:
Zero Adjustment:
Warmup:
Temperature Coeff.:
CVC ..............................................................................................Calibrator
PERFORMANCE
ENVIRONMENT
Operating Range:
Storage Range:
POWER SUPPLY
BDR-999:
BDR-924:
MOUNTING
CONNECTION
C-TON I
NdusTrIes
• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •
emaIl
:
INfO
@
CTONINdusTrIes
.
COm
LED Digital Panel Meters
Specifications Installation and Operating Instructions
2.3” Numeral Multifunction Meter LARGE 3½ Digit LED Display
BDR Series

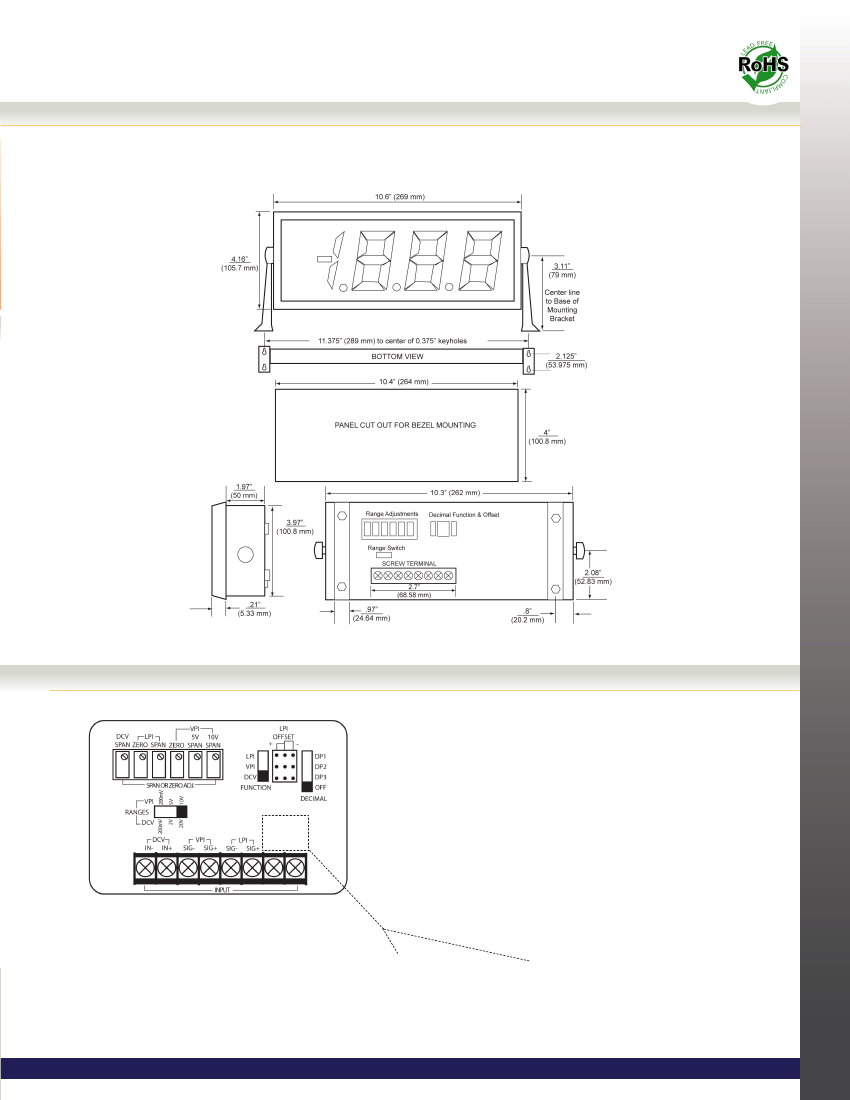

DIMENSIONS
WIRING & CALIBRATION
Set function switch in correct position (LPI, VPI, DCV).
Set voltage input range switch in correct position (200mV, 2V/5V, 20V/10V).
Attach input wires to appropriate screw terminals.
Attach power wires to AC/DC power screw terminals.
Power unit up.
Apply lowest input into meter, adjust correct zero pot for required reading (N/A on
DCV function).
7. Apply highest input into meter, adjust correct span pot for required reading.
8. Recheck zero input and adjust again as needed.
9. Check reading at mid-point for required reading.
10. Select appropriate decimal as required.
1.
2.
3.
4.
5.
6.
*
LPI OFFSET PIN POSITIONS
In "+" position enables user to have negative zero readings.
In "-" position enables user to have positive zero readings.
AC POWER
[90V - 250V]
AC AC
(BDR-999)
OR
AC POWER
[10.5V - 30V]
AC or DC
(BDR-924)
C-TON I
NdusTrIes
• PO Box 11746 • Memphis, TN 38111 • USA (603) 471-0158 •
emaIl
:
INfO
@
CTONINdusTrIes
.
COm
