INSTRUMENT CASES/SYSTEM ENCLOSURES
riBox

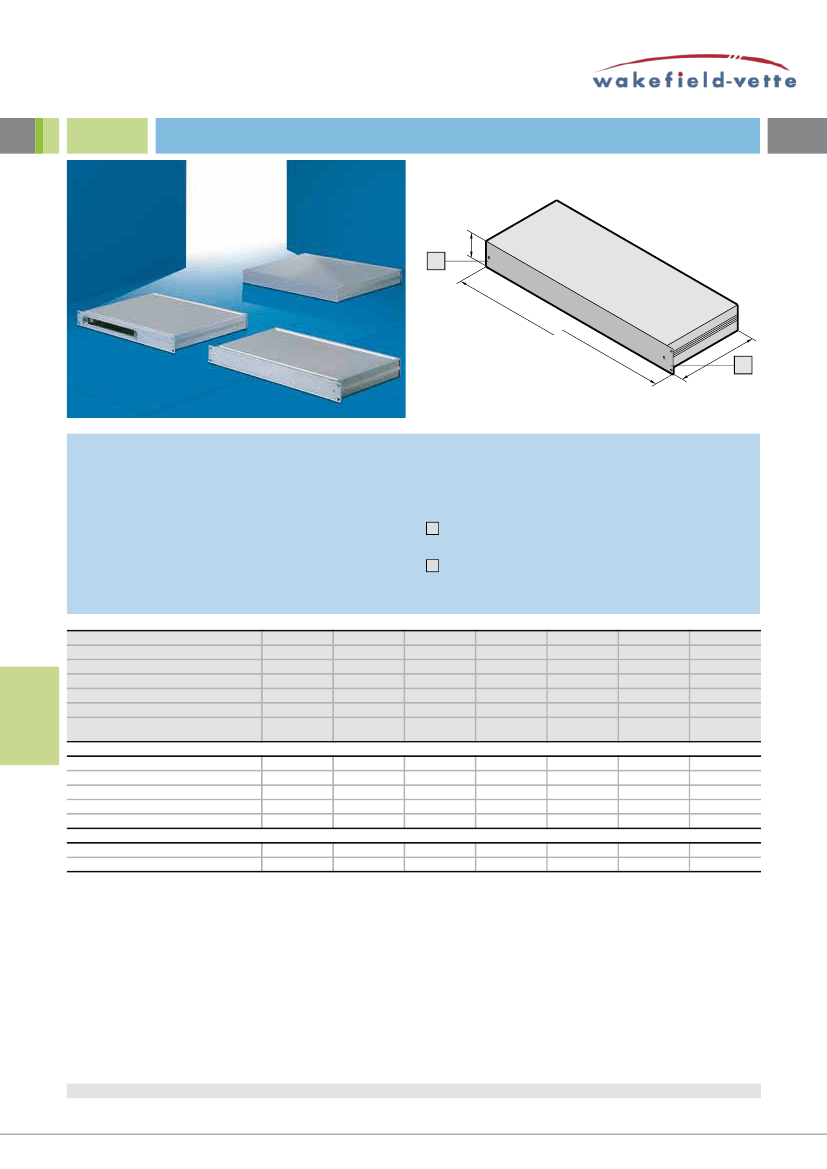

riBox system enclosure 1 u
1
HE
B1
B2
T
2
B = Width
T = Depht
HE = U
technical specifications:
System enclosures 1 U, 150,
200, 250, 300, 350 mm deep
Easy to assemble with just
4 screws. Optionally for use as
an instrument case or 19˝ rack-
mount enclosure.
Front panel to hold an overlay
to conceal the screws.
Maximum interior space.
Optional EMC upgrades with
additional EMC gaskets.
Option of installing 1 VME or
CPCI board horizontally.
Design:
System enclosure 1 U,
to IEC 60 297-1. Optionally
available for 19˝ rackmounting
in the enclosure or as
an instrument case version.
1
Equipped as an instrument
case
2
Equipped as a rack-
mount unit
material/surface finish:
Side panels:
Extruded aluminum section,
untreated
Base/cover trays:
Aluminum, clear-chromated
Front/rear panel:
Extruded aluminum section,
clear-chromated
Mounting plate:
Sheet steel
u
Width
(B1) mm
Width
(B2) mm
Depth
(T) mm
order no. instrument case
order no. rack case
order no. rack-mount including
mounting kit for double euroboards
supply includes
Side panel
Front panel
Rear panel
Base/cover tray
Mounting kit
accessories
EMC set
Mounting plate
1
447
19˝ (482.6)
150
3687.819
3687.814
–
2
1
1
2
–
3684.080
3684.074
1
447
19˝ (482.6)
200
3687.820
3687.815
–
2
1
1
2
–
3684.080
3684.075
1
447
19˝ (482.6)
250
3687.821
3687.816
–
2
1
1
2
–
3684.080
3684.076
1
447
19˝ (482.6)
300
3687.822
3687.817
–
2
1
1
2
–
3684.080
3684.077
1
447
19˝ (482.6)
350
3687.823
3687.818
–
2
1
1
2
–
3684.080
3684.078
–
–
19˝ (482.6)
250
–
–
3684.072
2
1
1
2
1
3684.080
–
–
–
19˝ (482.6)
350
–
–
3684.073
2
1
1
2
1
3684.080
–
ripac vario-module
Page 71
ricase
Page 80
