871-41-002-20-001000 datasheet, PDF

Datasheet> All Categories > The connector> 871-41-002-20-001000

871-41-002-20-001000: DescriptionCONN HDR SNG RA; CategoryThe connector; File Size426KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

871-41-002-20-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	871-41-002-20-001000	-	-	View	Buy Now

871-41-002-20-001000 Overview

CONN HDR SNG RA

871-41-002-20-001000 Parametric

Parameter Name	Attribute value
Connector type	socket
Contact type	female socket
style	board to board
Number of pins	2
Number of pins loaded	all
Spacing - Mating	0.070"（1.78mm）
Number of rows	1
Line spacing - patching	-
Installation type	Through hole, right angle
Termination	welding
Fastening type	push-pull
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	10.0µin（0.25µm）
Insulation color	black
Insulation height	0.104"（2.64mm）
Contact length - terminal	0.122"（3.10mm）
Operating temperature	-55°C ~ 125°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	tin
Joint stack height	-
Intrusion protection	-
characteristic	-
Rated current	3A
Rated voltage	-
application	-
Insulation Materials	Polydimethylcyclohexyl terephthalate (PCT), polyester
Contact shape	round
Contact material	copper beryllium
Contact Surface Treatment Thickness - Column	200.0µin（5.08µm）

Preview

Download Datasheet

View All

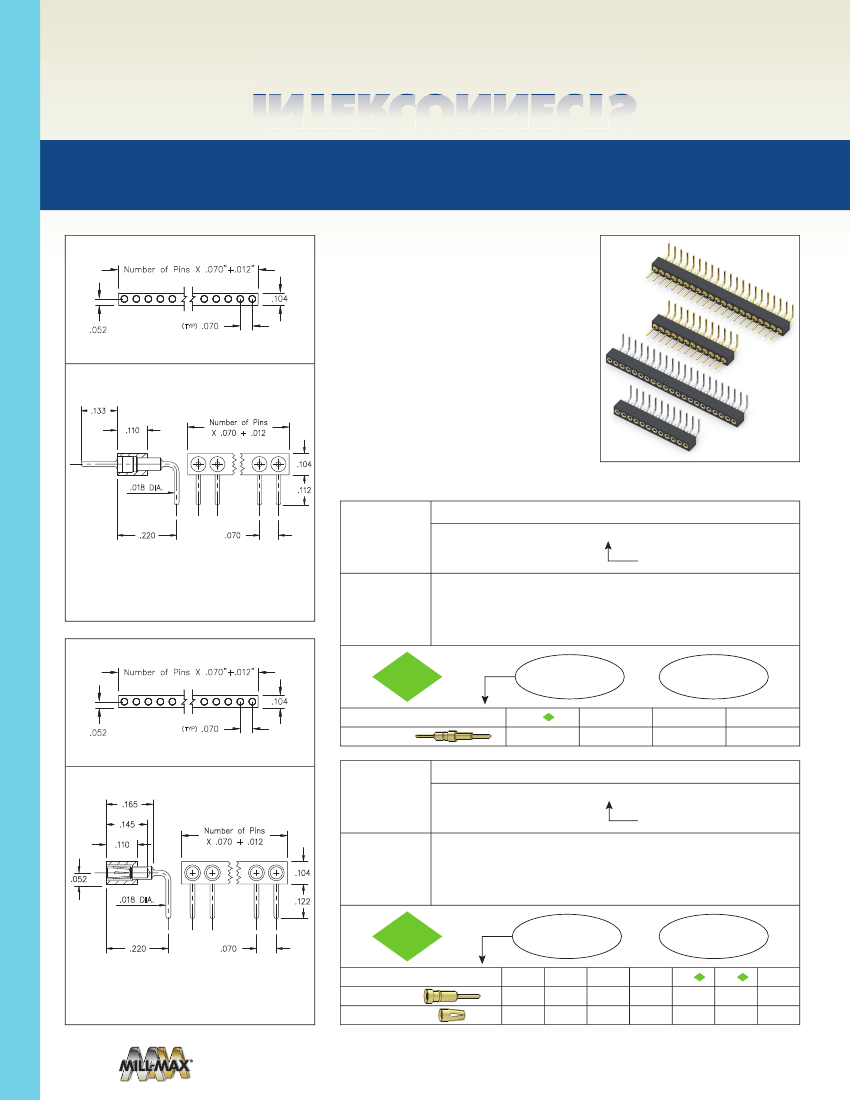

INTERCONNECTS

SERIES 870 & 871 • .070” GRID (.018” DIA.) PINS, RIGHT ANGLE

HEADERS & SOCKETS • SINGLE ROW STRIPS

•

Series 870 and 871 Interconnects feature

Number of Pins X .070"+.012"

.104

(TYP)

space saving .070” pitch

•

Series 870 uses MM #3790-0 pins. See page 209

for details

.052

.070

•

Series 871 uses MM #1805 receptacles and

accept pin diameters from .015” - .025”. See

page 169 for details

•

Receptacles use Hi-Rel, 4- nger BeCu #30

.133

.110

Number of Pins

X .070 + .012

contact rated at 3 amps. See page 253 for

details

•

Insulators are high temperature thermoplastic,

.104

suitable for all soldering operations

.018 DIA.

.112

ORDERING INFORMATION

Series 870...20-001

Right Angle Pin Header

02-21

.220

.070

FIG. 1

870 10 0_ _ 20 001000

Specify number of pins

FIG. 1

Number of Pins X .070"+.012"

.104

(TYP)

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.052

.070

SPECIFY PLATING CODE XX=

Pin Plating

Series 871...20-001

.165

.145

.110

Number of Pins

X .070 + .012

Right Angle Socket

02-21

FIG. 2

871 XX 0_ _ 20 001000

Specify number of pins

PAGE 42 | INTERCONNECTS

.052

.018 DIA.

.104

.122

.220

.070

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

200

µ”

200

µ”

FIG. 2

Sleeve (Pin)

Contact (Clip)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
