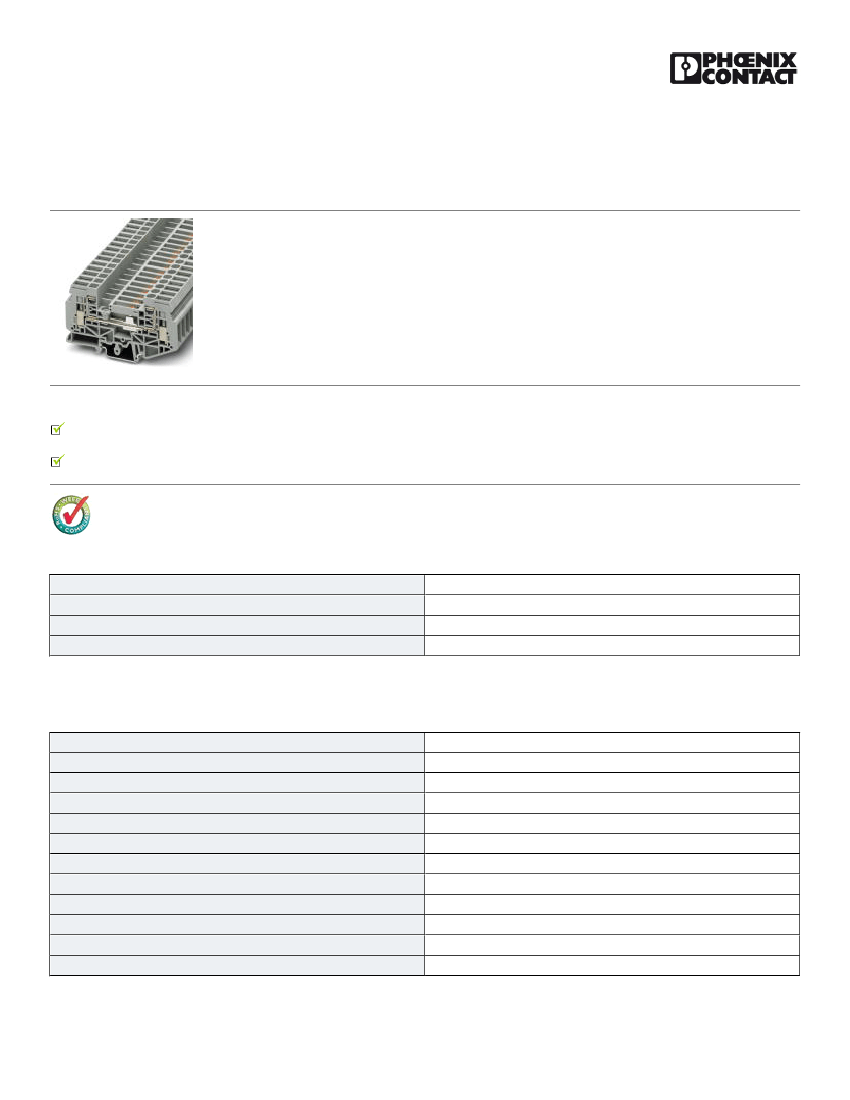

Test disconnect terminal block - UGSK 6 - 3026285
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Test disconnect terminal block, With slide, Connection method: Screw connection, Cross section: 0.5 mm² -10
mm² , AWG: 20 - 10, Width: 8.2 mm, Mounting type: NS 35/7,5, NS 35/15, NS 32, Color: gray
Product Features
The URTK 6 test disconnect terminal block and the UGSK 6 slide-type terminal block were developed specifically for use in current transformer
secondary circuits
Can be fitted on both sides with fixed and switchable bridges as well as test sockets with 4 mm diameter
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
31.61 GRM
85369010
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Maximum load current (lower level)
Additional text
1
2
gray
PA
V0
6 kV
3
III
I
IEC 60947-7-1
57 A
with 10 mm² conductor cross section
11/03/2014 Page 1 / 8
https://www.phoenixcontact.com/us/products/3026285
Test disconnect terminal block - UGSK 6 - 3026285
Technical data
General
Nominal current I
N
(lower level)
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Surge voltage test setpoint
Result of surge voltage test
Power frequency withstand voltage setpoint
Result of power-frequency withstand voltage test
Checking the mechanical stability of terminal points (5 x conductor
connection)
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
41 A
400 V
ja
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
7.3 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0.5 mm² / 0.3 kg
6 mm / 1.4 kg
10 mm² / 2 kg
Result of bending test
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Tensile test result
Requirements, voltage drop
Result of voltage drop test
Temperature-rise test
Test passed
0.5 mm²
40 N
6 mm²
160 N
10 mm²
180 N
Test passed
U
1
≤ 3.2 mV; U
2
≤ 1.5 x U
1
Test passed
Test passed
2
Dimensions
Length
Width
Height NS 35/7,5
Height NS 35/15
Height NS 32
91 mm
8.2 mm
51 mm
58.5 mm
56 mm
Connection data
Conductor cross section solid min.
0.5 mm²
11/03/2014 Page 2 / 8
https://www.phoenixcontact.com/us/products/3026285
Test disconnect terminal block - UGSK 6 - 3026285
Technical data
Connection data
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
10 mm²
0.5 mm²
6 mm²
20
8
0.5 mm²
6 mm²
0.5 mm²
6 mm²
0.5 mm²
2.5 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
4 mm²
sleeve, max.
Connection method
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
Disconnect element
Screw connection
10 mm
M4
1.2 Nm
1.4 Nm
M3 0.6 Nm 0.8 Nm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141126
27141126
27141127
27141127
27141127
27141127
27141126
11/03/2014 Page 3 / 8
https://www.phoenixcontact.com/us/products/3026285
Test disconnect terminal block - UGSK 6 - 3026285
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000902
EC000902
EC000902
EC000902
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / PRS / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-8
50 A
300 V
11/03/2014 Page 4 / 8
https://www.phoenixcontact.com/us/products/3026285
Test disconnect terminal block - UGSK 6 - 3026285
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-8
50 A
300 V
GOST
PRS
GOST
cULus Recognized
Drawings
11/03/2014 Page 5 / 8
