Wire Wound Chip Inductors
——O-Series
0402(1005)/5514
Features
1. Coil body of ceramic material.
2. Contact area of pure tin with a nickel barrier layer.
PAGE
1/3
3. Windings are created by laser-cutting of the copper layer and are –for protection – completely lacquer-coated.
4. Lead Free (RoHS Compliance)
Applications
Typical applications are resonant circuits or impedance matching for video cameras, mobile telephones and antenna amplifiers etc.
Ordering Information
5514
(1)
(1) Series
- 5514 : Size 0402 (1005),Laser-trimmed.
270
(2)
*
(3)
4
(4)
51
(4) Delivery Form
4 : coated, taped on 8 mm cardboard tape
packing unit reels
Φ180mm,
10.000 pcs.
(2) Inductance Value
example: 27x10
X
=27x10
0
=27(nH)
(3) Inductance Tolerance
8 : ±0.2 nH
9 : ±0.3 nH
3 : ±5%
4 : ±2%
Shape and Dimensions (mm)
Pad Layout Recommendation
a
0,55 ± 0,05
b
1,6 ±0,1
c
0,55 ± 0,05
*All specifications are subject to change without notice.
Wire Wound Chip Inductors
——O-Series
0402(1005)/5514
Electrical Parameters
L
[nH]
Qtyp
@800MHz
f
L,Q
[MHz]
f
res,min
[MHz]
D.C.R. max.
[mΩ ]
I
N,max
[mA]
Tol.
[%]
PAGE
2/3
Order No.
Q
min
5514 010 *4 51
5514 012 *4 51
5514 015 *4 51
5514 018 *4 51
5514 022 *4 51
5514 027 *4 51
5514 033 *4 51
5514 039 *4 51
5514 047 *4 51
5514 056 *4 51
5514 068 *4 51
5514 082 *4 51
5514 100 *4 51
5514 120 *4 51
5514 150 *4 51
5514 180 *4 51
5514 220 *4 51
5514 270 *4 51
5514 330 *4 51
5514 390 *4 51
5514 470 *4 51
5514 560 *4 51
5514 680 *4 51
5514 820 *4 51
5514 101 *4 51
1,0
1,2
1,5
1,8
2,2
2,7
3,3
3,9
4,7
5,6
6,8
8,2
10
12
15
18
22
27
33
39
47
56
68
82
100
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
21
21
21
21
21
21
21
20
20
20
19
19
19
19
19
19
19
19
18
18
17
17
15
15
14
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
6000
6000
6000
6000
6000
5500
5500
5200
4800
4600
4000
3500
2800
2800
2500
2200
2000
1800
1800
1800
1800
1500
1500
1400
1200
50
60
70
80
80
100
120
150
170
190
300
350
410
450
600
700
800
1200
1400
1700
2100
2500
4000
4500
5500
400
400
400
400
400
400
400
360
360
340
320
320
320
320
240
240
200
200
170
150
140
130
120
110
90
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
/0,3 nH
±0,2
nH/ 5%
±0,2
nH / 5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
2%/5%
All values on ceramic core.
*All specifications are subject to change without notice.
Wire Wound Chip Inductors
——O-Series
0402(1005)/5514
Electrical Characteristic Curves

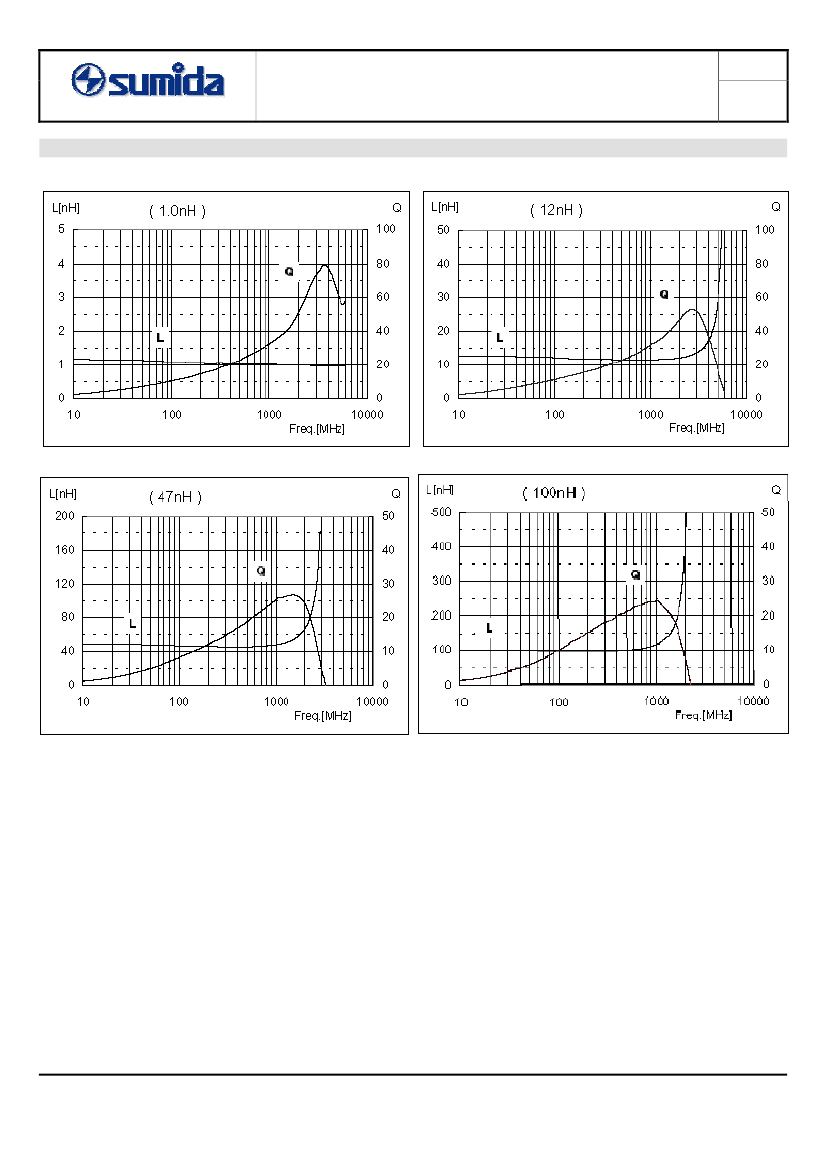

Typical Inductance / Q factor vs. frequency
PAGE
3/3
Climatic category acc. to DIN IEC 68-1:55/125/56
Test equipment : Inductance and Q: Agilent 4291A+16096A.
Resonant Frequency : Agilent 8720.
D.C.R. : Burst Resistomat 2329.(at20℃)
*All specifications are subject to change without notice.
