ESM36DTBN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> ESM36DTBN

ESM36DTBN: DescriptionCONN EDGE DUAL FMALE 72POS 0.156; CategoryThe connector; File Size541KB，2 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

ESM36DTBN Overview

CONN EDGE DUAL FMALE 72POS 0.156

ESM36DTBN Parametric

Parameter Name	Attribute value
card type	Unspecified - Bilateral
gender	female head
Number of positions/plates/rows	36
Number of pins	72
Card thickness	0.062"（1.57mm）
Number of rows	2
spacing	0.156"（3.96mm）
reading	pair
characteristic	-
Installation type	Through hole, right angle
Termination	welding
Contact material	Phosphor bronze
Contact plating	gold
Contact plating thickness	10.0µin（0.25µm）
Contact type	Ring bellows
color	blue
Flange characteristics	-
Operating temperature	-65°C ~ 125°C
Material - Insulation	Polybutylene terephthalate (PBT)

Preview

Download Datasheet

View All

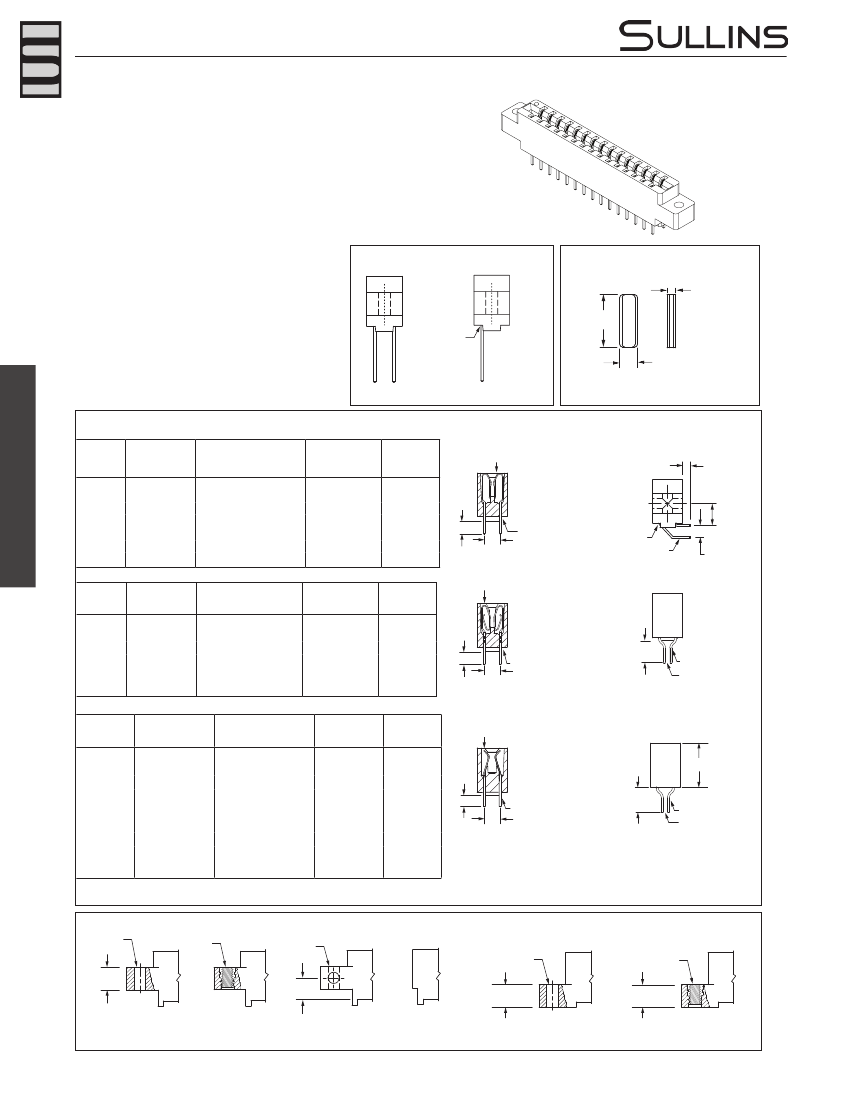

Female Card Edge

.156” [3.96 mm] Contact Centers, .610” [15.49 mm] Insulator Height,

Dip Solder/Wire Wrap/Right Angle/Card Extender

SPECIFICATIONS

• Accommodates .062” ± .008” [1.57 mm ± 0.20 mm] PC board

(See following pages for .093” ± .008” [2.36 mm ± 0.20 mm]

and .125”± .008” [3.18 mm ± 0.20 mm] mating PCB)

• PBT, PPS or PA9T insulator

• Molded-in key available

• 3 Amps current rating for one contact energized

• 30 milli Ohms maximum at rated current

READOUT

• UL Flammability Rating: 94V-0

POLARIZING KEY

PLC-K1

.038”

[0.97]

.285”

[7.24]

NUMBER

SIDE

.100” [2.54]

DUAL (D)

HALF LOADED (H)

Female Card Edge

KEY IN BETWEEN CONTACTS

(ORDER SEPARATELY)

TERMINATION TYPE

HAIRPIN TERMINATION

BELLOWS

TYPE

DIP SOLDER

WIRE WRAP

RIGHT ANGLE

POST CROSS SECTION

.015ʺ X .025ʺ [0.38 X 0.64]

.025ʺ [0.64] SQUARE

POST LENGTH

.025”ʺ [0.64]

.125ʺ [3.18]

.170ʺ [4.32]

.160ʺ [4.06]

.560ʺ [14.20]

.100ʺ [2.54]

.180ʺ [4.57]

.250ʺ [6.35]

FITS MIN.

HOLE SIZE

.035ʺ

.040ʺ

[0.89]

[1.02]

HAIRPIN BELLOWS

RIGHT ANGLE

.043ʺ [1.09]

.200” [5.08]

(CW, CT, CS, CM)

LETTER SIDE

(SIZES 6 THRU 43)

ODD NUMBER SIDE

.150” [3.81]

(47 AND 50)

(CA, CB, CC, TA, TB, TM, KA, KE, KU, KJ)

.275”

[6.98]

LOOP

TERMINATION

BELLOWS

TYPE

TK,CK

DIP SOLDER

WIRE WRAP

RIGHT ANGLE

POST CROSS SECTION

.025ʺ [0.64] ROUND

.025ʺ [0.64] SQUARE

POST LENGTH

.025”ʺ [0.64]

.190ʺ [4.83]

.560ʺ [14.20]

.100ʺ [2.54]

.180ʺ [4.57]

.250ʺ [6.35]

FITS MIN.

HOLE SIZE

.033ʺ [0.84]

.040ʺ [1.02]

.043ʺ [1.09]

LOOP BELLOWS

HAIRPIN or LOOP CARD EXTENDER

.200” [5.08]

(TK, CK, RS, RM)

CANTILEVER

*KA

*KE

*KU

*KJ

*KR

*KN

TERMINATION

TYPE

DIP SOLDER

WIRE WRAP

RIGHT ANGLE

CARD EXTENDER

POST CROSS SECTION POST LENGTH

.025”ʺ [0.64]

.025ʺ [0.64] SQUARE

.190ʺ [4.83]

.160ʺ [4.06]

.560ʺ [14.20]

.100ʺ [2.54]

.180ʺ [4.57]

.250ʺ [6.35]

.500ʺ [12.70]

.235ʺ [5.97]

.605ʺ [15.37]

ACCOMMODATES

.062” [1.57] PCB

(CT, CS, CM,TK, CK, RS,RM)

Example P/N: EBM10DCSN-S288

(Requires -S288 Modification Code)

L - .015” [0.38]

FITS MIN.

HOLE SIZE

.040ʺ [1.02]

.043ʺ [1.09]

.040ʺ [1.02]

.043ʺ [1.09]

N/A

CANTILEVER

CANTILEVER CARD EXTENDER

.550” [13.97]

ACCOMMODATES

.062” [1.57] PCB

(KR, KN)

Example P/N: EBM10DKRN

(-S288 Not required)

.200” [5.08]

(KS, KD, KM)

* KA, KE, KJ, KR, KN have no standoffs, unless requested.

MOUNTING STYLE

Ø.125”

[3.18]

.250”

[6.35]

#4-40

Ø.125”

[3.18]

.245”

[6.22]

CLEARANCE

HOLE (H)

THREADED

INSERT

(I)

Ø.125” [3.18]

D = .250” [6.35]

W = .430” [10.92]

NO MOUNTING

EARS (N)

FLUSH MOUNTING

(D, W)

#4-40

T = .250” [6.35]

X = .430” [10.92]

FLUSH MOUNTING WITH

THREADED INSERT(T, X)

SIDE MOUNTING

(S)

www.sullinscorp.com

760-744-0125

toll-free 888-774-3100

fax 760-744-6081

info@sullinscorp.com
