07-002.375-157 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 07-002.375-157

07-002.375-157: DescriptionCABLE 7POS .100 JUMPER 2.375 INC; CategoryWire/cable; File Size575KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

07-002.375-157 Overview

CABLE 7POS .100 JUMPER 2.375 INC

07-002.375-157 Parametric

Parameter Name	Attribute value
Connector type	plug to plug
Number of pins	7
Number of rows	1
Pitch - Connector	0.100"（2.54mm）
Spacing - Cable	0.100"（2.54mm）
length	0.198'（60.45mm，2.38"）
characteristic	-
color	Multiple strands, strips
shield	No shielding
use	-
Cable termination	welding
Contact plating	gold
Contact plating thickness	10.0µin（0.25µm）

Preview

Download Datasheet

View All

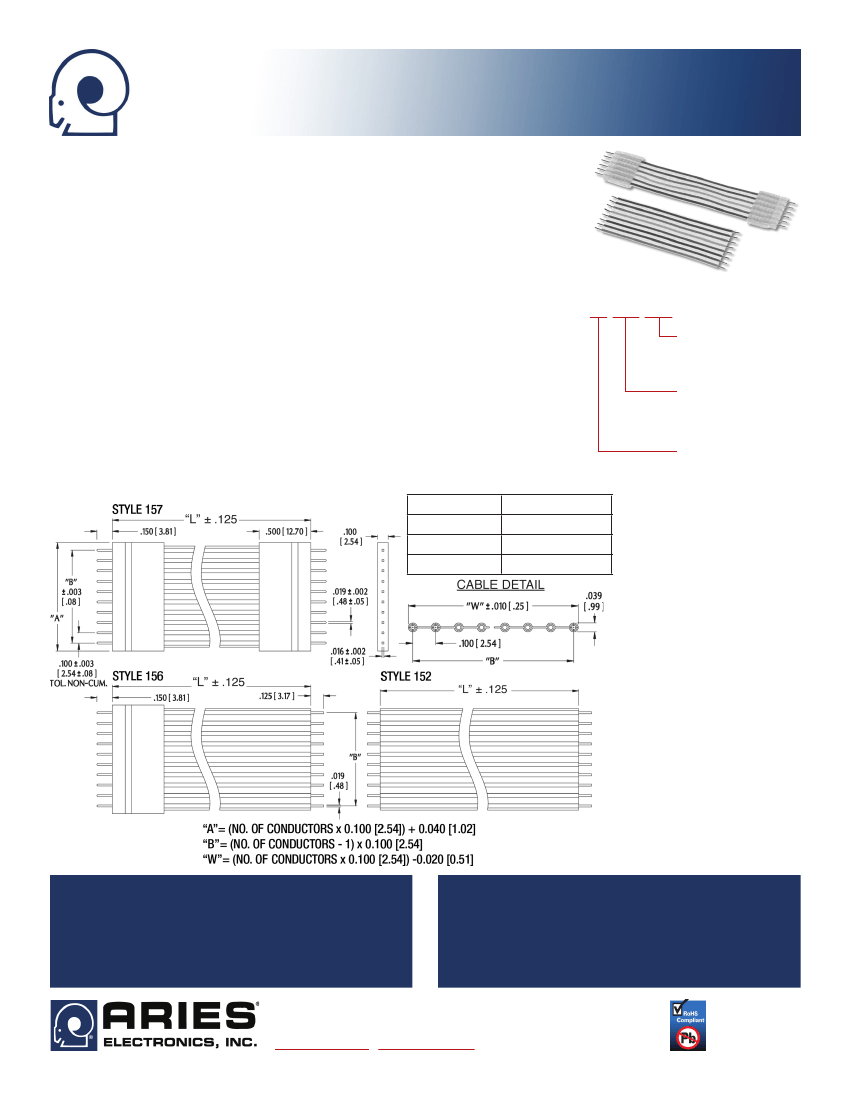

Series 152, 156, and 157 In-Line

Jumpers on 0.100 [2.54] Centers

FEATURES

• Au-plated End Connectors with Solid Brass Pins on 0.100 [2.54] Centers

• Available Single-ended (Series 156), Double-ended (Series 157), or Bare-ended (Series 152)

• Reliable, Electronically-tested Solder Connections

• Easy Identification and Tracing with 10-color Cable

GENERAL SPECIFICATIONS

•

HOUSING: natural UL 94-HB Nylon 6/6

•

HEADER PINS: Brass, 1/2-hard

ORDERING INFORMATION

•

PIN PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per SAE AMS-

XX-XXX-XXX

QQ-N-290B

•

CABLE INSULATION: UL Style 1061 Polyvinyl Chloride (PVC), semi-rigid

Series

•

LAMINATE: clear PVC, Self-extinguishing

156 = Single-ended*

157 = Double-ended*

•

CONDUCTORS: 26-AWG, 7/34-strand, tinned Cu per ASTM B 33 Series 152 Conductors are not

152 = Bare-ended

pre-tinned. Consult factory for pre-tinned, bare-ended jumpers

Cable Length “L”

(inches)

•

CABLE CURRENT RATING: 1 amp at 10°C [50°F] above ambient

1.00" = 001 (min)

•

CABLE VOLTAGE RATING: 300V

1.25" = 001.25

•

CABLE TEMPERATURE RATING: 176°F [80°C]

1.50" = 001.5

MOUNTING CONSIDERATIONS

•

SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05] dia.

No. of Conductors

4 thru 8

9 and 10

11 thru 22

Min. Insulation Length

1.00 [25.40]

1.25 [31.75]

1.50 [38.10]

Etc.

No. of Conductors

(4 thru 22)

* Not Available in RoHS

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

FOR PRE-TINNED, BARE-ENDED JUMPERS, CONSULT FACTORY

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.

SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE

FURNISHED, DEPENDING ON QUANTITY.

ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS

WITHOUT NOTICE

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE

CONSIDERED UNCONTROLLED

2609 Bartram Road

•

Bristol, PA 19007-6810 USA

TEL 215-781-9956

•

FAX 215-781-9845

WWW.ARIESELEC.COM

•

INFO@ARIESELEC.COM

11014

Rev. 10.2

1 of 1
