DB4J310K
Features
Silicon epitaxial planar type
For high speed switching circuits
Short reverse recovery time t
rr
Low forward voltage V
F
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)
Unit: mm
Marking Symbol: 4A
Basic Part Number
Dual DB2J310 (Parallel)
Packaging
DB4J310K0R Embossed type (Thermo-compression sealing): 3 000 pcs / reel (standard)
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Reverse voltage
Repetitive peak reverse voltage
Forward current (Average)
Peak forward current
Single
Double
*1
Single
Double
*1
Symbol
V
R
V
RRM
I
F(AV)
I
FM
I
FSM
T
j
T
opr
T
stg
Rating
30
30
200
150
300
225
1
125
–40 to +85
–55 to +125
Unit
V
V
mA
mA
mA
mA
A
°C
°C
°C
1
2
4
3
1: Anode-1
2: Anode-2
Panasonic
JEITA
Code
3: Cathode-2
4: Cathode-1

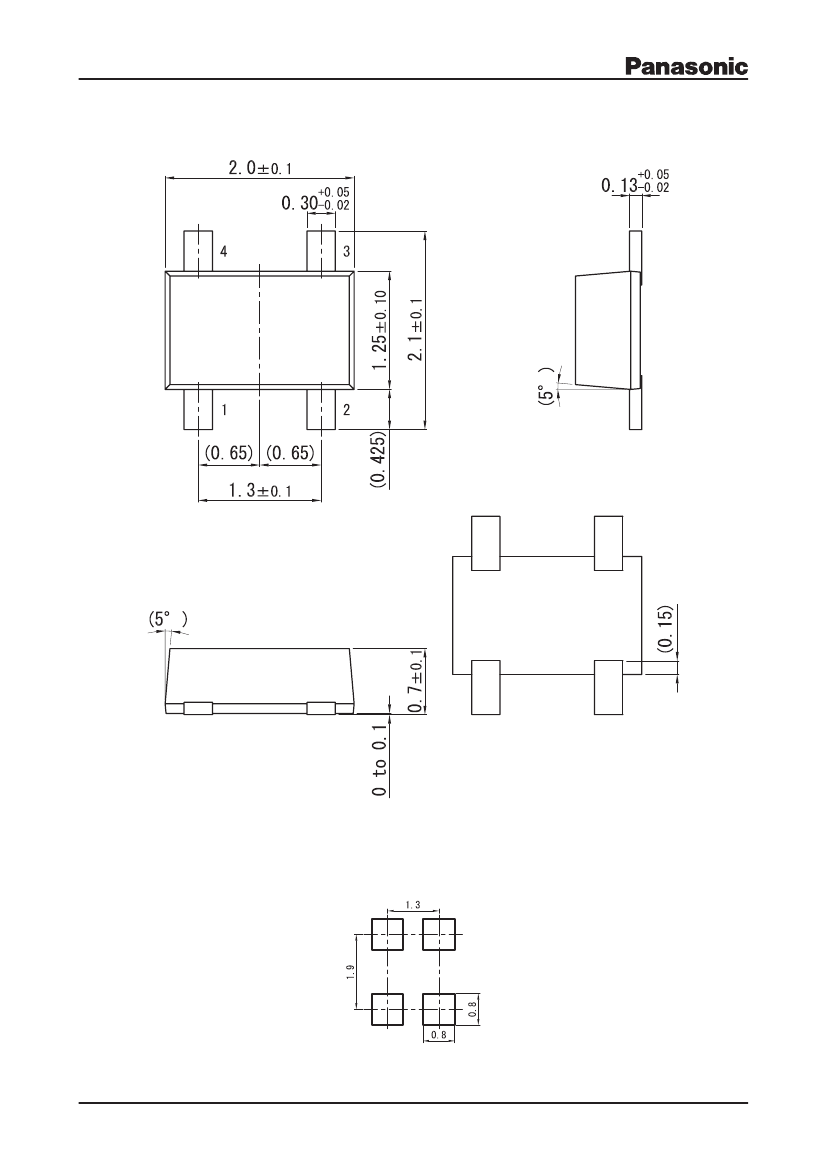

SMini4-F3-B
SC-113BB
Non-repetitive peak forward surge current
*2
Junction temperature
Operating ambient temperature
Storage temperature
Note) *1: Value of each diode in double diodes used.
*2: 50 Hz sine wave 1 cycle (Non-repetitive peak current)
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Forward voltage
Symbol
V
F1
V
F2
V
F3
Reverse current
Terminal capacitance
Reverse recovery time
*1
I
R1
I
R2
C
t
t
rr
I
F
= 5 mA
I
F
= 100 mA
I
F
= 200 mA
V
R
= 10 V
V
R
= 30 V
V
R
= 10 V, f = 1 MHz
I
F
= I
R
= 100 mA, I
rr
= 10 mA, R
L
= 100
Ω
4.5
1.6
Conditions
Min
Typ
Max
0.27
0.40
0.47
20
200
µA
pF
ns
V
Unit
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7031 measuring methods for diodes.
2. This product is sensitive to electric shock (static electricity, etc.). Due attention must be paid on the charge of a human body and the leakage
of current from the operating equipment.
3. Absolute frequency of input and output is 250 MHz
*1: t
rr
measurement circuit
Bias Application Unit (N-50BU)
t
r
10%
Input Pulse
t
p
t
I
F
Output Pulse
t
rr
t
I
rr
= 10 mA
A
V
R
Wave Form Analyzer
(SAS-8130)
R
i
= 50
Ω
90%
t
p
= 2
µs
t
r
= 0.35 ns
δ
= 0.05
I
F
= 100 mA
I
R
= 100 mA
R
L
= 100
Ω
Pulse Generator
(PG-10N)
R
s
= 50
Ω
