Features
•
•
•
•
•
•
•
omponents
20736 Marilla
Street Chatsworth
!"#
$
% !"#
SMAJ5913B
THRU
SMAJ5956B
1.5 Watt
Zener Diode
3.3 to
200
Volts
Maximum Ratings
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates
Compliant. See ordering information)
Low Zener Impedance
Low Regulation Factor
V
Z
– tolerance:
f5%
For Surface Mount Applications
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Halogen
free available upon request by adding suffix "-HF"
•
•
•
•
•
•
Junction Temperature: 150
Storage Temperature: -65 to +175
1.5 Watt DC Power Dissipation
(T
L
75
)
Thermal Resistance Junction to
Lead: 50
/W
Thermal Resistance Junction to Ambient: 83 /W
Forward Voltage @ 200mA: 1.5 Volts
DO-214AC
(SMA)( LEAD
FRAME)
H
J
A
C
E
F
G
DIMENSIONS
D
B
DIM
A
B
C
D
E
F
G
H
J
INCHES
MIN
.079
.050
.002
---
.030
.065
.189
.157
.090
MAX
.096
.064
.008
.02
.060
.091
.220
.181
.115
MM
MIN
2.00
1.27
.05
---
.76
1.65
4.80
4.00
2.25
MAX
2.44
1.63
.20
.51
1.52
2.32
5.59
4.60
2.92
NOTE
SUGGESTED SOLDER
PAD LAYOUT
0.090 ”
0.085 ”
Note:
1.
High Temperature Solder Exemptions Applied, see EU Directive Annex 7.
0.070"
Revision:
F
www.mccsemi.com
1 of 5
2014/01/24
SMAJ5913B THRU SMAJ5956B
ELECTRICAL CHARACTERISTICS @25°C
Micro Commercial Components
MC C
TM
100
75
25
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1) Based on DC-measurement at thermal equilibrium while maintaining the lead temperature(T
L
) at 30 , 9.5mm(3/8)
from the diode body.
Revision:
F
www.mccsemi. om
c
2 of 5
1.0
2014/01/24
SMAJ5913B THRU SMAJ5956B
Micro Commercial Components
MCC
TM
Characteristics
(T
j
=25
Symbol
Vz
unless otherwise specified)
Parameter
Reverse zener voltage @ I
ZT
I
ZT
Reverse current
Z
ZT
Maximum zener impedance @ I
ZT
I
ZK
Reverse current
Z
ZK
Maximum zener impedance @ I
ZK
I
R
Reverse leakage current @ V
R
V
R
Breakdown voltage
I
F
Forward current
V
F
Forward voltage @ I
F
Figure 1. Zener voltage regulator
3.0
POWER DISSIPATION, Watts
2.5
2.0
1.5
T
L
1.0
0.5
0
0
25
50
75
o
100
125
150
LEAD
TEMPERATURE ( C)
Figure 2. Steady state power derating
Figure 3. Vz – 3.3 thru 10 volts
Figure 4. Zener voltage – 3.3 to 12 volts
Figure 5. Zener voltage – 14 to 43 volts
Revision:
F
www.mccsemi.com
3 of 5
2014/01/24
SMAJ5913B THRU SMAJ5956B
Micro Commercial Components
MCC
TM

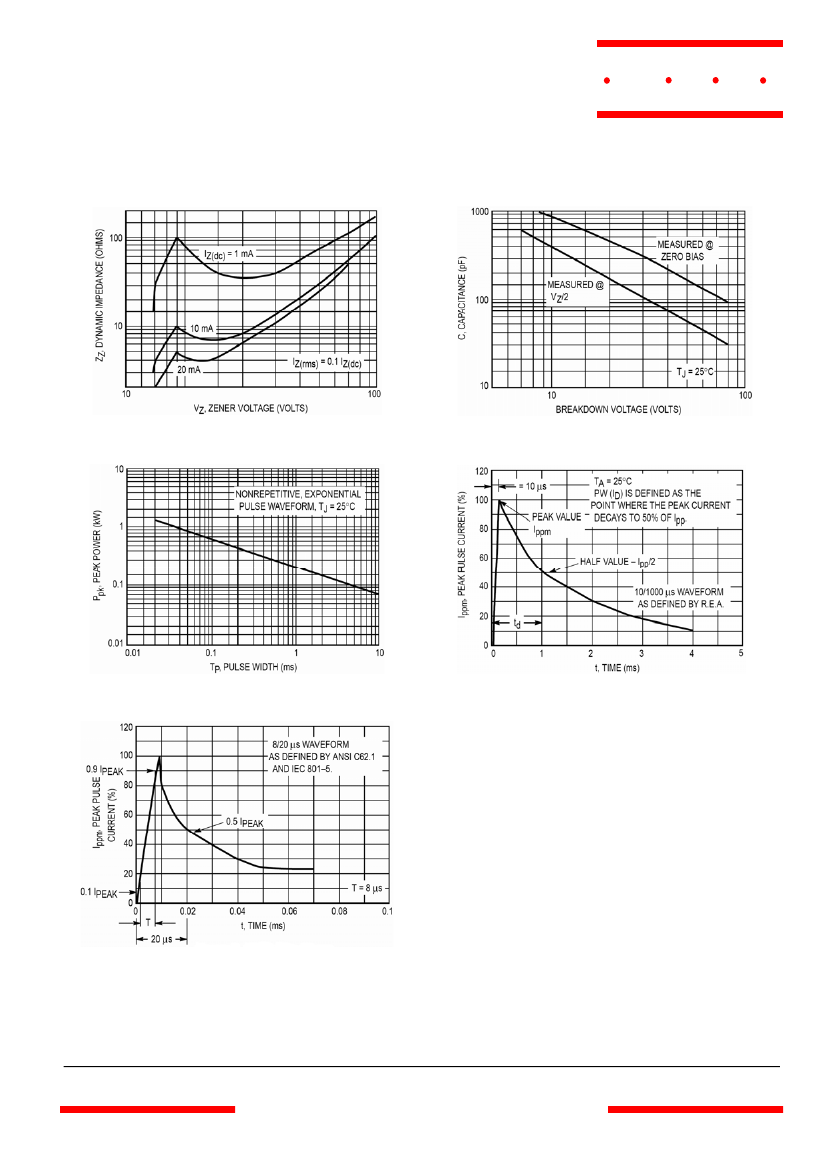

Figure 6. Effect of zener voltage
Figure 7. Capacitance curve
Figure 8. Typical pulse rating curve
Figure 9. Pulse waveform
Figure 10. Pulse waveform
Revision:
F
www.mccsemi.com
4 of 5
2014/01/24
Micro Commercial Components
MCC
TM
Ordering Information :
Device
Part Number-TP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel:
7.5Kpcs/Reel
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp .
does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp .
and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express written
approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited
below.
Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
Revision:
F
www.mccsemi.com
5 of 5
2014/01/24
