DMC50601
Silicon NPN epitaxial planar type
For general amplification
DMC20601 in SMini6 type package
Features
High forward current transfer ratio h
FE
with excellent linearity
Low collector-emitter saturation voltage V
CE(sat)
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)
Unit: mm
Marking Symbol: B3
Basic Part Number
Dual DSC2001 (Individual)
Packaging
DMC506010R Embossed type (Thermo-compression sealing): 3 000 pcs / reel (standard)
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Tr1
Tr2
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector current
Peak collector current
Total power dissipation
Overall
Junction temperature
Operating ambient temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
T
T
j
T
opr
T
stg
Rating
60
50
7
100
200
150
150
–40 to +85
–55 to +150
Unit
V
V
V
mA
mA
mW
°C
°C
°C

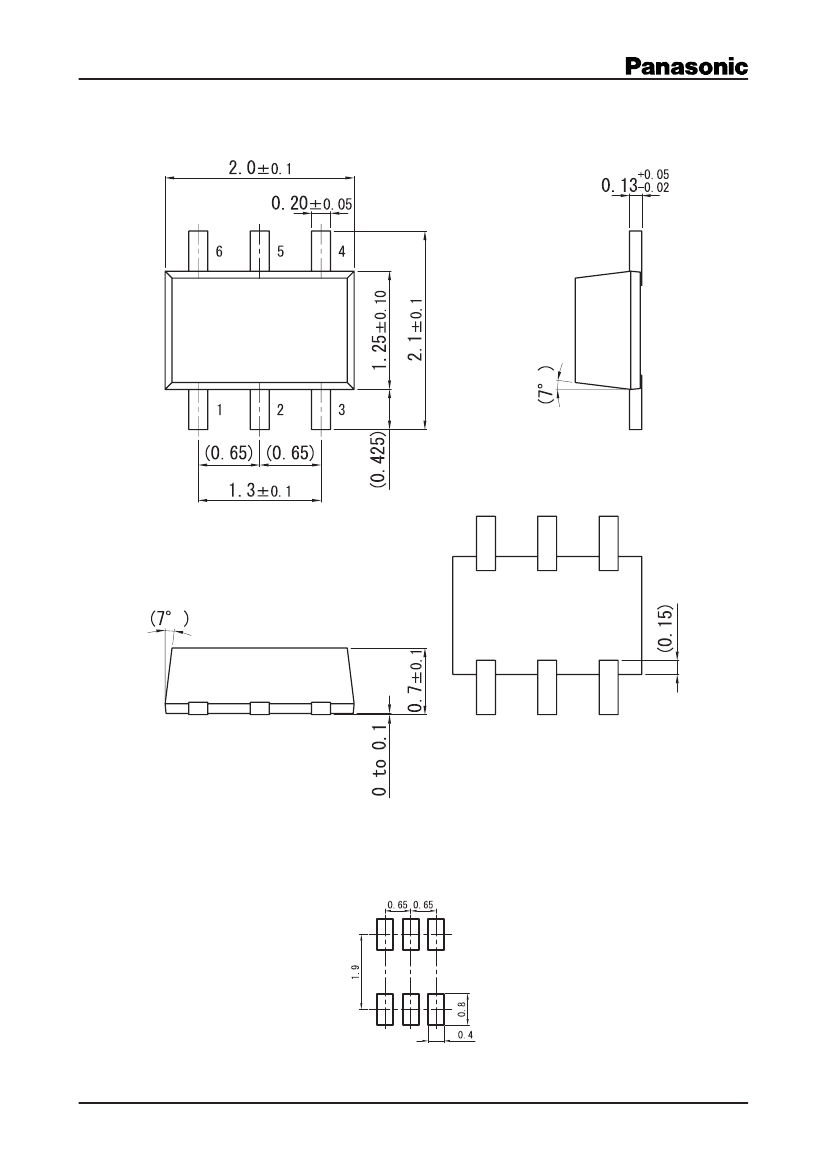

1: Emitter (Tr1)
2: Emitter (Tr2)
3: Base (Tr2)
Panasonic
JEITA
Code
(C1)
6
4: Collector (Tr2)
5: Base (Tr1)
6: Collector (Tr1)
SMini6-F3-B
SC-113DB
SOT-363
(B1)
5
(C2)
4
Tr2
Tr1
1
(E1)
2
(E2)
3
(B2)
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector-base cutoff current (Emitter open)
Collector-emitter cutoff current (Base open)
Forward current transfer ratio
h
FE
ratio
*1
Collector-emitter saturation voltage
Transition frequency
Collector output capacitance
(Common base, input open circuited)
Symbol
V
CBO
V
CEO
V
EBO
I
CBO
I
CEO
h
FE
h
FE
(Small/Large)
V
CE(sat)
f
T
C
ob
Conditions
I
C
= 10 µA, I
E
= 0
I
C
= 2 mA, I
B
= 0
I
E
= 10 µA, I
C
= 0
V
CB
= 20 V, I
E
= 0
V
CE
= 10 V, I
B
= 0
V
CE
= 10 V, I
C
= 2 mA
V
CE
= 10 V, I
C
= 2 mA
I
C
= 100 mA, I
B
= 10 mA
V
CE
= 10 V, I
C
= 2 mA
V
CB
= 10 V, I
E
= 0, f = 1 MHz
210
0.50
0.99
0.13
150
1.5
0.3
Min
60
50
7
0.1
100
460
Typ
Max
Unit
V
V
V
µA
µA
V
MHz
pF
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. *1: Ratio between 2 elements
Publication date: December 2013
Ver. DED
1
