CMPTA92 TR

Description
TRANS PNP 300V 0.5A SOT-23
Categorysemiconductor    Discrete semiconductor
File Size478KB，11 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

CMPTA92 TR Overview

TRANS PNP 300V 0.5A SOT-23

CMPTA92 TR Parametric

Parameter NameAttribute value
Transistor typePNP
Current - Collector (Ic) (Maximum)500mA
Voltage - collector-emitter breakdown (maximum)300V
Vce saturation value (maximum value) when different Ib,Ic500mV @ 2mA，20mA
Current - collector cutoff (maximum)250nA（ICBO）
DC current gain (hFE) at different Ic, Vce (minimum value)25 @ 30mA，10V
Power - Max350mW
Frequency - Transition50MHz
Operating temperature-65°C ~ 150°C（TJ）
Installation typesurface mount
Package/casingTO-236-3，SC-59，SOT-23-3
Supplier device packagingSOT-23

Preview

Download Datasheet
CMPTA42 NPN
CMPTA92 PNP
SURFACE MOUNT
COMPLEMENTARY
HIGH VOLTAGE
SILICON TRANSISTORS
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMPTA42 and
CMPTA92 are complementary surface mount epoxy
molded silicon planar epitaxial transistors designed for
high voltage applications.
MARKING CODES: CMPTA42: C1D
CMPTA92: C2D

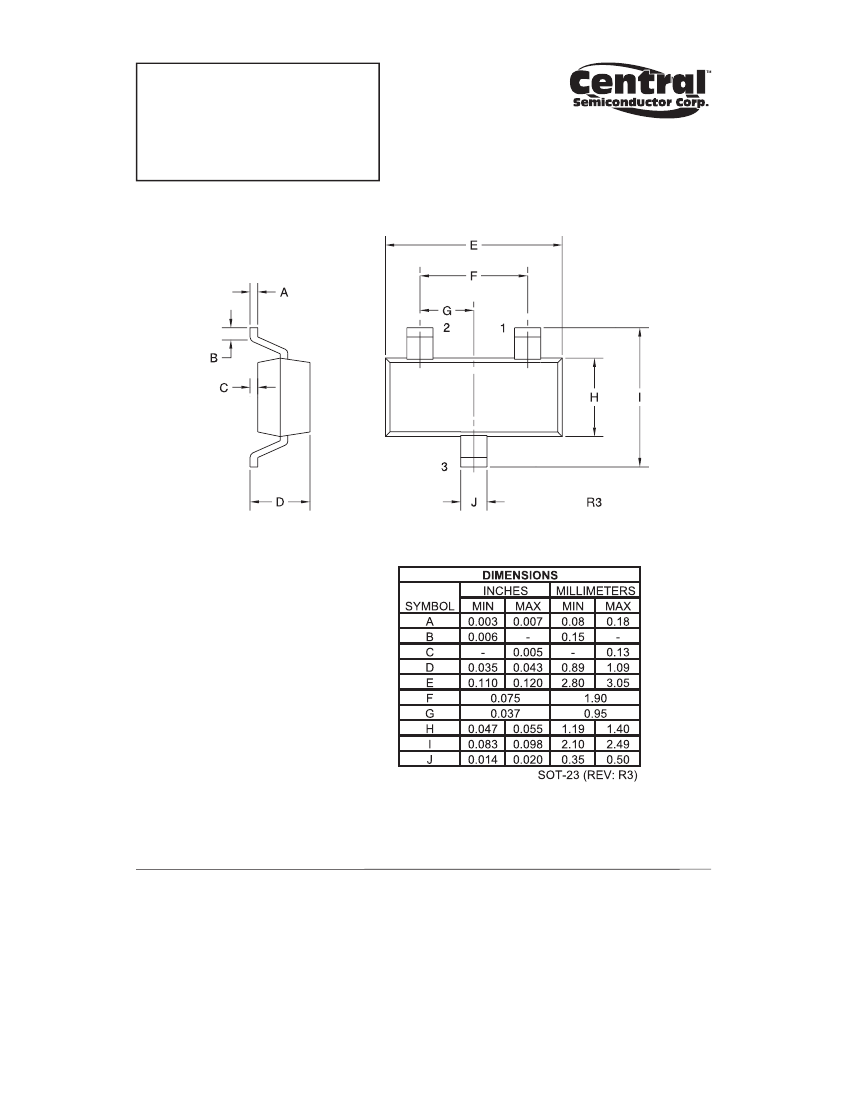

SOT-23 CASE
MAXIMUM RATINGS:
(TA=25°C)
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VCBO
VCEO
VEBO
IC
PD
TJ, Tstg
Θ
JA
CMPTA42
300
300
6.0
CMPTA92
300
300
5.0
500
350
-65 to +150
357
UNITS
V
V
V
mA
mW
°C
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
CMPTA42
SYMBOL
TEST CONDITIONS
MIN MAX
ICBO
IEBO
IEBO
BVCBO
BVCEO
BVEBO
VCE(SAT)
VBE(SAT)
hFE
hFE
hFE
fT
Cob
VCB=200V
VBE=6.0V
VBE=3.0V
IC=100µA
IC=1.0mA
IE=100µA
IC=20mA, IB=2.0mA
IC=20mA, IB=2.0mA
VCE=10V, IC=1.0mA
VCE=10V, IC=10mA
VCE=10V, IC=30mA
VCE=20V, IC=10mA, f=100MHz
VCB=20V, IE=0, f=1.0MHz
-
-
-
300
300
6.0
-
-
25
40
40
50
-
100
100
-
-
-
-
0.5
0.9
-
-
-
-
6.0
CMPTA92
MIN
MAX
-
-
-
300
300
5.0
-
-
25
40
25
50
-
250
-
100
-
-
-
0.5
0.9
-
-
-
-
6.0
UNITS
nA
nA
nA
V
V
V
V
V
MHz
pF
