E-Z Hook, Div. of Tektest, Inc. - Item # 684, Alligator Jumper
Page 1 of 2
E-Z Hook, A Div. of Tektest, Inc.
P.O. Box 660729,
Arcadia, CA 91066-0729
Phone: 626.446.6175
Fax: 626.446.0972
E-mail: info@e-z-hook.com
Website:www.e-z-hook.com
All Categories > Test Leads > Alligator Clip Test Leads > Item # 684
Item # 684, Alligator Jumper
Alligator Jumper
Standard alligator clip to standard alligator clip test lead jumper with heavier gauge wire.
Standard alligator test lead is offered in 18 AWG PVC wire. Additional lead lengths, wire types, and custom leads available
upon request.
Available in 10 standard colors.
larger image
Specifications
·
Lead Length and Cable Length Information
·
How to Order Test Leads & Cable Assemblies
·
Field Servicing Information
Specifications
Gator Model
Wire Gauge
Wire
Connector #1
Connector #2
Standard
18 AWG
PVC
9274, standard alligator clip
9274, standard alligator clip
3 in (8 cm)
6 in (15 cm)
12 in (30 cm)
18 in (45 cm)
24 in (60 cm)
36 in (90 cm)
48 in (120 cm)
60 in (150 cm)
Standard Lengths
Black (0)
larger image
Brown (1)
larger image
Red (2)
larger image
Colors
Orange (3)
larger image
Yellow (4)
larger image
Green (5)
larger image
Blue (6)
http://catalog.e-z-hook.com/printitem/all-categories/alligator-clip-test-leads/684?&plpver=1... 3/9/2011
E-Z Hook, Div. of Tektest, Inc. - Item # 684, Alligator Jumper

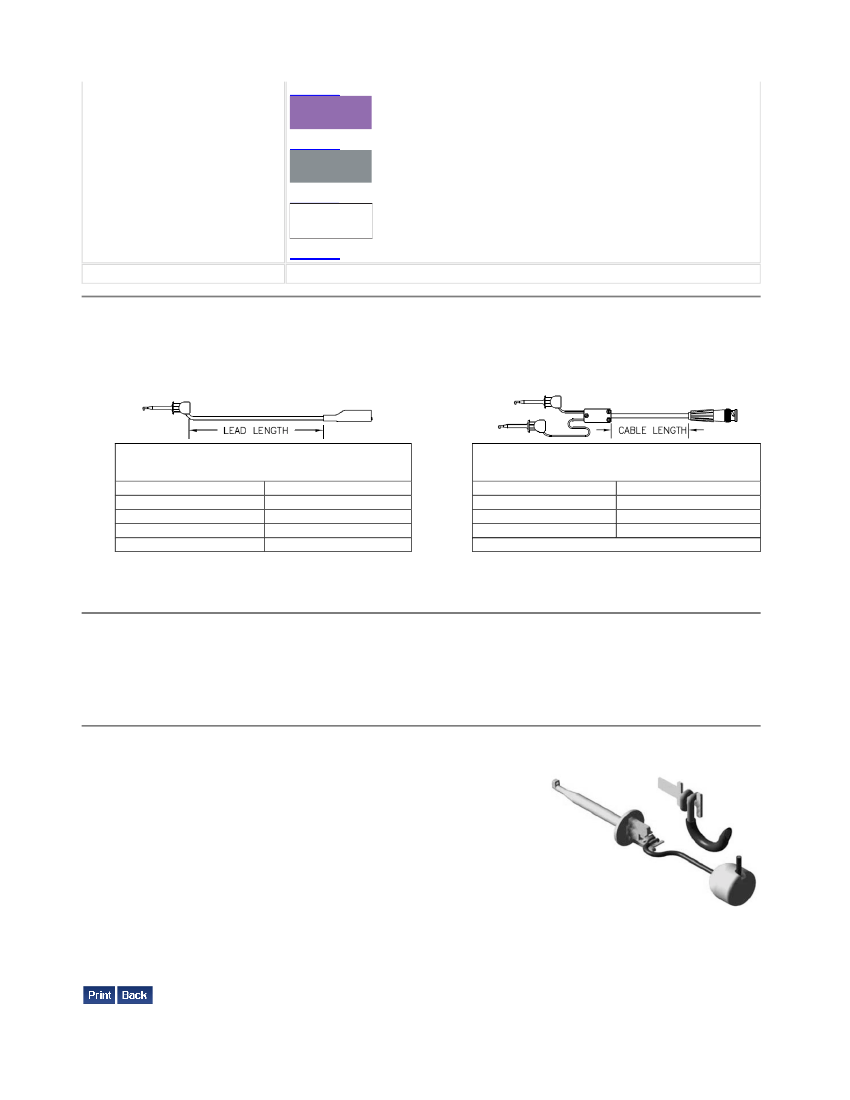

Page 2 of 2
larger image
Violet (7)
larger image
Gray (8)
larger image
White (9)
larger image
Unit
each
Lead Length and Cable Length Information
E-Z-Hook offers a selection of standard length test leads, patch cords, and cable assemblies. We also offer custom lengths to fit special
requirements.
All length measurements are made in inches, see diagrams below for measuring examples:
Standard lengths in inches for
test lead and patch cord
assemblies:
3" (8 cm) lead wire
4" (10 cm) lead wire
6" (15 cm)
8" (20 cm)
12" (30 cm)
18" (45 cm)
24" (60 cm)
36" (90 cm)
48" (120 cm)
60" (150 cm)
Standard lengths in inches for
cable
assemblies:
6" (15 cm)
30" (75 cm)
12" (30 cm)
36" (90 cm)
18" (45 cm)
48" (120 cm)
24" (60 cm)
60" (150 cm)
*Longer
lengths available
How to Order Test Leads & Cable Assemblies
Ordering E-Z-Hook test leads and cable assemblies is E-Z. Select the part number supplied in the product section, then select your lead or cable
length and color. Example: 704XR-18-RED (Part No.-Length-Color). Variations of each hook may be ordered in place of the standard hook.
Ordering information is provided at the beginning of each section.
Field Servicing Information
Most hooks are designed to be field serviceable. To replace a lead wire, pull on the
plunger until it slips free of the body. Strip lead wire 3/4" (19 mm), feed wire through
plunger and wrap around terminal as shown. Solder and cut off excess wire at solder
point. Reassemble part, making sure the terminal and nylon fins enter their respective
grooves. Keep slack in lead wire pulled out while assembling to prevent binding.
NOTE:
To disassemble XM Micro-Hook connectors or leads, actuate plunger to
expose hook and grasp behind hook with long nose pliers before pulling plunger off.
Failure to do so will result in damage to part.
http://catalog.e-z-hook.com/printitem/all-categories/alligator-clip-test-leads/684?&plpver=1... 3/9/2011
