Lightning arrester type 1 - FLT 100-260 - 2838160
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

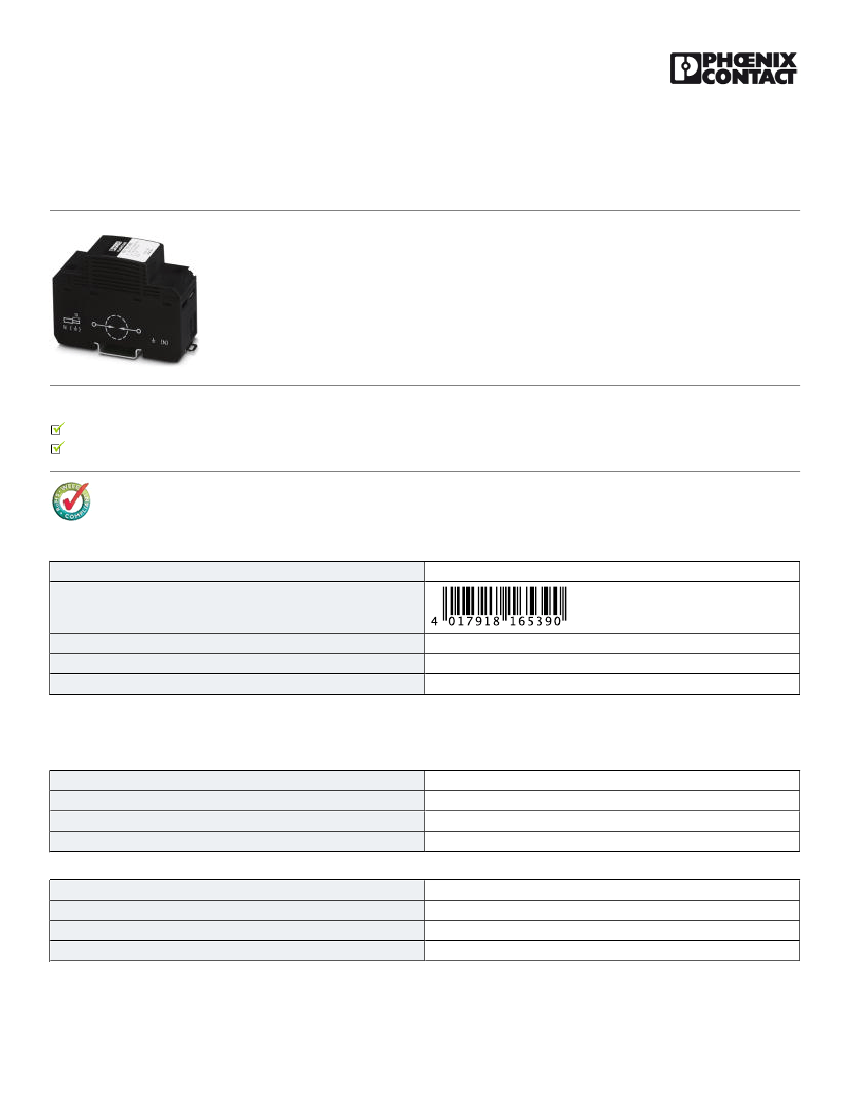

Type 1 / Class I / B arrester (lightning current arrester) with encapsulated N-PE total spark gap, 1-channel.
Housing width: 35 mm (2 Div.)
Product Features
High discharge capacity
Single-channel
Key commercial data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
296.03 GRM
85363010
Germany
1 pc
Technical data
Dimensions
Height
Width
Depth
Horizontal pitch
90 mm
35.8 mm
65.7 mm
2 Div.
Ambient conditions
Degree of protection
Ambient temperature (operation)
Altitude
Permissible humidity (operation)
IP20
-40 °C ... 85 °C
≤ 2000 m
≤ 95 %
10/20/2014 Page 1 / 5
https://www.phoenixcontact.com/us/products/2838160
Lightning arrester type 1 - FLT 100-260 - 2838160
Technical data
General
IEC power supply system
Housing material
Inflammability class according to UL 94
Color
Standards for air and creepage distances
Mounting type
Type
Number of positions
Surge protection fault message
Direction of action
TT
TN-S
PBT
V0
black
EN 60664-1
EN 61643-11
DIN rail: 35 mm
Rail-mountable module, one-piece
1
None
N-PE
Protective circuit
IEC test classification
EN type
Nominal voltage U
N
Maximum continuous operating voltage U
C
(N-PE)
U
T
(TOV-proof)
Nominal frequency f
N
Residual current I
PE
Standby power consumption P
C
Max. discharge current I
max
(8/20) µs
Nominal discharge current I
n
(8/20) µs
Nominal discharge current I
n
(8/20) µs (N-PE)
Impulse discharge current (10/350) µs charge
Impulse discharge current (10/350)½µs, specific energy
Impulse discharge current (10/350)½µs, peak value l
imp
Front of wave sparkover voltage at 6 kV (1.2/50) µs
Front of wave sparkover voltage at 6 kV (1.2/50) µs (N-PE)
Voltage protection level U
p
Voltage protection level U
p
(N-PE)
Response time
Response time (N-PE)
Follow current quenching capacity If
I
T1
T1
230 V AC (400 V AC)
260 V AC
1200 V AC (200 ms)
50 Hz
60 Hz
≤ 0.1 mA
≤ 26 mVA
100 kA
100 kA
100 kA
50 As
3 MJ/Ω
100 kA
≤ 4 kV
≤ 4 kV
≤ 4 kV
≤ 4 kV
≤ 100 ns
≤ 100 ns
100 A
10/20/2014 Page 2 / 5
https://www.phoenixcontact.com/us/products/2838160
Lightning arrester type 1 - FLT 100-260 - 2838160
Technical data
Protective circuit
Follow current quenching capacity If (N-PE)
100 A
Connection, protective circuit
Connection method
Connection type IN
Connection type OUT
Connection method
Screw thread
Tightening torque
Stripping length
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Screw connection
Biconnect screw terminal block
Biconnect screw terminal block
Biconnect terminal block
M6
8 Nm
19 mm
16 mm²
35 mm²
10 mm²
50 mm²
6
1
Standards and Regulations
Standards/regulations
IEC 61643-1 2005
EN 61643-11/A11 2007
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140201
27140201
27140201
27140201
27140201
27140201
27140201
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000381
EC000381
EC000381
EC000381
10/20/2014 Page 3 / 5
https://www.phoenixcontact.com/us/products/2838160
Lightning arrester type 1 - FLT 100-260 - 2838160
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30212010
39121610
39121610
39121610
39121620
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
Drawings
Dimensioned drawing
90
45
Circuit diagram
N( )
N( )
65,5
58
51,5
10/20/2014 Page 4 / 5
https://www.phoenixcontact.com/us/products/2838160
Lightning arrester type 1 - FLT 100-260 - 2838160

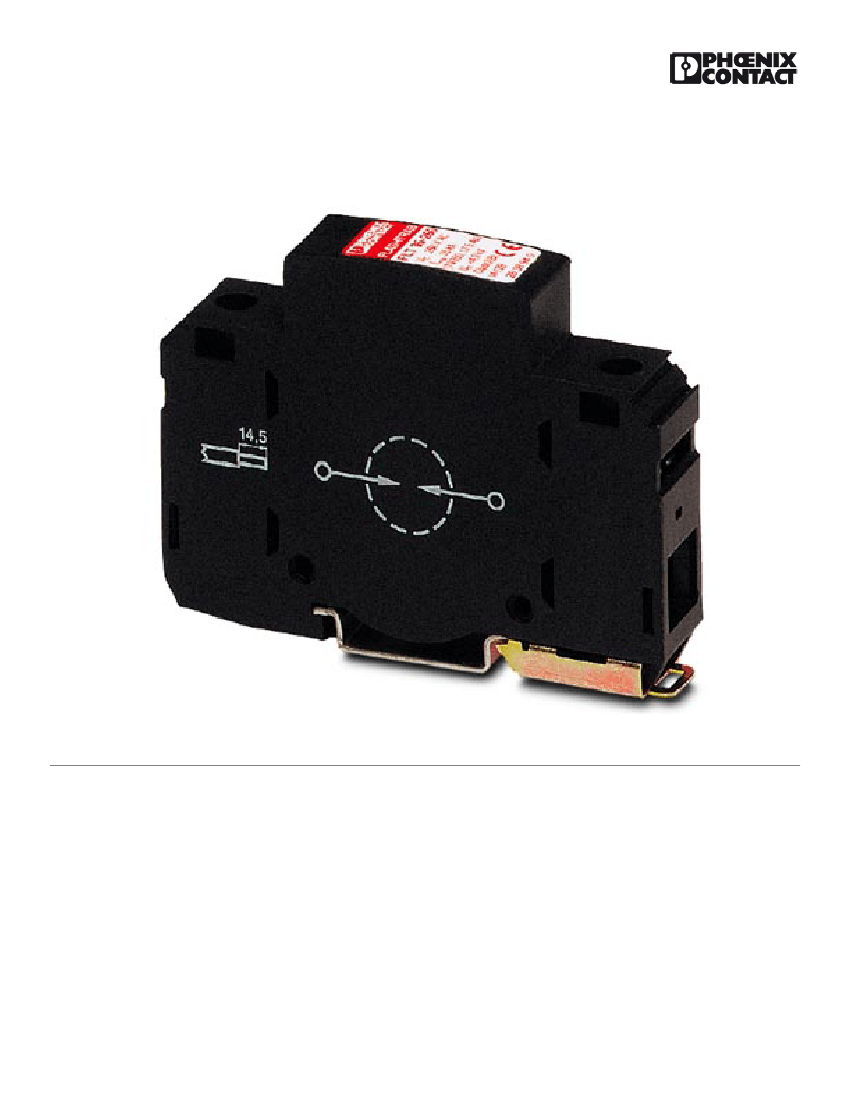

Catalog photo
Figure may contain other products.
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
10/20/2014 Page 5 / 5
