EBC12DCKI-S288 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> EBC12DCKI-S288

EBC12DCKI-S288: DescriptionCard Edge Connector, 24 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector; File Size543KB，2 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

EBC12DCKI-S288 Overview

Card Edge Connector, 24 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking

EBC12DCKI-S288 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	309422326
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.5
body width	0.37 inch
subject depth	0.8 inch
body length	2.035 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	24

Preview

Download Datasheet

View All

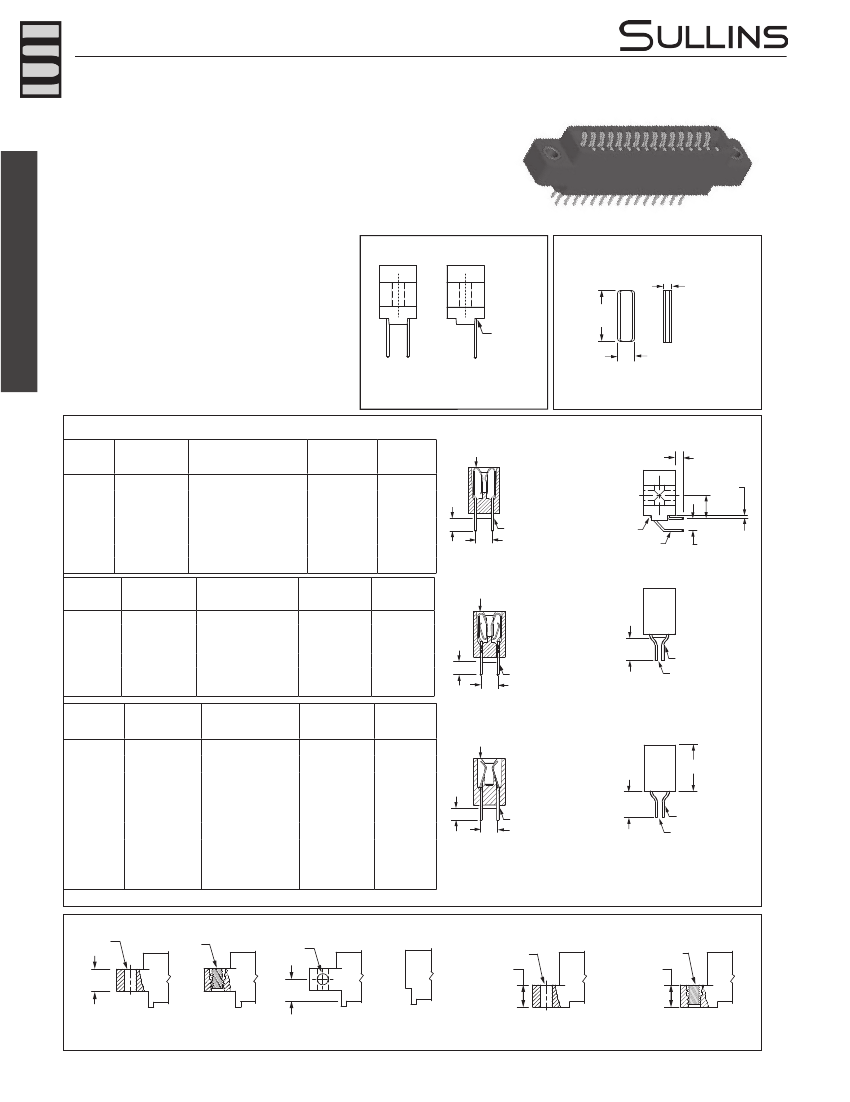

Female Card Edge

.100” [2.54 mm] Contact Centers, .610” [15.49 mm] Insulator Height,

Dip Solder/Wire Wrap/Right Angle/Card Extender

SPECIFICATIONS

• Accommodates .062” ± .008” [1.57 mm ± 0.20 mm] mating PCB

(For .093” [2.36 mm] or .125” [3.18 mm] mating PCB see following pages)

• PBT, PPS or PA9T insulator

• Molded-in key available

• 3 Amps current rating for one contact energized

• 30 milli Ohms maximum at rated current

READOUT

• UL Flammability Rating: 94V-0

Sullins Female Card Edge

POLARIZING KEY

PLC-K1

.285”

[7.24]

.038”

[0.97]

EVEN

NUMBER

SIDE

DUAL (D)

HALF LOADED (H)

.100” [2.54]

KEY IN BETWEEN CONTACTS

(ORDER SEPARATELY)

TERMINATION TYPE

HAIRPIN

BELLOWS

LOOP

BELLOWS

TK,CK

CANTILEVER

*KA

*KE

*KU

*KJ

*KR

*KN

TERMINATION

TYPE

DIP SOLDER

WIRE WRAP

RIGHT ANGLE

TERMINATION

TYPE

DIP SOLDER

WIRE WRAP

RIGHT ANGLE

TERMINATION

TYPE

DIP SOLDER

WIRE WRAP

RIGHT ANGLE

POST LENGTH FITS MIN.

HOLE SIZE

.025” [0.64]

.015ʺ X .025ʺ[0.38 X 0.64] .125ʺ [3.18] .035ʺ [0.89]

POST CROSS SECTION

.015ʺ X .025ʺ[0.38 X 0.64]

.025ʺ [0.64] SQUARE

POST CROSS SECTION

.025ʺ [0.64] ROUND

.025ʺ [0.64] SQUARE

POST CROSS SECTION

.025ʺ [0.64] SQUARE

.170ʺ

.160ʺ

.560ʺ

.100ʺ

.180ʺ

.250ʺ

[4.32]

[4.06]

[14.20]

[2.54]

[4.57]

[6.35]

.035ʺ

.040ʺ

.043ʺ

[0.89]

[1.02]

[1.09]

HAIRPIN BELLOWS

RIGHT ANGLE

.030” [0.76]

.275”

[6.98]

.200” [5.08]

ODD NUMBER

SIDE

.150” [3.81]

(CW, CT, CS, CM)

(CA, CB, CC, TA, TB, TM, KA, KE, KU, KJ)

HAIRPIN or LOOP CARD EXTENDER

POST LENGTH

.025”ʺ [0.64]

.190ʺ [4.83]

.560ʺ [14.20]

.100ʺ [2.54]

.180ʺ [4.57]

.250ʺ [6.35]

POST LENGTH

.025”ʺ [0.64]

.190ʺ [4.83]

.160ʺ [4.06]

.560ʺ [14.20]

.100ʺ [2.54]

.180ʺ [4.57]

.250ʺ [6.35]

.500ʺ [12.70]

.235ʺ [5.97]

.605ʺ [15.37]

FITS MIN.

HOLE SIZE

.033ʺ

.040ʺ

.043ʺ

[0.84]

[1.02]

[1.09]

LOOP BELLOWS

.200” [5.08]

(TK, CK, RS, RM)

FITS MIN.

HOLE SIZE

.040ʺ [1.02]

.043ʺ [1.09]

.040ʺ [1.02]

.043ʺ [1.09]

N/A

ACCOMMODATES

.062” [1.57] PCB

(CT, CS, CM,TK, CK, RS,RM)

Example P/N: EBC10DCSN-S288

(Requires -S288 Modification Code)

CANTILEVER CARD EXTENDER

.550” [13.97]

L - .015” [0.38]

CANTILEVER

.200” [5.08]

(KS, KD, KM)

ACCOMMODATES

.062” [1.57] PCB

CARD EXTENDER

.025ʺ [0.64] SQUARE

CARD EXTENDER

.025ʺ [0.64] SQUARE

(KR, KN)

Example P/N: EBC10DKRN

(Omit Modification Code)

* KA, KE, KU, KJ, KR, KN have no standoffs, unless requested.

MOUNTING STYLE

Ø.125”

[3.18]

.250”

[6.35]

#4-40

Ø.125”

[3.18]

.245”

[6.22]

Ø.125” [3.18]

D = .250” [6.35]

W = .430” [10.92]

#4-40

T = .250” [6.35]

X = .430” [10.92]

CLEARANCE

HOLE (H)

THREADED

INSERT(I)

SIDE MOUNTING

(S)

NO MOUNTING

EARS (N)

FLUSH MOUNTING

(D, W)

FLUSH MOUNTING WITH

THREADED INSERT(T, X)

www.sullinscorp.com

760-744-0125

toll-free 888-774-3100

fax 760-744-6081

info@sullinscorp.com
