EHF-105-01-L-D-SM-03-P datasheet, PDF

EHF-105-01-L-D-SM-03-P: Description.050 EJECTOR HEADER ASSEMBLY; CategoryThe connector; File Size244KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

EHF-105-01-L-D-SM-03-P Overview

.050 EJECTOR HEADER ASSEMBLY

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.050"（1.27mm）
Number of pins	10
Number of rows	2
Line spacing - patching	0.050"（1.27mm）
Number of pins loaded	9
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	surface mount
Termination	welding
Fastening type	lock/eject hook
Contact Length - Mating	0.120"（3.05mm）
Contact length - terminal	-
Overall contact length	-
Insulation height	0.325"（8.25mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	10.0µin（0.25µm）
Contact Surface Preparation - Column	tin
Contact material	Phosphor bronze
Insulation Materials	Liquid crystal polymer (LCP), glass fiber reinforced
characteristic	keyway, pick and place
Operating temperature	-55°C ~ 125°C
Intrusion protection	-
Material flammability rating	-
Insulation color	black
Rated current	1.75A
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

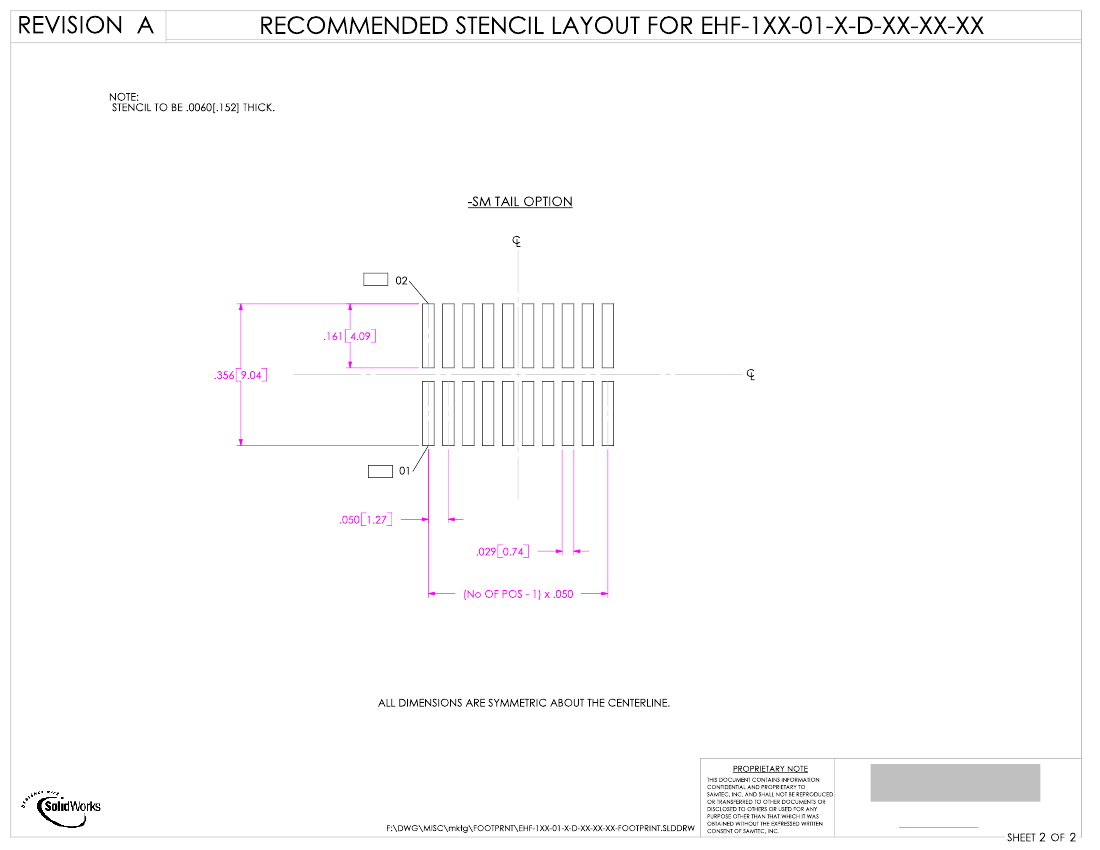

A

S A M TEC

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812.944.6733

FAX: 812.948.5047

e-Mail:

INFO@SAMTEC.COM

CODE: 55322
