361V509E

Description
CONN BNC JACK STR 50OHM EDGE MNT
CategoryThe connector
File Size78KB,1 Pages
ManufacturerWinchester Interconnect
Websitehttps://www.winconn.com/
Environmental Compliance
Download Datasheet Parametric View All

361V509E Online Shopping

Suppliers Part Number Price MOQ In stock
361V509E - - View Buy Now

361V509E Overview

CONN BNC JACK STR 50OHM EDGE MNT

361V509E Parametric

Parameter NameAttribute value
Connector styleBNC
Connector typejack, female socket
Contact terminationwelding
Protective terminationwelding
impedance50 ohms
Installation typeBoard edge, end-mounted
Installation features-
cable set-
Fastening typelatch lock
Frequency - maximum4GHz
Number of ports1
characteristic-
Shell colorsilver
Intrusion protectionWeatherproof
include-
Matrix materialbrass
substrate surfacenickel
Center contact platingtin
dielectric materialsPolyethylene (PE)
Operating temperature-65°C ~ 165°C
center contact materialbrass
Rated voltage500V
Number of patches500
Insertion loss0.2dB

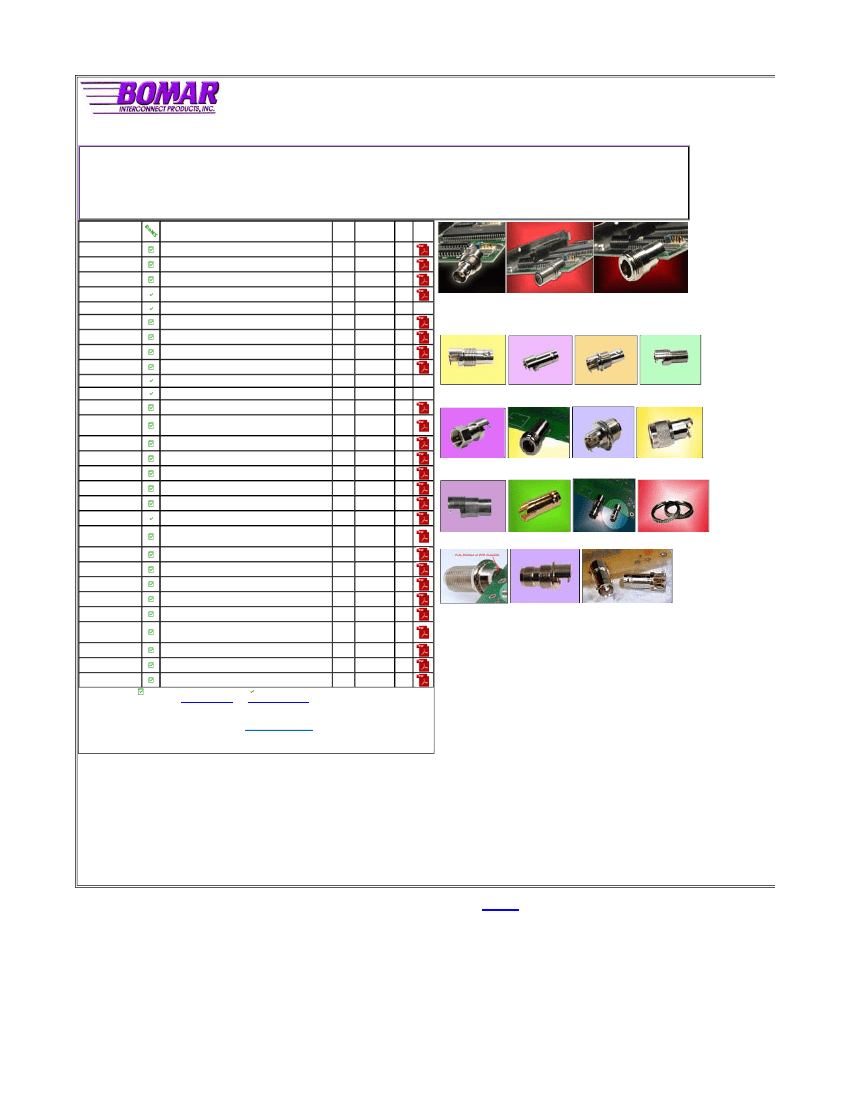

V-Bite ® PC Edge Mount
The V-Bite ® is an industry award winning design PCB connector with all the advantages a designer could want. It
edge mounts
to the board which
offers the lowest profile and utilizes very little PCB real estate. It lends itself to surface mount and through-hole soldering techniques. There are
versions for IR and convection reflow soldering. Because the connector locks into place both above and below the PCB it disperses rotational torque
relief to the board and not the solder points. The V-Bite ® design offers the lowest VSWR ratings due to the straight through-put contact design. No
right angles for reflection. Available in 50 and 75 ohm, threaded and non-threaded. Other options for PCB thickness available. Other interfaces
available. See “F”, BNC Twin, TNC and N sections.
Part Number
361V504ER *
361V504ET *
361V504EFT*
361V509E *
361V509ET *
361V704ER *
361V704ET *
361V704EFT *
361VH704EFT
361V709E *
361V709ET *
361E704ER *
361E704EFT *
361KNT
3M61V704 *
461V504E *
561V504E *
561V504EFT*
861V509E *
861V509ER *
861V509ER6 *
861VH509ER6*
861VUS509ER6*
862V509ER6 *
161V504E *
161V504EFT *
161VUS504EFT*
162V504E *
R061V704ER *
* Bomar Patent
only
constant impedance)
Description
BNC
Jack W/ Teflon For Reflow Solder
Imp
Contact
Fig.
Dwg.
No.
50 Phos./Gold 39A
BNC
Threaded Jack W/ Teflon For Reflow Solder 50 Phos./Gold 39
BNC
Threaded Jack W/ Teflon Insulator/Flange
BNC
Jack W/ Polyethylene Insulator
BNC
Threaded Jack W/ Polyethylene Insulator
BNC
Jack W/ Teflon For Reflow Solder
50 Phos./Gold 39B
50 Phos./Tin 39A
50 Phos./Tin 39
75 Phos./Gold 39A
---
Patented V-Bite ®, Snaps Into PCB, Surface Mount Center Contact
BNC
Threaded Jack W/ Teflon For Reflow Solder 75 Phos./Gold 39
BNC
Threaded Jack W/ Teflon Insulator/Flange
BNC
Threaded Jack W/ Teflon Insulator/Flange
BNC
Jack W/ Polyethylene Insulator
BNC
Threaded Jack W/ Polyethylene Insulator
BNC
W/Teflon for Reflow Solder, gold plated
BNC
End launch W/Flnge and Threads, gold
plated
Knurled nut
(361 series)
Mini-BNC
Jack W/Teflon for Reflow
Twin-BNC
Jack W/ Teflon For Reflow Solder
TNC
Jack W/ Teflon For Reflow Solder
TNC
Jack W/ Teflon Insulator/Flange
F
Edge Mount Jack (RG59)
F
Edge Mount Jack w/ TFE Insul. for Reflow
( RG59)
F
Jack w/ TFE Insul. for Reflow (RG6, RG59)
F
Jack w/ TFE Ins. for Reflow (RG6,59)
5GHZ
F
Jack w/ Under Shield TFE Ins. Rflw (RG6,59)
F
Edge Mount
Plug
w/TFE insul for reflow
N
Edge Mount Jack w/ TFE Insul for reflow
N
Edge Mount Jack w/ Flange TFE Insul for
reflow
N
Edge Mount Plug (TFE Insul for reflow)
RCA
Edge Mount Jack w?TFE for reflow
75 Phos./Gold 39B
75 Phos./Gold 39B
75 Phos./Gold 39A ---
75 Phos./Gold 39 ---
75 Phos./Gold 39I
75 Phos./Gold ---
NA
---
39K
Fig.39D
Fig. 39E
Fig. 39F
Fig. 39G
Fig. 39
Fig. 39A
Fig. 39B
Fig. 39C
75 Phos./Gold 39J
75 Phos./Gold 39N
50 Phos./Gold ***
50 Phos./Gold 39M
#NCI Phos/Gold 39C
#NCI Brass/Gold 39C
75 Brass/Gold 39C
75 Brass/Gold 39C
75 Brass/Gold ***
75 Brass/Gold 39D
50 Brass/Gold 39E
50 Brass/Gold 39F
Fig. 39L
Fig. 39M
Fig. 39N
Fig. 39H
Fig. 39I
Fig. 39J
Fig. 39K
N
Jack w/ Flge Under Shield TFE Ins. for reflow 50 Brass/Gold 39L
50 Brass/Gold 39G
75 Brass/Gold 39H
#NCI ( non
RoHS compliant reflow or wave solder
RoHS compliant wave solder only
REQUEST DRAWING
REQUEST QUOTE
V-bite Footprint
Solder Suggestions
Back to Index
