ATMEGA2564RFR2-ZFR Overview

IC RF TXRX+MCU 802.15.4 48-VFQFN

ATMEGA2564RFR2-ZFR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	HVQCCN, LCC48,.27SQ,20
Reach Compliance Code	compliant
Factory Lead Time	18 weeks
Has ADC	YES
Address bus width
bit size	8
CPU series	AVR RISC
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-XQCC-N48
length	7 mm
Number of I/O lines	33
Number of terminals	48
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Encapsulate equivalent code	LCC48,.27SQ,20
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
power supply	2/3.3 V
Certification status	Not Qualified
RAM (bytes)	32768
rom(word)	131072
ROM programmability	FLASH
Maximum seat height	0.9 mm
speed	16 MHz
Maximum slew rate	2 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	1.8 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
width	7 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

ATmega2564/1284/644RFR2

Features

•

Network support by hardware assisted Multiple PAN Address Filtering

Advanced Hardware assisted Reduced Power Consumption

High Performance, Low Power AVR 8-Bit Microcontroller

Advanced RISC Architecture

135 Powerful Instructions – Most Single Clock Cycle Execution

32x8 General Purpose Working Registers / On-Chip 2-cycle Multiplier

Up to 16 MIPS Throughput at 16 MHz and 1.8V – Fully Static Operation

Non-volatile Program and Data Memories

256K/128K/64K Bytes of In-System Self-Programmable Flash

•

Endurance: 10’000 Write/Erase Cycles @ 125° (25’000 Cycles @ 85°

8K/4K/2K Bytes EEPROM

•

Endurance: 20’000 Write/Erase Cycles @ 125° (100’000 Cycles @ 25°

32K/16K/8K Bytes Internal SRAM

JTAG (IEEE std. 1149.1 compliant) Interface

Boundary-scan Capabilities According to the JTAG Standard

Extensive On-chip Debug Support

Programming of Flash EEPROM, Fuses and Lock Bits through the JTAG interface

Peripheral Features

Multiple Timer/Counter & PWM channels

Real Time Counter with Separate Oscillator

10-bit, 330 ks/s A/D Converter; Analog Comparator; On-chip Temperature Sensor

Master/Slave SPI Serial Interface

Two Programmable Serial USART

Byte Oriented 2-wire Serial Interface

Advanced Interrupt Handler and Power Save Modes

Watchdog Timer with Separate On-Chip Oscillator

Power-on Reset and Low Current Brown-Out Detector

Fully integrated Low Power Transceiver for 2.4 GHz ISM Band

High Power Amplifier support by TX spectrum side lobe suppression

Supported Data Rates: 250 kb/s and 500 kb/s, 1 Mb/s, 2 Mb/s

-100 dBm RX Sensitivity; TX Output Power up to 3.5 dBm

Hardware Assisted MAC (Auto-Acknowledge, Auto-Retry)

32 Bit IEEE 802.15.4 Symbol Counter

SFD-Detection, Spreading; De-Spreading; Framing ; CRC-16 Computation

Antenna Diversity and TX/RX control / TX/RX 128 Byte Frame Buffer

PLL synthesizer with 5 MHz and 500 kHz channel spacing for 2.4 GHz ISM Band

Hardware Security (AES, True Random Generator)

Integrated Crystal Oscillators (32.768 kHz & 16 MHz, external crystal needed)

I/O and Package

33 Programmable I/O Lines

48-pad QFN (RoHS/Fully Green)

Temperature Range: -40° to 125° Industrial

Ultra Low Power consumption (1.8 to 3.6V) for AVR & Rx/Tx: 10.1mA/18.6 mA

CPU Active Mode (16MHz): 4.1 mA

2.4GHz Transceiver: RX_ON 6.0 mA / TX 14.5 mA (maximum TX output power)

Deep Sleep Mode: <700nA @ 25°

Speed Grade: 0 – 16 MHz @ 1.8 – 3.6V range with integrated voltage regulators

•

8-bit

Microcontroller

with Low Power

2.4GHz

Transceiver for

ZigBee and

IEEE 802.15.4

ATmega2564RFR2

ATmega1284RFR2

ATmega644RFR2

•

Applications

•

ZigBee / IEEE 802.15.4-2011/2006/2003

™

– Full and Reduced Function Device

•

General Purpose 2.4GHz ISM Band Transceiver with Microcontroller

•

RF4CE, SP100, WirelessHART

™

, ISM Applications and IPv6 / 6LoWPAN

42073B-MCU Wireless-09/14

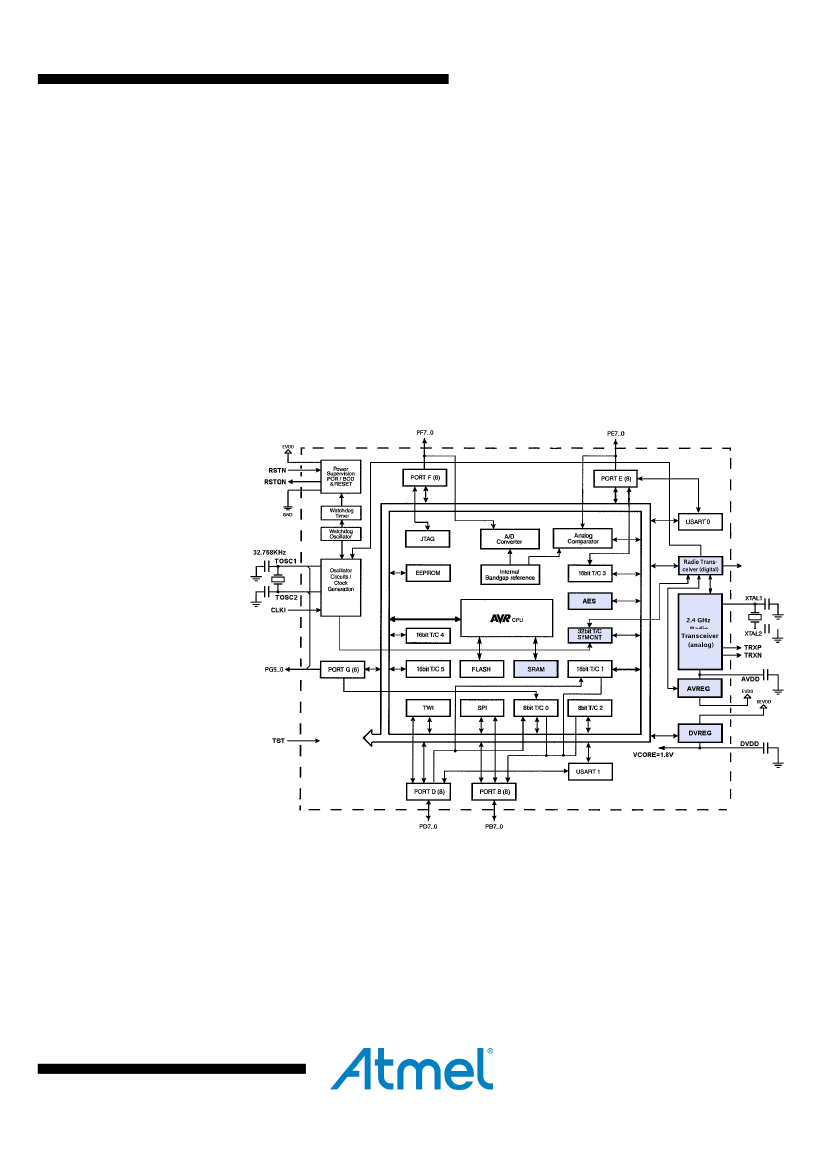

Spectrum Signal (DSSS) processing with spreading and despreading. The device is

fully compatible with IEEE802.15.4-2011/2006/2003 and ZigBee standards.

The ATmega2564/1284/644RFR2 provides the following features: 256K/128K/64K

Bytes of In-System Programmable (ISP) Flash with read-while-write capabilities,

8K/4K/2K Bytes EEPROM, 32K/16K/8K Bytes SRAM, up to 35 general purpose I/O

lines, 32 general purpose working registers, Real Time Counter (RTC), 6 flexible

Timer/Counters with compare modes and PWM, a 32 bit Timer/Counter, 2 USART, a

byte oriented 2-wire Serial Interface, a 8 channel, 10 bit analog to digital converter

(ADC) with an optional differential input stage with programmable gain, programmable

Watchdog Timer with Internal Oscillator, a SPI serial port, IEEE std. 1149.1 compliant

JTAG test interface, also used for accessing the On-chip Debug system and

programming and 6 software selectable power saving modes.

The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, SPI port, and

interrupt system to continue functioning. The Power-down mode saves the register

contents but freezes the Oscillator, disabling all other chip functions until the next

interrupt or hardware reset. In Power-save mode, the asynchronous timer continues to

run, allowing the user to maintain a timer base while the rest of the device is sleeping.

The ADC Noise Reduction mode stops the CPU and all I/O modules except

asynchronous timer and ADC, to minimize switching noise during ADC conversions. In

Standby mode, the RC oscillator is running while the rest of the device is sleeping. This

allows very fast start-up combined with low power consumption. In Extended Standby

mode, both the main RC oscillator and the asynchronous timer continue to run.

Typical supply current of the microcontroller with CPU clock set to 16MHz and the radio

transceiver for the most important states is shown in the

Figure 3-2 below.

Figure 3-2

Radio transceiver and microcontroller (16MHz) supply current

1.8V

3.0V

3.6V

I(DEVDD,EVDD) [mA]

RPC disabled

18,6mA

16,6mA

RPC enabled

□

10.1mA

250nA

700nA

Deep Sleep

4,1mA

4,7mA

SLEEP

TRX_OFF

RX_ON

BUSY_TX

Radio transceiver and microcontroller (16MHz) supply current

The transmit output power is set to maximum. If the radio transceiver is in SLEEP mode

the current is dissipated by the AVR microcontroller only.

In Deep Sleep mode all major digital blocks with no data retention requirements are

disconnected from main supply providing a very small leakage current. Watchdog timer,

MAC symbol counter and 32.768kHz oscillator can be configured to continue to run.

ATmega2564/1284/644RFR2

42073B-MCU Wireless-09/14

ATmega2564/1284/644RFR2

The device is manufactured using Atmel’s high-density nonvolatile memory technology.

The On-chip ISP Flash allows the program memory to be reprogrammed in-system

trough an SPI serial interface, by a conventional nonvolatile memory programmer, or by

on on-chip boot program running on the AVR core. The boot program can use any

interface to download the application program in the application Flash memory.

Software in the boot Flash section will continue to run while the application Flash

section is updated, providing true Read-While-Write operation. By combining an 8 bit

RISC CPU with In-System Self-Programmable Flash on a monolithic chip, the Atmel

ATmega2564/1284/644RFR2 is a powerful microcontroller that provides a highly

flexible and cost effective solution to many embedded control applications.

The ATmega2564/1284/644RFR2 AVR is supported with a full suite of program and

system development tools including: C compiler, macro assemblers, program

debugger/simulators, in-circuit emulators, and evaluation kits.

3.2 Pin Descriptions

3.2.1 EVDD

External analog supply voltage.

3.2.2 DEVDD

External digital supply voltage.

3.2.3 AVDD

Regulated analog supply voltage (internally generated).

3.2.4 DVDD

Regulated digital supply voltage (internally generated).

3.2.5 DVSS

Digital ground.

3.2.6 AVSS

Analog ground.

3.2.7 Port B (PB7...PB0)

Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port B output buffers have symmetrical drive characteristics with both high sink

and source capability. As inputs, Port B pins that are externally pulled low will source

current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset

condition becomes active, even if the clock is not running.

Port B also provides functions

ATmega2564/1284/644RFR2.

3.2.8 Port D (PD7...PD0)

Port D is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port D output buffers have symmetrical drive characteristics with both high sink

and source capability. As inputs, Port D pins that are externally pulled low will source

current if the pull-up resistors are activated. The Port D pins are tri-stated when a reset

condition becomes active, even if the clock is not running.

Port D also provides functions

ATmega2564/1284/644RFR2.

3.2.9 Port E (PE7,PE5...PE0)

Internally Port E is an 8-bit bi-directional I/O port with internal pull-up resistors (selected

for each bit). The Port E output buffers have symmetrical drive characteristics with both

high sink and source capability. As inputs, Port E pins that are externally pulled low will

various

special

features

the

various

special

features

the

42073B-MCU Wireless-09/14
