5988570207F

Description
LED GREEN/RED CLEAR 1208 SMD R/A
CategoryLED optoelectronic/LED
File Size2MB，2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5988570207F Overview

LED GREEN/RED CLEAR 1208 SMD R/A

5988570207F Parametric

Parameter NameAttribute value
colorgreen red
Configuration-
Lens colorcolorless
Lens transparencytransparent
millicandela level40mcd green, 60mcd red
Lens style/sizeRectangular, with dome, 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typical)3.2V green, 2.2V red
Current - Test20mA green, 20mA red
perspective160°
Installation typeSurface mount, right angle
Wavelength - Main570nm green, 635nm red
Wavelength - Peak-
characteristic-
Package/casing2-SMD, no leads
Supplier device packaging1208
size/dimensions3.20mm length x 1.50mm width
Height (maximum value)1.00mm

Preview

Download Datasheet
FEATURES / BENEFITS
Compatible with automatic placement equipment
Micro LED
®
SMD LED
“598 SERIES” 1208 PACKAGE
(3.2mm X 1.5mm X 1.0mm) Bi-Color Right Angle
RoHS compliant
Packaged in 8mm tape, 7” reel and 20 per strip
Meets EIA-481-1 pkg. std.

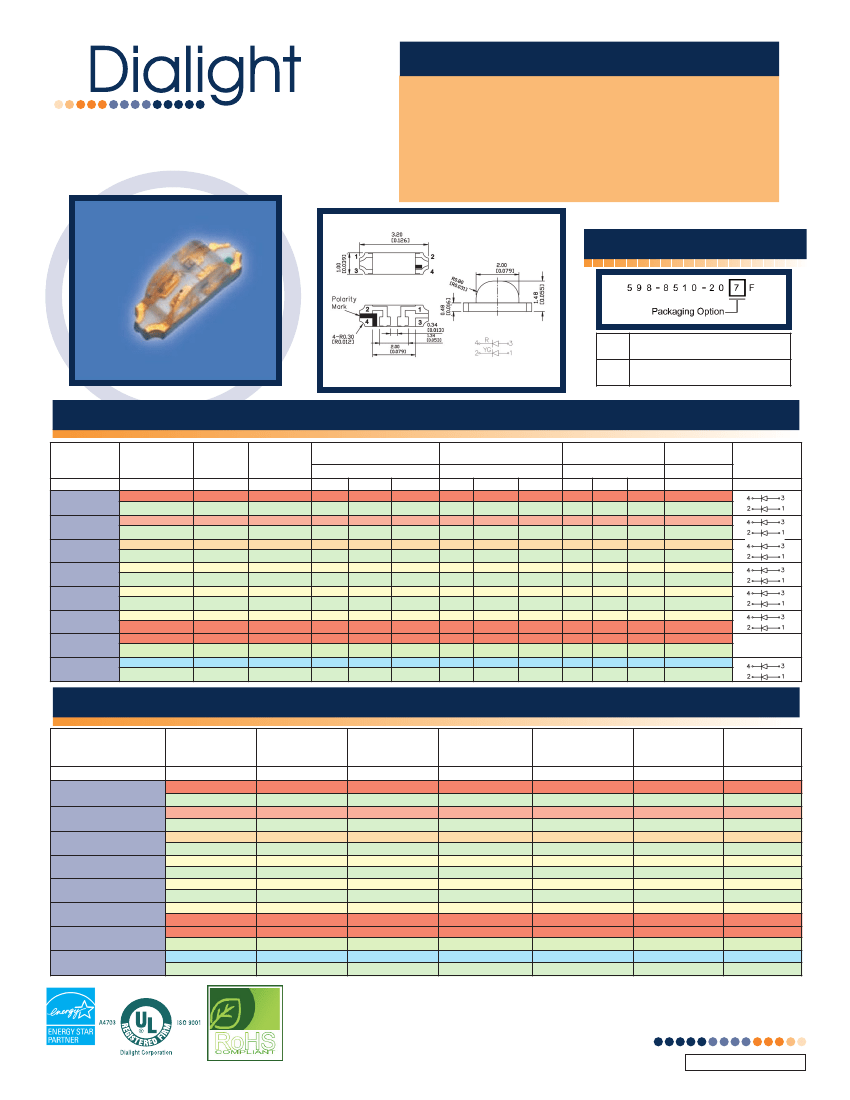

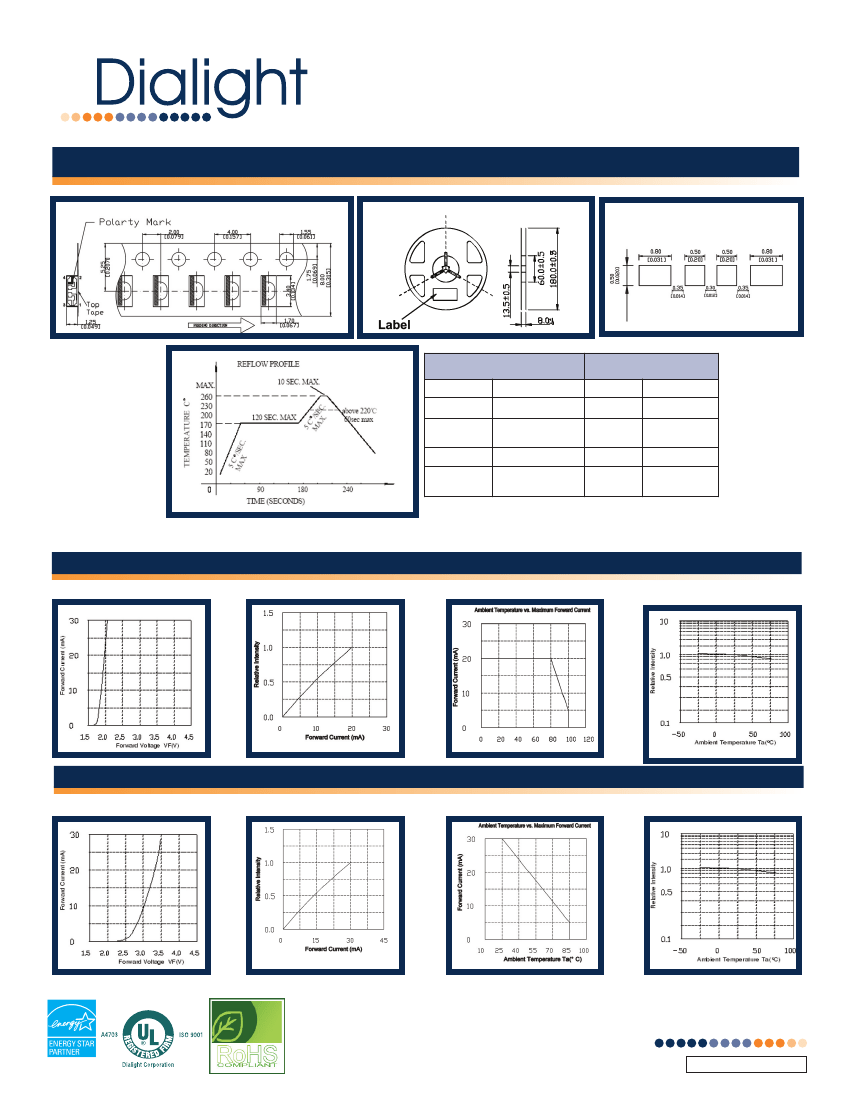

Package Outline Drawing:
ORDERING INFORMATION
2
Notes 1. All dimensions are in mm [inches];
2. Tolerances are ±0.1mm [0.004inch] unless noted.
20 pieces on tape
7” reel 3000pcs / reel
7
PART NUMBERS
Dialight P/N
EMITTED COLOR MATERIAL LENS COLOR
MIN
40
30
80
30
80
30
90
30
80
90
120
40
40
30
60
200
LUMINOUS
INTENSITY
If = 20 ma
TYP
MAX
60
80
40
50
110
150
40
50
100
150
45
60
110
150
40
60
-
100
-
120
135
150
50
60
60
80
40
50
70
80
220
240
DOMINANT
WAVELENGTH
If = 20 ma
TYP
MAX
635
645
565
570
625
630
568
570
605
610
568
570
590
592
565
570
590
592
525
530
590
592
635
645
635
640
570
575
473
475
523
525
FORWARD
VOLTAGE
If = 20 ma
TYP
MAX
2
2.4
2
2.4
2
2.4
2
2.4
2
2.4
2
2.4
2
2.4
2
2.4
2
2.2
3.2
3.5
2.2
2.4
2.2
2.4
2.2
2.4
3.2
3.4
3.2
3.4
3.2
3.5
VIEWING
ANGLE
° DEGREES
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
160
PINOUT
598-8510-207F
598-8520-207F
598-8530-207F
598-8540-207F
598-8550-207F
598-8560-207F
598-8570-207F
598-8580-207F
RED
GREEN
RED-ORANGE
GREEN
ORANGE
GREEN
YELLOW
GREEN
YELLOW
GREEN
YELLOW
RED
RED
YELLOW-GREEN
BLUE
GREEN
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
InGaN
AlInGaP
AlInGaP
AlInGaP
AlInGaP
InGaN
InGaN
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Water
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
MIN
630
560
620
560
600
560
587
560
587
520
587
630
630
565
470
520
MIN
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
2.7
1.8
1.8
1.8
2.8
3
2.7
R
G
RO
G
O
G
Y
G
Y
G
R
Y
SEE EXAMPLE
B
G
ABSOLUTE RATINGS
(@ Ta = 25ºC)
Dialight P/N
Power
Dissipation
(mW)
598-8510-207F
598-8520-207F
598-8530-207F
598-8540-207F
598-8550-207F
598-8560-207F
598-8570-207F
598-8580-207F
48
48
48
48
72
72
48
48
72
105
72
72
72
102
102
105
Forward
Current
(mA)
20
20
20
20
30
30
20
20
30
30
30
30
30
30
30
30
Reverse
Voltage
(V)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Operating
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+85
-40~+85
-40~+100
-40~+100
-30~+85
-30~+85
-30~+85
-30~+85
-40~+85
-40~+85
-30~+85
-30~+85
Storage
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-30~+100
-30~+100
-30~+100
-30~+100
-40~+100
-40~+100
-30~+100
-30~+100
Peak Pulse
Forward
Current
(mA)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Electrostatic
Discharge
(HBM)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEI5981208BI_A
