5988421207F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 5988421207F

5988421207F: DescriptionLED GREEN/RED CLEAR SMD; CategoryLED optoelectronic/LED; File Size1MB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5988421207F Overview

LED GREEN/RED CLEAR SMD

5988421207F Parametric

Parameter Name	Attribute value
color	green red
Configuration	Detached
Lens color	colorless
Lens transparency	transparent
millicandela level	220mcd green, 100mcd red
Lens style/size	Rectangular, with flat top, 1.10mm x 0.90mm
Voltage - Forward (Vf) (Typical)	3.2V green, 2V red
Current - Test	20mA green, 20mA red
perspective	140°
Installation type	surface mount
Wavelength - Main	525nm green, 625nm red
Wavelength - Peak	-
characteristic	-
Package/casing	0606 (1616 metric)
size/dimensions	1.60mm length x 1.60mm width
Height (maximum value)	0.70mm

Preview

Download Datasheet

View All

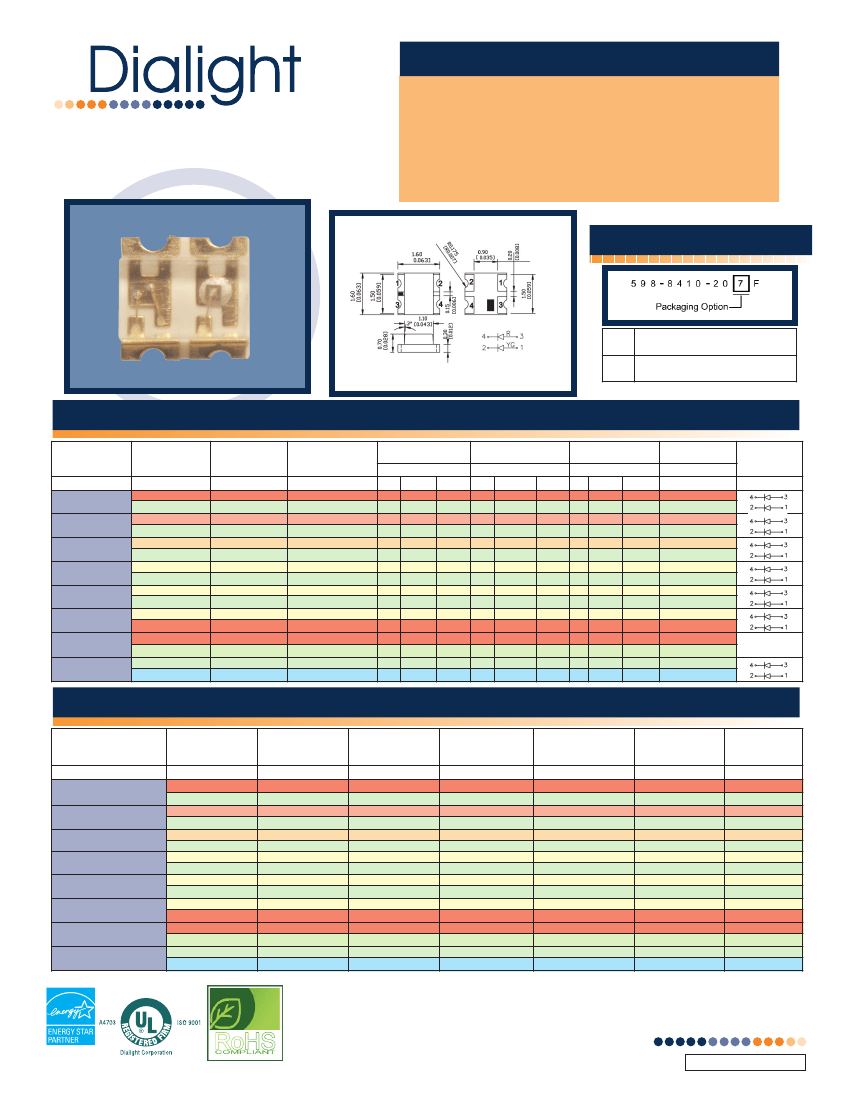

FEATURES / BENEFITS

Compatible with automatic placement equipment

Micro LED

SMD LED

“598 SERIES” 0606 PACKAGE

(1.6mm X 1.6mm X 0.7mm) Bi-Color

RoHS compliant

Packaged in 8mm tape, 7” reel and 20 per strip

Meets EIA-481-1 pkg. std.

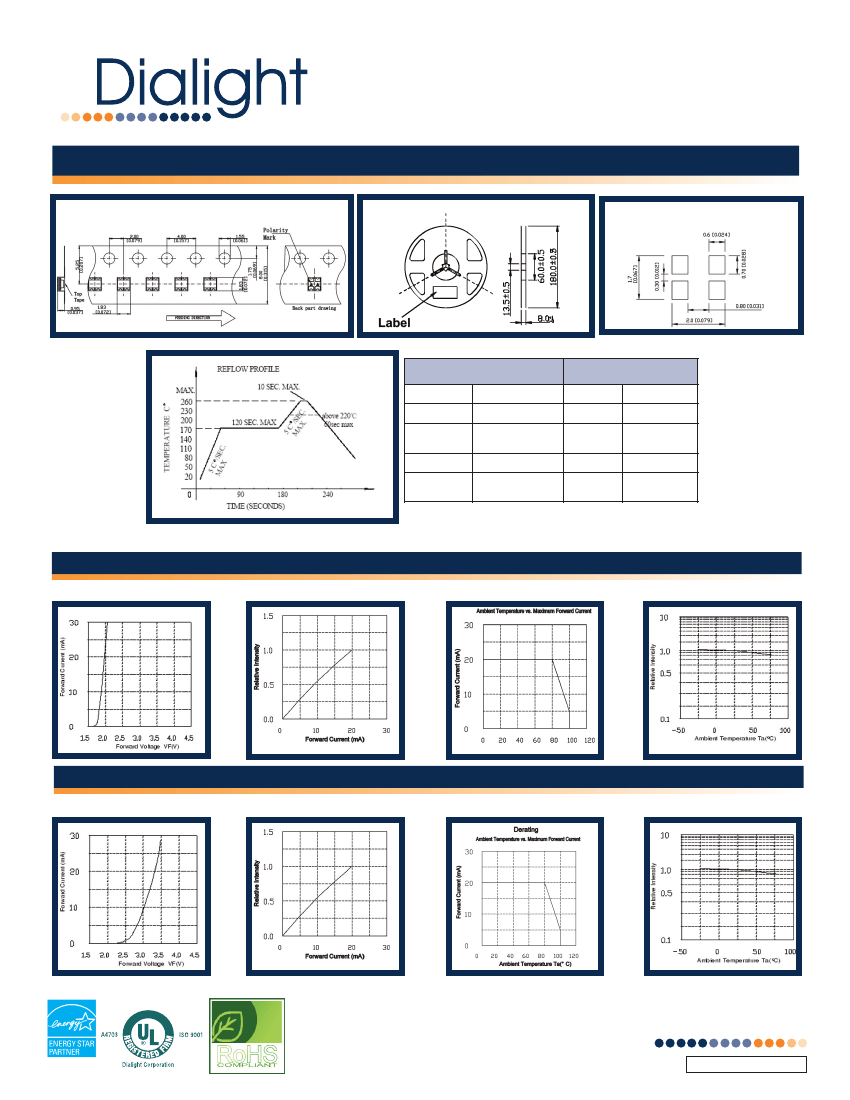

Package Outline Drawing:

ORDERING INFORMATION

Notes 1. All dimensions are in mm [inches];

2. Tolerances are ±0.1mm [0.004inch] unless noted.

20 pieces on tape

7” reel 3000pcs / reel

PART NUMBERS

Dialight P/N

EMITTED COLOR

MATERIAL

LENS COLOR

MIN

200

120

200

LUMINOUS

INTENSITY

If = 20 ma

TYP

100

220

100

135

120

135

220

MAX

120

240

150

140

150

240

DOMINANT

WAVELENGTH

If = 20 ma

MIN

630

560

620

520

600

562

587

565

587

525

587

630

627

565

520

470

TYP

635

565

625

525

605

568

590

570

590

528

590

640

635

570

525

473

MAX MIN

645 1.8

570 1.8

630 1.8

530 2.7

610 1.8

570 1.8

592 1.8

575 1.8

592 1.8

530 2.7

592 1.8

645 1.8

639 1.8

575 1.8

530 2.7

475 2.8

FORWARD

VOLTAGE

If = 20 ma

TYP

3.2

2.2

3.2

MAX

2.4

3.5

2.4

3.5

2.4

3.5

3.4

VIEWING ANGLE

° DEGREES

140

PINOUT

598-8410-207F

598-8421-207F

598-8430-207F

598-8440-207F

598-8450-207F

598-8460-207F

598-8470-207F

598-8480-207F

RED

GREEN

RED-ORANGE

GREEN

ORANGE

GREEN

YELLOW

GREEN

YELLOW

GREEN

YELLOW

RED

YELLOW-GREEN

GREEN

BLUE

AlInGaP

InGaN

AlInGaP

InGaN

AlInGaP

InGaN

Water

Clear

SEE EXAMPLE

ABSOLUTE RATINGS

(@ Ta = 25ºC)

Dialight P/N

Power

Dissipation

(mW)

598-8410-207F

598-8421-207F

598-8430-207F

598-8440-207F

598-8450-207F

598-8460-207F

598-8470-207F

598-8480-207F

102

105

Forward

Current

(mA)

Reverse

Voltage

(V)

Operating

Temperature

Range

(ºC)

-40~+100

-20~+85

-40~+100

-20~+85

-40~+100

-30~+85

Storage

Temperature

Range

(ºC)

-40~+100

-30~+100

-40~+100

-30~+100

-40~+100

-30~+100

Peak Pulse

Forward

Current

(mA)

100

Electrostatic

Discharge

(HBM)

2000

1000

2000

1000

2000

1000

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEI5980606BI_A

5988421207F Related Products

	5988421207F	5988470207F	5988480207F
Description	LED GREEN/RED CLEAR SMD	LED GREEN/RED CLEAR SMD	LED BLUE/GREEN CLEAR SMD
color	green red	green red	blue green
Configuration	Detached	Detached	Detached
Lens color	colorless	colorless	colorless
Lens transparency	transparent	transparent	transparent
millicandela level	220mcd green, 100mcd red	30mcd green, 40mcd red	75mcd blue, 220mcd green
Lens style/size	Rectangular, with flat top, 1.10mm x 0.90mm	Rectangular, with flat top, 1.10mm x 0.90mm	Rectangular, with flat top, 1.10mm x 0.90mm
Voltage - Forward (Vf) (Typical)	3.2V green, 2V red	2V green, 2V red	3.2V blue, 3.2V green
Current - Test	20mA green, 20mA red	20mA green, 20mA red	20mA 파란색, 20mA green
perspective	140°	140°	140°
Installation type	surface mount	surface mount	surface mount
Wavelength - Main	525nm green, 625nm red	570nm green, 635nm red	473nm blue, 525nm green
Package/casing	0606 (1616 metric)	0606 (1616 metric)	0606 (1616 metric)
size/dimensions	1.60mm length x 1.60mm width	1.60mm length x 1.60mm width	1.60mm length x 1.60mm width
Height (maximum value)	0.70mm	0.70mm	0.70mm
