5988730307F

Description
LED BLUE/GREEN/ORANGE CLEAR SMD
CategoryLED optoelectronic/LED
File Size1MB，2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5988730307F Overview

LED BLUE/GREEN/ORANGE CLEAR SMD

5988730307F Parametric

Parameter NameAttribute value
colorblue, green, orange
Configurationcommon anode
Lens colorcolorless
Lens transparencytransparent
millicandela level90mcd blue, 220mcd green, 120mcd orange
Lens style/sizeRectangular, with flat top, 1.10mm x 0.90mm
Voltage - Forward (Vf) (Typical)3.2V blue, 3.2V green, 2.2V orange
Current - Test20mA 파란색, 20mA green, 20mA orange
perspective140°
Installation typesurface mount
Wavelength - Main470nm blue, 525nm green, 605nm orange
Wavelength - Peak-
characteristic-
Package/casing0606 (1616 metric)
size/dimensions1.60mm length x 1.60mm width
Height (maximum value)0.70mm

Preview

Download Datasheet

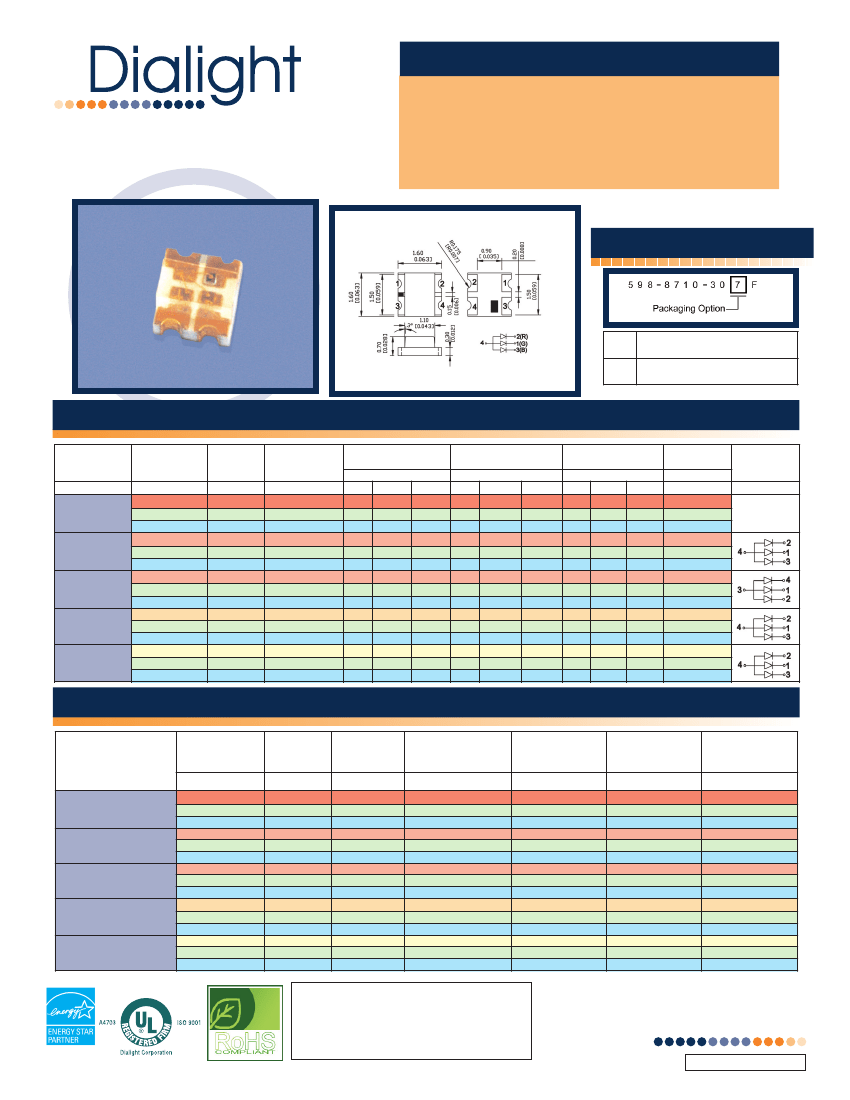

FEATURES / BENEFITS
Compatible with automatic placement equipment
Micro LED
®
SMD LED
“598 SERIES” 0606 PACKAGE
(1.6mm X 1.6mm X 0.7mm) Tri-Color
RoHS compliant
Packaged in 8mm tape, 7” reel and 20 per strip
Meets EIA-481-1 pkg. std.

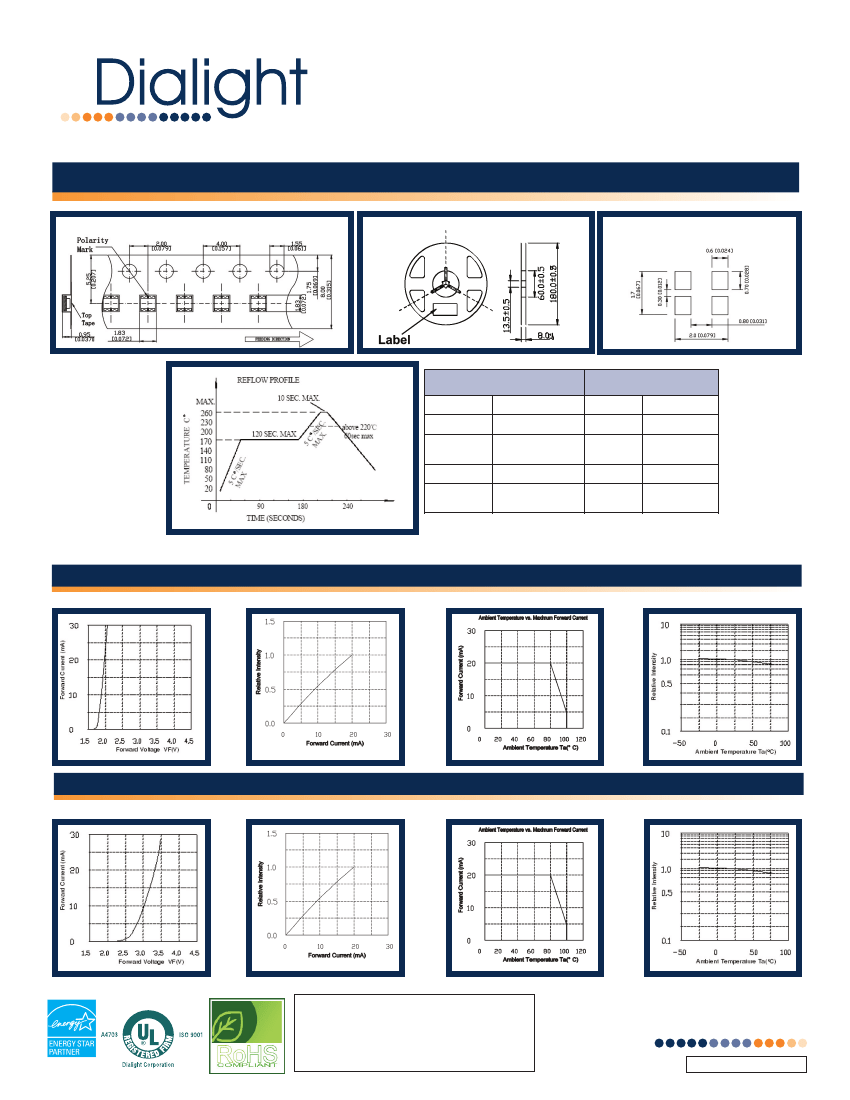

Package Outline Drawing:
ORDERING INFORMATION
2
Notes 1. All dimensions are in mm [inches];
2. Tolerances are ±0.1mm [0.004inch] unless noted.
20 pieces on tape
7” reel 3000pcs / reel
7
PART NUMBERS
Dialight P/N
EMITTED
COLOR
MATERIAL
LENS COLOR
MIN
40
90
60
60
90
40
60
90
40
70
150
60
90
150
60
LUMINOUS
INTENSITY
If = 20 ma
TYP
MAX
60
80
120
220
90
140
80
150
150
220
60
90
80
150
150
220
60
90
120
150
220
300
90
140
110
150
220
300
90
140
DOMINANT
WAVELENGTH
If = 20 ma
MIN
TYP
MAX
630
635
645
520
525
530
465
470
475
620
625
630
520
525
530
465
470
475
620
625
630
520
525
530
465
470
475
600
605
610
520
525
530
465
470
475
587
590
595
520
525
530
465
470
475
FORWARD
VOLTAGE
If = 20 ma
MIN TYP
MAX
1.9
2
2.2
2.8
3.2
3.5
2.8
3.2
3.5
1.8
2.2
2.4
2.8
3
3.5
3
3.2
3.5
1.8
2.2
2.4
2.8
3
3.5
3
3.2
3.5
1.8
2.2
2.4
2.8
3.2
3.5
2.8
3.2
3.5
1.8
2.2
2.4
2.8
3.2
3.5
2.8
3.2
3.5
VIEWING
ANGLE
° DEGREES
140
140
140
140
140
140
140
140
140
140
140
140
140
140
140
PINOUT
598-8710-307F
598-8720-307F
598-8721-307F
598-8730-307F
598-8740-307F
RED
GREEN
BLUE
RED-ORANGE
GREEN
BLUE
RED-ORANGE
GREEN
BLUE
ORANGE
GREEN
BLUE
YELLOW
GREEN
BLUE
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
WATER
WATER
WATER
WATER
WATER
WATER
WATER
WATER
WATER
WATER
WATER
WATER
WATER
WATER
WATER
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
SEE EXAMPLE
RO
G
B
RO
G
B
O
G
B
Y
G
B
ABSOLUTE RATINGS
(@ Ta = 25ºC)
Power
Dissipation
(mW)
598-8710-307F
44
70
70
48
70
70
48
70
70
48
70
70
48
70
70
Forward
Current
(mA)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Reverse
Voltage
(V)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Operating
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Storage
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Peak Pulse
Forward
Current
(mA)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Electrostatic
Discharge
(HBM)
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
Dialight P/N
598-8720-307F
598-8721-307F
598-8730-307F
598-8740-307F
PRELIMINARY
Dialight reserves the right to make changes at any
time in order to supply the best product possible.
Contact us directly for the latest information.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEI5980606TRI_A
