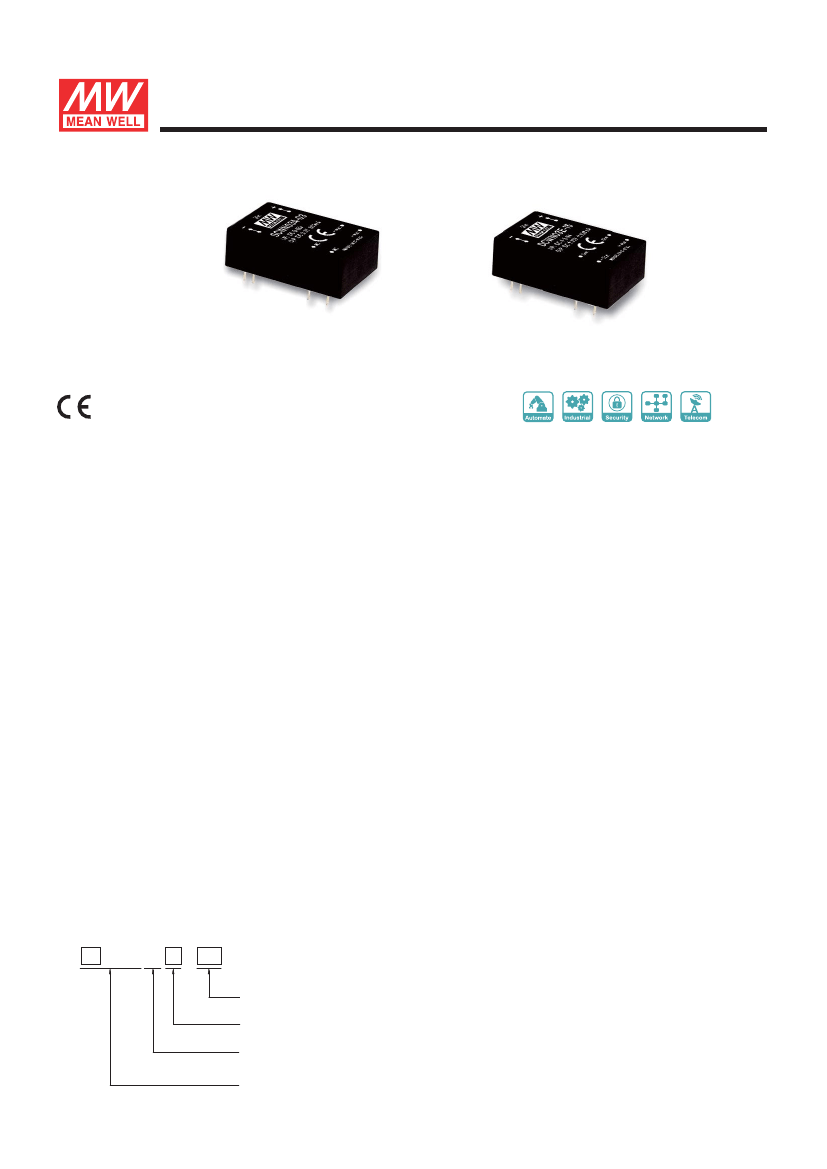

3W DIP Package DC-DC Regulated Converter
SCWN03 & DCWN03
series
■
Features
DIP24 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +90
℃
No minimum load required
Comply to EN55032 radiated Class A without additional
components
High efficiency up to 87%
Protections: Short circuit (Continuous) / Overload /
Input under voltage
3KVDC I/O isolation
3 years warranty
■
Applications
Telecom
/
datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Detector
Data switch
■
Description
SCWN03 and DCWN03 series are 3W isolated and regulated module type DC-DC converter with DIP24
package. It features international standard pins, a high efficiency up to 87%, wide working temperature
range -40~+ 90
℃
, 3 KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without
additional components, continuous-mode short circuit protection, etc. The additional components, models
account for different input voltage
4.5~9V, 9~18V, 18~36V and 36~72V 2:1 wide input range,
and various
output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable
for all kinds of systems,
s
uch as industrial control, telecommunication field, distributed power architecture,
and so on.
■
Model Encoding
S CWN03 E - 12
Output voltage (3.3/5/12/15Vdc
，
±5/±12/±15Vdc)
Input voltage (E: 4.5~9Vdc
，
A: 9~18Vdc
，
B: 18~36Vdc
，
C: 36~72Vdc)
Rated wattage
Series name
{
S:Single output
D:Dual output
File Name:SCWN03,DCWN03-SPEC 2017-03-06
3W DIP Package DC-DC Regulated Converter
SPECIFICATION
VOLTAGE RANGE
FILTER
PROTECTION
VOLTAGE ACCURACY
RATED POWER
OUTPUT
RIPPLE & NOISE
SCWN03 & DCWN03
series
E: 4.5~9Vdc , A: 9~18Vdc , B: 18~36Vdc , C: 36~72Vdc
Pi type
Fuse recommended. 5Vin models: 1.5A Fast-Acting Type, 12Vin models: 0.8A Fast-Acting Type, 24Vin models: 0.5A Fast-Acting Type, 48Vin models: 250mA Fast-Acting Type
±1.5%
3W
Note.2
50mVp-p
SURGE VOLTAGE (100ms max.)
5Vin models : 10Vdc ; 12Vin models : 25Vdc ; 24Vin models : 50Vdc ; 48Vin models : 100Vdc
INPUT
INTERNAL POWER DISSIPATION
500mW
LINE REGULATION
Note.3
±0.5%
LOAD REGULATION
Note.4
Single output models:
±
0.5%, Dual output models:
±
1%
SWITCHING FREQUENCY
(Min.)
100KHz
SHORT CIRCUIT
Protection type : Continuous, automatic recovery
120 ~ 250% rated output power
Protection type : Recovers automatically after fault condition is removed
Start-up voltage
Shutdown voltage
Free-air convection
-40 ~ +90℃ (Refer to "Derating Curve")
+100
℃
max.
20% ~ 90% RH non-condensing
0.03% /
℃
(0 ~ 85
℃
)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
I/P-O/P:3KVDC
5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc
5Vin: 4.2Vdc, 12Vin: 8Vdc,
24Vin: 16Vdc, 48Vin: 31Vdc
PROTECTION
OVERLOAD
UNDER VOLTAGE LOCKOUT
COOLING
WORKING TEMP.
CASE TEMPERATURE
WORKING HUMIDITY
ENVIRONMENT
STORAGE TEMP., HUMIDITY
-40 ~ +105
℃
, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
VIBRATION
WITHSTAND VOLTAGE
SOLDERING TEMPERATURE
1.5mm from case of 1 ~ 3sec./260
℃
max.
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25
℃
/ 70% RH
ISOLATION CAPACITANCE
(Typ.)
250pF
Parameter
EMC EMISSION
SAFETY &
EMC
(
Note.
5)
EMC IMMUNITY
Conducted
Radiated
Parameter
ESD
Radiated Susceptibility
EFT/Burest
Surge
Conducted
Magnetic Field
MTBF
DIMENSION (L*W*H)
OTHERS
CASE MATERIAL
PACKING
NOTE
2500Khrs MIL-HDBK-217F(25
℃
)
31.8*20.3*10.2mm (1.25*0.8*0.4 inch)
Non-Conductive black plastic (UL 94V-0 rated)
12.5g
Standard
EN55032(CISPR32)
EN55032(CISPR32)
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
Test Level / Note
N/A
Class A
Test Level / Note
Level 2,
±
8KV air,
±
4KV contact
Level 2, 3V/m
Level 1, 0.5KV
Level 1, 0.5KV Line-Line
Level 2, 3V(e.m.f.)
Level 2, 3A/m
1.All parameters are specified at normal input(E:5Vdc, A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25
℃
70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1
μ
f & 47
μ
f capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load for SCWN03, 25% to 100% rated load for DCWN03.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please
refer to EMI testing of component power supplies.(as available on http://www.meanwell.com)
File Name:SCWN03,DCWN03-SPEC 2017-03-06
