TRM-2444-F0-SMA-02 datasheet, PDF

Datasheet> All Categories > The connector> TRM-2444-F0-SMA-02

TRM-2444-F0-SMA-02: DescriptionCONN TERMINATOR JACK SMA 50 OHM; CategoryThe connector; File Size77KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric View All

TRM-2444-F0-SMA-02 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TRM-2444-F0-SMA-02	-	-	View	Buy Now

TRM-2444-F0-SMA-02 Overview

CONN TERMINATOR JACK SMA 50 OHM

TRM-2444-F0-SMA-02 Parametric

Parameter Name	Attribute value
Connector style	SMA
Connector type	jack, female socket
Frequency - maximum	18GHz
impedance	50 Ohms
Installation type	Free hanging, blocked
substrate surface	-
Contact material	-
Contact plating	-
characteristic	-
Matrix material	Stainless steel
dielectric materials	-

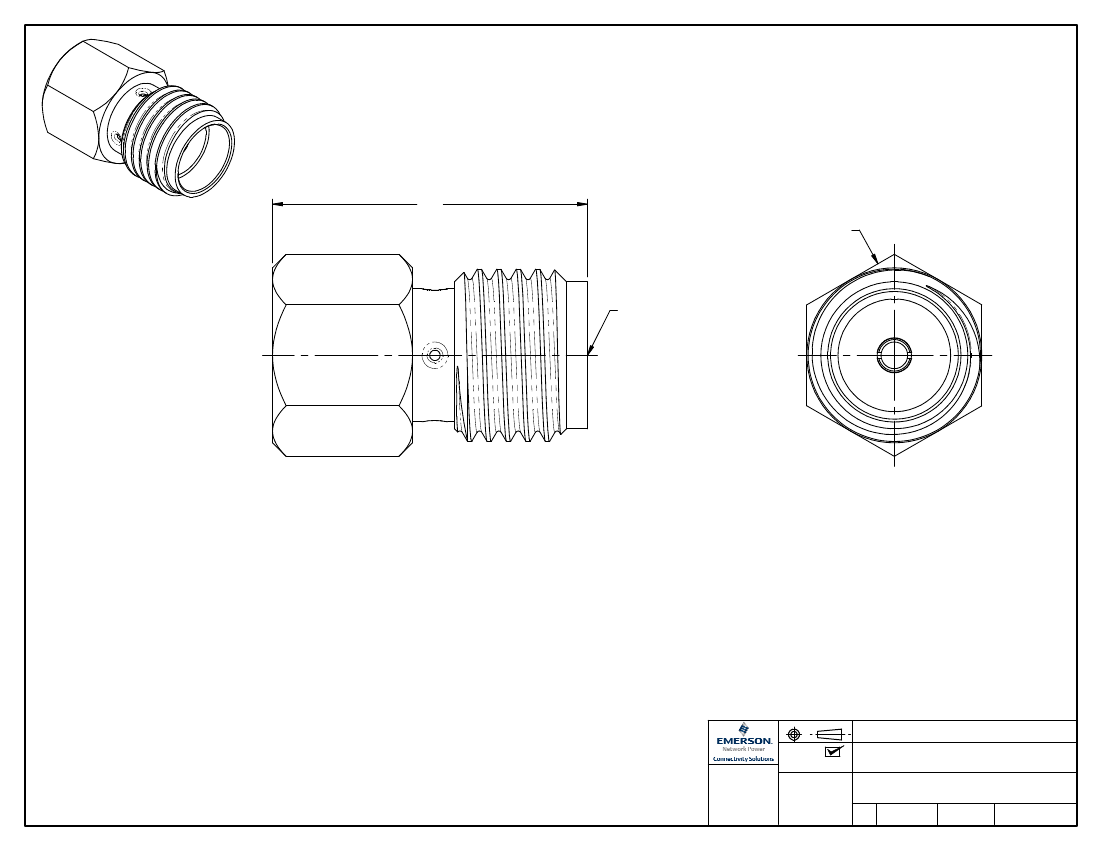

Preview

Download Datasheet

View All

.45

.25 HEX

TRM-2

SMA FEMALE

PER MIL-STD-348

FIGURE 310-2

NOTES: UNLESS OTHERWISE SPECIFIED.

1. SPECIFICATIONS:

1.1 FREQUENCY RANGE: DC TO 18.0 GHz

1.2 MAXIMUM INPUT POWER: 0.5 WATTS @ +25

DERATED LINEARLY TO 0 WATTS @ +125

1.3 OPERATING TEMP. RANGE: -55

C TO +125

1.4 IMPEDANCE: 50 OHM NOMINAL

1.5 VSWR: 1.05 +0.008f (GHz)

1.6 FINISH: PASSIVATED STAINLESS STEEL

3RD ANGLE PROJECTION

Midwest Microwave

Title:

RoHS2

This PROPRIETARY Document

is property of Emerson Network

Power Connectivity Solutions.

It is confidential in nature,

non-transferable, and issued with

the clear understanding that it is

not traced or copied without

permission and is returnable

upon demand.

TERMINATION

2011/65/EU

UNLESS OTHERWISE SPECIFIED

UNITS: INCH

Model No.

INTERPRET DRAWING IN

ACCORDANCE WITH ASME

Y14.5-2009.

.XX

.02

.XXX

.005

ANGLES

TRM-2444-F0-SMA-02

Size

DO NOT SCALE

Date:

1/14/2014

DRAWING

Sheet 1 of 1
