High-current terminal block - PTPOWER 50-3L/N-F - 3260058
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
High-current terminal block, Blocked, Connection method: Power-Turn connection, Cross section: 10 mm² - 70
mm², AWG: 8 - 2/0, Width: 80 mm, Height: 96 mm, Color: gray/blue, Mounting type: NS 35/15

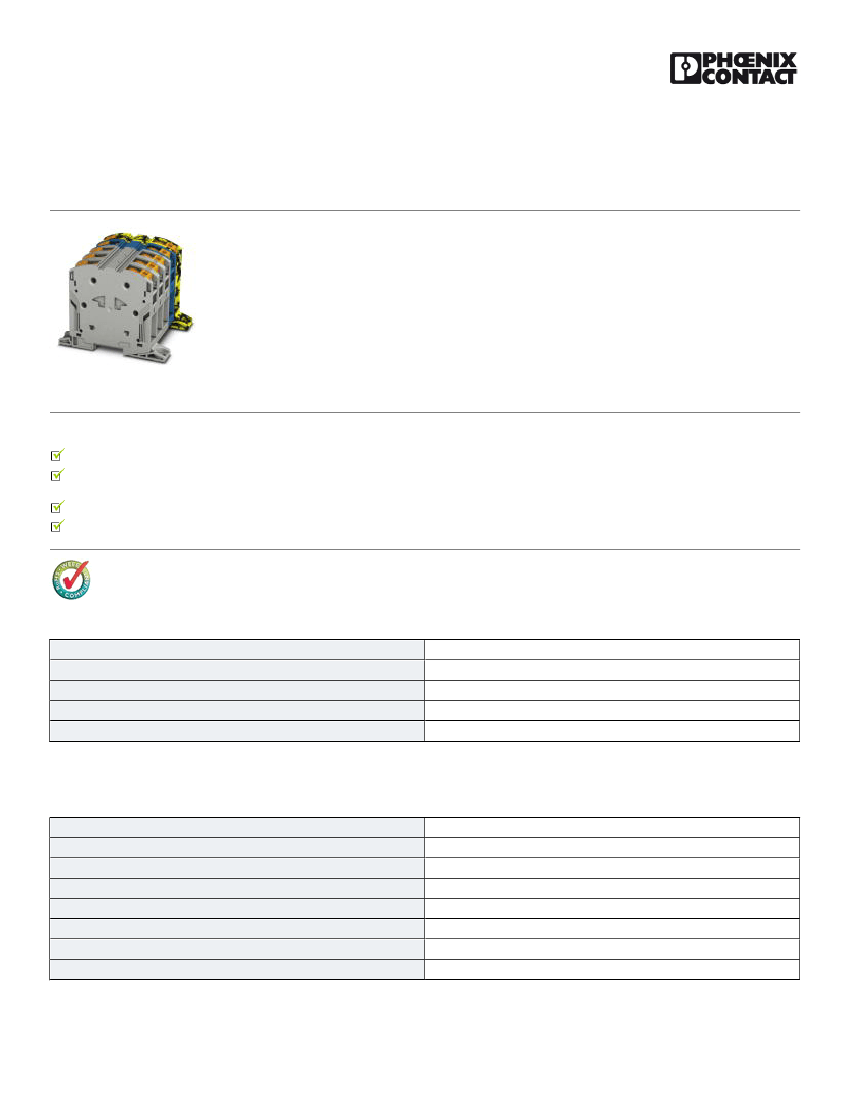

The figure shows a version of the
article
Product Features
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
In addition to using the existing test connection, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
3 pc
670.0 g
85369010
Poland
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
1
8
50 mm²
gray/blue
PA
V0
8 kV
3
02/19/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/3260058
High-current terminal block - PTPOWER 50-3L/N-F - 3260058
Technical data
General
Overvoltage category
Insulating material group
Connection in acc. with standard
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
III
I
IEC 60947-7-1
150 A (with 50 mm² conductor cross section)
150 A
1500 V
No
Dimensions
Width
Length
Height
Hole diameter
Drill hole spacing
80 mm
101 mm
96 mm
6.5 mm
123.40 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Cross section with insertion bridge solid min.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge stranded min.
Cross section with insertion bridge, stranded max.
Cross section with insertion bridge stranded, with ferrule without plastic
sleeve min.
Cross section with insertion bridge stranded, with ferrule without plastic
sleeve max.
Power-Turn connection
IEC 60947-7-1
10 mm²
70 mm²
8
2/0
10 mm²
70 mm²
8
2/0
10 mm²
50 mm²
10 mm²
50 mm²
10 mm²
50 mm²
10 mm²
50 mm²
10 mm²
50 mm²
02/19/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/3260058
High-current terminal block - PTPOWER 50-3L/N-F - 3260058
Technical data
Connection data
Cross section with insertion bridge stranded, with ferrule without plastic
sleeve min.
10 mm²
Cross section with insertion bridge stranded, with ferrule with plastic sleeve
50 mm²
max.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
10 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
16 mm²
sleeve, max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
Stripping length
Internal cylindrical gage
50 mm²
50 mm²
30 mm
A10
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141120
27141120
27141120
ETIM
ETIM 5.0
EC000897
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approvals submitted
02/19/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/3260058
High-current terminal block - PTPOWER 50-3L/N-F - 3260058
Approvals
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
8-1/0
140 A
600 V
C
8-1/0
140 A
1000 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
8-1/0
140 A
1000 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
C
8-1/0
140 A
1000 V
cULus Recognized
Drawings
02/19/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/3260058
High-current terminal block - PTPOWER 50-3L/N-F - 3260058
Circuit diagram
Dimensional drawing
6,5
60
