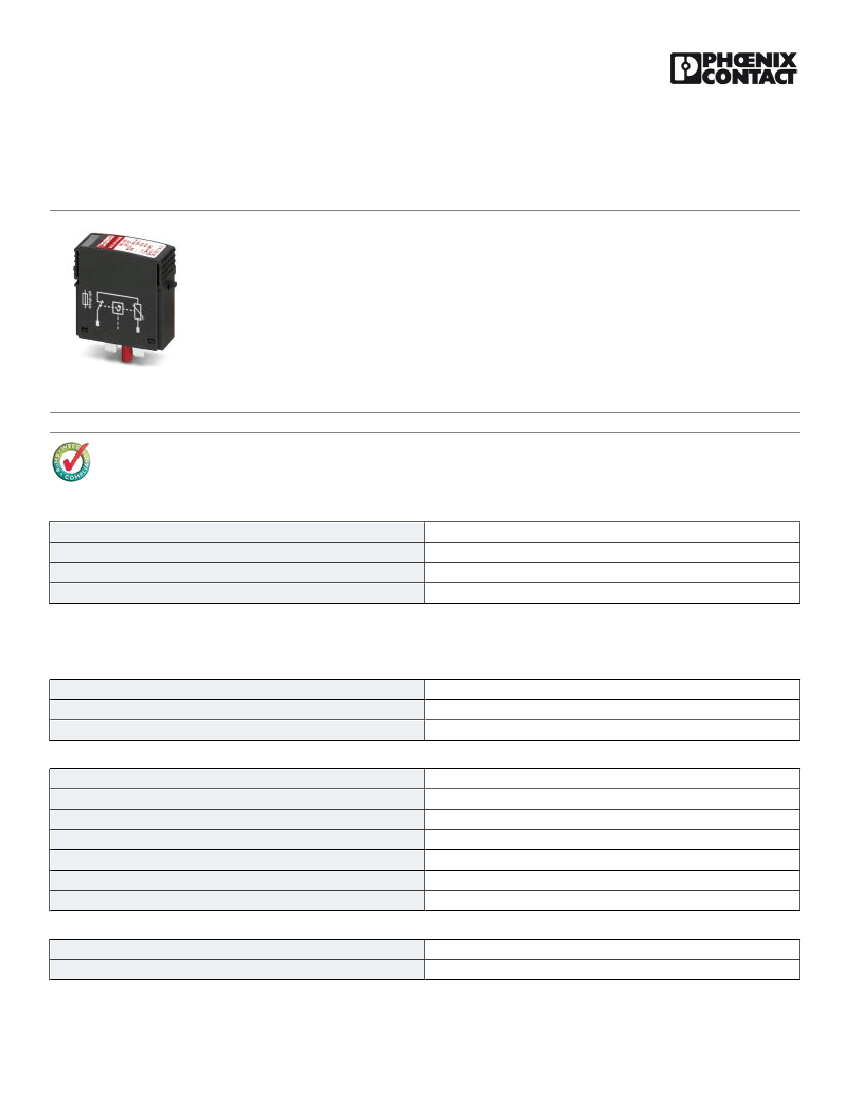

Type 2 surge protection plug - VAL-US 240 ST - 2800740
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Surge protection connector type 2 with high-capacity varistor for VAL-MS base element, thermal monitoring,
visual fault warning. Design: 240 V AC
The figure shows the VAL-US 347
ST version
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
44.0 GRM
85363090
Germany
Technical data
Dimensions
Height
Width
Depth
52.4 mm
17.5 mm
55.3 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Altitude
Permissible humidity (operation)
Shock (operation)
Vibration (operation)
IP20
-40 °C ... 80 °C
-40 °C ... 80 °C
≤ 2000 m (amsl (above mean sea level))
5 % ... 95 %
25g
5g
General
Standards/specifications
IEC 61643-11 2011
EN 61643-11 2012
09/10/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/2800740
Type 2 surge protection plug - VAL-US 240 ST - 2800740
Technical data
General
IEC test classification
EN type
SPD design
Mode of protection
Mounting type
Color
Housing material
Pollution degree
Inflammability class according to UL 94
Type
Number of positions
Arrester can be tested with CHECKMASTER from software version:
Surge protection fault message
II
T2
T2
Voltage-limiting type
L-PEN
L-N
On base element
black
PA 6.6
2
V-0
Male
1
From SW rev. 1.10
Optical
Protective circuit
Nominal voltage U
N
Nominal frequency f
N
Maximum continuous operating voltage U
C
Residual current I
PE
Standby power consumption P
C
Nominal discharge current I
n
(8/20) µs
Maximum discharge current I
max
(8/20) µs
Short-circuit current rating I
SCCR
Voltage protection level U
p
Residual voltage U
res
240/415 V AC (TN)
240/415 V AC (TT)
60 Hz (50 Hz)
275 V AC
≤ 0.45 mA
≤ 120 mVA
20 kA
40 kA
25 kA
≤ 1.35 kV
≤ 1.35 kV (at I
n
)
≤ 1.1 kV (at 10 kA)
≤ 1 kV (at 5 kA)
≤ 0.9 kV (at 3 kA)
TOV behavior at U
T
Response time t
A
Max. backup fuse with branch wiring
335 V AC (5 s / withstand mode)
440 V AC (120 min / safe failure mode)
≤ 25 ns
125 A AC (gG)
Connection data
Connection method
VALVETRAB plug-in system
09/10/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/2800740
Type 2 surge protection plug - VAL-US 240 ST - 2800740
Technical data
NEMA/UL protective circuit
UL class
Maximum continuous operating voltage MCOV (L-N)
Nominal voltage U
N
Mode of protection
Power distribution system
Nominal frequency
Voltage protection rating VPR (L-N)
Nominal discharge current I
n
(L-N)
Type 4 SPD for Type 2 applications
275 V AC
240 V AC
L-N
1
50/60 Hz
0.9 kV
20 kA
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140201
27130801
27130801
27130801
27130803
27130803
27130803
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000472
EC000472
EC000472
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30212010
39121610
39121610
39121610
39121620
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / CSA / cULus Recognized
09/10/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/2800740
Type 2 surge protection plug - VAL-US 240 ST - 2800740
Approvals
Ex Approvals
Approvals submitted
Approval details
UL Recognized
cUL Recognized
CSA
cULus Recognized
Drawings
Dimensioned drawing
52,4
44,8
17,5
Circuit diagram
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
55,3
43,3
09/10/2014 Page 4 / 4
