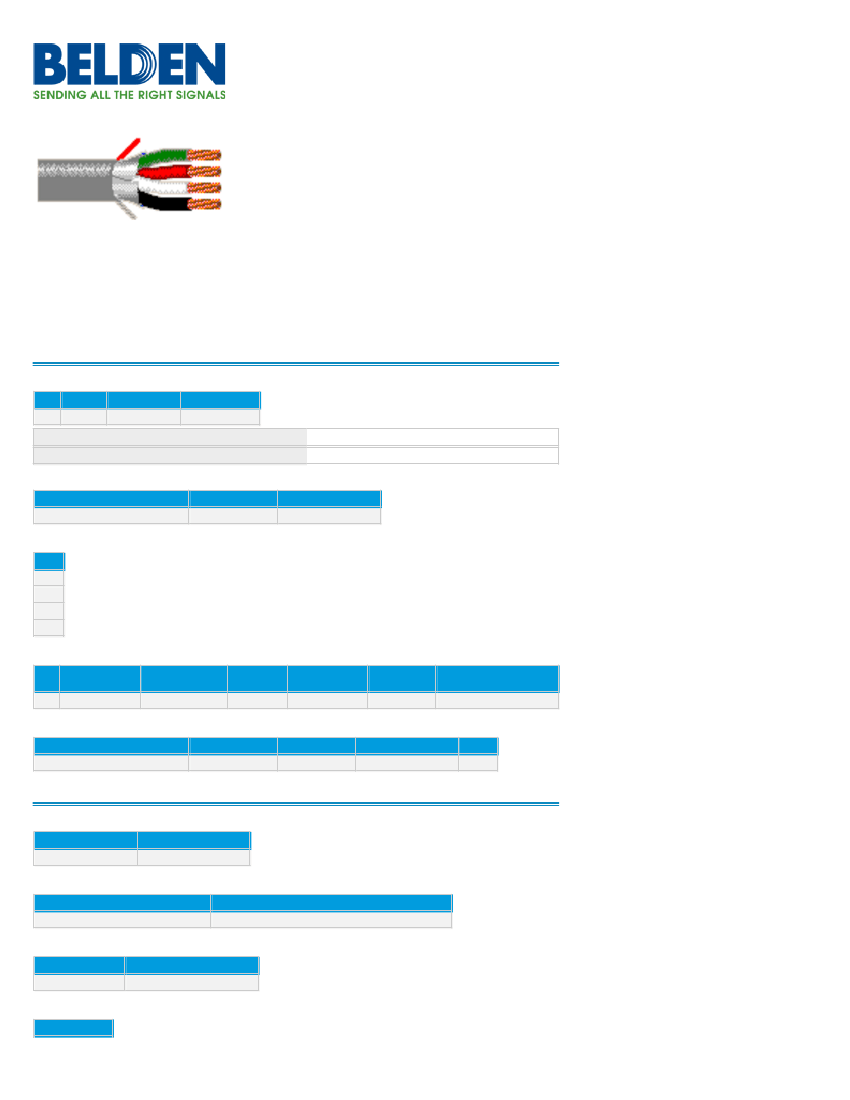

Part Number:
6502FE
Security & Alarm Cable, Plenum-CMP, 4-22 AWG stranded bare copper
conductors with Flamarrest® insulation, Beldfoil® shield and
Flamarrest® jacket with ripcord
Product Description
Security & Sound Cable, Plenum-CMP, 4-22 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with
ripcord
Technical Specifications
Physical Characteristics (Overall)
Conductor
AWG Stranding
22
7x30
Material
No. of Conductors
BC - Bare Copper 4
4
22 AWG
Conductor Count:
Conductor Size:
Insulation
Material
Material Trade Name Nominal Wall Thickness
0.009 in
LS PVC - Low Smoke Polyvinyl Chloride Flamarrest®
Color Chart
Color
Black
Red
White
Green
Outer Shield Material
Type
Material
Material Trade
Name
Coverage [%] Drainwire Material
100 %
Drainwire AWG Drainwire Construction n x D
Solid
Tape Aluminum/Polyester Beldfoil®
Outer Jacket Material
Material
TC - Tinned Copper 24
Material Trade Name Nominal Diameter Nominal Wall Thickness Ripcord
0.147 in
0.015 in
Yes
LS PVC - Low Smoke Polyvinyl Chloride Flamarrest®
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
16.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
33 pF/ft
Current
Element
Max. Recommended Current [A]
59 pF/ft
15.3 Ohm/1000ft
10C Temperature Rise Per conductor @ 25°C: 2.2 A
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
Operating Temp Range:
0°C To +75°C
Mechanical Characteristics
Bulk Cable Weight:
Max Recommended Pulling Tension:
Min Bend Radius/Minor Axis:
17 lbs/1000ft
42 lbs
1.5 in
Standards
NEC Articles:
NEC/(UL) Specification:
CEC/C(UL) Specification:
CPR Euroclass:
800
CMP
CMP
Eca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV):
EU Directive 2003/96/EC (BFR):
EU Directive 2011/65/EU (ROHS II):
EU Directive 2012/19/EU (WEEE):
EU Directive 2015/863/EU:
EU Directive Compliance:
EU CE Mark:
EU RoHS Compliance Date (yyyy-mm-dd):
CA Prop 65 (CJ for Wire & Cable):
MII Order #39 (China RoHS):
Yes
Yes
Yes
Yes
Yes
EU Directive 2003/11/EC (BFR)
Yes
2005-04-01
Yes
Yes
Suitability
Suitability - Indoor:
Yes
Flammability, LS0H, Toxicity Testing
C(UL) Flammability:
UL Flammability:
UL voltage rating:
FT6
NFPA 262 Plenum Flame Test (UL910)
300 V RMS
Plenum/Non-Plenum
Plenum (Y/N):
Yes
Part Number
Non-Plenum Number:
Variants
Item #
6502FE 8771000
6502FE 877500
6502FE 877C500
Color
Footnote
5502FE
Natural C
Natural
Natural
6502FE 877U1000 Natural
6502FE 0071000
6502FE 0071000
Violet
Violet
6502FE 007U1000 Violet
6502FE 007U1000 Violet
Footnote:
C - CRATE REEL PUT-UP.
