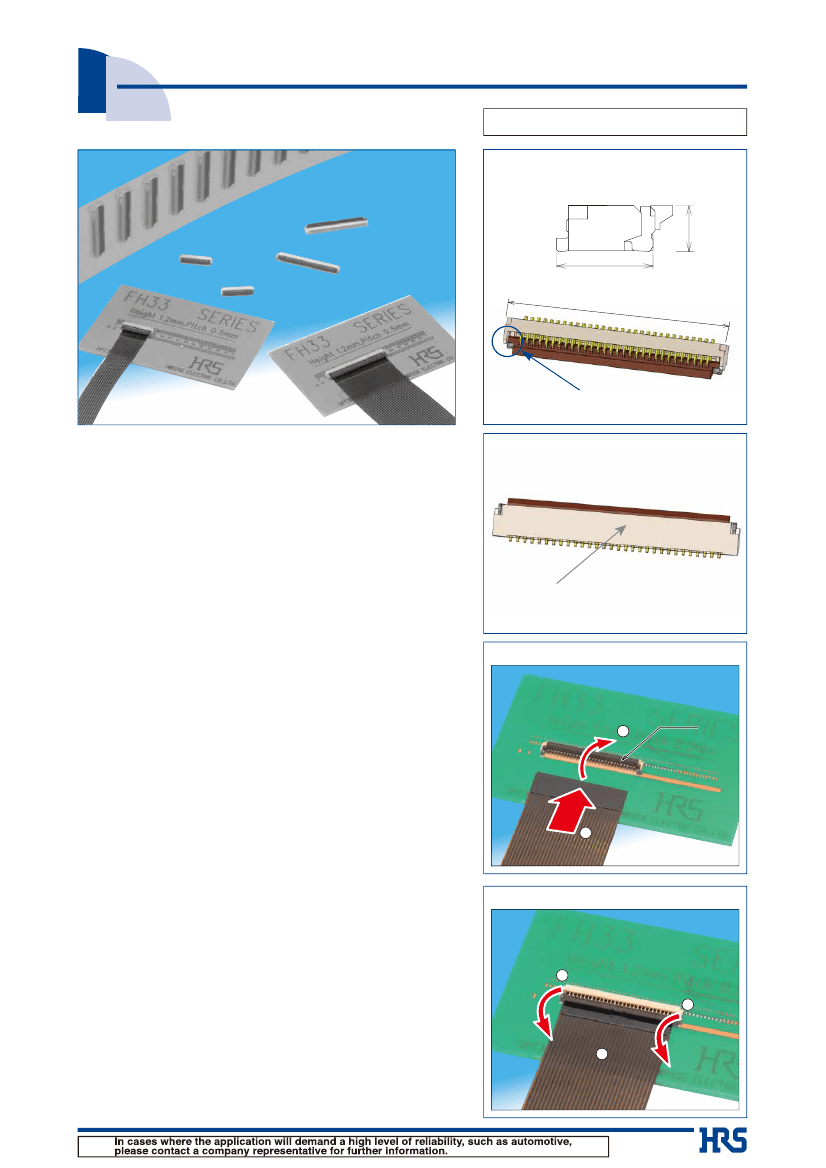

0.4mm,0.5mm,1mm Pitch, 1.2mm above the board, Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
FH33 Series
Increased FPC retention force
●
Small size
2.5mm
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
[ 30 pos. ]
17mm
Metal fittings (Leadless)
■
Features
1. Low-profile, small PCB mounting area
Narrow width of only 2.5 mm reduced the board
footprint by approximately 17% to 57%, as compared to
several similar FH Series HRS connectors.
●
Can be mounted over conductive traces.
2. Various contact pitch (0.4mm, 0.5mm, 1mm
pitch) available
In addition to standard 0.5mm pitch, 0.4mm pitch, 1mm
pitch also available.
3. Increased FPC/FFC retention force
_ In the horizontal direction: Approximately 2.0 times
(compared to 0.5mm pitch FH12 series.)
_ In the vertical direction: Approximately 1.7 times
(compared to 0.5mm pitch FH19 series.)
No exposed contacts on the bottom of the
connector
●
Simple operation
q
Open the actuator
w
Insert FPC
Actuator
1
4. Conductive traces on the PCB can run
under the connector
No exposed contacts on the bottom of the connector.
5. One finger operation of the actuator
Proven (in several other Hirose’s connectors) Flip-
Lock® rotating actuator assures reliable mechanical
and electrical connection with FPC/FFC, confirming it
with a definite tactile feel.
6. Easy FPC insertion and reliable electrical
connection
Proven Flip Lock actuator allows easy insertion of
FPC/FFC and provides a tactile sensation when fully
closed, confirming complete electrical and mechanical
connection.
2
FPC
7. Accepts standard FPC thickness
0.3mm thick standard Flexible Printed Circuit (FPC) and
Flexible Flat Cable (FFC) can be used.
●
Locked condition
e
Close the actuator
r
FPC connected
3
3
8. Board placement
equipment
with
automatic
Flat upper surface and tape and reel packaging
facilitate vacuum pick-up and placement.
Standard reel packaging contains 5000 connectors.
9. Halogen-free
*
(FH33J Series)
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
4
1.2mm
2013.11
w
1
FH33 Series●0.4mm,0.5mm,1mm Pitch, 1.2mm above the board, Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
■Product
Specifications
Ratings
Current rating
0.5 A
Operating temperature range -55 ç to +85ç (Note 1)
(0.4mm pitch type 0.4A)
Operating humidity range
Relative humidity 90% max.
Voltage rating
50 V AC
(No condensation)
(0.4mm pitch type 40V AC)
Storage temperature range -10ç to +50ç (Note 2)
Storage humidity range
Relative humidity 90% max. (No
condensation)
Recommended FPC
Item
Thickness = 0.3 ± 0.05mm gold plated (under 30 pos.), 0.3 ± 0.03mm gold plated (over 31 pos.)
Specification
500 Mø min.
No flashover or insulation breakdown.
50 mø max.
100 mø max(0.4mm pitch type).
* Including FPC conductor resistance
Contact resistance: 50 mø max.
100 mø max(0.4mm pitch type).
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1μs or more.
Contact resistance: 50 mø max.
100 mø max(0.4mm pitch type).
No damage, cracks, or parts dislocation.
100 V DC
150 V AC /one minute, 120 V AC /one minute(0.4mm pitch type)
1 mA
Conditions
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
4. Durability
(insertion/ withdrawal)
20 cycles
5. Vibration
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 10 cycles
in each of the 3 directions.
Acceleration of 981 m/s
2
, 6 ms duration, sine half-wave
waveform, 3 cycles in each of the 3 axis
96 hours at 40ç and humidity of 90% to 95%.
Temperature : -55ç/+15ç
to +35ç/+85ç/+15ç to +35ç
Time
: 30
/
2 to 3
/
30
/
2 to 3 (Minutes)
5 cycles
Reflow
: At the recommended temperature profile
Manual soldering: 350ç ± 10ç for 5 seconds
6. Shock
7. Humidity
(Steady state)
8. Temperature cycle
9. Resistance to
soldering heat
Contact resistance: 50 mø max.
100 mø max(0.4mm pitch type).
Insulation resistance: 50 Mø min.
No damage, cracks, or parts dislocation.
No deformation of components affecting performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term ”storage” refers to products stored for long period of time prior to mounting and use. Operating
Temperature Range and Humidity range covers non- conducting condition of installed connectors in storage,
shipment or during transportation.
■Materials
Part
FH33 series
FH33J series
Insulator
FH33M series
FH33MHJ series
Contacts
Metalfittings
Material
PA
LCP
PPS
LCP
PA
LCP
PPS
Phosphor bronze
Finish
Color:Beige
Color:Deep brown
Color:Beige
Color:Black
Color:Beige
Color:Deep brown
Color:Beige
Color:Black
Gold flash plated
Pure tin reflow plated
Remarks
UL94V-0
-----
-----
■Ordering
information
FH 33 M H J - 12 (6) S B - 1 SH (10)
1
2
3
4
5
6
7
8
9
10
11
12
10
Contact pitch:
0.4mm,0.5mm,1mm
11
SH:SMT horizontal mounting
12
Plating specifications:
Blank:Gold plated
(10)...Gold plating with nickel
barrier 5,000pieces/reel
(99)...Gold plating with nickel
barrier 500pieces/reel
1
Series name:FH
4
Blank:Width 3.0mm(standard)
7
Standard type:Blank
H:Width 3.5mm(long actuator type)
Eccentric type:Number of
2
Series No:33
contacts
3
Blank:0.5mm pitch,1mm pitch
5
Blank:Standard
M:0.4mm pitch
J:Halogen-free
8
Contact alignment:S: single
Flame retardance UL94V-0
9
Eccentric direction:
Blank:standard type
6
Standard type:Number of contacts
Eccentric type:Number of contacts
in 1mm housing
B:Eccentric type
2
FH33 Series●0.4mm,0.5mm,1mm Pitch, 1.2mm above the board, Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
■Connector
Dimensions
●
0.4mm pitch, 0.5mm pitch type
A±0.15
B
Lot No. indicator
T
G
2.25±0.15
(1)
A**
U
Polarizing mark indicator
HRS mark
Cav No.
Number of contacts indicator
(0.15)
(C: FPC insertion slot dimension)
D±0.1
∞Number of contacts
(0.15)
0.15 G
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
F
F
(1
20
˚)
Notes 1 The coplanarity of each terminal lead is within 0.1 max.
2 The contact terminal lead position indicates the dimension
from the bottom a surface of the insulator body.
3 Difference of each terminal lead is within 0.1 max.
4 Slight variations in color of the plastic compounds do not
affect form, fit or function of the connector.
5 After reflow, the terminal plating may change color, however
this does not represent a quality issue.
Part Number
FH33-6S-0.5SH (**)
FH33-9S-0.5SH (**)
FH33-10S-0.5SH (**)
FH33-12S-0.5SH (**)
FH33-14S-0.5SH (**)
FH33-19S-0.5SH (**)
FH33-20S-0.5SH (**)
FH33-26S-0.5SH (**)
FH33-28S-0.5SH (**)
FH33-30S-0.5SH (**)
FH33-32S-0.5SH (**)
FH33-36S-0.5SH (**)
FH33-40S-0.5SH (**)
FH33-45S-0.5SH (**)
FH33M-16S-0.4SH (**)
FH33J-4S-0.5SH (**)
FH33J-10S-0.5SH (**)
FH33J-12S-0.5SH (**)
FH33J-16S-0.5SH (**)
FH33J-18S-0.5SH (**)
FH33J-19S-0.5SH (**)
FH33J-40S-0.5SH (**)
FH33MHJ-65S-0.4SH (**)
CL No.
580-1301-1-**
580-1303-7-**
580-1304-0-**
580-1302-4-**
580-1305-2-**
580-1307-8-**
580-1317-1-**
580-1306-5-**
580-1300-9-**
580-1312-8-**
580-1310-2-**
580-1311-5-**
580-1308-0-**
580-1316-9-**
580-1319-7-**
580-1329-0-**
580-1324-7-**
580-1328-8-**
580-1331-2-**
580-1334-0-**
580-1332-5-**
580-1330-0-**
580-1325-0-**
Number of Contacts
6
9
10
12
14
19
20
26
28
30
32
36
40
45
16
4
10
12
16
18
19
40
65
0.35±0.1
0
(1.8)
1.2±0.1
0
0.15MAX
1
2
1
2
0.5±0.1
0.15MAX
0.55±0.1
a
(1.1)
1.73±0.2
2.2±0.15
0.25±0.1
0.3
+0.15
– 0.1
3
Unit: mm
A
5
6.5
7
8
9
11.5
12
15
16
17
18
20
22
24.5
8.3
4
7
8
10
11
11.5
22
27.9
B
2.5
4
4.5
5.5
6.5
9
9.5
12.5
13.5
14.5
15.5
17.5
19.5
22
6
1.5
4.5
5.5
7.5
8.5
9
19.5
25.6
C
3.57
5.07
5.57
6.57
7.57
10.07
10.57
13.57
14.57
15.57
16.57
18.57
20.57
23.07
6.87
2.57
5.57
6.57
8.57
9.57
10.07
20.57
26.47
D
4.35
5.85
6.35
7.35
8.35
10.85
11.35
14.35
15.35
16.35
17.35
19.35
21.35
23.85
7.65
3.35
6.35
7.35
9.35
10.35
10.85
21.35
27.25
T
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.4
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.4
U
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.45
0.95
Note 1: Embossed reel packaging (5,000 pieces/reel, 500 pieces/reel).
Order by number of reels.
3
FH33 Series●0.4mm,0.5mm,1mm Pitch, 1.2mm above the board, Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
■Connector
Dimensions
●
1mm pitch type
A±0.15
(1.75)
(V)
1
Lot No. indicator
(1)
B
∞Number of contacts
(0.15)
0.15 G
G
2.25±0.15
(0.45)
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
△
HRS mark
Polarizing mark indicator
Cav No.
A**
Number of contacts indicator
(0.15)
(C: FPC insertion slot dimension)
D±0.1
F
F
(1
20
˚)
Notes 1 The coplanarity of each terminal lead is within 0.1 max.
2 The contact terminal lead position indicates the dimension
from the bottom a surface of the insulator body.
3 Difference of each terminal lead is within 0.1 max.
4 Slight variations in color of the plastic compounds do not
affect form, fit or function of the connector.
5 After reflow, the terminal plating may change color, however
this does not represent a quality issue.
0.35±0.1
0
(1.8)
1.2±0.1
0
0.15MAX
1
2
1
2
0.5±0.1
0.15MAX
0.55±0.1
a
(1.1)
1.73±0.2
0.25±0.1
+0 15
Unit: mm
Part Number
CL No.
Number of Contacts
A
6.5
8
8
B
3
5
5
C
5.07
6.57
6.57
D
5.85
7.35
7.35
V
1.75
1.25
1.25
FH33-4S-1SH(**)
580-1322-1-**
4
FH33-12(6)SB-1SH(**)
580-1323-4-**
6
FH33J-12(6)SB-1SH(**)
580-1326-2-**
6
Note 1: Embossed reel packaging (5,000 pieces/reel, 500 pieces/reel).
Order by number of reels.
4
FH33 Series●0.4mm,0.5mm,1mm Pitch, 1.2mm above the board, Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
■Recommended
PCB mounting pattern and metal mask dimensions
●
0.4mm pitch, 0.5mm pitch type
0.65±0.05
B
0.1 H
0.25±0.05(Metal mask)
(0.2)
(0.15)
(2.15)
(0.2)
K±0.1
(A)
*Recommended metal mask thickness = 0.1mm
<under 30 pos.>0.3±0.05
<over 31 pos.>0.3±0.03
3.3MIN(Stiffener)
(0.15)
(2.45)
T
∞Number of contacts
0.3±0.05(Land)
H
2.8±0.05
0.8±0.05
(0.2)
J±0.1
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Recommended
FPC/FFC dimensions
●
0.4mm pitch, 0.5mm pitch type
T±0.07
T±0.03
2.3±0.3(Exposed area)
L±0.05
B±0.03
0.35±0.03(FPC)
0.3±0.03(FFC)
0.27±0.03(0.4mm pitch)
R0
.2
Note 1: If the stiffener is less than 3.3 mm, E dimension must be 0.5 mm min.
E
2-
Unit: mm
Part Number
FH33-6S-0.5SH (**)
FH33-9S-0.5SH (**)
FH33-10S-0.5SH (**)
FH33-12S-0.5SH (**)
FH33-14S-0.5SH (**)
FH33-19S-0.5SH (**)
FH33-20S-0.5SH (**)
FH33-26S-0.5SH (**)
FH33-28S-0.5SH (**)
FH33-30S-0.5SH (**)
FH33-32S-0.5SH (**)
FH33-36S-0.5SH (**)
FH33-40S-0.5SH (**)
FH33-45S-0.5SH (**)
FH33M-16S-0.4SH (**)
FH33J-4S-0.5SH (**)
FH33J-10S-0.5SH (**)
FH33J-12S-0.5SH (**)
FH33J-16S-0.5SH (**)
FH33J-18S-0.5SH (**)
FH33J-19S-0.5SH (**)
FH33J-40S-0.5SH (**)
FH33MHJ-65S-0.4SH (**)
CL No.
580-1301-1-**
580-1303-7-**
580-1304-0-**
580-1302-4-**
580-1305-2-**
580-1307-8-**
580-1317-1-**
580-1306-5-**
580-1300-9-**
580-1312-8-**
580-1310-2-**
580-1311-5-**
580-1308-0-**
580-1316-9-**
580-1319-7-**
580-1329-0-**
580-1324-7-**
580-1328-8-**
580-1331-2-**
580-1334-0-**
580-1332-5-**
580-1330-0-**
580-1325-0-**
Number of Contacts
6
9
10
12
14
19
20
26
28
30
32
36
40
45
16
4
10
12
16
18
19
40
65
A
5
6.5
7
8
9
11.5
12
15
16
17
18
20
22
24.5
8.3
4
7
8
10
11
11.5
22
27.9
B
2.5
4
4.5
5.5
6.5
9
9.5
12.5
13.5
14.5
15.5
17.5
19.5
22
6
1.5
4.5
5.5
7.5
8.5
9
19.5
25.6
J
3.8
5.3
5.8
6.8
7.8
10.3
10.8
13.8
14.8
15.8
16.8
18.8
20.8
23.3
7.1
2.8
5.8
6.8
8.8
9.8
10.3
20.8
26.7
K
4.9
6.4
6.9
7.9
8.9
11.4
11.9
14.9
15.9
16.9
17.9
19.9
21.9
24.4
8.2
3.9
6.9
7.9
9.9
10.9
11.4
21.9
27.8
L
3.5
5
5.5
6.5
7.5
10
10.5
13.5
14.5
15.5
16.5
18.5
20.5
23
6.8
2.5
5.5
6.5
8.5
9.5
10
20.5
26.4
T
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.4
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.4
5
京公网安备 11010802033920号
EEWORLD
