PNF10-8F-2K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> PNF10-8F-2K

PNF10-8F-2K: DescriptionCONN SPADE TERM 10-12AWG #8 YEL; CategoryThe connector terminals; File Size361KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PNF10-8F-2K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PNF10-8F-2K	-	-	View	Buy Now

PNF10-8F-2K Overview

CONN SPADE TERM 10-12AWG #8 YEL

PNF10-8F-2K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	FORK TERMINAL
Conductor cross section	6 mm2
Wire gauge	10 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

STUD

SIZE

ENGLISH

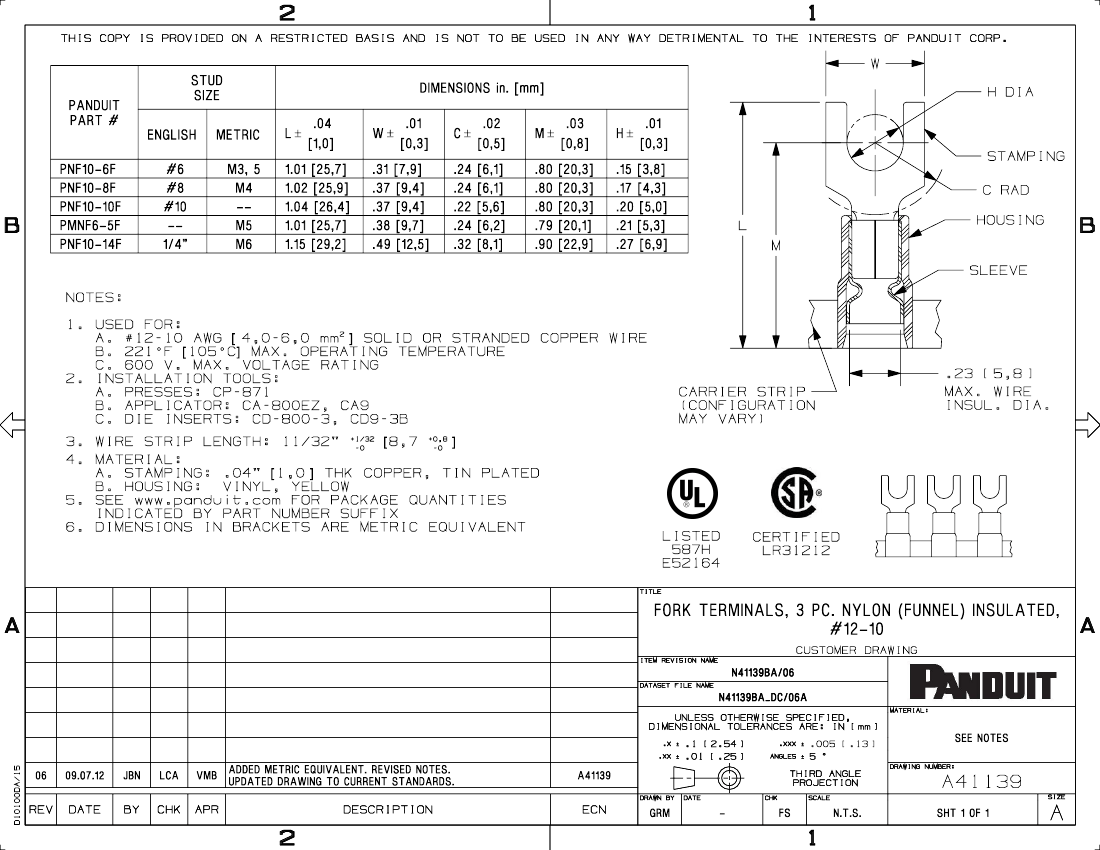

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

DIMENSIONS

in.

[mm]

H DIA

PANDUIT

PART

METRIC

.04

[1,0]

.01

[0,3]

.02

[0,5]

.03

[0,8]

.01

[0,3]

STAMPING

PNF10-6F

PNF10-8F

PNF10-10F

PMNF6-5F

PNF10-14F

#10

1/4"

M3,

1.01

[25,7]

.31

[7,9]

1.02

[25,9]

1.04

[26,4]

1.01

[25,7]

1.15

[29,2]

.37 [9,4]

.38 [9,7]

.49

[12,5]

.24 [6,1]

.22 [5,6]

.24 [6,2]

.32 [8,1]

.80 [20,3]

.79

[20,1]

.90 [22,9]

.15

[3,8]

.17

[4,3]

C RAD

.20 [5,0]

.21

[5,3]

.27 [6,9]

HOUSING

SLEEVE

NOTES:

1. USED FOR:

A. #12-10 AWG [ 4,0-6,0 mm

] SOLID OR STRANDED COPPER WIRE

B. 221 F [105 C] MAX. OPERATING TEMPERATURE

C. 600 V. MAX. VOLTAGE RATING

2. INSTALLATION TOOLS:

A. PRESSES: CP-871

B. APPLICATOR: CA-800EZ, CA9

C. DIE INSERTS: CD-800-3, CD9-3B

3. WIRE STRIP LENGTH: 11/32"

+1/32

[8,7

+0,8

]

-0

4. MATERIAL:

A. STAMPING: .04" [1,0 ] THK COPPER, TIN PLATED

B. HOUSING: VINYL, YELLOW

5. SEE www.panduit.com FOR PACKAGE QUANTITIES

INDICATED BY PART NUMBER SUFFIX

6. DIMENSIONS IN BRACKETS ARE METRIC EQUIVALENT

CARRIER STRIP

(CONFIGURATION

MAY VARY)

.23 [5,8]

MAX. WIRE

INSUL. DIA.

LISTED

587H

E52164

TITLE

CERTIFIED

LR31212

FORK

TERMINALS,

PC.

NYLON

(FUNNEL)

INSULATED,

#12-10

CUSTOMER DRAWING

ITEM REVISION NAME

N41139BA/06

DATASET FILE NAME

N41139BA_DC/06A

MATERIAL:

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.XX

.1 [2.54]

.01 [.25]

.XXX

ANGLES

.005 [.13]

DRAWING NUMBER:

SEE

NOTES

D10100DA/15

REV

09.07.12

JBN

LCA

VMB

ADDED

METRIC

EQUIVALENT.

REVISED

NOTES.

UPDATED

DRAWING

CURRENT

STANDARDS.

A41139

DRAWN BY

DATE

CHK

THIRD ANGLE

PROJECTION

SCALE

A41139

SIZE

DATE

CHK

APR

DESCRIPTION

ECN

GRM

N.T.S.

SHT

PNF10-8F-2K Related Products

	PNF10-8F-2K	PNF10-14F-2K	PNF10-6F-2K	PNF10-8F
Description	CONN SPADE TERM 10-12AWG #8 YEL	CONN SPADE TERM 10-12AWG #1/4	CONN SPADE TERM 10-12AWG #6 YEL	Fork Terminal
Reach Compliance Code	compliant	compliant	-	compliant
ECCN code	EAR99	EAR99	-	EAR99
Terminal and terminal strip types	FORK TERMINAL	FORK TERMINAL	-	FORK TERMINAL
Wire gauge	10 AWG	10 AWG	10-12 AWG	-
