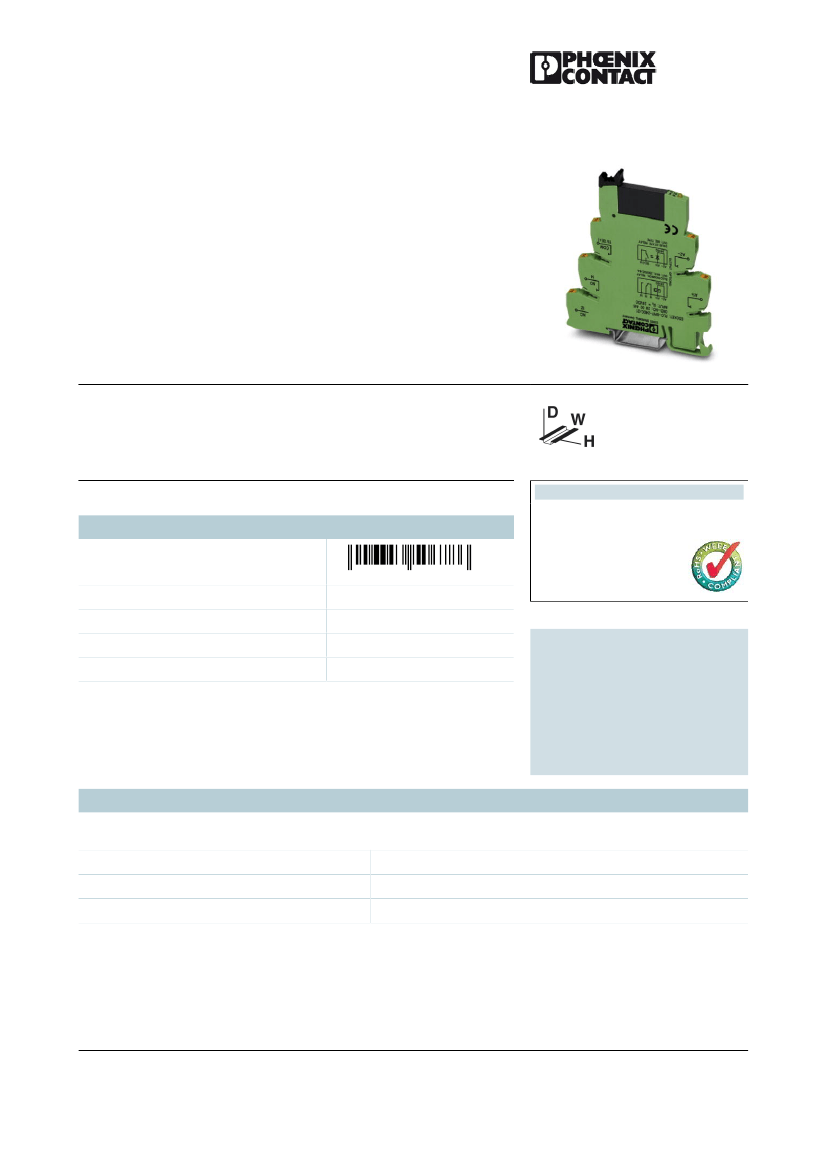

PLC-OPIT-120UC/ 48DC/100
Order No.: 2900355
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2900355
PLC interface, consisting of PLC-BPIT basic terminal block with Push-
In connection and pluggable miniature optocoupler, for assembly on
DIN rail NS 35/7.5, input: 120 V AC/ 110 V DC, output: 3-48 V DC/100
mA
Product notes
Commercial data
GTIN (EAN)
4
046356
506786
WEEE/RoHS-compliant since:
05/05/2009
sales group
Pack
Customs tariff
Catalog page information
G246
10 pcs.
85364900
Page 84 (IF-2011)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Input data
Nominal input voltage U
N
120 V AC (110 V DC)
110 V DC
Input voltage range in reference to U
N
0.9 ... 1.1
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Aug 24, 2011
PLC-OPIT-120UC/ 48DC/100
Order No.: 2900355
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2900355
Switching threshold "0" signal in reference to U
N
Switching threshold "1" signal in reference to U
N
Typical input current at U
N
Typical response time
Typical turn-off time
Operating voltage display
Type of protection
Protective circuit/component
Transmission frequency
Output data
Output nominal voltage range
Limiting continuous current
Voltage drop at max. limiting continuous current
Output circuit
Type of protection
Protective circuit/component
Connection data
Connection method
Stripping length
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
General data
Width
Height
Depth
Ambient temperature (operation)
Ambient temperature (storage/transport)
Mounting position
Assembly instructions
≤ 0.3
≥ 0.9
3.5 mA
3 ms (at U
N
)
4 ms (at U
N
)
Yellow LED
Bridge rectifier
Bridge rectifier
10 Hz
3 V DC ... 48 V DC
100 mA
≤1V
2-wire, floating
Protection against polarity reversal
Surge protection
Polarity protection diode
Push-In connection
8 mm
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
26
14
6.2 mm
80 mm
94 mm
-25 °C ... 60 °C
-25 °C ... 70 °C
Any
In rows with zero spacing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Aug 24, 2011
PLC-OPIT-120UC/ 48DC/100
Order No.: 2900355
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2900355
Operating mode
Inflammability class acc. to UL 94
Pollution degree
Surge voltage category
Certificates / Approvals
100% operating factor
V0
2
III
Certification
CUL, CUL Listed, UL, UL Listed
Accessories
Item
Assembly
0801762
0801733
0801681
0801377
1201756
1201895
1201730
1201714
1201798
2966841
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/ 7,5 V2A UNPERF
2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
PLC-ATP BK
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: steel galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2000 mm
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm,
Color: silver
DIN rail, deep drawn, high profile, unperforated, 1.5 mm thick,
material: aluminum, height 15 mm, width 35 mm, length 2000 mm
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: steel galvanized and passivated with a thick
layer, perforated, height 15 mm, width 35 mm, length: 2000 mm
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Separating plate, 2 mm thick, required at the start and end of a
PLC terminal strip. Furthermore, it is used for: visual separation
of groups, safe isolation of different voltages of neighboring PLC
relays in acc. with DIN VDE 0106-101, isolation
Designation
Description
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Aug 24, 2011
PLC-OPIT-120UC/ 48DC/100
Order No.: 2900355
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2900355
Bridges
2966812
2966825
2966236
2967688
2966692
2966838
2966786
General
2966621
2900280
2966508
2296087
OPT-60DC/ 48DC/100
PLC-BPIT-120UC/21
PLC-ESK GY
PLC-V8/D15B/IN
Pluggable miniature optocouplers, input optocouplers, input: 60 V
DC, output: 3 - 48 V DC/ 100 mA
6.2 mm PLC basic terminal blocks with Push-In connection
method, input voltage of 120 V AC (without relay or optocoupler)
Power terminal block, for the input of up to four potentials, for
mounting on NS 35/7.5
V8-INPUT adapter for eight 6.2 mm PLC interfaces (1 PDT, etc./
see "Additional Products"). 15-pin D-SUB female connector,
control logic: Positive switching
V8-INPUT adapter for eight 6.2 mm PLC interfaces (1 PDT, etc./
see "Additional Products"). 15-pin D-SUB male connector, control
logic: Positive switching
V8L-INPUT adapter for eight 6.2 mm PLC interfaces (1 PDT,
etc./see "Supplementary Products"). 14-pos. flat-ribbon cable
connection for the PLC system cabling, control logic: Plus
switching
V8L-INPUT adapter for eight 6.2 mm PLC interfaces (1 PDT,
etc./see "Supplementary Products"). 14-pos. flat-ribbon cable
connection for the PLC system cabling, control logic: Minus
switching
FBST 6-PLC BU
FBST 6-PLC GY
FBST 6-PLC RD
FBST 8-PLC GY
FBST 500-PLC BU
FBST 500-PLC GY
FBST 500-PLC RD
Single plug-in bridge, Length: 6 mm, Number of positions: 2,
Color: blue
Single plug-in bridge, Length: 6 mm, Number of positions: 2,
Color: gray
Single plug-in bridge, Length: 6 mm, Number of positions: 2,
Color: red
Single plug-in bridge, Length: 8 mm, Number of positions: 2,
Color: gray
Continuous plug-in bridge, Length: 500 mm, Color: blue
Continuous plug-in bridge, Length: 500 mm, Color: gray
Continuous plug-in bridge, Length: 500 mm, Color: red
2296074
PLC-V8/D15S/IN
2296553
PLC-V8/FLK14/IN
2304115
PLC-V8/FLK14/IN/M
Marking
1051016
1051003
ZB 6,LGS:FORTL.ZAHLEN
ZB 6:UNBEDRUCKT
Zack marker strip, 10-section, printed horizontally: with the
numbers 1 - 10, 11 - 20 and so on up to 491 - 500, color: white
Zack strip, unprinted, strips with 10 labels for individual labeling
with M-PEN or CMS system, for terminal block width: 6.2 mm,
color: white
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Aug 24, 2011
PLC-OPIT-120UC/ 48DC/100
Order No.: 2900355
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2900355
Tools
1204517
SZF 1-0,6X3,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip,
with non-slip grip
Diagrams/Drawings
Circuit diagram
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 6
Aug 24, 2011
