PRESSURE TRANSDUCERS WITH AMP.
PA-750

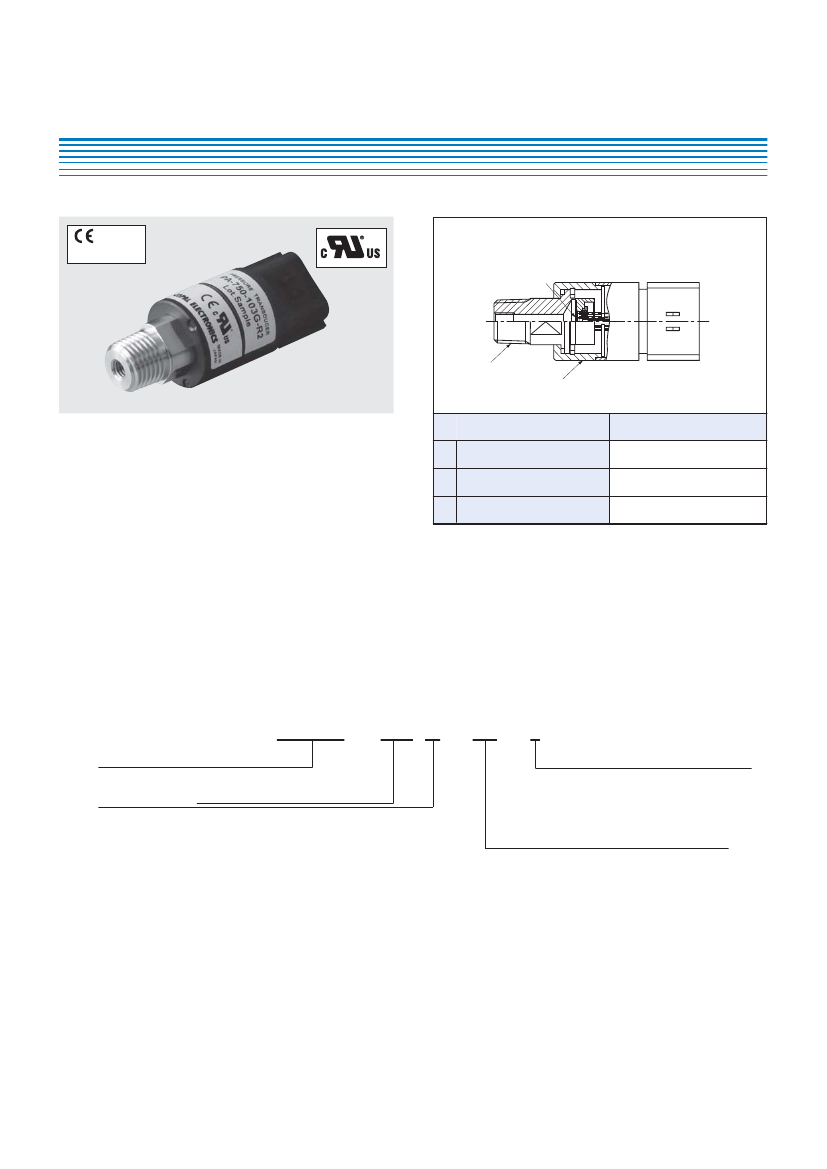

INTERNAL STRUCTURE
PA-750 (R 1/4)
③
marking
Compatible with
EMC directive
①
②
Part name
Material
SUS 304
PPS
SUS 316L
■
FEATURES
High corrosion resistance and drip-proof construction
Pressure port attachment made of SUS 316L
Proven IP65 grade gauge body (IP65 in accordance with IEC)
Cable connector connection
Buit-in temperature compensation function (0 ~ 50
°C
)
Absolute pressure type and compound pressure type
which can control negative to positive pressure with only
a single pressure gauge are all in line
Voltage output mode
1
2
3
Fitting
Housing
Stainless steel diaphragm
■
MODEL NUMBER DESIGNATION
PA-750 - 102 R - R2 - 1
Series name
Rated pressure range
102：0 ~ 100 kPa
352：0 ~ 350 kPa
103：0 ~ 1 MPa
353：0 ~ 3.5 MPa
102：0 ~
−
100 kPa
102：− 100 ~ 100 kPa
302：− 100 ~ 300 kPa
102：0 ~ 100 kPa abs
Cable
Blank：1.5m cable
1：Not attached
Pressure reference
G：Gauge
Fitting
R1：R 1/8 with M 5 female screw
R2：R 1/4 with M 5 female screw
V：Gauge(Vacuum)
R：Compound
A：Absolute
※Please
refer to the LIST OF MODEL NUMBERS when placing orders.
PA-750
PRESSURE TRANSDUCERS WITH AMP.
■
LIST OF MODEL NUMBERS
Pressure reference
Gauge
Absolute
Fitting
Cable
kPa
Rated pressure range
0 ~ 100
PA-750-
A
102G-R1
PA-750-
A
102G-R1-1
PA-750-
A
102G-R2
PA-750-
A
102G-R2-1
0 ~ 350
PA-750-
A
352G-R1
PA-750-
A
352G-R1-1
PA-750-
A
352G-R2
PA-750-
A
352G-R2-1
0 ~ 1000
PA-750-
103G-R1
PA-750-
103G-R1-1
PA-750-
103G-R2
PA-750-
103G-R2-1
0 ~ 3500
PA-750-
353G-R1
PA-750-
353G-R1-1
PA-750-
353G-R2
PA-750-
353G-R2-1
0 ~
−
100
A
102V-R1
−
100 ~ 100
−
100 ~ 300
PA-750-
302R-R1
PA-750-
302R-R1-1
PA-750-
302R-R2
PA-750-
302R-R2-1
0 ~ 100
(abs)
PA-750-
102A-R1
PA-750-
102A-R1-1
PA-750-
102A-R2
PA-750-
102A-R2-1
Attached
R1
Not attached
Attached
R2
Not attached
PA-750-
102R-R1
PA-750-
PA-750-
A
102V-R1-1
102R-R1-1
PA-750-
PA-750-
A
102V-R2
102R-R2
PA-750-
PA-750-
102R-R2-1
A
102V-R2-
1
PA-750-
※Verify
the above model numbers when placing orders.
The products marked
A
are manufactured upon receipt of order basis.
■
STANDARD SPECIFICATIONS
●
Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C and excitation voltage of 12 V DC.
Item
Pressure reference
Model number
102G
352G
103G
PA-750
353G
Gauge
102V
102R
302R
102A
Absolute
−
100
200
300
−
100 ~ 100
200
300
−
100 ~ 300
600
900
100 (abs)
200 (abs)
300 (abs)
Rated pressure range
Maximum pressure
Break-down pressure
Operating temp. range
kPa
kPa
kPa
°C
°C
%RH
°C
100
200
300
350
700
1050
1000
2000
3000
3500
5000
7000
−
20 ~ 80
0 ~ 50
35 ~ 85
（
No condensation
）
−
20 ~ 80
（
Atmospheric pressure, humidity 65 %RH maximum
）
Corrosive gases/liquids compatible with SUS 316L or SUS304
General specifications
Compensated temp. range
Operating humidity
Storage temp.
Pressure medium
Insulation resistance
Dielectric strength
Sealed liquid
Pressure port
Net weight
Drip-proof structure
MΩ
minimum
100 (500 V DC)
500 V AC, 60 s
（
Leakage current 1 mA maximum
）
Silicone oil
R 1/8 R 1/4
g
R2 : Approx. 50
IP65
PRESSURE TRANSDUCERS WITH AMP.
PA-750
Item
Power
Supply voltage
Model number
V DC
maximum
V
V
V
mA
maximum
%F.S.
ZERO %F.S./°C
PA-750
102G
352G
103G
353G
102V
102R
302R
102A
10.8 ~ 30
10 mA
1~5
1
±
0.04
4
±
0.04
1
（
Load resistance 5 k
±
0.3
±
0.05
±
0.05
Consumption current
Output voltage
Zero voltage
Span voltage
Output current
3
±
0.04
2
±
0.04
1
±
0.04
minimum
）
Analog output
Linearity/Hysteresis
Thermal error
SPAN %F.S./°C
Response
resolving power
Gravitational effect
%F.S.
(From horizontal position to vertical position)
±
0.3
±
0.1
ms
Approx. 2
Approx. 0.004V
（Approx. 0.1%F.S.）
±
0.05
±
0.3
±
0.1
±
0.3
■
ENVIRONMENTAL CHARACTERISTICS
Test item
Vibration
Shock
Pressure cycling
Moisture resistance
Test conditions (At 25
±
5 °C)
10 ~ 500 Hz, 1.5 mm maximum/98.1 m/s
2
,
3 directions for 2 hours each
490 m/s
2
3 directions for 3 times each
0 ~ Rated pressure/Rated pressure range, 10
6
cycles
40 °C, 90 ~ 95 %RH, 240 hrs.
Permissible change
Analog output
(Zero voltage, Span voltage)
:
±
1 %F.S. maximum each
PA-750
PRESSURE TRANSDUCERS WITH AMP.
■

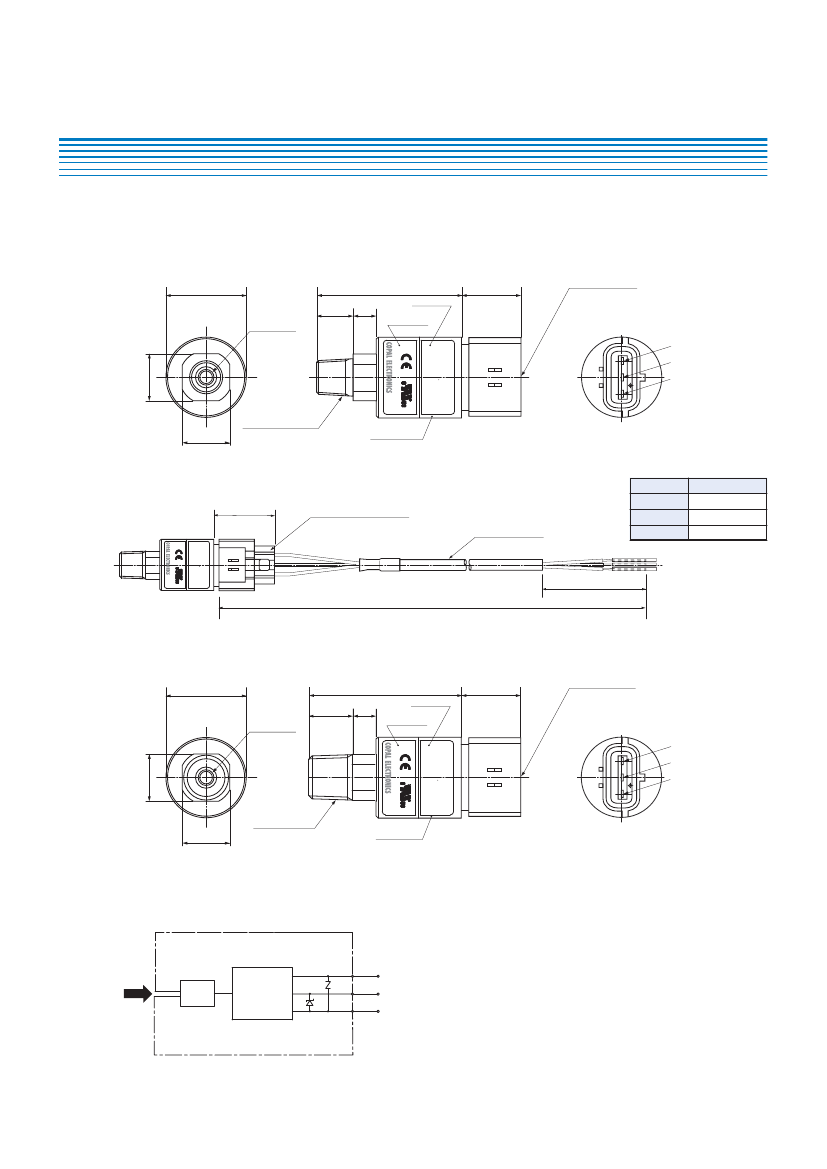

OUTLINE DIMENSIONS
Configurations of joint R1 (R1/8) type
φ
23.5
Unless otherwise specified, tolerance :
±
0.5
(Unit: mm)
43.6
Label 1
Pressure Port
M5 depth 6
11
7
Label 2
18
Output connector
Plug
Tyco Electronics Japan G.K.
Econoseal Series Mark ll(+)
〕
〔
Plug Housing 174357-2
PA- 750-＊＊＊□- R1
①
②
③
Power(+)
Common
Output
PRESSURE TRANSDUCER
L O T . N o .
***
14
MADE IN
JAPAN
R1/8 Fitting (SUS304)
14
Housing
(PPS)
30.9
With connector
PA- 750-＊＊＊□-＊
Econoseal Series Mark ll(+)
〕
〔
Tyco Electronics Japan G.K
Plug Housing:174357-2
Receptacle contact:171630-5
φ
（ 5.3）
3-core shield cable
AWG22UL2517
PRESSURE TRANSDUCER
L O T . N o .
***
Wire color
Brown
Blue
White
Connection
Power
B
Common
Output
Configurations of joint R2 (R1/4) type
φ
23.5
MADE IN
JAPAN
50 ± 10
L = 1500 ± 100
45.5
Label 1
Pressure Port
M5 depth 6
13
7
Label 2
18
Output connector
Plug
Tyco Electronics Japan G.K.
Econoseal Series Mark ll(+)
〕
〔
Plug Housing 174357-2
PA- 750-＊＊＊□- R2
①
②
③
Power(+)
Common
Output
PRESSURE TRANSDUCER
L O T . N o .
***
14
MADE IN
JAPAN
14
R1/4 Fitting
(SUS304)
Housing
(PPS)
■
INTERNAL ELECTRICAL SCHEMATICS
Pressure
Sensor
Main circuit
Power
B
Output
Common
