ARJM11B1-001-KK-CW2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> ARJM11B1-001-KK-CW2

ARJM11B1-001-KK-CW2: DescriptionTelecom and Datacom Connector,; CategoryThe connector The connector; File Size3MB，11 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ARJM11B1-001-KK-CW2 Overview

Telecom and Datacom Connector,

ARJM11B1-001-KK-CW2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7153274711
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.535 inch
subject depth	0.839 inch
body length	0.626 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (6)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	TELCOM, MODULAR
empty shell	NO
Filter function	YES
JESD-609 code	e4
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	6u inch
polarization key	POLARIZED HOUSING
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

RJ45 SINGLE PORT 100/1000/2.5G/5G BASE-T MAGNETICS

ARJM11

SERIES DESCRIPTION

21.30 x 15.90 x 13.60mm

21.30 x 15.90 x 13.80mm

MSL = 1

RoHS/RoHS II Compliant

The ARJM11 series of RJ45 jacks with internal magnetics supports a wide range of configurations in 10/100Base-T, 1000Base-T,

2.5GBase-T and 5GBase-T applications. This series offers the ability to mix and match physical orientation of the tab, pin layouts,

EMI fingers, LED colors and plating options while providing PoE and PoE+ options for 10/100Base-T rates. All configurations in the

product series support paste in hole (PIH), a technology that allows through-hole components to be compatible with surface mount reflow

assembly processes. All devices are rated to 0°C to 70°C or -40°C to 85°C operating temperature range.

FEATURES

•

10/100Base-T, 1000Base-T, 2.5GBase-T or 5GBase-T

Supports PoE and PoE+ (10/100Base-T)

Compatible with surface mount with Paste in hole (PIH)

technology

-40°C to 85°C or 0°C to 70°C operating temperature range

Combinations of green, yellow, orange, and red LED

•

APPLICATIONS

Internet of Things (Ethernet)

IP cameras, surveillance, and phone

Access points

Industrial computers

Network interface cards (NIC)

Industrial process control

Networking and communications

Broadcast video

Storage

Set top box and video

Power over Ethernet (PoE)

Test and Measurement

Multifunction Printers (MFP)

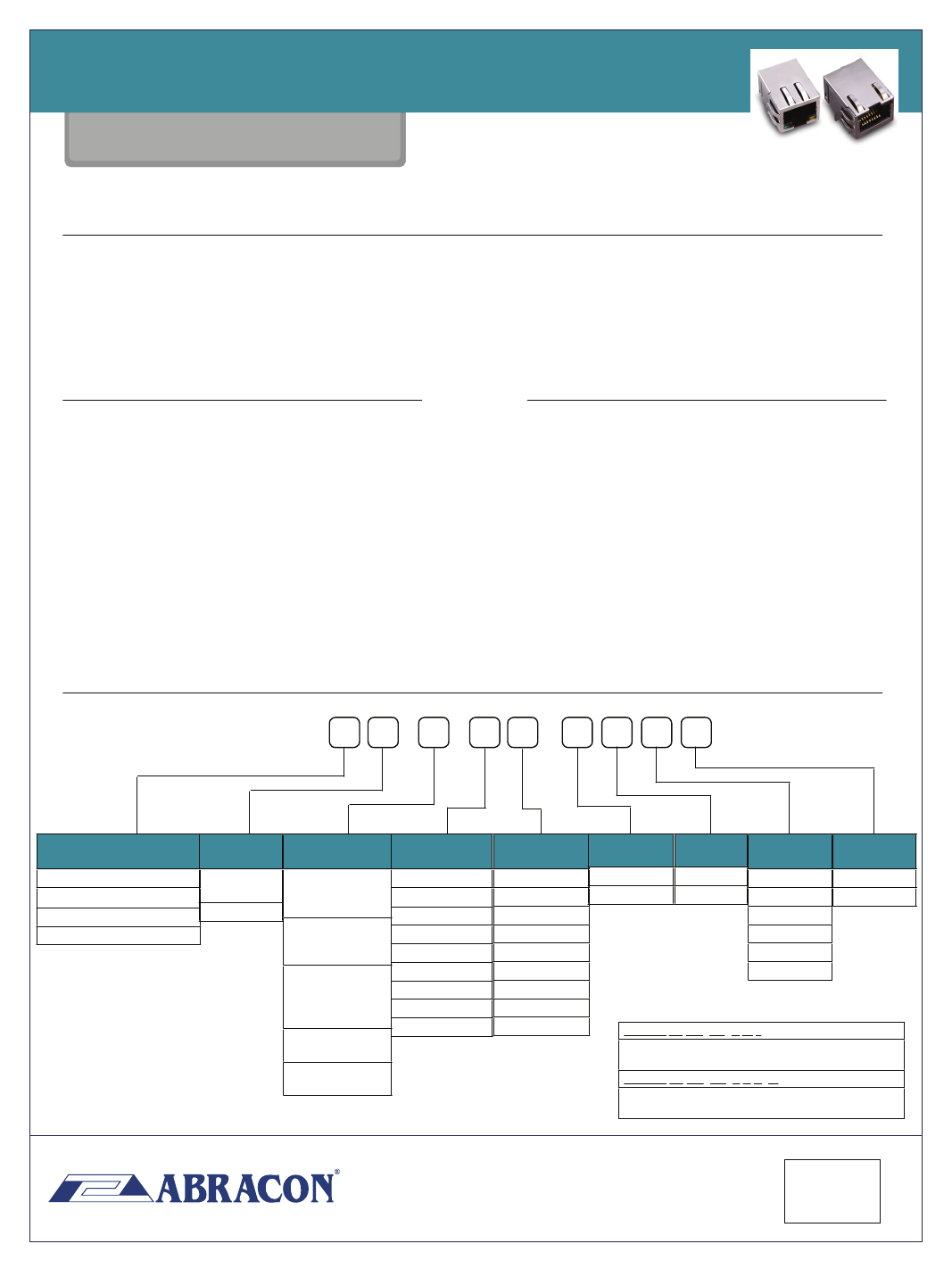

OPTIONS AND PART IDENTIFICATION

*NRE may apply to some configurations.

ARJM11

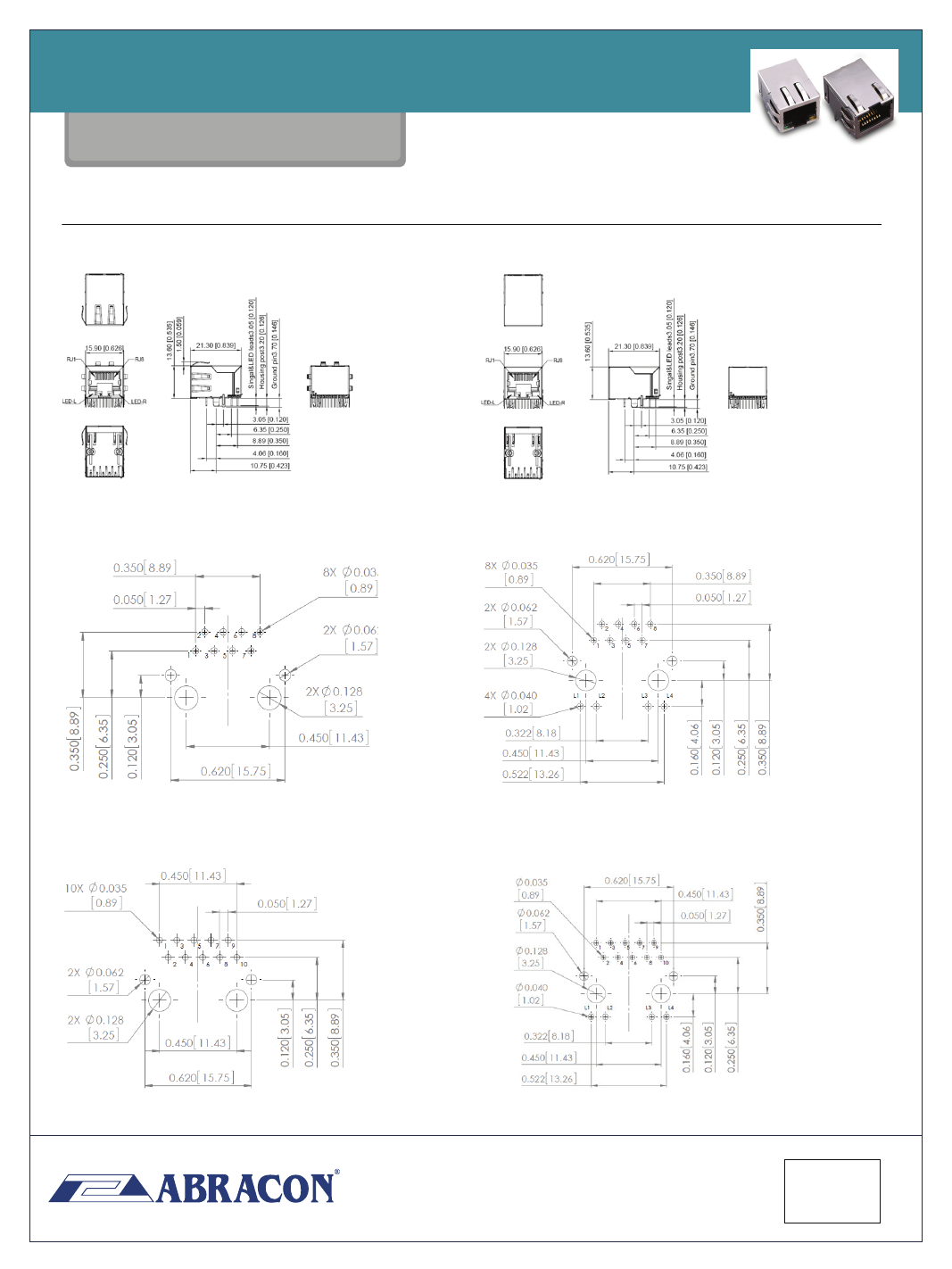

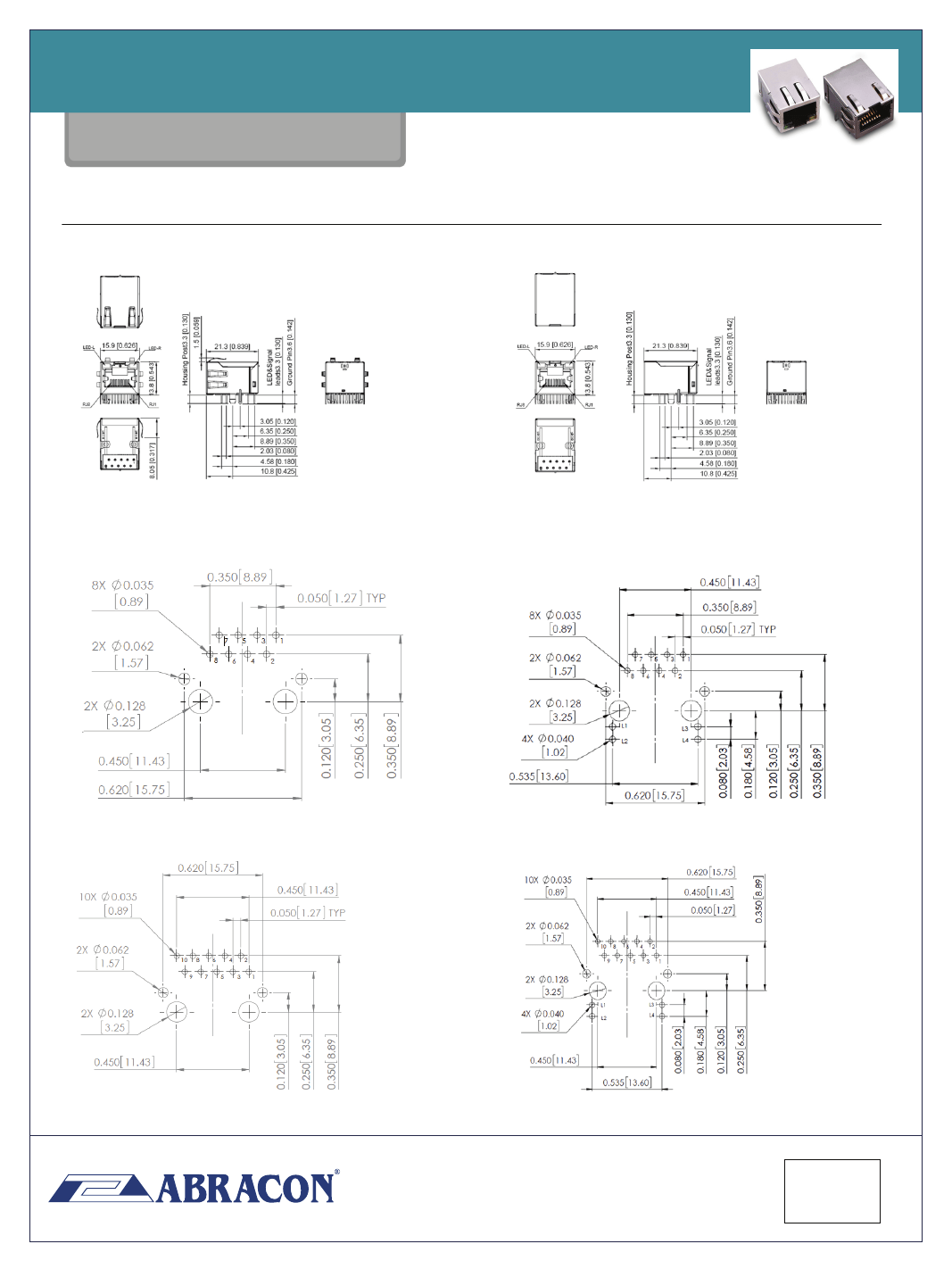

Mechanical

A: Tab down, w/ EMI Finger

B: Tab down, w/o EMI Finger

C: Tab up, w/ EMI Finger

D: Tab up, w/o EMI Finger

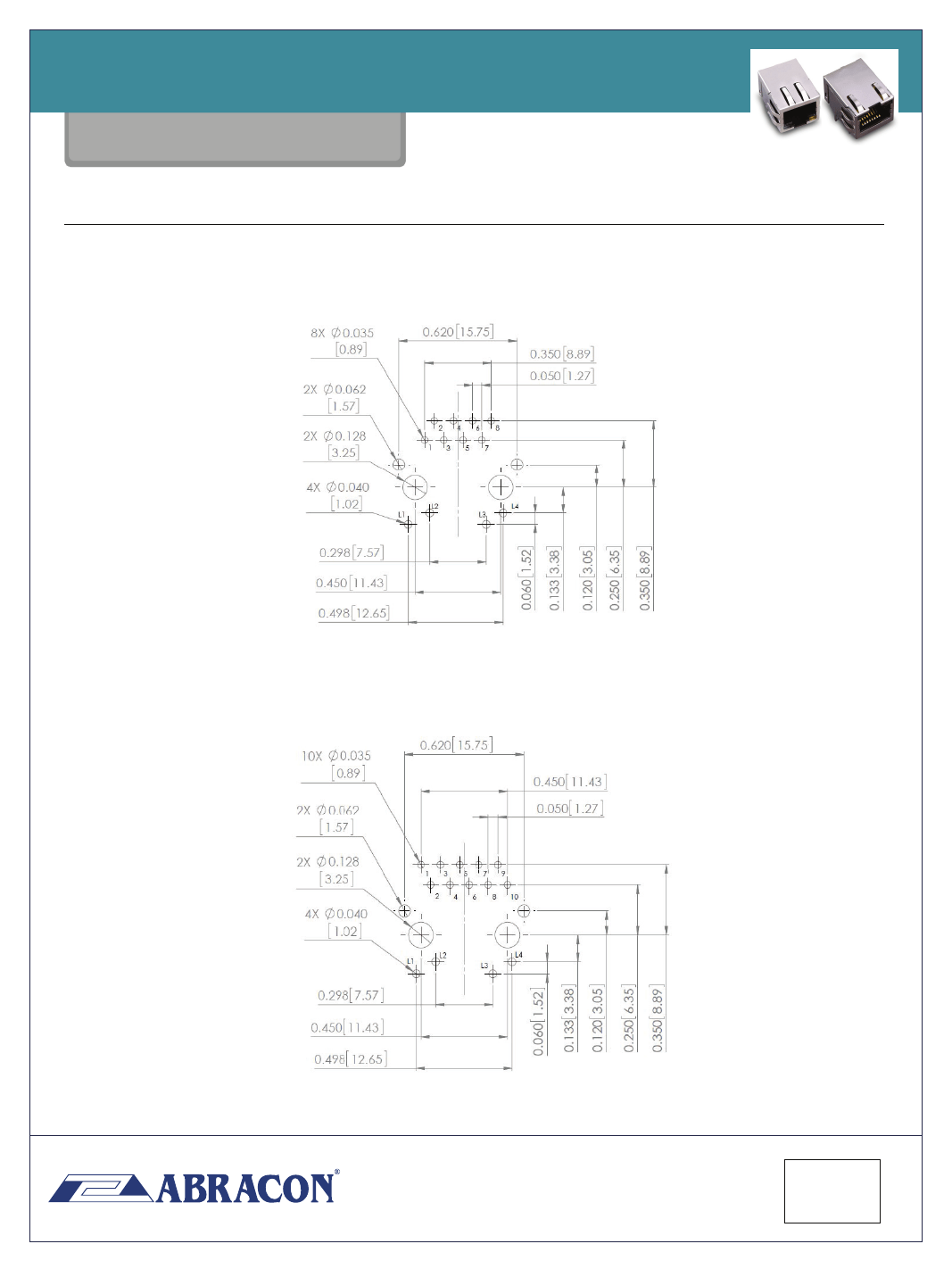

Pin Layout

1: for A and B

3: for A and B

7: for C and D

Schematics

100 Base-T:

009,

001, 007, 008, 010

100 Base-T &

PoE:

104, 114, 116, 130

1000 Base-T:

502,

504, 516, 517, 559,

576, 577, 628, 634

2.5G Base-T:

805, 809

5G Base-T:

811

Left LED color

N: No LED

A: Green

B: Yellow

C: Red

D: Orange

J: Green/Yellow

K: Green/Orange

L: Green/Red

M: Red/Yellow

Right LED

color

N: No LED

A: Green

B: Yellow

C: Red

D: Orange

J: Green/Yellow

K: Green/Orange

L: Green/Red

M: Red/Yellow

Operating

Temperature

C: 0 ~ 70 °C

E: -40 ~ 85 °C

Soldering

Method

W: Wave

R: Reflow

Gold Plating

0: Gold Flash

1: 3u”

2: 6u”

3: 15u”

4: 30u”

5: 50u”

Packaging

Blank: Bulk

T: Tape&Reel

*(Please See Machanical Section)

Example Configurations

ARJM11 A1-001 -AB- C W 2

(Tab down, w/ EMI, 100Base-T, w/LED G/Y, commercial

grade, 6µ” Gold, Tray Packaging)

ARJM11 D7-502 -NN- E R 4 - T

(Tab up, w/o EMI, 1000Base-T, no LED, industrial grade,

reflow soldering, 30µ” Gold, Tape & Reel)

*(Please See Schematics Section)

LLC

5101 Hidden Creek Lane Spicewood TX 78751

Phone: 512.371.6159 | email: abinfo@abracon.com

For terms and conditions of sales visit:

www.abracon.com

REVISED:

08.20.2018

ABRACON IS

ISO9001-2015

CERTIFIED
