CT2265-6: DescriptionPROBE BODY 4MM SPG TIP BLUE; CategoryTopical application Test and measurement; File Size168KB，1 Pages; ManufacturerCal Test Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

CT2265-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CT2265-6	-	-	View	Buy Now

CT2265-6 Overview

PROBE BODY 4MM SPG TIP BLUE

CT2265-6 Parametric

Parameter Name	Attribute value
Pointed - Type	Spring positive wire
Rated current	36A
Rated voltage	600V，1000V
Termination	Banana style, female socket (jack)
color	blue
Length - Pointed	0.728"（18.49mm）
Length - total	4.530"（115.00mm）
Material - Body	nylon
Material - Pointed	Phosphor bronze, nickel plated
grade	CAT III 1000V，CAT IV 600V
Operating temperature	-4 ~ 176°F （-20 ~ 80°C）
quantity	10
include	IC insulator cap

Preview

Download Datasheet

View All

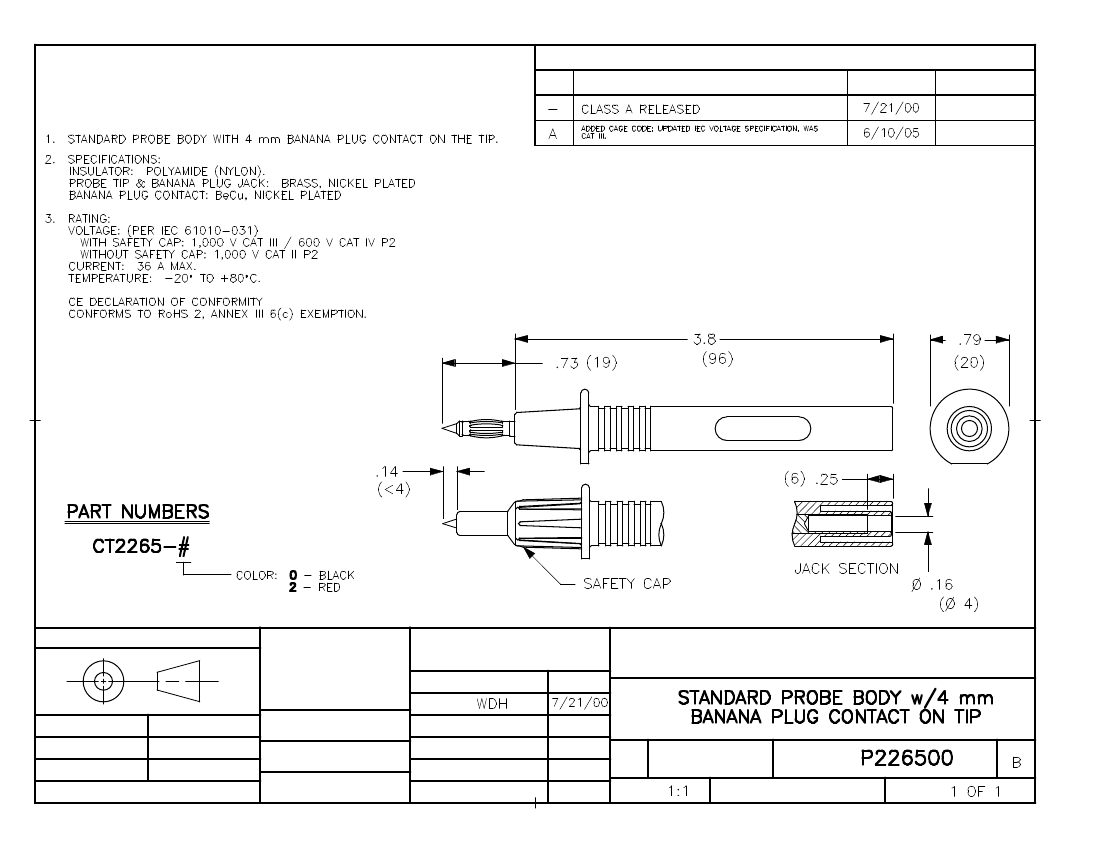

THIS IS ISSUED IN STRICT CONFIDENCE THAT

IT IS NOT USED AS A BASIS FOR

MANUFACTURE OR SALE AND THAT IT IS NOT

COPIED, REPRINTED OR DISCLOSED TO A THIRD

PARTY EITHER WHOLLY OR IN PART WITHOUT

THE PRIOR WRITTEN CONSENT OF CAL TEST

ELECTRONICS, INC.

REVISIONS

REV.

DESCRIPTIONS

DATE

APPROVED

THIRD ANGLE PROJECTION

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

FRACTIONS

DECIMALS

± 1/32

.XX ± .02

.XXX ±.005

DO NOT SCALE DRAWING

MATERIAL

CONTRACT NO.

Cal Test Electronics

DATE

TITLE

22820 Savi Ranch Parkway

Yorba Linda, CA 92887-4610

APPROVALS

DRAWN

CHECKED

ENGR.

DESIGN ACTIVITY

FINISH

NEXT ASSY

APPLICATION

USED ON

SIZE

A

CAGE CODE

43F45

DWG. NO.

REV.

SCALE

SHEET

CT2265-6 Related Products

	CT2265-6	CT2265-4	CT2265-5	CT2265-9	CT2265-0	CT2265-2
Description	PROBE BODY 4MM SPG TIP BLUE	PROBE BODY 4MM SPG TIP YELLOW	PROBE BODY 4MM SPG TIP GREEN	PROBE BODY 4MM SPG TIP WHITE	PROBE BODY, 4MM SPG TIP - BLACK	PROBE BODY, 4MM SPG TIP - RED
Pointed - Type	Spring positive wire	Spring positive wire	Spring positive wire	Spring positive wire	Spring positive wire	Spring positive wire
Rated current	36A	36A	36A	36A	36A	36A
Rated voltage	600V，1000V	600V，1000V	600V，1000V	600V，1000V	600V，1000V	600V，1000V
Termination	Banana style, female socket (jack)	Banana style, female socket (jack)	Banana style, female socket (jack)	Banana style, female socket (jack)	Banana style, female socket (jack)	Banana style, female socket (jack)
color	blue	yellow	green	White	black	red
Length - Pointed	0.728"（18.49mm）	0.728"（18.49mm）	0.728"（18.49mm）	0.728"（18.49mm）	0.728"（18.49mm）	0.728"（18.49mm）
Length - total	4.530"（115.00mm）	4.530"（115.00mm）	4.530"（115.00mm）	4.530"（115.00mm）	4.530"（115.00mm）	4.530"（115.00mm）
Material - Body	nylon	nylon	nylon	nylon	nylon	nylon
Material - Pointed	Phosphor bronze, nickel plated	Phosphor bronze, nickel plated	Phosphor bronze, nickel plated	Phosphor bronze, nickel plated	Phosphor bronze, nickel plated	Phosphor bronze, nickel plated
grade	CAT III 1000V，CAT IV 600V	CAT III 1000V，CAT IV 600V	CAT III 1000V，CAT IV 600V	CAT III 1000V，CAT IV 600V	CAT III 1000V，CAT IV 600V	CAT III 1000V，CAT IV 600V
Operating temperature	-4 ~ 176°F （-20 ~ 80°C）	-4 ~ 176°F （-20 ~ 80°C）	-4 ~ 176°F （-20 ~ 80°C）	-4 ~ 176°F （-20 ~ 80°C）	-4 ~ 176°F （-20 ~ 80°C）	-4 ~ 176°F （-20 ~ 80°C）
quantity	10	10	10	10	1 item	1 item
include	IC insulator cap	IC insulator cap	IC insulator cap	IC insulator cap	IC insulator cap	IC insulator cap
