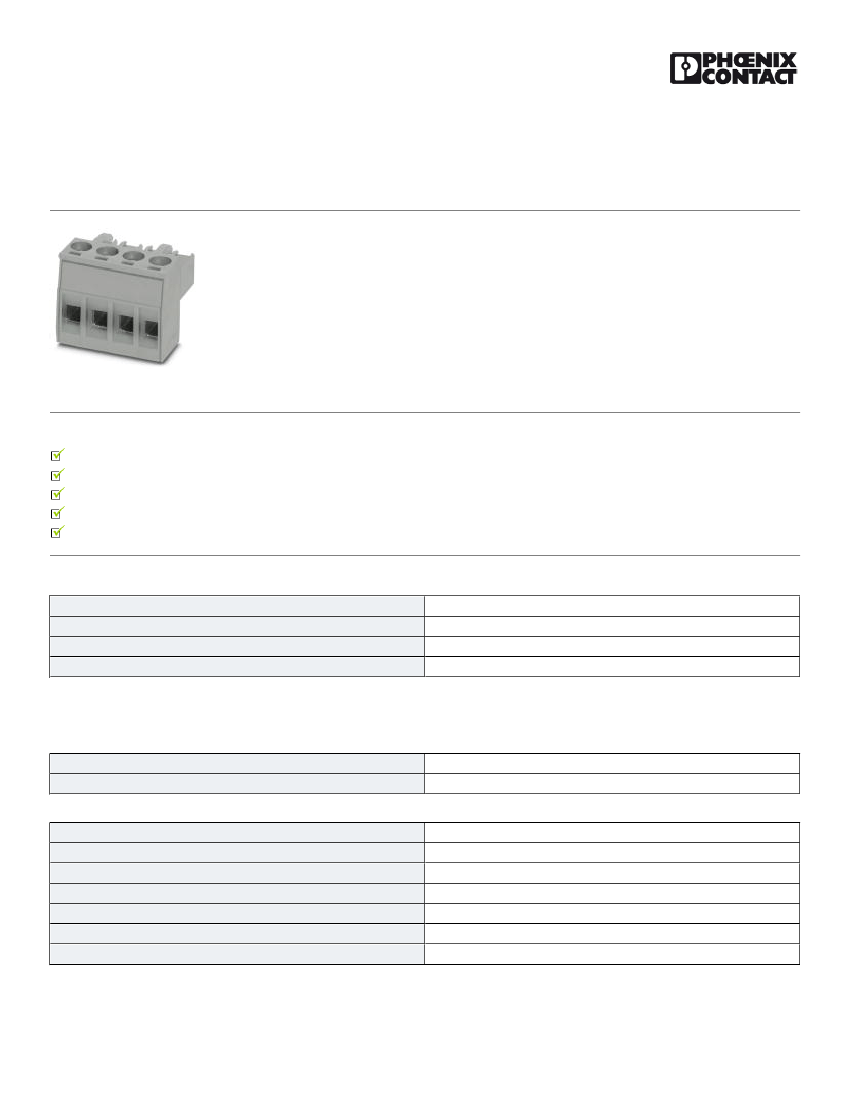

Printed-circuit board connector - MSTBT 2,5 HC/ 4-STP BK - 2200482
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 16 A, Rated voltage (III/2): 320 V, Number of positions: 4, Pitch: 5 mm,
Connection method: Screw connection
The illustration shows the gray
version
Product Features
Headers and plugs for ME and ME MAX electronics housing
2 to 4-pos.
5 mm pitch
Plug-in direction orthogonal to the PCB
Touch proof
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
50 pc
85366990
Germany
Technical data
Dimensions
Pitch
Dimension a
5.00 mm
15 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
MSTBT 2,5 HC/..-STP
I
4 kV
4 kV
4 kV
250 V
320 V
10/29/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/2200482
Printed-circuit board connector - MSTBT 2,5 HC/ 4-STP BK - 2200482
Technical data
General
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
630 V
EN-VDE
16 A
2.5 mm²
16 A (with a 2.5 mm² conductor cross section)
PA
V0
A3
7 mm
4
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, max.
Minimum AWG according to UL/CUL
30
10/29/2015 Page 2 / 4
