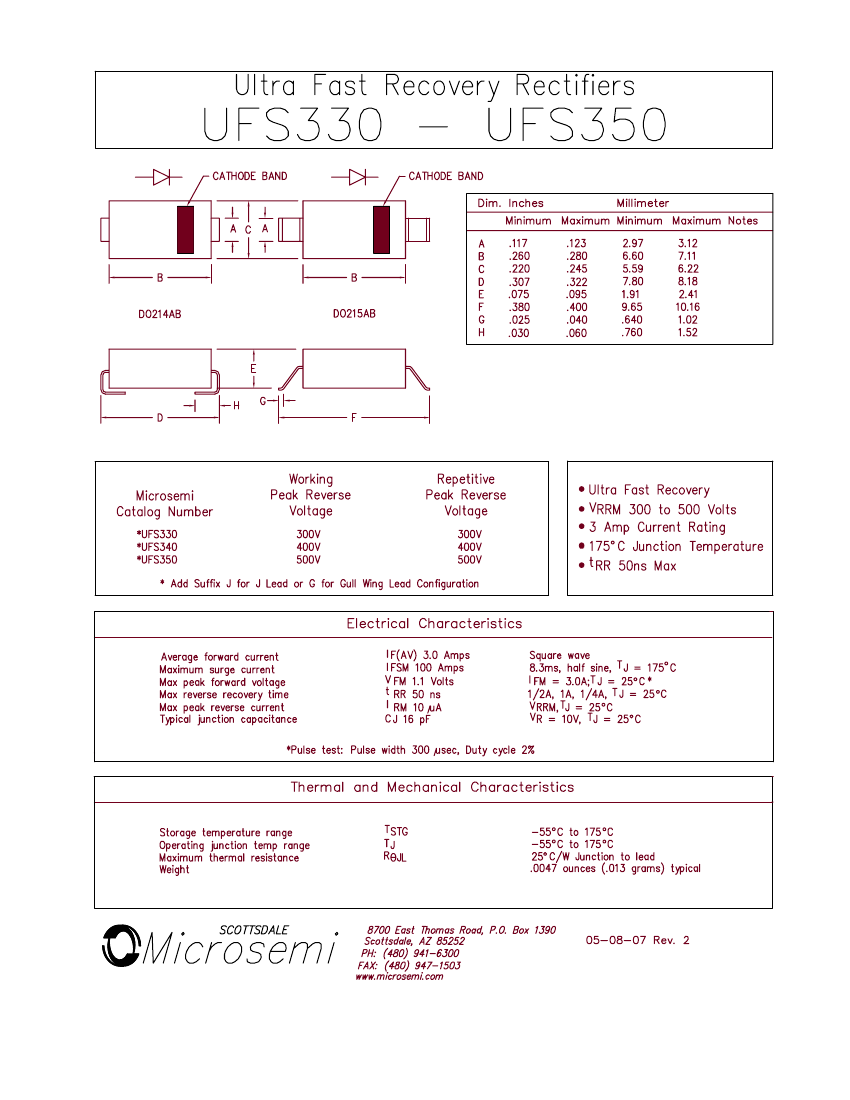

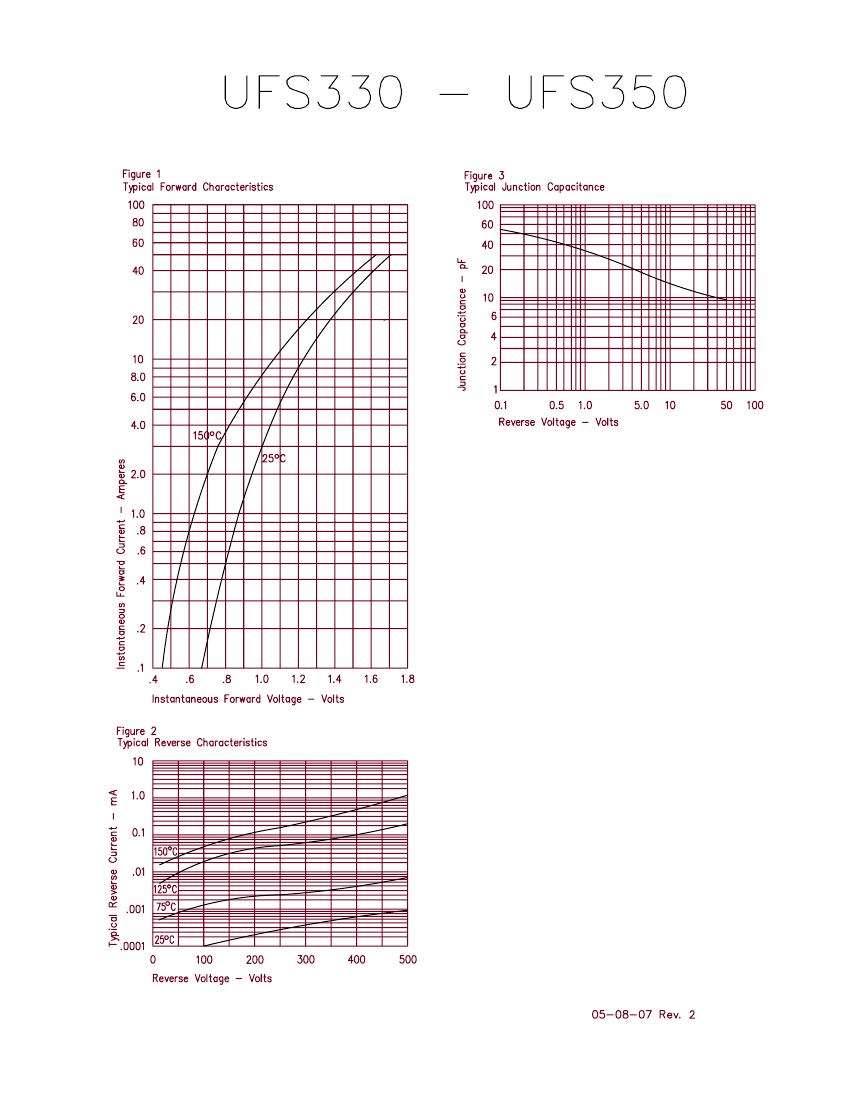

UFS330GE3/TR13 datasheet, PDF - EEWORLD Datasheet

UFS330GE3/TR13: DescriptionDIODE GEN PURP 300V 3A DO215AB; Categorysemiconductor Discrete semiconductor; File Size97KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

UFS330GE3/TR13 Overview

DIODE GEN PURP 300V 3A DO215AB

Parameter Name	Attribute value
Diode type	standard
Voltage - DC Reverse (Vr) (Maximum)	300V
Current - average rectification (Io)	3A
Voltage at different If - Forward (Vf	1.1V @ 3A
speed	Fast recovery = < 500 ns, > 200mA (Io)
Reverse recovery time (trr)	50ns
Current at different Vr - Reverse leakage current	10µA @ 300V
Capacitance at different Vr, F	-
Installation type	surface mount
Package/casing	DO-215AB, SMC gull wing
Supplier device packaging	DO-215AB
Operating Temperature - Junction	-55°C ~ 175°C

UFS330GE3/TR13 Related Products

	UFS330GE3/TR13	UFS330G/TR13	UFS340G/TR13	UFS350G/TR13	UFS340GE3/TR13	UFS350GE3/TR13
Description	DIODE GEN PURP 300V 3A DO215AB	DIODE GEN PURP 300V 3A DO215AB	DIODE GEN PURP 400V 3A DO215AB	DIODE GEN PURP 500V 3A DO215AB	DIODE GEN PURP 400V 3A DO215AB	DIODE GEN PURP 500V 3A DO215AB
Diode type	standard	standard	standard	standard	standard	standard
Voltage - DC Reverse (Vr) (Maximum)	300V	300V	400V	500V	400V	500V
Current - average rectification (Io)	3A	3A	3A	3A	3A	3A
Voltage at different If - Forward (Vf	1.1V @ 3A	1.1V @ 3A	1.1V @ 3A	1.1V @ 3A	1.1V @ 3A	1.1V @ 3A
speed	Fast recovery = < 500 ns, > 200mA (Io)	Fast recovery = < 500 ns, > 200mA (Io)	Fast recovery = < 500 ns, > 200mA (Io)	Fast recovery = < 500 ns, > 200mA (Io)	Fast recovery = < 500 ns, > 200mA (Io)	Fast recovery = < 500 ns, > 200mA (Io)
Reverse recovery time (trr)	50ns	50ns	50ns	50ns	50ns	50ns
Current at different Vr - Reverse leakage current	10µA @ 300V	10µA @ 300V	10µA @ 400V	10µA @ 500V	10µA @ 400V	10µA @ 500V
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Package/casing	DO-215AB, SMC gull wing	DO-215AB, SMC gull wing	DO-215AB, SMC gull wing	DO-215AB, SMC gull wing	DO-215AB, SMC gull wing	DO-215AB, SMC gull wing
Supplier device packaging	DO-215AB	DO-215AB	DO-215AB	DO-215AB	DO-215AB	DO-215AB
Operating Temperature - Junction	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C
