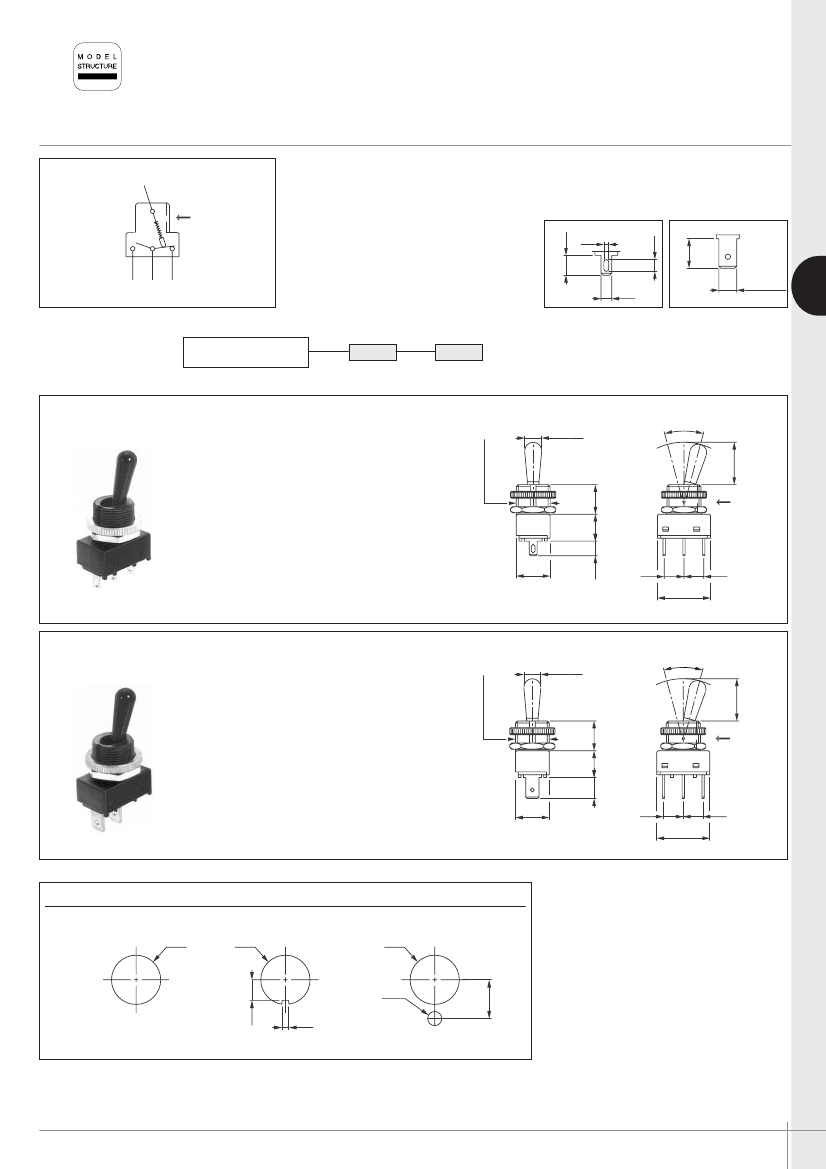

1500 series
Toggle switches - insulated lever and bushing
Distinctive features and specifications
❑
UL and VDE (EN 61058-1) approved
A
❑
Variety of actuator styles and colours
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
6A 250VAC (10.000 cycles)
10A 125VAC (6.000 cycles)
5A 12VDC (10.000 cycles)
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000MΩ min. at 500VDC
• Dielectric strength :
2.000 Vrms 50 Hz min. between terminals and between terminals and metal panel
MATERIALS
GENERAL SPECIFICATIONS
• Case : polyamide
• Actuator : polyamide
• Bushing : polyamide
• Contacts : silver
• Torque : 0,95 Nm (.700 Ft.lb) max. applied to nut
• Panel thickness : 4,5 mm (.177) between 2 nuts
• Operating temperature : -20°C to +55°C
AGENCY APPROVALS
EN 61058-1
Availability
: all models
Marking
: To order switches marked UL and/or VDE, complete appropriate
box of ordering format.
ABOUT THIS SERIES
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
Sealing boots
are available to protect the switches against dust and water. They are presented in section H.
Mounting accessories
: standard hardware supplied with all models : 1 hex nut U166 and 1 knurled nut U411.
Standard and special hardware available are presented in section I.
Packaging unit
: 50 pieces per type and colour.
A-88
www.apem.com
APEM
1500 series
Toggle switches - insulated lever and bushing
Solder lug or quick-connect terminals
➞
Keyway
•
2 and 3 maintained positions
• Silver contacts standard
• Single pole configurations
5.20
(.204)
3.10
(.122)
1.30
(.051)
7.00
(.275)
2.80x0.80
(.11x.031)
4.70x0.80
(.185x.031)
A
MODEL
STRUCTURE
Solder lug terminals
I
1531A2
1536A2
1539A2
ON
ON
ON
II
-
-
OFF
III
OFF
ON
ON
➞
Keyway
Ø6.00
(.236DIA)
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
(.472)
12.00
I
II
30˚
III
9.50
(.374)
10.50
(.413)
5.20
(.204)
7.00
(.275)
18.80
(.74)
7.00
(.275)
Quick-connect terminals 4,7 x 0,8 (.185 x .031)
I
1531A8
1536A8
1539A8
ON
ON
ON
II
-
-
OFF
III
OFF
ON
ON
➞
Keyway
Ø6.00
(.236DIA)
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
12.00
(.472)
I
II
30°
III
7.00 9.50
(.275) (.374)
10.50
(.413)
7.00
(.275)
18.80
(.74)
7.00
(.275)
PANEL CUT
-
OUT
Ø12.20
(.48DIA)
Ø12.20
(.48DIA)
Ø12.50
(.492DIA)
APEM
5.10
(.20)
1.70
(.066)
www.apem.com
9.60
(.377)
Ø3.50
(.137DIA)
15.00
(.59)
15.00
(.59)
A-89
