Vero® Series is a revolutionary advancement in chip on board (COB) light source technology and innovation. Vero LED light
sources simplify luminaire design and manufacturing processes Vero Chip on Board (COB) LED arrays are available in four
LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents.
Vero arrays deliver increased lumen density to enable improved beam control and precision lighting with 2 and 3 SDCM color
control standard for clean and consistent uniform lighting.
Vero products include an onboard connector port that enables a solder-free electrical interconnect, and simple mounting
features for plug-and-play installation.
Bridgelux Décor Series™ is our state-of-the-art color line designed specifically for premium applications, producing
unmatched LED light quality with brilliant color-rendering options and pleasing lighting palettes. Bridgelux Décor Series color
points are available on Vero® SE Series, Vero® Series, V Series™ and V Series™ HD.
Décor Series™ Class A
is based on human response testing, providing color points with a combined GAI and CRI metric.
Décor Series™ Ultra
products provide a high CRI of 97 and minimum R9 value of 93, which emphasizes the reds and color
tones to which the human eye is most receptive - perfect for the most luxurious retail shops and world renowned museums.
Décor Series Ultra is also designed as a replacement for halogen lamps.
Décor Series™ Showcase
is the optimal solution for replacing ceramic metal halide lamps, incorporating the same pure white
light with enhanced spectrum coverage and higher efficacy.
Features
Benefits
• Efficacy of 160 lm/W typical
• Lumen output performance ranges from
460 to 7,300 lumens
• Broad range of CCT options from 2700K to 6500K
• CRI options include; minimum 70, 80, and 90
• 2 and 3 SDCM color control for 2700K-4000K CCT
• Reliable operation at up to 2X nominal drive current
• Radial die pattern and improved lumen density
• Thermally isolated solder pads
• Onboard connector port
• Top side part number markings
• V
f
bin code backside marking
• Broad application coverage for interior and
exterior lighting
• Flexibility for application driven lighting design
requirements
• High quality true color reproduction
• Uniform consistent white light
• Flexibility in design optimization
• Enhanced ease of use and assembly
• Solderless connectivity enables plug & play
installation and field upgradability
• Improved inventory management and
quality control
Vero
®
Series
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Performance at Commonly Used Drive Currents
Electrical Characteristics
Eye Safety
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Typical Color Spectrum
Mechanical Dimensions
Color Binning Information
Packaging and Labeling
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
3
8
16
17
18
19
22
23
24
25
26
28
28
28
29
1

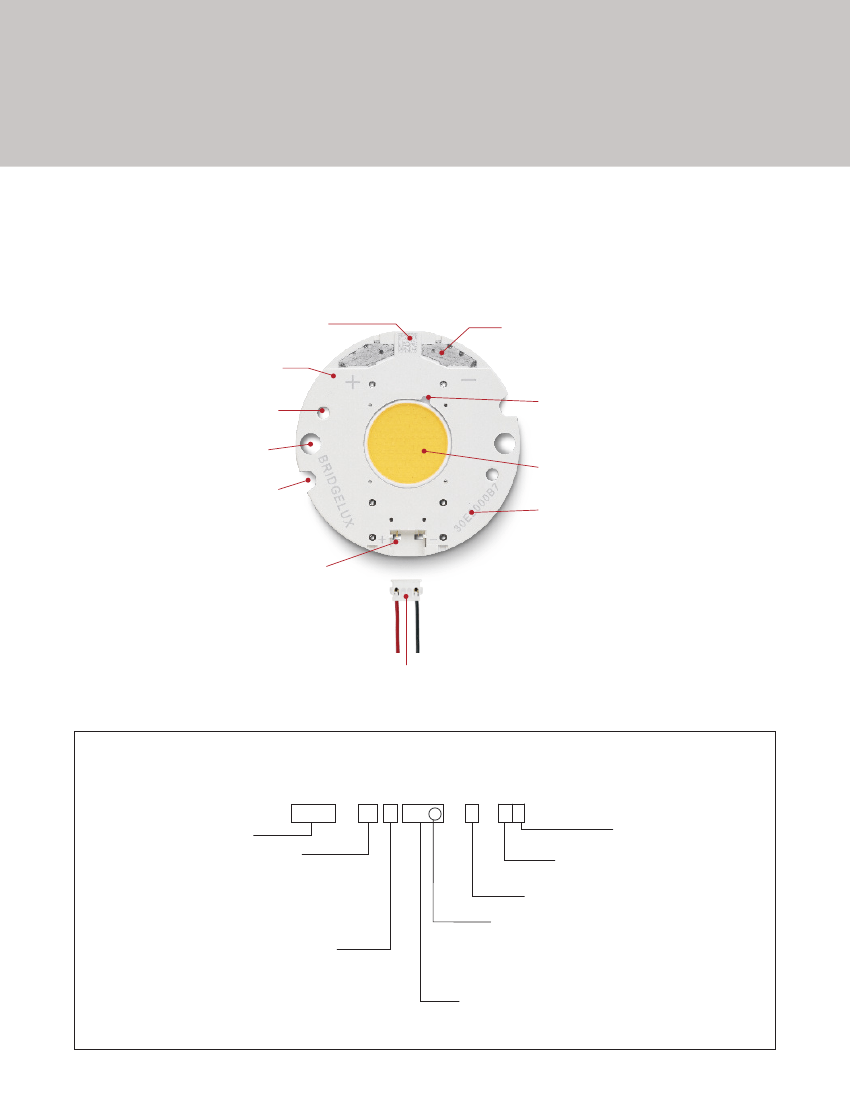

Product Feature Map
Vero 13 is the second smallest form factor in the Vero
family of the next generation solid state light sources. In
addition to delivering the performance and light quality
required for many lighting applications, Vero incorporates
several features to simplify the design integration and
manufacturing process, accelerate time to market and
reduce system costs. Please visit www.bridgelux.com for
more information on the Vero Series family of products.
2D Bar code provides full manufacturing traceability
Thermally isolated solder pads reduce
manufacturing cycle time and complexity
Polarity indication marks simplify
manufacturing operator instructions
T
c
Measurement point
Optics location/mounting features
Correlates to the true case temperature
on the back surface of the LED array
Mounting holes
Radial die configuration improves lumen
density and beam control
Top side part number marking improves
inventory management and outgoing
quality control
Zhaga Book 3 compatible
mounting locations
Solderless connector port enables simplified
manufacturing processes, reduced inventory
carrying costs and can enable field upgradability
Optional Molex Pico-EZmate
™
connector harness
(sold separately)
Product Nomenclature
The part number designation for Bridgelux Vero LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
–
12
– 13 14
BXRC – 30 E 200 0 – C – 7 3
Product Family
Nominal CCT
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
57 = 5,700K
65 = 6,500K
Gen. 7
CCT Bin Options
2 = 2 SDCM
3 = 3 SDCM
4 = 4 SDCM
Array Configuration
Color Targeting Designator
0 = Cold Targeted
1 = Hot Targeted
C = Decor Series Showcase Target
Flux Indicator
200x = 2000 lm
CRI
C = 70 CRI min.
E = 80 CRI min.
G = 90 CRI min.
H = 97 CRI typ.
A = Class A
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
BXRC-27E2000-B-7x
BXRC-27E2000-C-7x
BXRC-27E2000-D-7x
BXRC-27G2000-B-7x
BXRC-27G2000-C-7x
BXRC-27G2000-D-7x
BXRC-27H2000-B-7x
BXRC-27H2000-C-7x
BXRC-27H2000-D-7x
BXRC-30E2000-B-7x
BXRC-30E2000-C-7x
BXRC-30E2000-D-7x
BXRC-30G2000-B-7x
BXRC-30G2000-C-7x
BXRC-30G2000-D-7x
BXRC-30G200C-B-73
BXRC-30G200C-D-73
BXRC-30H2000-B-7x
BXRC-30H2000-C-7x
BXRC-30H2000-D-7x
BXRC-30A2001-B-73
8,9
Nominal
CCT
1
(K)
2700
2700
2700
2700
2700
2700
2700
2700
2700
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3500
3500
3500
3500
3500
3500
3500
3500
3500
CRI
80
80
80
90
90
90
97
97
97
80
80
80
90
90
90
90
90
97
97
97
93
93
93
80
80
80
90
90
90
93
93
93
2
Nominal Drive
Current
3
(mA)
450
630
500
450
630
500
450
630
500
450
630
500
450
630
500
450
500
450
630
500
450
630
500
450
630
500
450
630
500
450
630
500
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
2403
3365
2440
2000
2800
2031
1742
2439
1769
2500
3500
2538
2081
2913
2113
1947
1965
1855
2597
1883
1879
2631
1908
2581
3613
2620
2145
3003
2178
2020
2828
2051
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
2163
3028
2196
1800
2520
1828
1568
2195
1592
2250
3150
2285
1873
2622
1901
1752
1769
1669
2337
1695
1691
2368
1717
2323
3252
2358
1931
2703
1960
1818
2545
1846
Typical V
f
(V)
34.8
34.8
31.8
34.8
34.8
31.8
34.8
34.8
31.8
34.8
34.8
31.8
34.8
34.8
31.8
35.0
31.8
34.8
34.8
31.8
34.8
34.8
31.8
34.8
34.8
31.8
34.8
34.8
31.8
34.8
34.8
31.8
Typical
Power
(W)
15.7
21.9
15.9
15.7
21.9
15.9
15.7
21.9
15.9
15.7
21.9
15.9
15.7
21.9
15.9
15.8
15.9
15.7
21.9
15.9
15.7
21.9
15.9
15.7
21.9
15.9
15.7
21.9
15.9
15.7
21.9
15.9
Typical
Efficacy
(lm/W)
153
153
153
128
128
128
111
111
111
160
160
160
133
133
133
124
124
118
118
118
120
120
120
165
165
165
137
137
137
129
129
129
BXRC-30A2001-C-73
8,9
BXRC-30A2001-D-73
8,9
BXRC-35E2000-B-7x
BXRC-35E2000-C-7x
BXRC-35E2000-D-7x
BXRC-35G2000-B-7x
BXRC-35G2000-C-7x
BXRC-35G2000-D-7x
BXRC-35A2001-B-73
8,9
BXRC-35A2001-C-73
8,9
BXRC-35A2001-D-73
8,9
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011. Products with a CCT of 5000K-6500K are hot targeted to T
c
= 85°C.
2. CRI values are typical for Decor Series Ultra and Decor Series Class A products. CRI values are minimums for all other products. Minimum R9 value for 80
CRI products is 0, the minimum R9 value for 90 CRI products is 50, the minimum R9 value for 97 CRI products is 93. Bridgelux maintains a ± 3 tolerance on
CRI and R9 values.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8. Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. GAI value is 80. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may vary
