0.65mm Pitch SMT Board to Board Connector
DF15 Series
Corresponding to automatic mounting

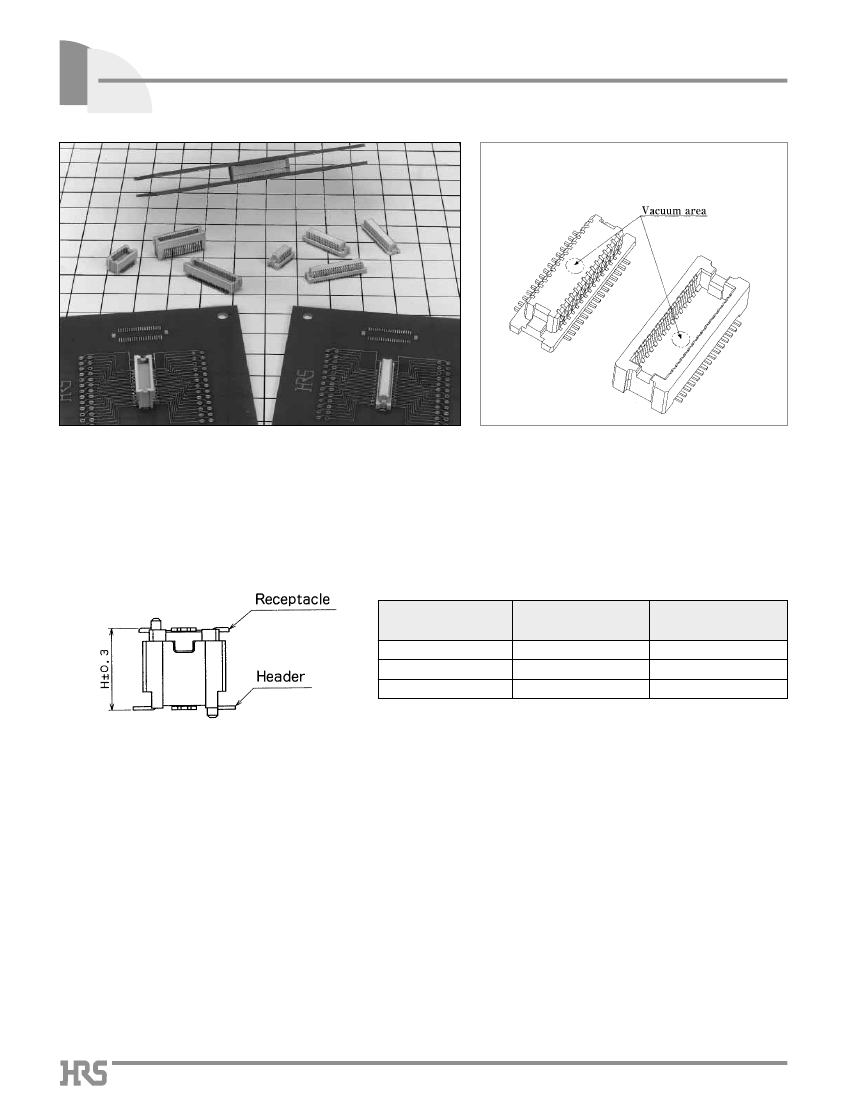

The vacuum area is secured the automatic mounting
machine for vacuum.
Figure 1
sFeatures
1. Compatibility of Miniaturization with Service Efficiency
This series considers the service efficiency to set the pitch to 0.65mm, corresponding to the 0.5mm pitch DF12 series. This connector
widely covers the definition of the mounting space or the board to board size together with the DF12 series.
2. Broad Variations in Board to Board Size
The board to board size is specified at 1mm step between 4mm and 8mm.
Header/Receptacle
DF15#(3.2)-*DP-0.65V
DF15#(4.2)-*DP-0.65V
DF15#(6.2)-*DP-0.65V
DF15#(0.8)-*DS-0.65V
4
5
7
DF15#(1.8)-*DS-0.65V
5
6
8
Combinnation with H size Combinnation with H size
Note1: The stacking height is determined by adding the header and receptacle to the figures followed by the product name
DF15#.
Note2: The stacking height (H size) doesn't include the soldering paste thickness.
3. Correspond to Automatic Mounting
The connector has the vacuum area, which enables the automatic mounting by the embossed tape packaging.
4. Metal Fitting Available
The product including the metal fitting to prevent solder peeling is prepared, considering the mounting on FPC.
sApplications
Mobile phone, LCD(Liquid Crystal Display), MO(Optical Disk), Note PC
A156
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com,
Board to Board Connector
DF15 Seriesq0.65mm Pitch SMT
or contact your Hirose sales representative.
sProduct
Specifications
Rating
Current rating : 0.3A
Operating Temperature Range :
–35 to +85ç
(Note 1.) Storage Temperature Range :
–10 to +60ç
(Note 2.)
Storage Humidity Range : 40
to
70% (Note 2.)
Condition
100V DC
150V AC/1 minute
100mA
Voltage rating : 50V AC Operating Humidity Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding Voltage
3. Contact Resistance
4. Vibration
500M
ohms
min.
Specification
No flashover or insulation breakdown.
50m
ohms
max
No electrical discontinuity of 1µs or more
Contact resistance : 50m
ohms
max.
Insulation resistance: 500M
ohms
min.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
(-55ç: 30 minutes 5
to
35ç: 10 minutes
(-85ç:
30 minutes 5
to
35ç: 10 minutes) 5 cycles
50 cycles
5.
Humidity (Steady state)
Contact resistance: 50m
ohms
max. Insulation resistance:250M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 350ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
sMaterial
Product
Receptacle
Part
Insulator
Contact
Metal fitting
Insulator
Header
Contact
Metal fitting
Material
Polyamide
Phosphor copper
Brass
Polyamide
Phosphor copper
Brass
Finish
Beige
Gold plated
Tin plated
Beige
Gold plated
Tin plated
Remarks
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
–––––––
Note: The gold plated product of pin herder consists of a contact area of gold plated and lead of tin plated
sOrdering
Information
qReceptacle/Header
DF15
q
#
(
**
) -
*
DS - 0.65 V (
**
)
w
e
: DF15
r
t
y
u
i
r
Number of Contacts
20, 30, 40, 50
Fitting
K
Boss
K
K
t
Connector Type
DS : Double-row receptacle
DP : Double-row header
y
Contact Pitch
u
Contact type
V
: 0.8, 1.8
: 3.2, 4.2, 6.2
: Straight SMT type
i
(56) : Embossed tape packaging
: 0.65mm
q
Series Name
w
Type
Blank
A
B
C
e
Product height
Receptacle
Header
∞
K
∞
∞
∞
A157
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued
to Board
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF15 Seriesq0.65mm Pitch SMT Board
soon. Please
Connector

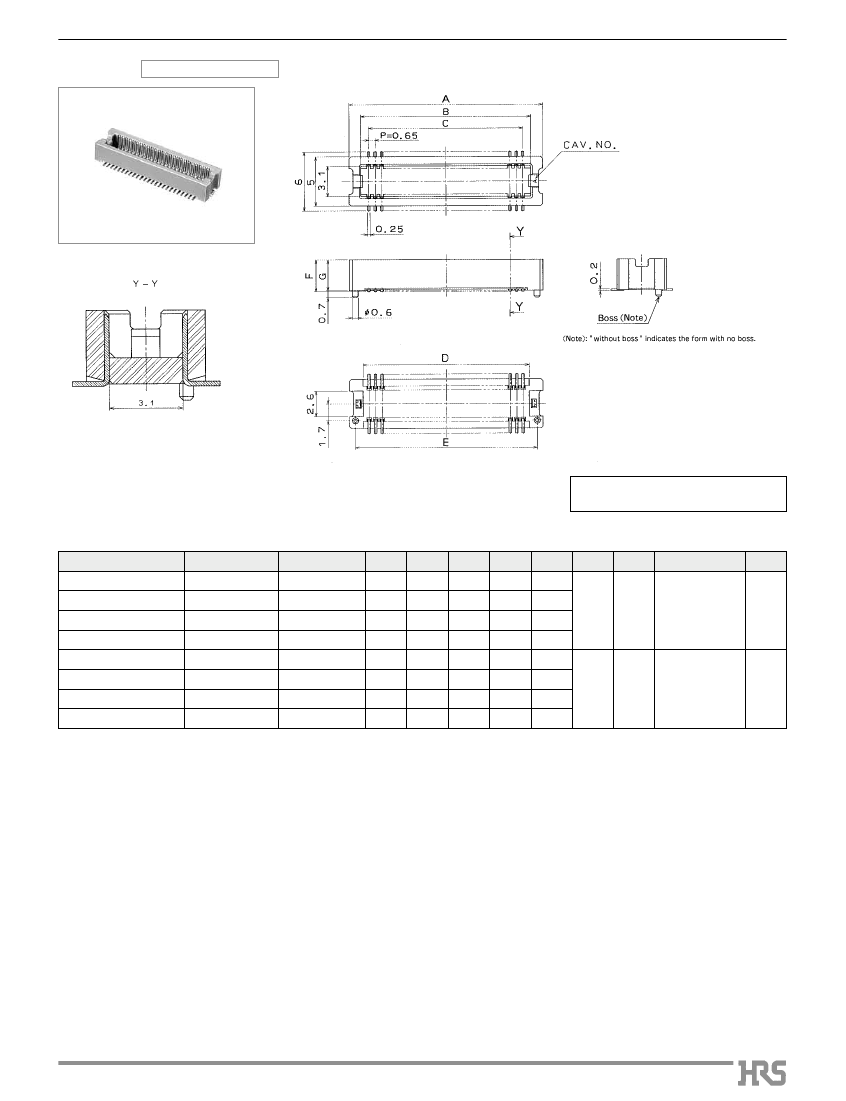

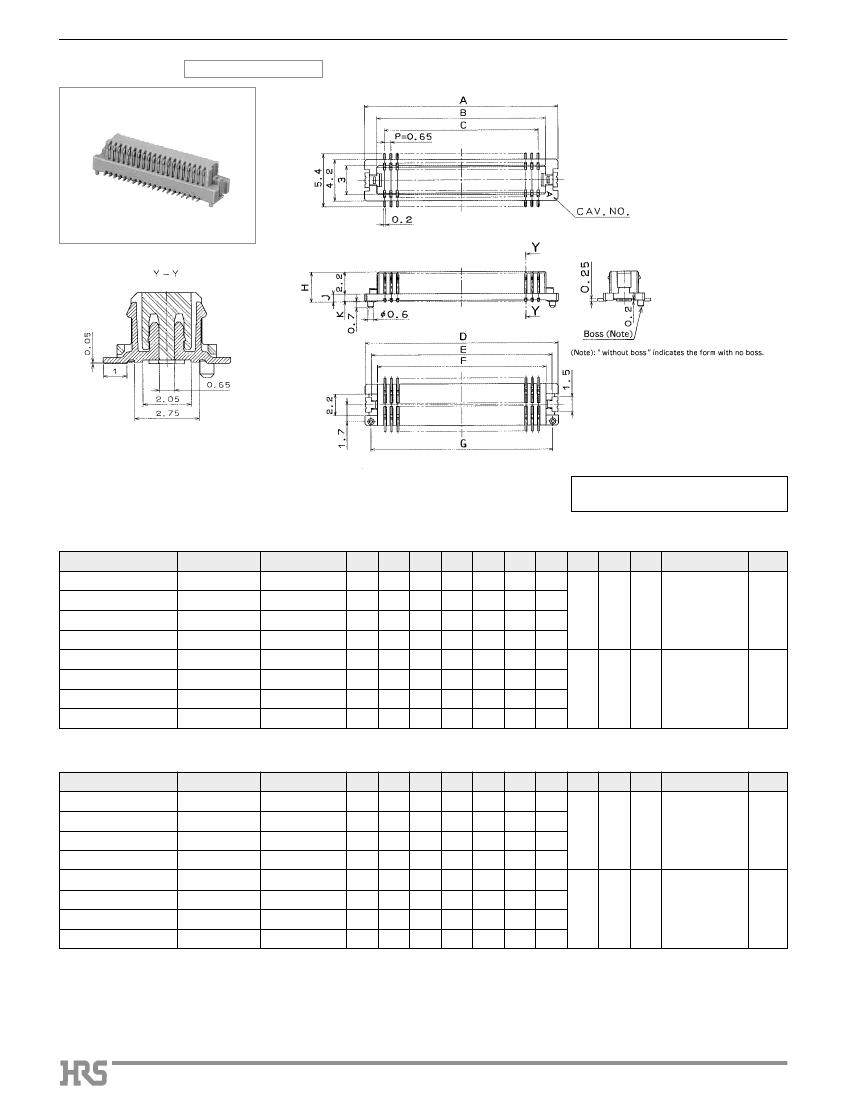

sReceptacle
With metal fitting
[Specific No.]
–
* *
,
(*
*)
(56) :Gold plated embossed tape packaging
qProduct
Height: 0.8mm Product
Part Number
DF15B(0.8)-20DS-0.65V(
56
)
DF15B(0.8)-30DS-0.65V(
56
)
DF15B(0.8)-40DS-0.65V(
56
)
DF15B(0.8)-50DS-0.65V(
56
)
DF15B(0.8)-20DS-0.65V(
56
)
DF15B(0.8)-30DS-0.65V(
56
)
DF15B(0.8)-40DS-0.65V(
56
)
DF15B(0.8)-50DS-0.65V(
56
)
CL No.
677-0002-0-56
677-0003-3-56
677-0004-6-56
677-0005-9-56
677-0022-8-56
677-0023-0-56
677-0024-3-56
677-0025-6-56
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
B
7.35
C
5.85
9.1
15.6
5.85
9.1
15.6
D
9.65
12.9
19.4
9.65
12.9
19.4
E
8.45
11.7
18.2
8.45
11.7
18.2
F
7.35
10.6
17.1
7.35
10.6
17.1
G
8.65
11.9
18.4
–
–
–
–
3
0.8
0.7
With metal fitting
Without boss
Unit: mm
H
J
K
Remarks
RoHS
13.10 10.6
19.60 17.1
9.85
7.35
13.10 10.6
19.60 17.1
16.35 13.85 12.35 16.15 14.95 13.85 15.15
3
0.8
0.7
With metal fitting
With boss
YES
16.35 13.85 12.35 16.15 14.95 13.85
YES
qProduct
Height: 1.8mm Product
Part Number
DF15B(1.8)-20DS-0.65V(
56
)
DF15B(1.8)-30DS-0.65V(
56
)
DF15B(1.8)-40DS-0.65V(
56
)
DF15B(1.8)-50DS-0.65V(
56
)
DF15B(1.8)-20DS-0.65V(
56
)
DF15B(1.8)-30DS-0.65V(
56
)
DF15B(1.8)-40DS-0.65V(
56
)
CL No.
677-0042-5-56
677-0043-8-56
677-0044-0-56
677-0045-3-56
677-0062-2-56
677-0063-5-56
677-0064-8-56
Number of Contacts
20
30
40
50
20
30
40
A
9.85
13.1
19.6
9.85
13.1
B
7.35
10.6
17.1
7.35
10.6
C
5.85
9.1
15.6
5.85
9.1
D
9.65
12.9
19.4
9.65
12.9
E
8.45
11.7
18.2
8.45
11.7
F
7.35
10.6
17.1
7.35
10.6
17.1
G
8.65
11.9
18.4
–
–
–
–
4
1.8
1.7
With metal fitting
Without boss
Unit: mm
H
J
K
Remarks
RoHS
16.35 13.85 12.35 16.15 14.95 13.85 15.15
4
1.8
1.7
With metal fitting
With boss
YES
16.35 13.85 12.35 16.15 14.95 13.85
YES
50
19.6 17.1 15.6 19.4 18.2
DF15B(1.8)-50DS-0.65V(
56
) 677-0065-0-56
Note: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A158
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com,
Board to Board Connector
DF15 Seriesq0.65mm Pitch SMT
or contact your Hirose sales representative.

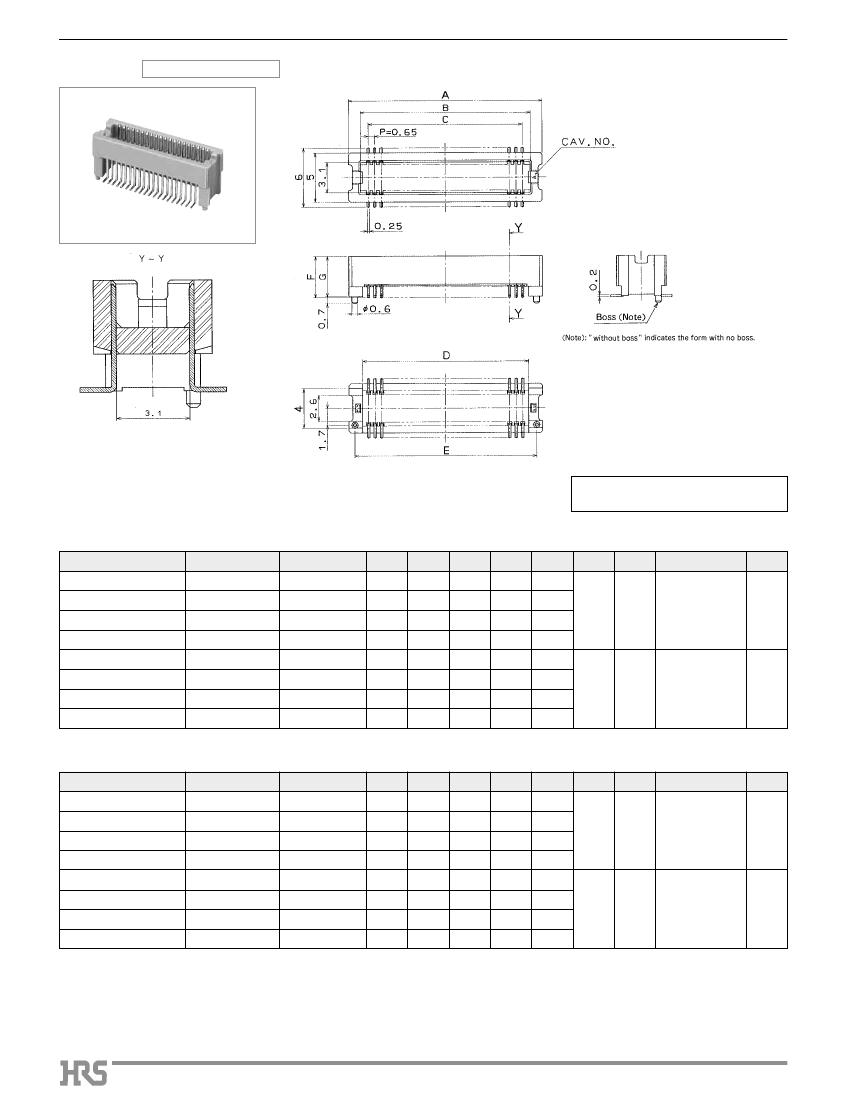

sHeader
Without metal fitting
[Specific No.]
–
* *
,
(*
*)
(56) :Gold plated embossed tape packaging
qProduct
Height: 3.2mm Product
Part Number
DF15A(3.2)-20DP-0.65V(
56
)
DF15A(3.2)-30DP-0.65V(
56
)
DF15A(3.2)-40DP-0.65V(
56
)
DF15A(3.2)-50DP-0.65V(
56
)
DF15C(3.2)-20DP-0.65V(
56
)
DF15C(3.2)-30DP-0.65V(
56
)
DF15C(3.2)-40DP-0.65V(
56
)
DF15C(3.2)-50DP-0.65V(
56
)
CL No.
677-0092-3-56
677-0093-6-56
677-0094-9-56
677-0095-1-56
677-0112-9-56
677-0113-1-56
677-0114-4-56
677-0115-7-56
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
13.1
16.35
19.6
9.85
13.1
16.35
19.6
B
7.45
10.7
17.2
7.45
10.7
17.2
C
5.85
9.1
15.6
5.85
9.1
15.6
D
7.05
10.3
16.8
7.05
10.3
16.8
E
8.65
11.9
18.4
–
–
–
–
3.2
3.1
Without metal
fitting
Without boss
Unit: mm
F
G
Remarks
Without metal
fitting
With boss
RoHS
13.95 12.35 13.55 15.15
3.2
3.1
YES
13.95 12.35 13.55
YES
Note: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A159
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued
to Board
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF15 Seriesq0.65mm Pitch SMT Board
soon. Please
Connector
sHeader
Without metal fitting
[Specific No.]
–
* *
,
(*
*)
(56) :Gold
plated
embossed tape
packaging
qProduct
Height: 4.2mm Product
Part Number
DF15A(4.2)-20DP-0.65V(
56
)
DF15A(4.2)-30DP-0.65V(
56
)
DF15A(4.2)-40DP-0.65V(
56
)
DF15A(4.2)-50DP-0.65V(
56
)
DF15C(4.2)-20DP-0.65V(
56
)
DF15C(4.2)-30DP-0.65V(
56
)
DF15C(4.2)-40DP-0.65V(
56
)
DF15C(4.2)-50DP-0.65V(
56
)
CL No.
677-0132-6-56
677-0133-9-56
677-0134-1-56
677-0135-4-56
677-0152-3-56
677-0153-6-56
677-0154-9-56
677-0155-1-56
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
13.1
16.35
19.6
9.85
13.1
16.35
19.6
B
7.45
10.7
17.2
7.45
10.7
17.2
C
5.85
9.1
15.6
5.85
9.1
15.6
D
7.05
10.3
16.8
7.05
10.3
16.8
E
8.65
11.9
18.4
–
–
–
–
4.2
4.1
Without metal
fitting
Without boss
Unit: mm
F
G
Remarks
Without metal
fitting
With boss
RoHS
13.95 12.35 13.55 15.15
4.2
4.1
YES
13.95 12.35 13.55
YES
qProduct
Height: 6.2mm Product
Part Number
DF15A(6.2)-20DP-0.65V(
56
)
DF15A(6.2)-30DP-0.65V(
56
)
DF15A(6.2)-40DP-0.65V(
56
)
DF15A(6.2)-50DP-0.65V(
56
)
DF15C(6.2)-20DP-0.65V(
56
)
DF15C(6.2)-30DP-0.65V(
56
)
DF15C(6.2)-40DP-0.65V(
56
)
CL No.
677-0172-0-56
677-0173-3-56
677-0174-6-56
677-0175-9-56
677-0192-8-56
677-0193-0-56
677-0194-3-56
Number of Contacts
20
30
40
50
20
30
40
A
9.85
13.1
16.35
19.6
9.85
13.1
16.35
B
7.45
10.7
17.2
7.45
10.7
C
5.85
9.1
15.6
5.85
9.1
D
7.05
10.3
16.8
7.05
10.3
E
8.65
11.9
18.4
–
–
–
–
6.2
6.1
Without metal
fitting
Without boss
Unit: mm
F
G
Remarks
Without metal
fitting
With boss
RoHS
13.95 12.35 13.55 15.15
6.2
6.1
YES
13.95 12.35 13.55
YES
19.6
50
17.2
15.6
16.8
677-0195-6-56
DF15C(6.2)-50DP-0.65V(
56
)
Note: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
After installing cadence16.3, it keeps saying demo edition. Does this mean that the cracking is not successful? What is the difference between the demo edition and the cracked version? Please help me ...
RT. Is it Dijkstra? But the complexity of O(n^2) is too high for a city, and the chip of a GPS navigation system cannot bear it. Or is it some approximate algorithm?...
The electronics industry is heading towards the end of 4G and the beginning of 5G. There is still a lot of room for improvement in the development of the latter, but it is certain that the new generat...
EG3 is a website about embedded development, providing a lot of information about embedded development. Including development companies, technical documents, free resources, etc. The layout includes b...
From being a global leader to losing the market, Korean battery manufacturers have always wanted to regain the lost market and dignity, but facing Chinese battery manufacturers represented by CAT...[Details]
To enable real-time monitoring of home security and automatically dial a number for voice prompts or send text messages when an alarm occurs, a GPRS-based embedded telephone alarm system was design...[Details]
Common Mode Semiconductor has officially released its latest generation of power management ICs—the GM6506 series. This fully integrated high-frequency synchronous rectification step-down p...[Details]
Recently, AstroBo Robot, a subsidiary of Chenxing Automation, launched a new mobile collaborative palletizing product. Leveraging an omnidirectional mobile chassis, an intelligent scheduling system...[Details]
On August 20th, Tiantai Robotics Co., Ltd., along with strategic partners including Shandong Future Robotics Technology Co., Ltd., Shandong Future Data Technology Co., Ltd., and Gangzai Robotics Gr...[Details]
On August 22, the National Energy Administration released the latest data, showing that by the end of July 2025, China's total number of electric vehicle charging infrastructure will reach 16.696 m...[Details]
With the rapid development of electric vehicles in my country, people are beginning to pay attention to the issue of radiation from electric vehicles. We all know that mobile phones emit radiation,...[Details]
Chinese characters are extensive and profound, and there are many different names for ESD tubes. How many of them do you know?
As far as I know, ESD diodes are currently known as ESD p...[Details]
Teletrac Navman has launched the Multi IQ dashcam, a cloud-based solution designed for large commercial vehicle operators. It connects up to five cameras to cover the vehicle's interior, sides, and...[Details]
Charging is an essential topic for electric vehicles. Batteries are a core component of new energy vehicles. So, what's the optimal charge level for electric vehicles? Based on current battery tech...[Details]
New version helps developers build secure and trustworthy embedded systems
Shanghai, China—August 21, 2025—
QNX, a division of BlackBerry Ltd., today announced the release of QNX...[Details]
introduction
Inverter air conditioners are a trend in the current era and have gradually become commonplace in countless households. Beyond their basic cooling and heating functions, air condi...[Details]
introduction
In today's busy society, people experience chronic high stress, which in turn poses a significant threat to our health. Therefore, effectively relieving stress has become a pr...[Details]
The evolution of high-speed networks remains guided by the same core objectives: increasing data rates, reducing latency, improving reliability, lowering power consumption, and maintaining or exten...[Details]
A Beijing chemical project utilizes a distributed control system (DCS). The master control system primarily uses the Modbus protocol, while the remote field devices utilize the PROFIBUS-DP protocol...[Details]
_40ds_065v(56)_pdf/pg_0001.png)
Electronics Design Contest
京公网安备 11010802033920号
EEWORLD_40ds_065v(56)_pdf/1.png)
_40ds_065v(56)_pdf/2.png)
_40ds_065v(56)_pdf/3.png)
_40ds_065v(56)_pdf/4.png)
_40ds_065v(56)_pdf/5.png)
_40ds_065v(56)_pdf/pg_0002.png)
_40ds_065v(56)_pdf/pg_0003.png)
_40ds_065v(56)_pdf/pg_0004.png)
_40ds_065v(56)_pdf/pg_0005.png)
