89038-101LF: DescriptionCONN RECEPT 192POS R/A T/H; CategoryThe connector The connector; File Size250KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

89038-101LF Overview

CONN RECEPT 192POS R/A T/H

89038-101LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
subject depth	0.832 inch
body length	3.778 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.4448 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	192
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

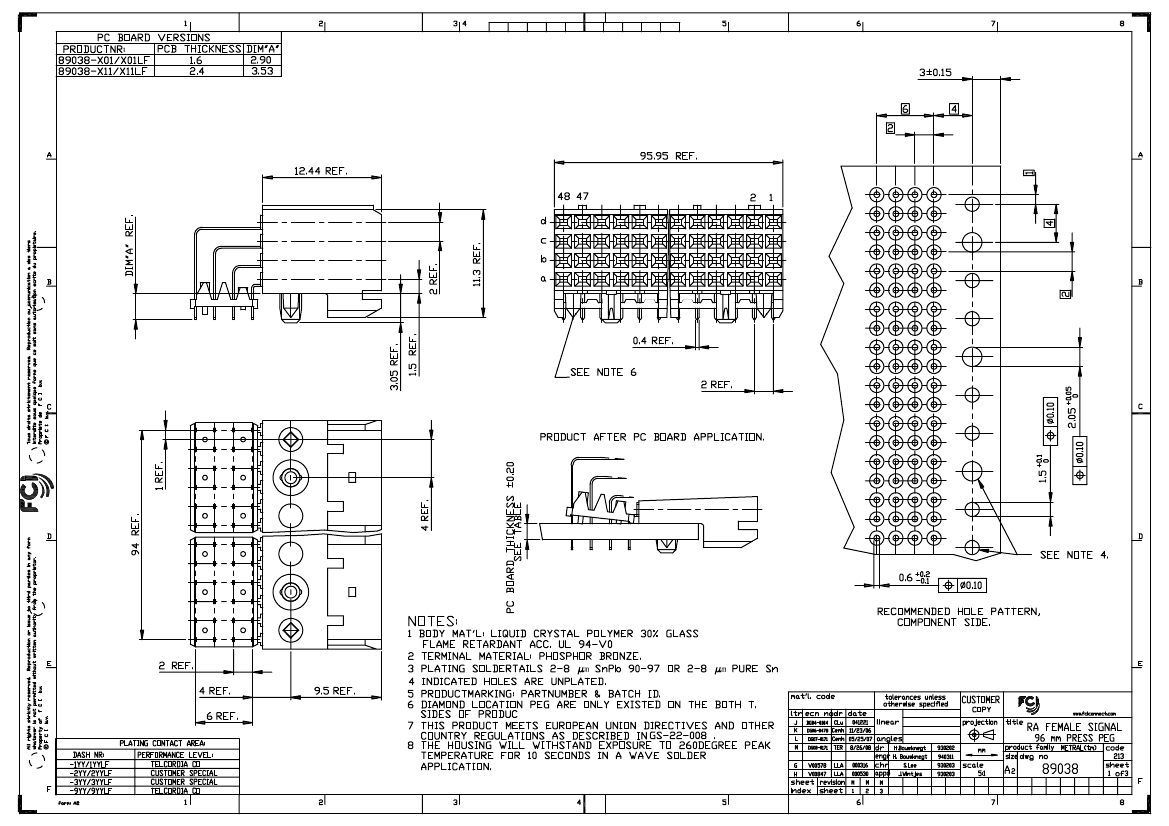

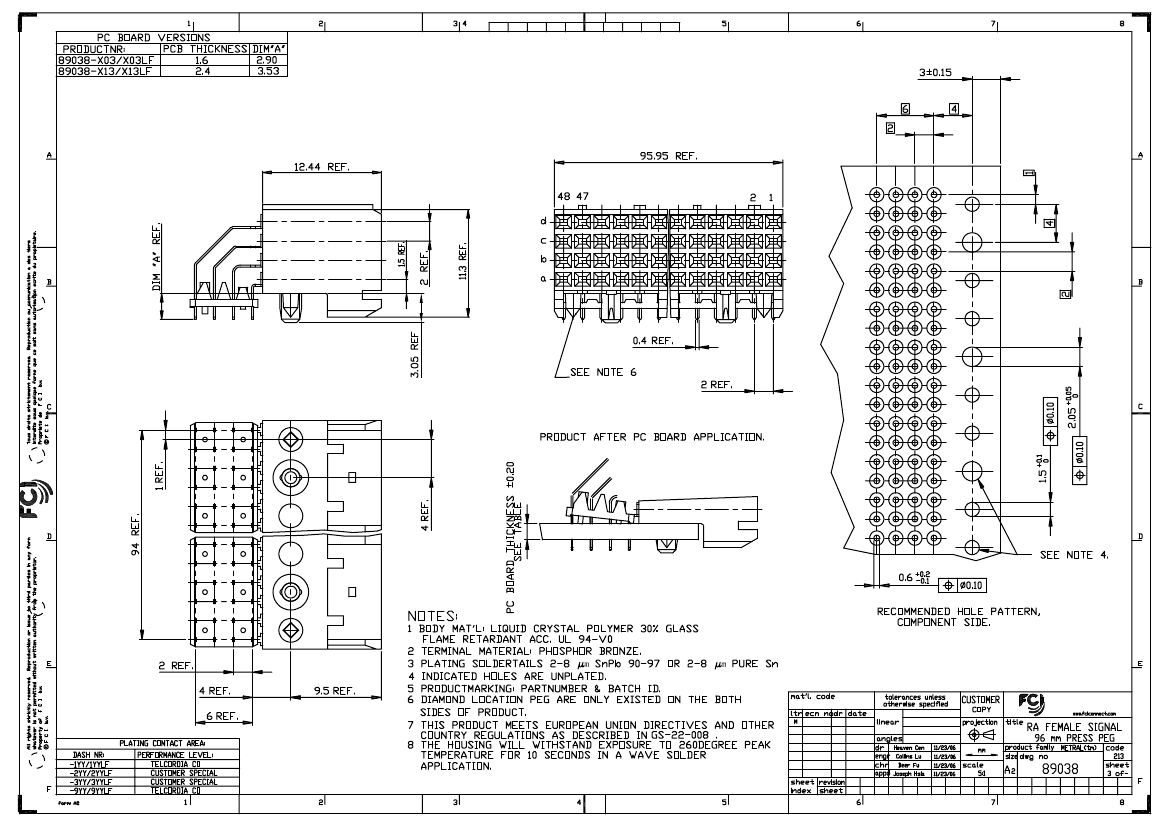

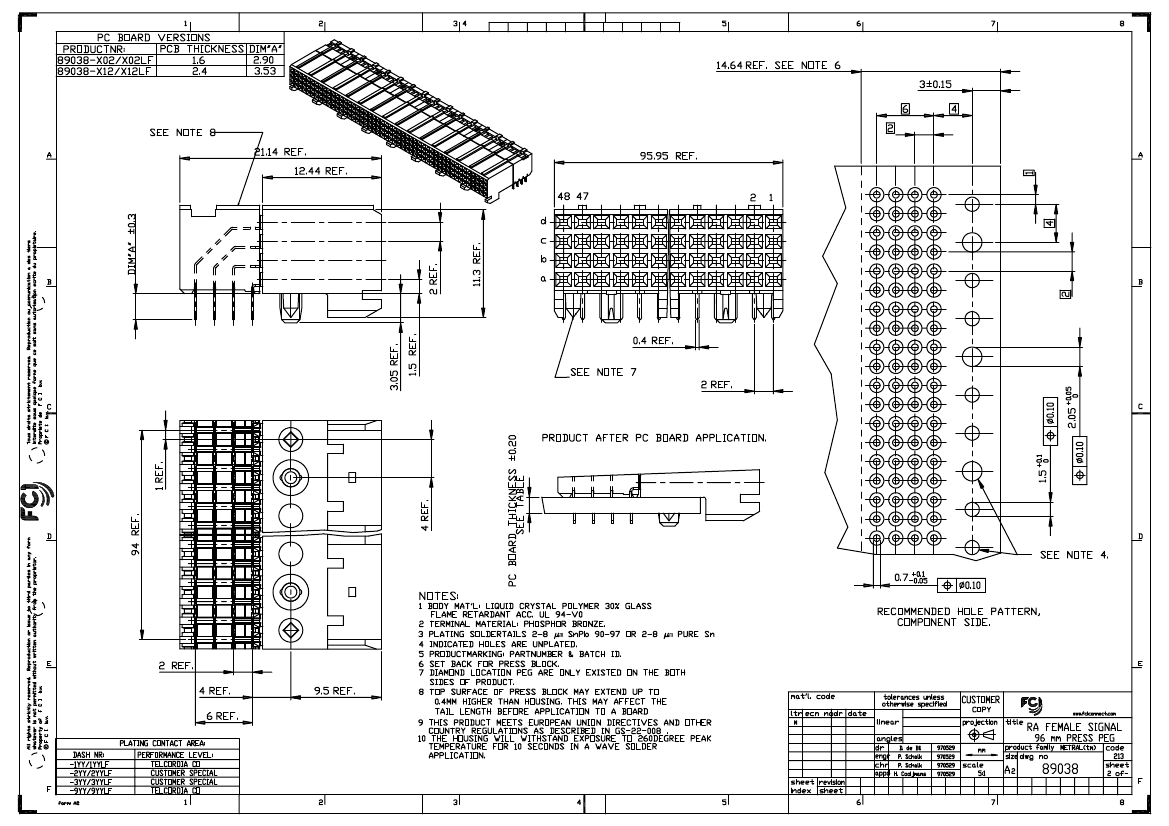

Preview

Download Datasheet

View All

PDM: Rev:M

STATUS:

Released

Printed: Nov 14, 2008

.

89038-101LF Related Products

	89038-101LF	89038-111LF	89038-901LF
Description	CONN RECEPT 192POS R/A T/H	CONN RECEPT 192POS R/A T/H	CONN RECEPT 192POS R/A T/H
Maker	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	192	192	192
UL Flammability Code	94V-0	94V-0	94V-0
Is it Rohs certified?	conform to	conform to	-
ECCN code	EAR99	EAR99	-
Board mount options	PEG	PEG	-
body length	3.778 inch	3.778 inch	-
Body/casing type	RECEPTACLE	PLUG	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	-
contact mode	RECTANGULAR	RECTANGULAR	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	-
Dielectric withstand voltage	1000VDC V	1000VDC V	-
Durability	250 Cycles	250 Cycles	-
maximum insertion force	.4448 N	.4448 N	-
Insulation resistance	1000000000 Ω	1000000000 Ω	-
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	-
Plug contact pitch	0.079 inch	0.079 inch	-
Match contact row spacing	0.079 inch	0.079 inch	-
Installation option 1	LOCKING	LOCKING	-
Number of connectors	ONE	ONE	-
PCB row number	4	4	-
Maximum operating temperature	105 °C	105 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	2 mm	2.0066 mm	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-
Rated current (signal)	1 A	1 A	-
Guideline	UL, CSA	UL, CSA	-
reliability	COMMERCIAL	COMMERCIAL	-
Evacuation force-minimum value	.1946 N	.1946 N	-
Base Number Matches	1	1	-
Manufacturer's serial number	-	89038	89038
