89036-101LF: DescriptionCONN RECEPT 48POS R/A T/H; CategoryThe connector The connector; File Size133KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

89036-101LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	89036-101LF	-	-	View	Buy Now

89036-101LF Overview

CONN RECEPT 48POS R/A T/H

89036-101LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks 1 day
body length	0.943 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Pure Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.4448 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

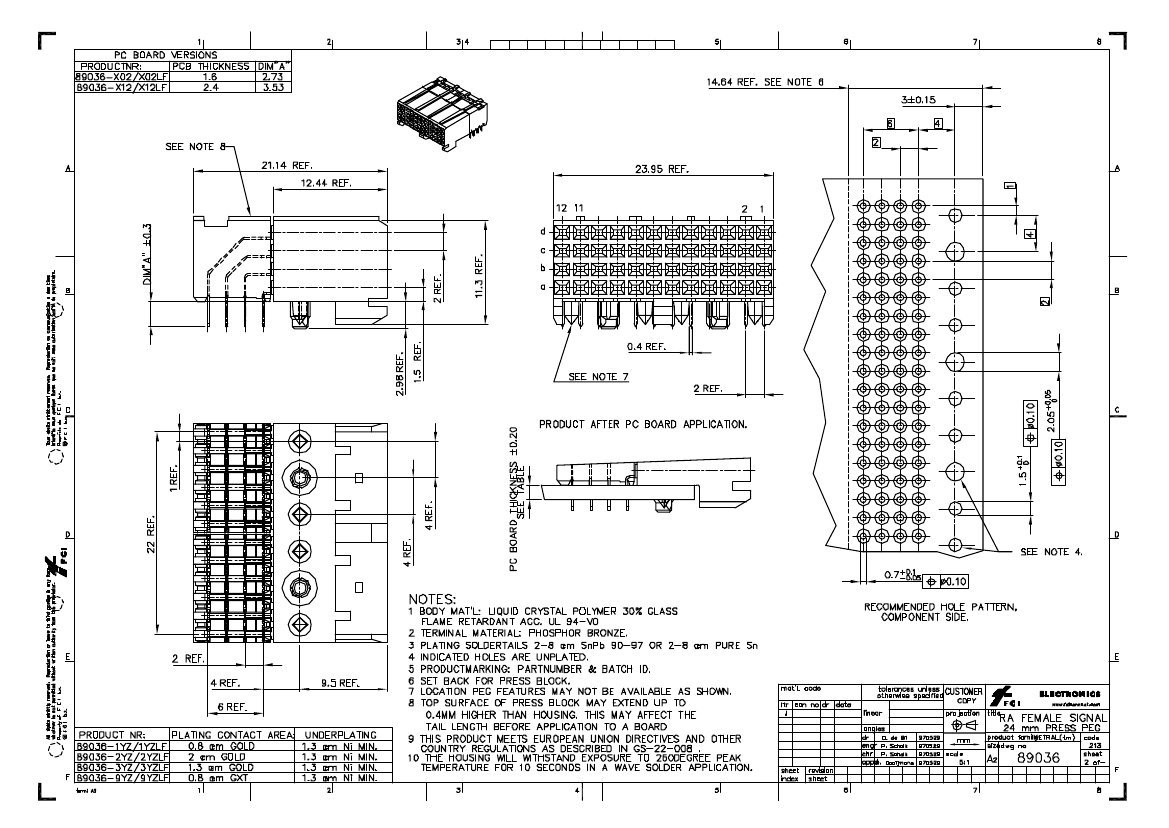

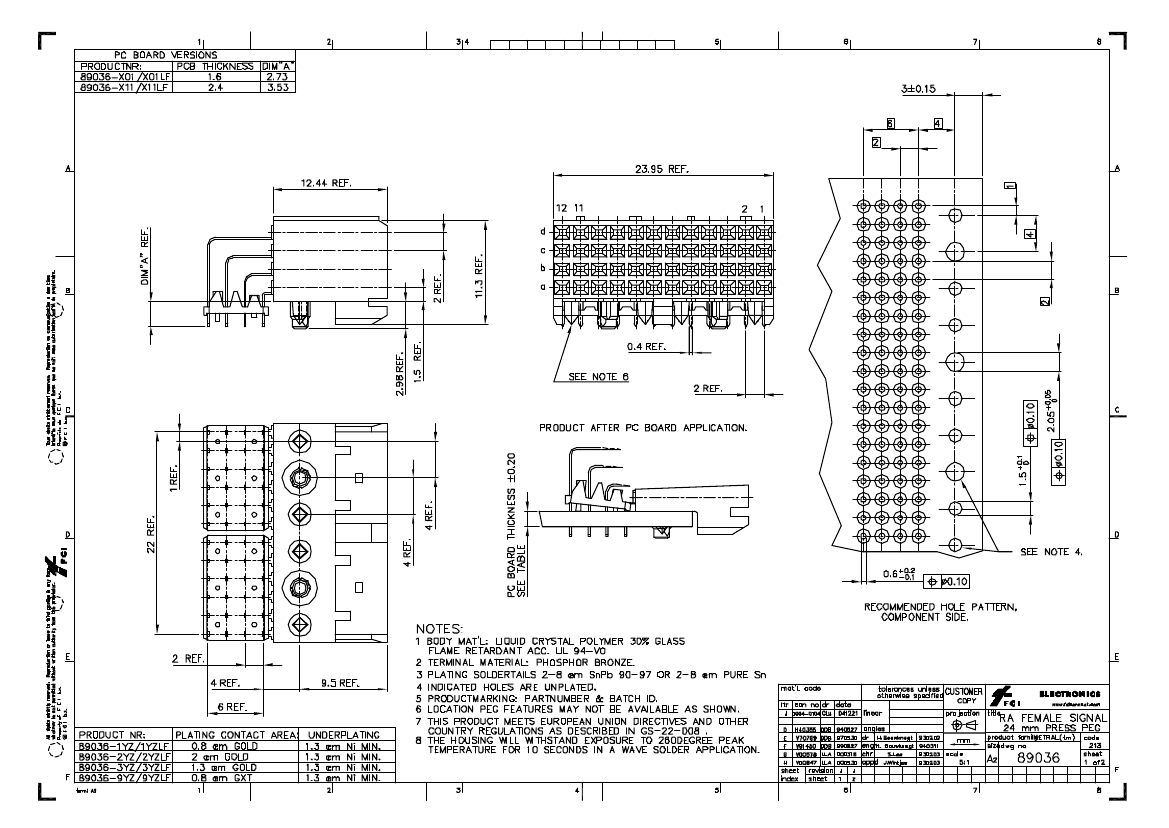

Preview

Download Datasheet

View All

PDM: Rev:J

STATUS:

Released

Printed: Feb 10, 2006

.

89036-101LF Related Products

	89036-101LF	89036-111LF
Description	CONN RECEPT 48POS R/A T/H	CONN RECEPT 48POS R/A T/H
Is it Rohs certified?	conform to	conform to
Maker	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
body length	0.943 inch	0.943 inch
Body/casing type	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	1000VDC V	1000VDC V
Durability	250 Cycles	250 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.4448 N	.4448 N
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	4	4
Number of rows loaded	4	4
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	2 mm	2 mm
Termination type	SOLDER	SOLDER
Total number of contacts	48	48
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.1946 N	.1946 N
