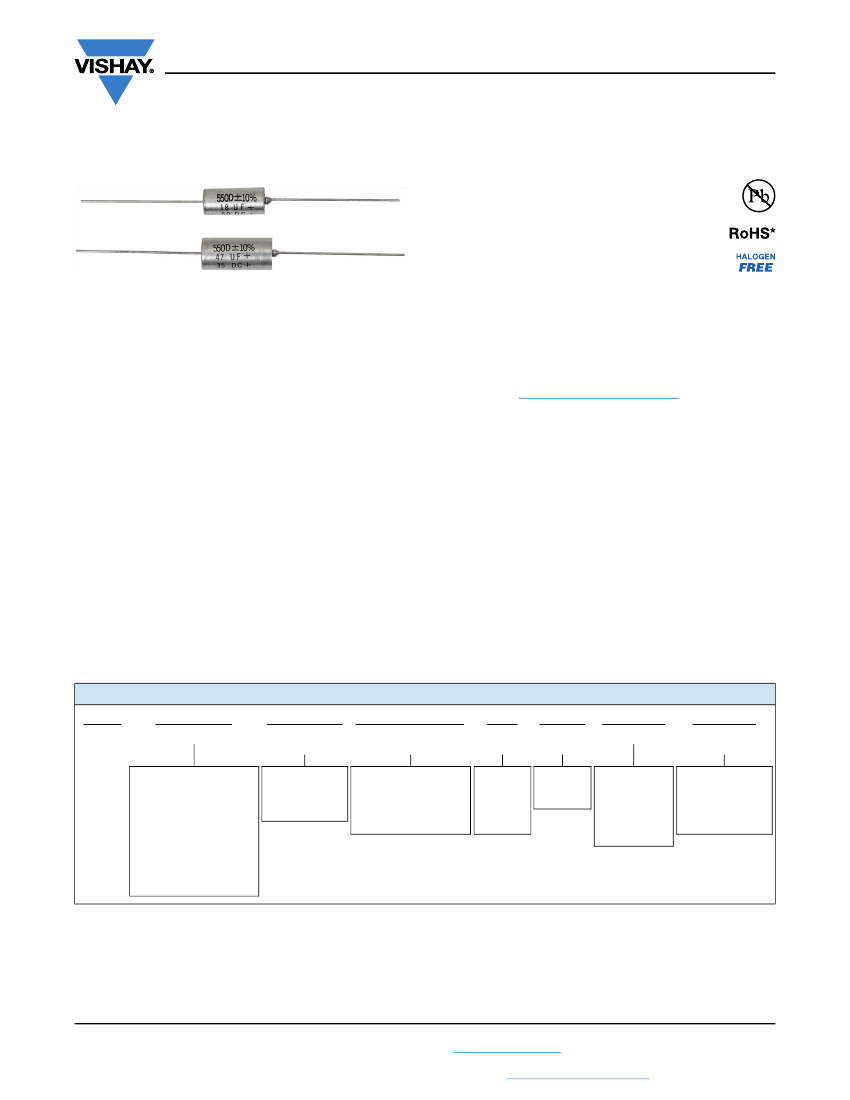

550D
www.vishay.com
Vishay Sprague
Solid-Electrolyte T
ANTALEX
™ Capacitors
for High Frequency Power Supplies
FEATURES
• Terminations: tin / lead (SnPb),
100 % tin (RoHS-compliant)
• Hermetically-sealed, axial-lead solid tantalum
capacitors
• Small size and long life
Available
Available
PERFORMANCE CHARACTERISTICS
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Tolerance:
at 1 kHz, +25 °C
± 20 %, ± 10 % standard. ± 5 % available as special
Dissipation Factor:
at 1 kHz, +25 °C.
Dissipation factor, as determined from the expression
2fC
R
, shall not exceed the values listed in the standard
ratings tables
DC Leakage Current (DCL Max.):
at +25 °C:
leakage current shall not exceed the values listed
in the Standard Ratings table
at +85 °C:
leakage current shall not exceed 10 times the
values listed in the Standard Ratings table
at +125 °C:
leakage shall not exceed 15 times the values
listed in the standard ratings tables
Life Test:
capacitors shall withstand rated DC voltage
applied at +85 °C for 2000 h or derated DC voltage applied
at +125 °C for 1000 h
Following the life test:
1. DCL shall not exceed 125 % of the initial requirements
2. Dissipation factor shall meet the initial requirement
3. Change in capacitance shall not exceed ± 5 %
• Exceptional capacitance stability and excellent resistance
to severe environmental conditions
• The military equivalent of the 550D is the M39003/09 (style
CSR21) which is qualified to MIL-PRF-39003/9
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
APPLICATIONS
Designed for power supply filtering applications at above
100 kHz.
ORDERING INFORMATION
550D
MODEL
157
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
X5 = ± 5 % *
* Special order
006
DC VOLTAGE RATING
AT +85 °C
This is expressed
in volts. To complete
the three-digit block,
zeros precede the
voltage rating.
R
CASE
CODE
See
Ratings
and Case
Codes
table
2
STYLE
NUMBER
2=
insulated
sleeve
T
PACKAGING
E3
RoHS-
COMPLIANT
E3 = 100 % tin
termination
(RoHS-compliant)
Blank = SnPb
termination
This is expressed in
picofarads. The first two
digits are the significant
figures. The third is the
number of zeros to
follow. Standard
capacitance ratings are
in accordance with EIA
preferred number series
wherever possible.
B = bulk (tray)
pack
T = tape and
reel
G = ammo
pack
Revision: 16-Nov-17
Document Number: 40017
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
550D
www.vishay.com
Vishay Sprague
DIMENSIONS
in inches [millimeters]
1.500 ± 0.250
[38.10 ± 6.35]
-
+
1.500 ± 0.250
[38.10 ± 6.35]
Positive lead
D
dia.
L
1
Solid
tinned
nickel leads
J
max.
0.047 [1.19] max.
0.125 [3.18]
max.
CASE
CODE
R
S
D
L
1
WITH INSULATING SLEEVE
(1)
LEAD SIZE
J (MAX.)
AWG NO.
0.822 [20.880]
0.922 [23.420]
22
22
NOMINAL DIA.
0.025 [0.64]
0.025 [0.64]
0.289 ± 0.016 [7.34 ± 0.41]
0.351 ± 0.016 [8.92 ± 0.41]
0.686 ± 0.031 [17.42 ± 0.79]
0.786 ± 0.031 [19.96 ± 0.79]
Note
(1)
When a shrink-fitted insulation is used, it shall lap over the ends of the capacitor body
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
1 kHz (%)
MAX. ESR
AT +25 °C
100 kHz ()
6 V
DC
AT +85 °C, SURGE = 8 V; 4 V
DC
AT +125 °C, SURGE = 5 V
150
180
220
270
330
R
R
S
S
S
550D157(1)006R2(2)(3)
550D187(1)006R2(2)(3)
550D227(1)006S2(2)(3)
550D277(1)006S2(2)(3)
550D337(1)006S2(2)(3)
9
11
12
13
15
10
10
10
10
12
0.065
0.060
0.055
0.050
0.045
10 V
DC
AT +85 °C, SURGE = 13 V; 7 V
DC
AT +125 °C, SURGE = 9 V
82
100
120
150
180
220
R
R
R
S
S
S
550D826(1)010R2(2)(3)
550D107(1)010R2(2)(3)
550D127(1)010R2(2)(3)
550D157(1)010S2(2)(3)
550D187(1)010S2(2)(3)
550D227(1)010S2(2)(3)
8
10
12
15
18
20
8
8
8
8
8
10
0.085
0.075
0.070
0.065
0.060
0.055
15 V
DC
AT +85 °C, SURGE = 20 V; 10 V
DC
AT +125 °C, SURGE = 12 V
56
68
82
100
120
150
Note
• Part number definitions:
(1) Tolerance: for 10 % tolerance specify “X9”; for 20 % specify “X0”; for 5 % “X5” (special order)
(2) Packaging options: B = bulk (tray), T = tape and reel, G = ammo pack
(3) Termination: E3 = 100 % tin, blank = SnPb
Revision: 16-Nov-17
Document Number: 40017
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
R
R
S
S
S
S
550D566(1)015R2(2)(3)
550D686(1)015R2(2)(3)
550D826(1)015S2(2)(3)
550D107(1)015S2(2)(3)
550D127(1)015S2(2)(3)
550D157(1)015S2(2)(3)
8
10
12
15
18
20
6
6
6
8
8
8
0.100
0.095
0.085
0.075
0.070
0.065
550D
www.vishay.com
Vishay Sprague
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
1 kHz (%)
MAX. ESR
AT +25 °C
100 kHz ()
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
20 V
DC
AT +85 °C, SURGE = 26 V; 13 V
DC
AT +125 °C, SURGE = 16 V
27
33
39
47
56
68
82
100
R
R
R
R
S
S
S
S
550D276(1)020R2(2)(3)
550D336(1)020R2(2)(3)
550D396(1)020R2(2)(3)
550D476(1)020R2(2)(3)
550D566(1)020S2(2)(3)
550D686(1)020S2(2)(3)
550D826(1)020S2(2)(3)
550D107(1)020S2(2)(3)
5
7
8
9
11
14
16
20
5
5
5
6
6
6
6
8
0.145
0.130
0.120
0.110
0.100
0.095
0.085
0.075
35 V
DC
AT +85 °C, SURGE = 46 V; 23 V
DC
AT +125 °C, SURGE = 28 V
8.2
10
12
15
18
22
27
33
39
47
R
R
R
R
R
R
S
S
S
S
550D825(1)035R2(2)(3)
550D106(1)035R2(2)(3)
550D126(1)035R2(2)(3)
550D156(1)035R2(2)(3)
550D186(1)035R2(2)(3)
550D226(1)035R2(2)(3)
550D276(1)035S2(2)(3)
550D336(1)035S2(2)(3)
550D396(1)035S2(2)(3)
550D476(1)035S2(2)(3)
3
4
4
5
6
8
9
11
14
16
4
4
4
4
4
4
4
5
5
5
0.250
0.230
0.210
0.190
0.175
0.160
0.145
0.130
0.120
0.110
50 V
DC
AT +85 °C, SURGE = 65 V; 33 V
DC
AT +125 °C, SURGE = 40 V
5.6
6.8
8.2
10
12
15
18
22
Note
• Part number definitions:
(1) Tolerance: for 10 % tolerance specify “X9”; for 20 % specify “X0”; for 5 % “X5” (special order)
(2) Packaging options: B = bulk (tray), T = tape and reel, G = ammo pack
(3) Termination: E3 = 100 % tin, blank = SnPb
R
R
R
R
R
R
R
S
550D565(1)050R2(2)(3)
550D685(1)050R2(2)(3)
550D825(1)050R2(2)(3)
550D106(1)050R2(2)(3)
550D126(1)050R2(2)(3)
550D156(1)050R2(2)(3)
550D186(1)050R2(2)(3)
550D226(1)050S2(2)(3)
4
4
5
5
6
8
9
11
3
3
3
3
3
3
4
4
0.300
0.275
0.250
0.230
0.210
0.190
0.175
0.160
Revision: 16-Nov-17
Document Number: 40017
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
550D
www.vishay.com
Vishay Sprague
TAPE AND REEL PACKAGING
in inches (millimeters)
Meets EIA standard RS-296
13.0 (330.2)
Standard reel
B
1.126 to 3.07
(28.6 to 78.0)
I. D. reel hub
1.374 to 3.626
(34.9 to 92.1)
0.047 [1.19] max.
Off center (1. a)
0.625 ± 0.0062 dia.
(15.88 ± 1.575)
dia. thru hole
Label (4. a)
“A”
0.750 (19.05)
Section “A” - “A”
Both sides (3. f)
0.125 (3.18) max.
0.250 (6.35) (3. b)
0.031 (0.79) (3. f)
A
“A”
Tape
spacing
Component
spacing
STANDARD PACKAGING QUANTITY AND DIMENSIONS
in inches (millimeters)
CASE
CODE
R
S
COMPONENT SPACING
A
0.400 ± 0.015
[10.16 ± 0.38]
0.400 ± 0.015
[10.16 ± 0.38]
TAPE AND REEL
TAPE SPACING
UNITS PER REEL
B
2.875 ± 0.062
500
[73.03 ± 1.57]
2.875 ± 0.062
500
[73.03 ± 1.57]
AMMO PACK
TAPE SPACING
UNITS PER BOX
B
2.063 ± 0.073
250
[53 ± 2]
2.063 ± 0.073
250
[53 ± 2]
STANDARD REEL PACKAGING INFORMATION
1. Component Leads
a. Component leads shall not be bent beyond 0.047"
[1.19 mm] maximum from their nominal position when
measured from the leading edge of the component lead
at the inside tape edge and at the lead egress from the
component.
b. The “C” dimension shall be governed by the overall
length of the reel packaged component. The distance
between flanges shall be 0.125" to 0.250" [3.18 mm to
6.35 mm] greater than the overall component length.
2. Orientation
All polarized components must be oriented to one
direction. The cathode lead tape shall be a color and the
anode lead tape shall be white.
3. Reeling
a. Components on any reel shall not represent more than
two date codes when date code identification is required.
b. Component leads shall be positioned between pairs of
0.250" [6.35 mm] tape.
c. The disposable reels have hubs and corrugated
fibreboard flanges and core or equivalent.
d. A minimum of 12.0" [304.8 mm] leader of tape shall be
provided before the first and after the last component on
the reel.
e. 50 lb or 60 lb. Kraft paper must be wound between layer
of components as far as necessary for component
protection. Width of paper to be 0.062" to 0.250"
[1.57 mm to 6.35 mm] less than the “C” dimension
of the reel.
f. A row of components must be centered between tapes
± 0.047" [1.19 mm]. In addition, individual components
may deviate from center of component row ± 0.031"
[0.79 mm].
Revision: 16-Nov-17
g. Staples shall not be used for splicing. Not more than
4 layers of tape shall be used in any splice area and no
tape shall be offset from another by more than 0.031"
[0.79 mm] non-cumulative. Tape splices shall overlap at
least 6.0" [152.4 mm] for butt joints and at least 3.0"
[76.2 mm] for lap joints and shall not be weaker than
unspliced tape. Universal splicing clips may also be used.
h. Quantity per reel shall be controlled so that tape
components and cover shall not extend beyond the
smallest dimension of the flange (either across flats or
diameter). Once the quantity per reel for each part
number has been established, future orders for that part
number shall be packaged in that quantity. When order or
release quantity is less than the established quantity, a
standard commercial pack is to be used.
i. A maximum of 0.25 % of the components per reel
quantity may be missing without consecutive missing
components.
j. Adequate protection must be provided to prevent
physical damage to both reel and components during
shipment and storage.
4. Marking
Minimum reel and carton marking shall consist of the
following: customer part number, purchase order no.,
quantity, package date, manufacturer’s name, electrical
value, date code, Vishay Sprague part number and
country of origin.
Document Number: 40017
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
550D
www.vishay.com
Vishay Sprague

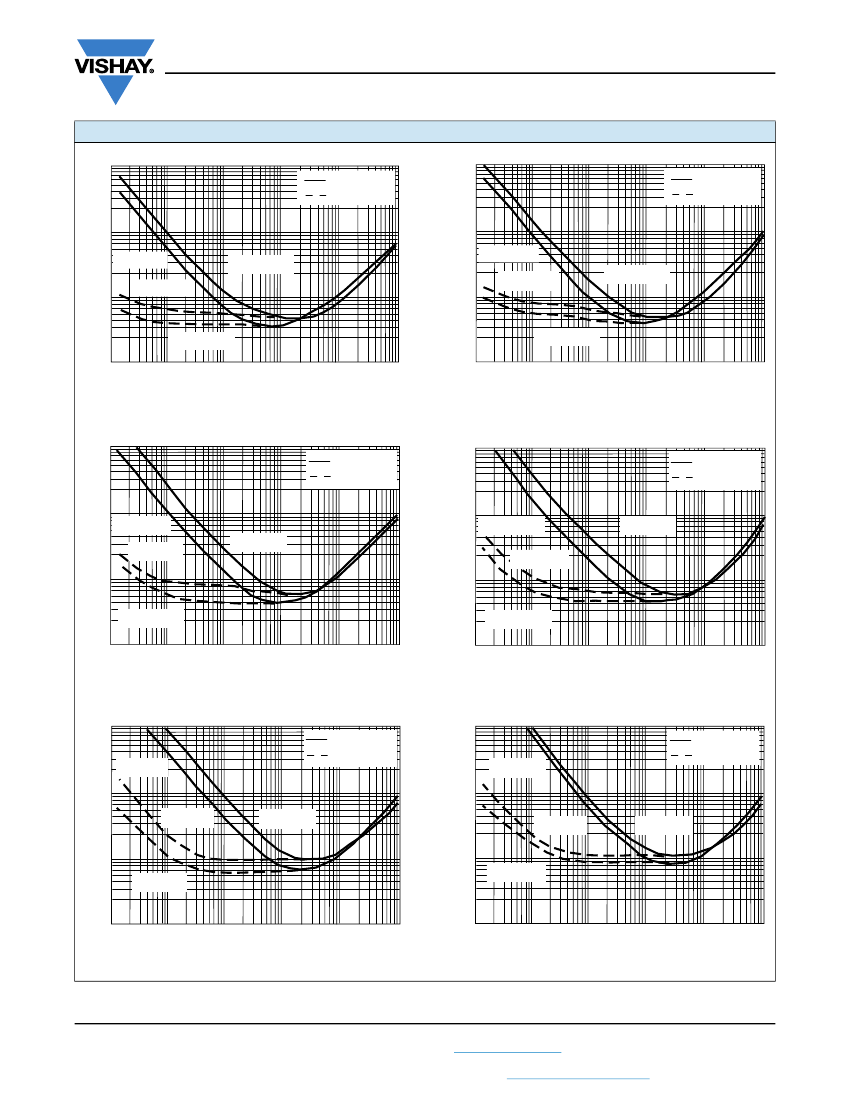

TYPICAL CURVES AT +25 °C, IMPEDANCE AND ESR VS. FREQUENCY
10
IMPEDANCE
ESR
1
330 μF, 6 V
180 μF, 6 V
220 μF, 10 V
120 μF, 10 V
0.1
120 μF, 10 V
10
IMPEDANCE
ESR
1
180 μF, 6 V
0.1
150 μF, 6 V
0.01
100
1K
10K
100K
1M
10M
0.01
100
1K
220 μF, 10 V
10K
100K
1M
10M
FREQUENCY IN Hz
FREQUENCY IN Hz
10
IMPEDANCE
ESR
10
IMPEDANCE
ESR
1
150 μF, 15 V
68 μF, 15 V
0.1
68 μF, 15 V
1
100 μF, 20 V
47 μF, 20 V
0.1
47 μF, 20 V
150 μF, 15 V
0.01
100
1K
10K
100K
1M
10M
0.01
100
100 μF, 20 V
1K
10K
100K
1M
10M
FREQUENCY IN Hz
FREQUENCY IN Hz
10
IMPEDANCE
ESR
47 μF, 35 V
1
10
IMPEDANCE
ESR
22 μF, 50 V
1
22 μF, 35 V
22 μF, 35 V
18 μF, 50 V
18 μF, 50 V
0.1
47 μF, 35 V
0.1
22 μF, 50 V
0.01
100
1K
10K
100K
1M
10M
0.01
100
1K
10K
100K
1M
10M
FREQUENCY IN Hz
FREQUENCY IN Hz
Revision: 16-Nov-17
Document Number: 40017
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Embedded System
京公网安备 11010802033920号
EEWORLD
