5452683

Description
TERM BLOCK HDR 18POS 90DEG 5MM
CategoryThe connector
File Size107KB,3 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

5452683 Online Shopping

Suppliers Part Number Price MOQ In stock
5452683 - - View Buy Now

5452683 Overview

TERM BLOCK HDR 18POS 90DEG 5MM

5452683 Parametric

Parameter NameAttribute value
typeConnector, male pins, shrouded (4 sides)
Number of pins18
Number of pins per level9
Number of levels2
spacing0.197"(5.00mm)
Needle seat direction90°, right angle
Plug entrance-
Terminal typewelding
Installation typeThrough hole
Current - IEC10A
Voltage - IEC320V
Current - UL12A
Voltage - UL300V
Wire Gauge or Range - AWG-
Wire gauge or range - mm²-
colorblack
Operating temperature-
Contact mating surface treatmenttin
characteristic-
Material flammability rating-
Intrusion protection-
Screw size-
Torque - Screws-
Wire stripping length-
Contact material-
Shell material-
Contact tail length0.126"(3.20mm)
Insulation height0.933"(23.70mm)
https://www.phoenixcontact.com/us/products/5452683

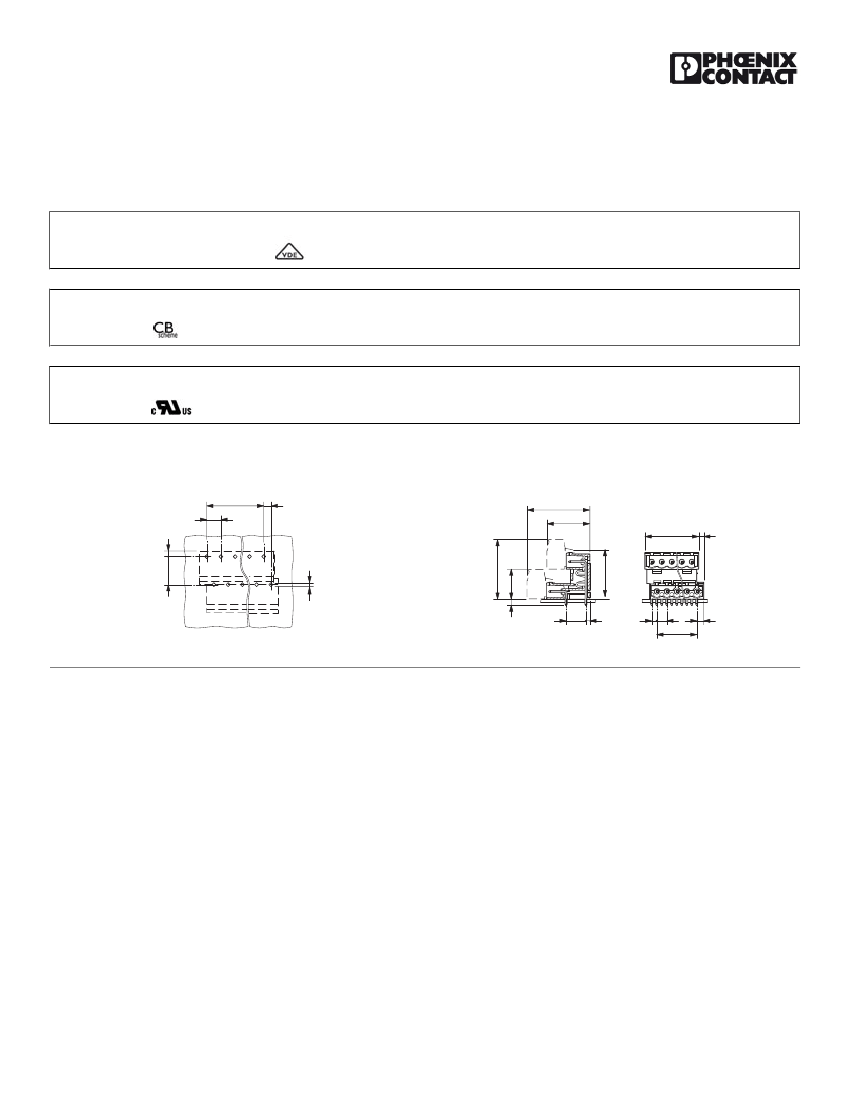

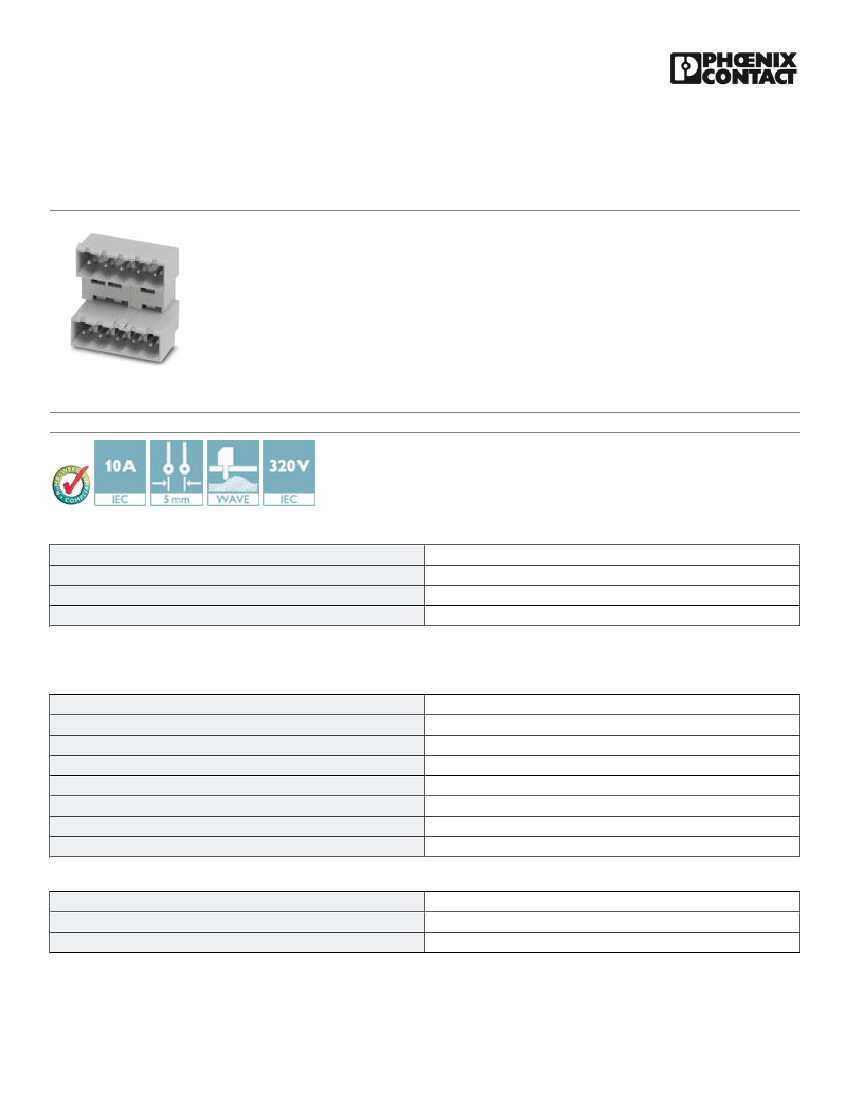

Printed-circuit board connector - BCDH-500HS- 9 BK - 5452683
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V, Number of positions: 9, Pitch: 5 mm, Color: black,
Contact surface: Tin, Mounting: Wave soldering
The figure shows a 5-pos. version of
the product in gray
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
100 pc
85366990
Germany
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27261101
27440401
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
05/06/2016   Page 1 / 3
