Datasheet> All Categories > The connector> 54393-1781

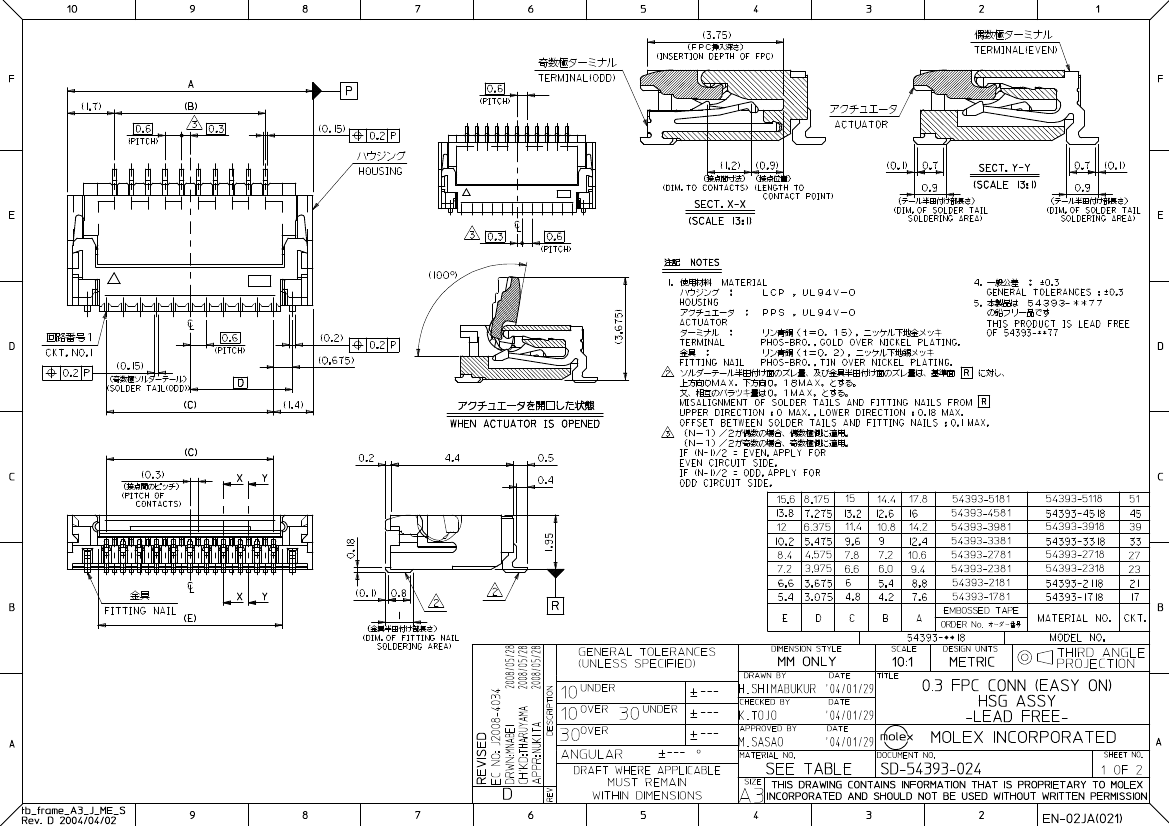

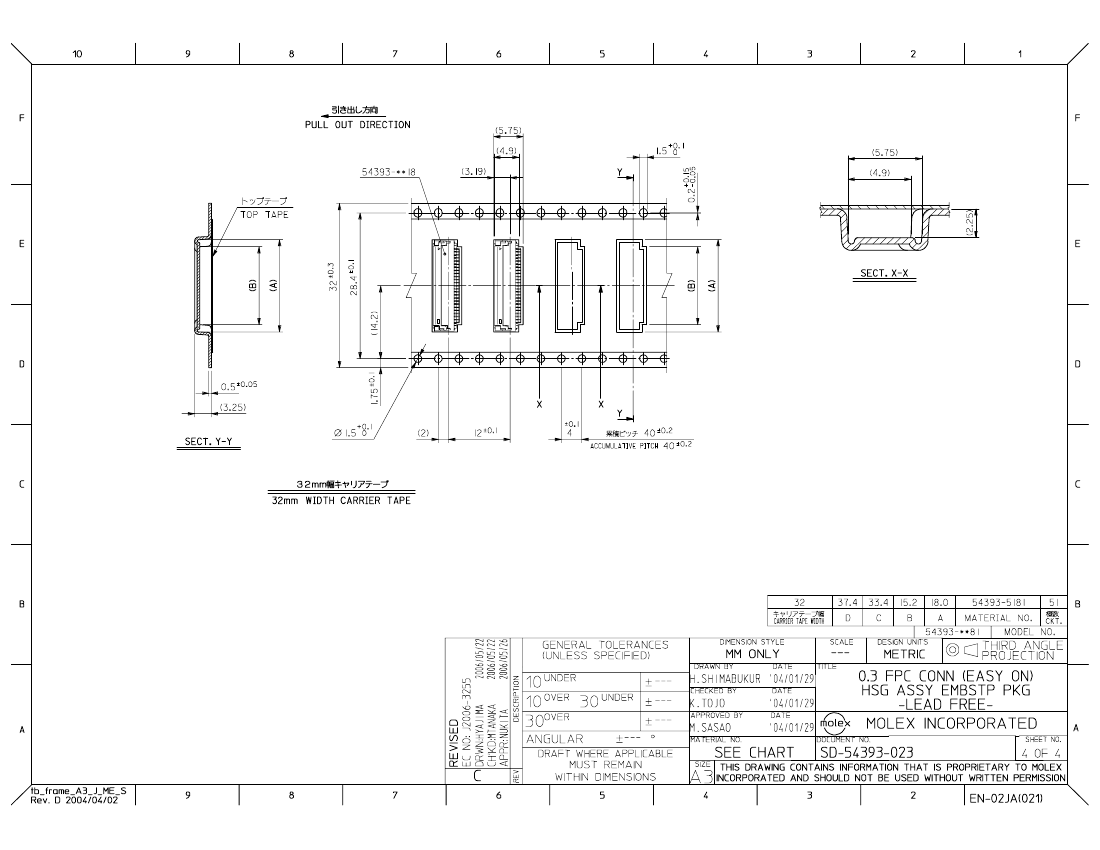

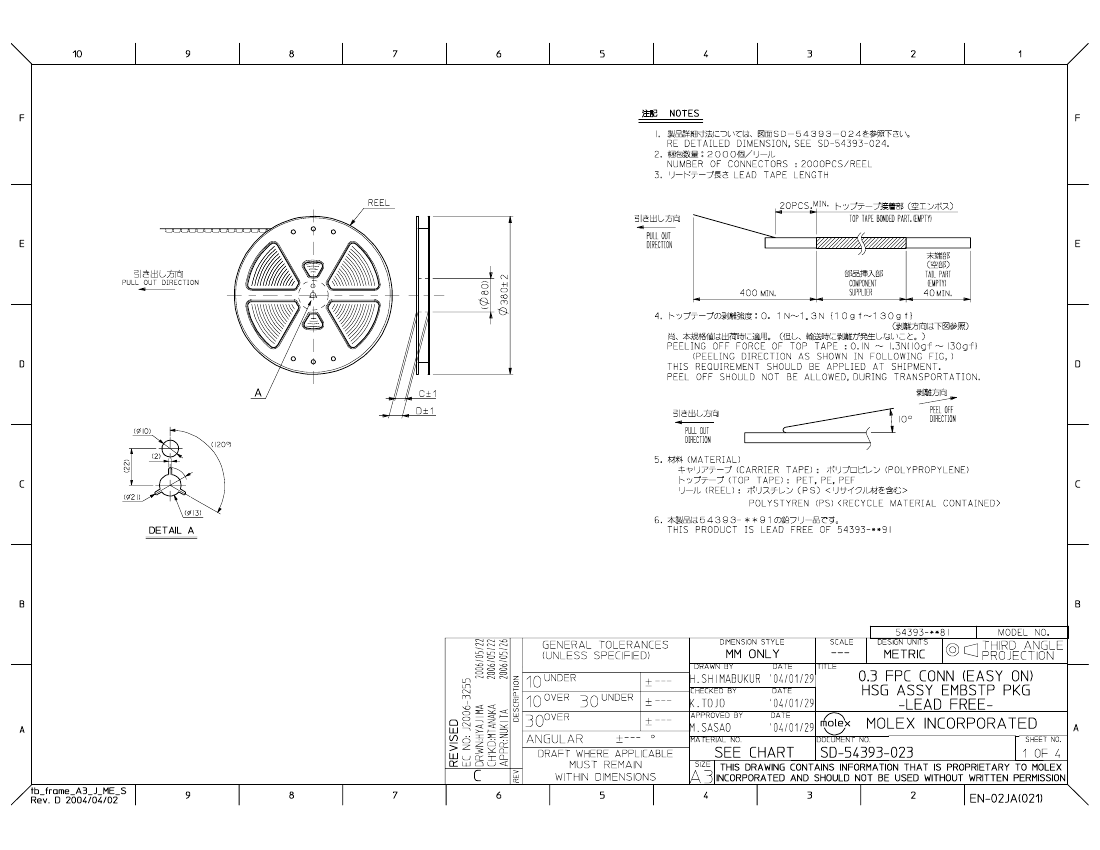

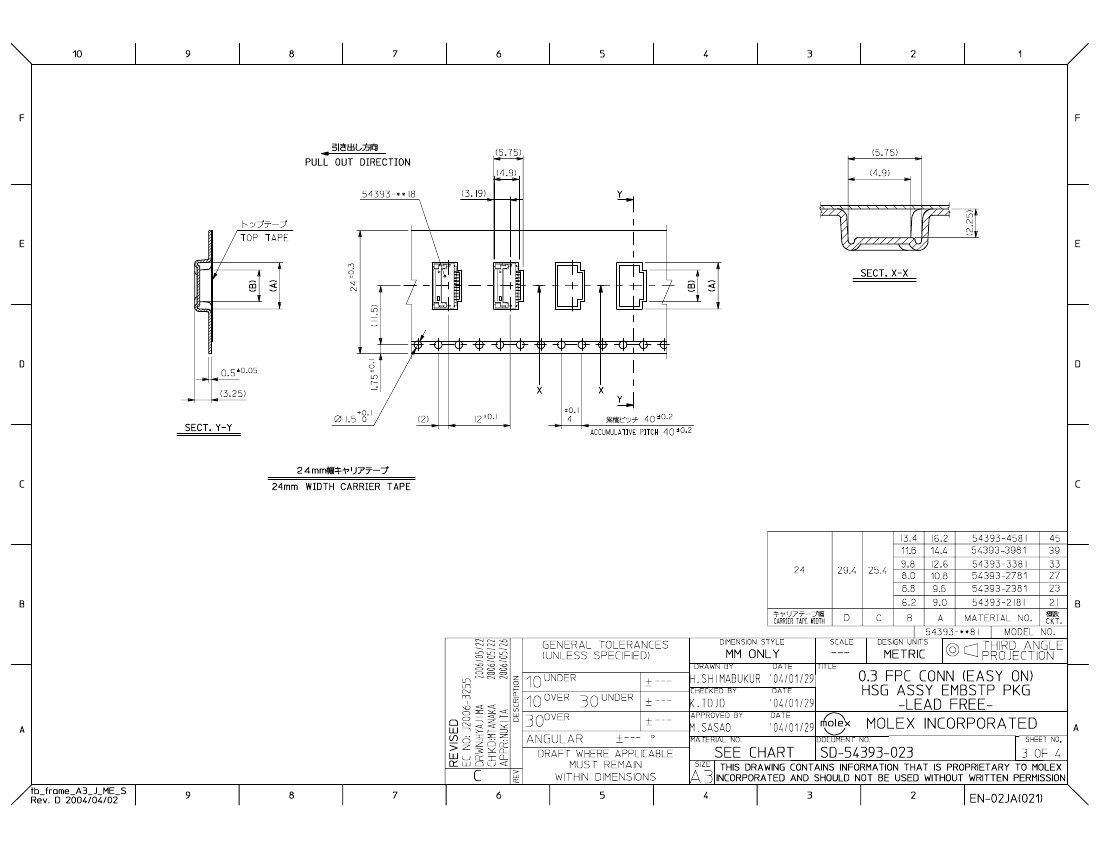

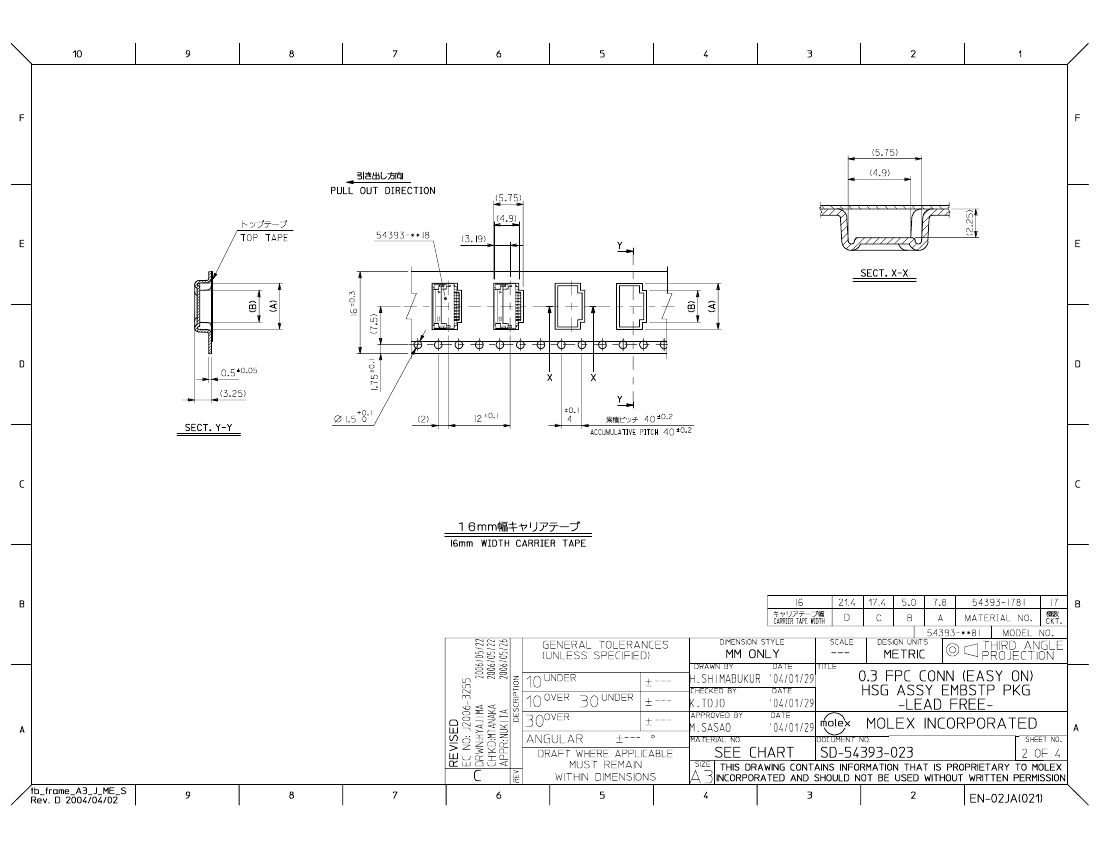

Preview

54393-1781: DescriptionCONN FPC BOTTOM 17POS 0.30MM R/A; CategoryThe connector; File Size455KB，6 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

54393-1781 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54393-1781	-	-	View	Buy Now

54393-1781 Overview

CONN FPC BOTTOM 17POS 0.30MM R/A

54393-1781 Parametric

Parameter Name	Attribute value
Flat flexible type	FPC
Installation type	Surface mount, right angle
Connector/contact type	contact, bottom
Number of pins	17
spacing	0.012"（0.30mm）
Termination	welding
FFC, FCB thickness	0.20mm
board height	0.077"（1.95mm）
Lock function	trigger lock
Cable end type	tapered
Contact material	Phosphor bronze
Contact plating	gold
Shell material	Liquid Crystal Polymer (LCP)
Actuator material	Polyphenylene sulfide (PPS)
characteristic	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-20°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.2A
Contact plating thickness	8.00µin（0.203µm）
Shell color	-
Actuator color	-
Number of patches	20

Preview

Download Datasheet

View All

54393-1781 Related Products

	54393-1781	54393-2181	54393-2381	0543932781	0543933381	54393-4581
Description	CONN FPC BOTTOM 17POS 0.30MM R/A	CONN FPC BOTTOM 21POS 0.30MM R/A	CONN FPC BOTTOM 23POS 0.30MM R/A	CONN FPC BOTTOM 27POS 0.30MM R/A	CONN FPC BOTTOM 33POS 0.30MM R/A	CONN FPC BOTTOM 45POS 0.30MM R/A
Flat flexible type	FPC	FPC	FPC	FPC	FPC	FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom
Number of pins	17	21	23	27	33	45
spacing	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）
Termination	welding	welding	welding	welding	welding	welding
FFC, FCB thickness	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm
board height	0.077"（1.95mm）	0.077"（1.95mm）	0.077"（1.95mm）	0.077"（1.95mm）	0.077"（1.95mm）	0.077"（1.95mm）
Lock function	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock
Cable end type	tapered	tapered	tapered	tapered	tapered	tapered
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	gold	gold	gold	gold	gold	gold
Shell material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Actuator material	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)	Polyphenylene sulfide (PPS)
characteristic	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V	50V	50V	50V	50V	50V
Operating temperature	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.2A	0.2A	0.2A	0.2A	0.2A	0.2A
Contact plating thickness	8.00µin（0.203µm）	8.00µin（0.203µm）	8.00µin（0.203µm）	8.00µin（0.203µm）	8.00µin（0.203µm）	8.00µin（0.203µm）
Number of patches	20	20	20	20	20	20
